Gas Turbines for Sale

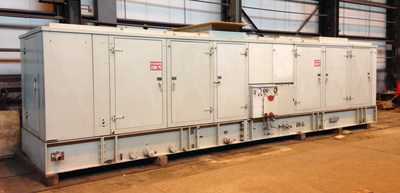

Used 7640KW/8820KW Solar Mars 90, Version 12000 gas turbine generating set, in outdoor enclosure. Natural gas, 3/60/4160V Ideal brushless generator, with Allen epicyclic gear reducer, Woodward 2301 governor, Basler solid state voltage regulator, AO2 fire control panel, AC starting motor, lube system, and relating accessories. Installed in 1989. Shut down 2007.

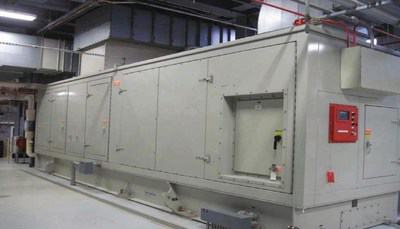

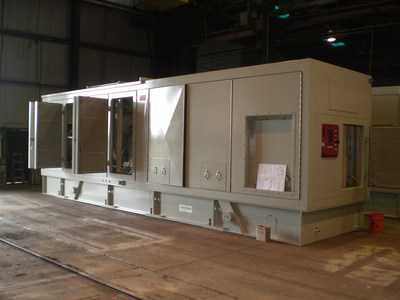

Used 5200 KW Solar Taurus 60 T7301 housed generating set, 3/60/4160V set up to operate on landfill gas or natural gas, manufactured in 2001, used until 2007 and stored under Solar care since. Generator rebuilt. Borescope inspection reports available upon request. Auxiliaries included: Lube oil coolers, fire cylinder cabinet, neutral ground resistor, switchgear, Air intake housings, oil filter skids, exhaust spool pieces, turbine exhaust stacks, Donaldson air filters, rain hood skids, air intake ducts, oil heater skids. (Qty 2 Available)

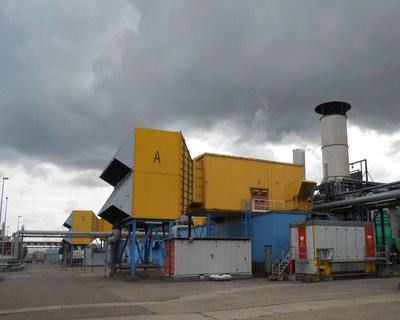

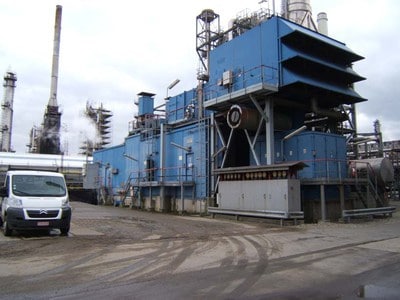

This complete 50 Hz power plant is still in operation. The plant has GE Frame 6B (type PG6541B) gas turbine with 25,108 operating hours since its last overhaul in 2012. The heat rate of gas turbine is 11,460 KJ/kWh. The gear box has speed ratio of 5,100 : 3,000 rpm. The generator was manufactured by GEC Alsthom, with voltage 11 KV, rate output 52.975 MVA, power factor 0.8. This plant also includes critical spare parts, special tooling, and other equipment such as air intake / filtration system, inlet ducting, lateral exhaust ducting, stack, outdoor enclosures, natural gas skid, fire protection container (CO2), and electrical / electronic control cabinet with speedtronic turbine control system (Mark V), motor control center, generator breaker and protection and control System, operator control module.

This 39 MW Power Plant Includes a GEC Alsthom Frame 6B Natural Gas Fired Turbine Generator Type PG6541B. Power plant had major overhaul in 2007. Operates as one unit: 11KV, 3 Phase, 50 Hz.

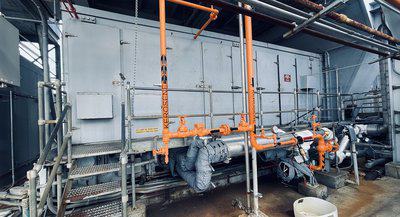

Used 81730 KW gas turbine generator. Manufactured by General Electric. Gas turbine generator set consists of following: GE model 7A1PEA38-1 gas turbine, duel fuel, base rated 81,730 KW, Peak rated 89,490 KW, water injected combustion with inlet air cooled. Heat rate @ Iso 10,480 btu/kwh. 3600 rpm, CCW rotation. Serial #295600. 800 hp starter, manufactured by GE. Model #8213825402. 3570 rpm, frame 8211Z, 2300/4000v, Built 1997. Philadelphia Accessory gear box with atomizing air compressor. Side exhaust to HRSG and steam injected for Nox control. Worthington Natural gas compressor. Liquid fuel pump and supply system. GE TEWAC 105,778 kva generator, 13800V/3ph/60 hz. pf: 0.9. 4425 amps, 300 v exciter volts , field amps 874, 3600 rpm. Serial #336X349. Mark IV control system, EX2000 exciter, GAC with GE Type VVC-13.8-1000-0GV circuit breaker. Total hours 61344. Major inspection and upgrade in 2000. Last overhaul in 2013. 3000 hours since last overhaul. Built 1992, shutdown 2022.

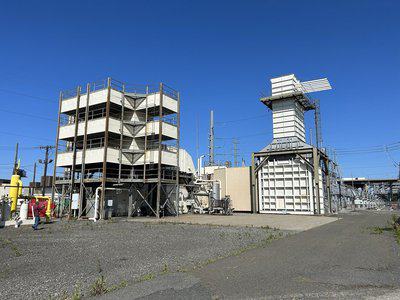

Used 81 MW Gas Turbine Generator. Manufactured by General Electric. Model 7EA. Consisting of: GE MS-7000 Heavy-Duty Gas Turbine (7EA) 81 MW nominal, Water injection and Inlet Fogging, Dual fuel (natural gas-fuel oil) combustion system. Serial #295581. GE Air Cooled combustion turbine generator. 104000 KVA, 13.8 kV, 0.9 power factor, 2-pole, 3,600 rpm. Serial #336X335. 15749.9 fired hours, 2719 starts. Generator rewind/AVR upgrade in 2019. Built in 1990.

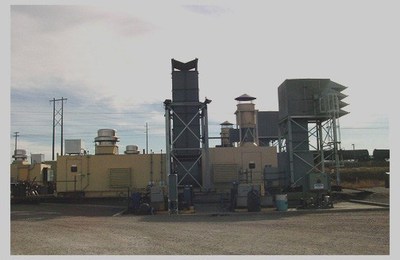

This Power Generation plant includes a fully refurbished 8.5 Megawatt LM Alternatives LMA-1550AX Gas Turbine (with aftermarket diesel/LNG/NG/Av-gas conversion) kit, 13.8kV/60Hz Ideal Electric Generator, Lufkin Single Reduction Gearbox, and (2) Lubrication skids. Mounted in sound reducing enclosures with gas and fire sensors. Rebuild serial# 45330/124NGT. Manufactured 7/2004. Unused since inital startup.

Used 7.43 MW gas turbine generator. Manufactured by Solar Turbines. Solar Taurus 70 gas turbine engine. Serial #0707B. Kato Engineering 7600 Kw generator. Model #AA28701000. 12470 VAC/60 Hz/3 Phase. Serial #25700-01. The reduction gearbox designed by Solar. 13600 HP, 10149 BTU/KWH Heat rate. Starts @ 125. Total 12205 working hours. Serial #SEP11-98816. Available with following components: Rentech Waste Heat Boiler, Trane/Thermax LiBr Absorption Chillers (1,000-ton unit), SCR, Gas compressor, Electric Gear MV and MCC. Major parts available. No cooling tower and exhaust piping. Built 2011.

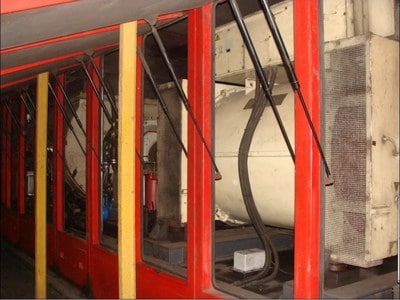

Used 7.52 MW Solar Taurus 70 Solonox Natural Gas Based Turbine. Version 10301S. Generating Power at 6.6 KV/50 Hz. Turbine hours: 14652. Solar Turbine Gear box. Leroy Somer 6600V Generator. Dresser Rand Compressors (3). with PCC panel, filter structure and motorized flue gas diverter valve, stainless steel flue gas chimney. Cethar Vessel waste Heat recovery boiler capacity 13.2kg@ 14.2 TPH. Package commissioned in 2004. Turbine and Gear Box warrantied through 2019.

Used Solar Taurus 60 Model 7801 Dual Fuel (Nat Gas/#2 FO) Combustion Turbines. Operating Speed 14900 RPM. Generator: Solar Turbines 5300kW/12470V. Fuel: Dual Fuel. Nat gas 250-300psig. 1400 scfm. Fuel oil: 35050 psig. 8 gpm. Includes lube oil cooler, Donaldson air intake filter and operating manual. (2 available) (also see plant #1041)

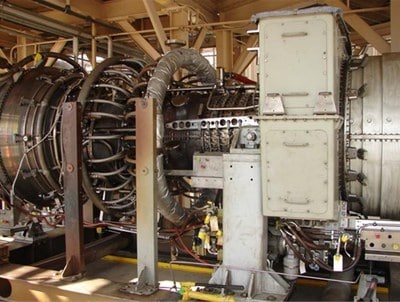

Used 50MW GE LM 6000PC Gas Turbine. Fuel: PUC Quality NG. NOx Steam Injection. Total Starts since overhaul: 191. Hours since overhaul: 56,022 of which 33502 were Hot Section hours. Turbine run at max 40.5MW gross. Operation and Maintenance data available. Unit Available with balance of CHP plant: SCR Unit, CO Catalyst, Reverse Osmosis, MCCs, Generator Main Breakers, Transformers, 92 MMBTU Natural Gas Fired Heater & Burner Management System, Syltherm 800 Heat Transfer Fluid, Heat Exchangers.

Used 4.4 Megawatt Siemens SGT 100 Matyure Typhoon Gas Turbine set consisting the following: Synchronous A.C. Generator. Rev./min 1500, 11000V, 50Hz, 3Phase. Rating S1(Cont) Class B. Intake fuel gas or diesel. Ambient Temperature 15C/59F, Brushless extension. Frame #DG710/1900V, Serial #L41208401, Built 1994. Available with Cochran Waste Heat Boiler. Rated 260 psi, 10192 kg/hr steam (TEG), 17000 kg/hr supplementary gas firing. Bellis & Morcom HP Gas Compressor, 1724 SMCH, discharge pressure 282 psi. Total run time 29000 hours.

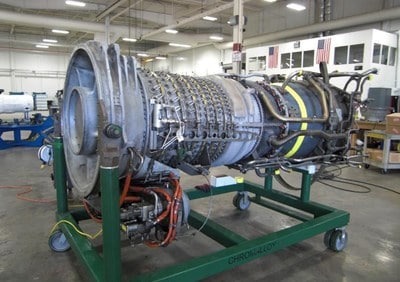

This power generation package includes a refurbished GE LM2500PE Gas Turbine and a BADX 7-167ER generator manufactured by Brush Electric Machines. The LM2500PE gas generator incorporates a 16-stage axial-flow compressor capable of reaching 18:1 pressure ratio. Inlet guide vanes and adjustable stator vanes on the first six compressor stages provide for efficient operation over the entire operating range. The LM2500 is a simple cycle, two shaft engine consisting of a gas generator and a power turbine. Generators are directly coupled to the Power Turbine Flange for 50 Hz. The LM2500 features variable geometry in the compressor, an annular combustor, air-cooled turbine blades and vanes, and a power turbine designed to provide high efficiency over a wide range of output power. Modular construction simplifies field repair and replacement. The LM2500 is manufactured with corrosion resistant coatings to extend hot section life. Excluded from the package are (1) Exhaust silencer, a flex joint, a transition section and exhaust stack; (2) Air Filtration System and metal beam support system for the air filtration housing; (3) Metal beam support.

Used 6750 KW Cogeneration Plant. Manufactured by Siemens. Natural gas-fired with 2,220 Nmc gas consumption per hour. (2) sets available. Each set consists of: Siemens SGT 200 gas turbine. Allen Gears 8579 kW Gear Box, Assembly #780201, ASG 32 size, 2 bar lubricating oil pressure. Generator with output voltage 6.3 kV, 50 Hz frequency. 13 t/h steam (15 ata, 2400C) steam boiler with 1.6 MPa (16 bar) [1.5 MPa(g)] pressure.

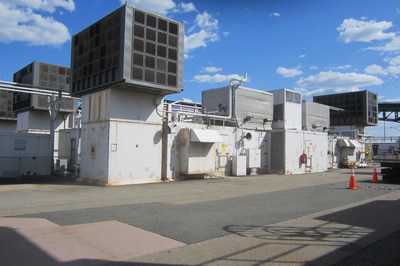

Simple-Cycle, Gas Turbine Power Generating Station, dual fuel (natural gas or kerosene), with a twin-pack configuration. (8) FT4 A9 Pratt & Whitney Gas Turbines, (4) 46,500 KVA Electric Machinery Generators, (1) Transformer Available. Each Twin-Pack consists of (1) Generator and (2) FT4 A9 gas turbine engines (A or Counter & B or Counter Clock side), which together produce 42 MW. It is possible to operate only 1 side or ½ of the Twin-Pack to produce only 21 MW. All (4) Twin-Packs are available and can produce 168 MW; individual Twin-Packs also available.

Used Solar Mars 100 SoLoNOx Gas Turbine. Output 11.4MW. Version 15000S. 15000 HP. 11168 RPM. Housed on skid in weatherproof sound attenuating enclosure and fire detection and suppression system. Inlet System Barrier Filter and Silencer mounted on ancillary skid on the roof of the enclosure. Allen Gears Epicyclic Gear Reduction Box. Type: Industrial. 1800 RPM. 60Hz. Generator Data: Ideal Electric Brushless AC Generator with Permanent Magnetic Alternator. Alternator data: 2.2kW. PF.9. 1 Phase. 240v/10A/120Hz Class F. Serial #981012-01. Frame PM-14-3. Package Hours 29,085 hr. Engine Hours 127,775 hr. Gen Skid includes Lube oil tank, pumps, filters, start system with AC Direct Drive AC Motor, VFD, Drive Adapter, & Clutch Assembly. Lube oil cooler. Includes integrated Allen Bradley PLC Control system and operator interface. 20 Lead Acid Batteries with Charger 24 Volt 30 amp Charger, Single phase input.
