81 MW General Electric 7EA Gas Turbine Generator Set
Other Views - click image for larger view
81 MW General Electric 7EA Gas Turbine Generator Set 81 MW General Electric 7EA Gas Turbine Generator Set 81 MW General Electric 7EA Gas Turbine Generator Set 81 MW General Electric 7EA Gas Turbine Generator Set 81 MW General Electric 7EA Gas Turbine Generator Set 81 MW General Electric 7EA Gas Turbine Generator Set
Stock # 19866
Capacity 81 MW
Products Not Listed
Sold

Overview

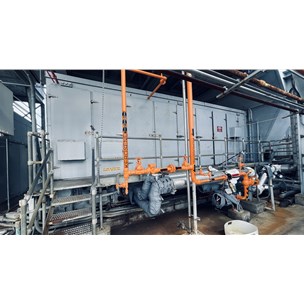

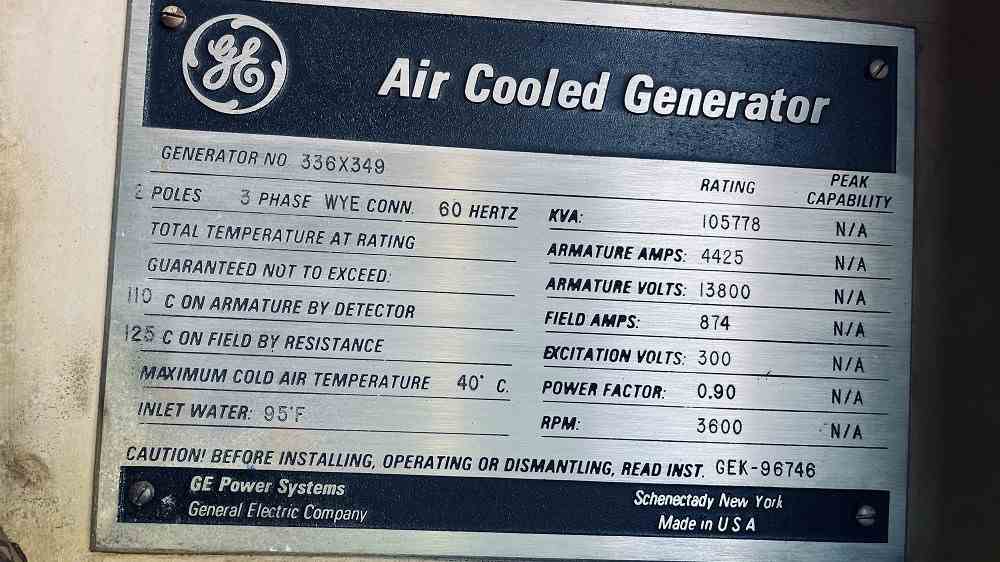

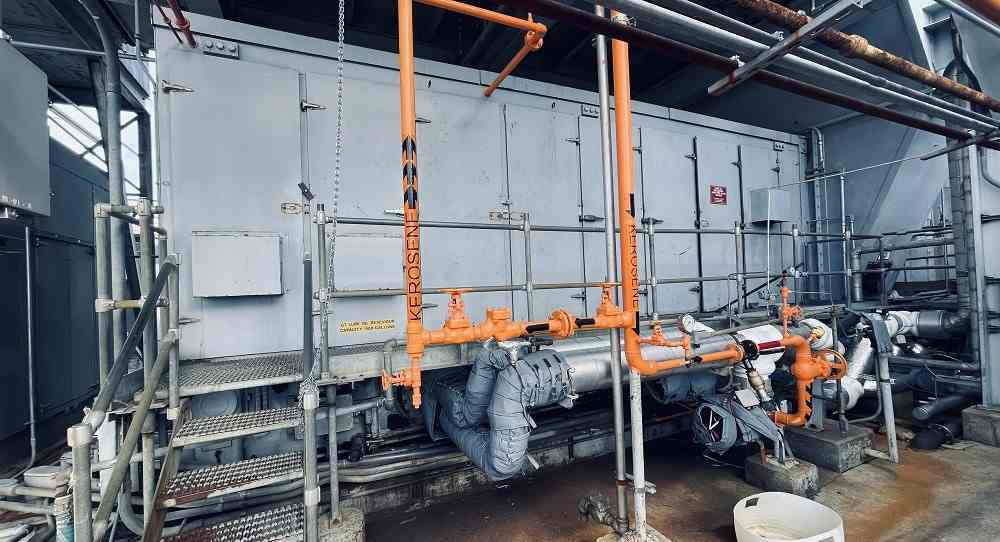

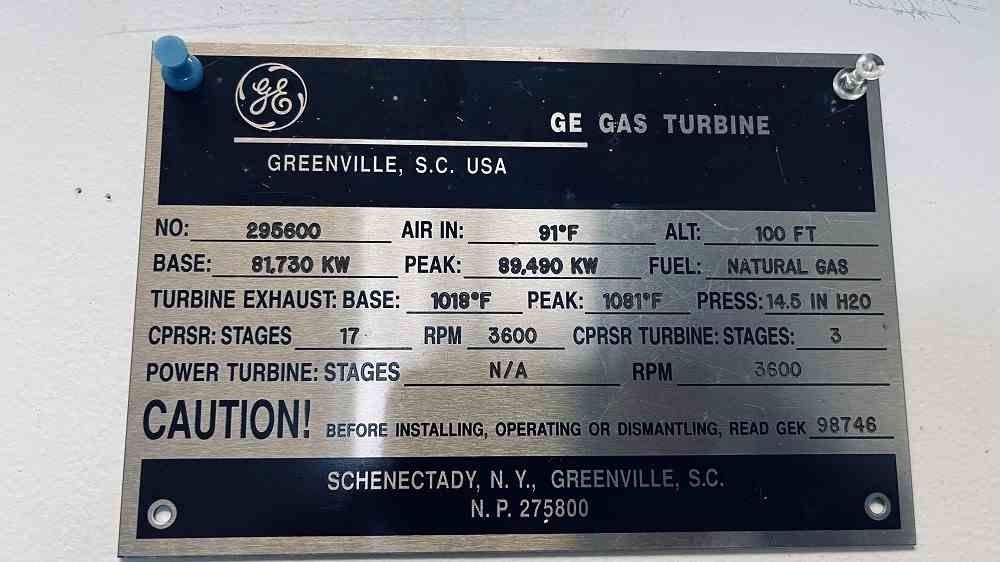

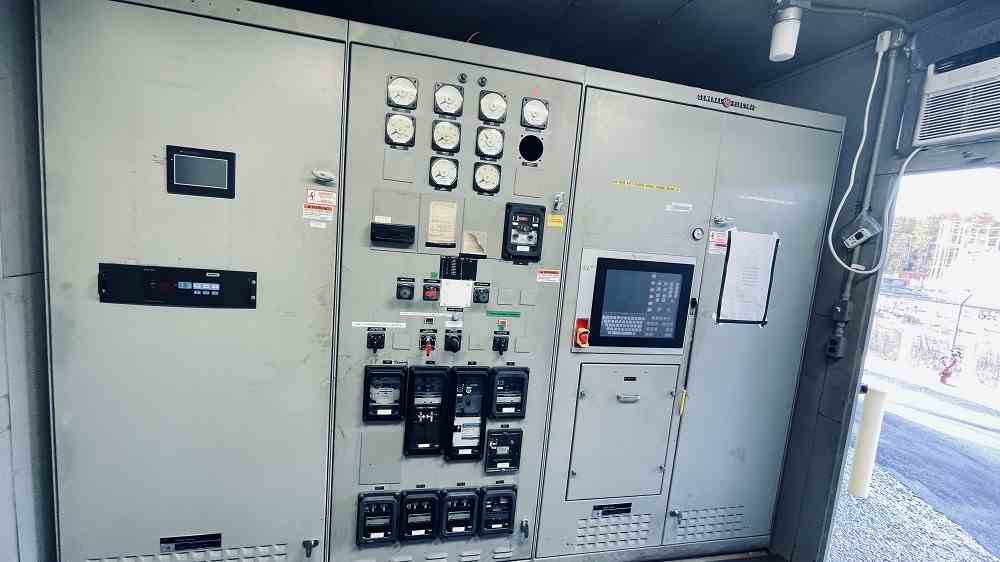

Used 81730 KW gas turbine generator. Manufactured by General Electric. Gas turbine generator set consists of following: GE model 7A1PEA38-1 gas turbine, duel fuel, base rated 81,730 KW, Peak rated 89,490 KW, water injected combustion with inlet air cooled. Heat rate @ Iso 10,480 btu/kwh. 3600 rpm, CCW rotation. Serial #295600. 800 hp starter, manufactured by GE. Model #8213825402. 3570 rpm, frame 8211Z, 2300/4000v, Built 1997. Philadelphia Accessory gear box with atomizing air compressor. Side exhaust to HRSG and steam injected for Nox control. Worthington Natural gas compressor. Liquid fuel pump and supply system. GE TEWAC 105,778 kva generator, 13800V/3ph/60 hz. pf: 0.9. 4425 amps, 300 v exciter volts , field amps 874, 3600 rpm. Serial #336X349. Mark IV control system, EX2000 exciter, GAC with GE Type VVC-13.8-1000-0GV circuit breaker. Total hours 61344. Major inspection and upgrade in 2000. Last overhaul in 2013. 3000 hours since last overhaul. Built 1992, shutdown 2022.

Major Equipment

Share
SPECIFICATIONS RESOURCES
Year Built
1992
Year Shut
2022
Capacity
81 MW
