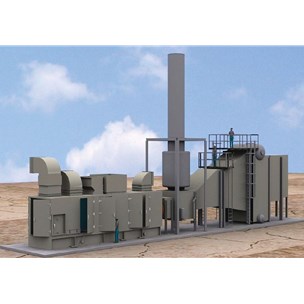

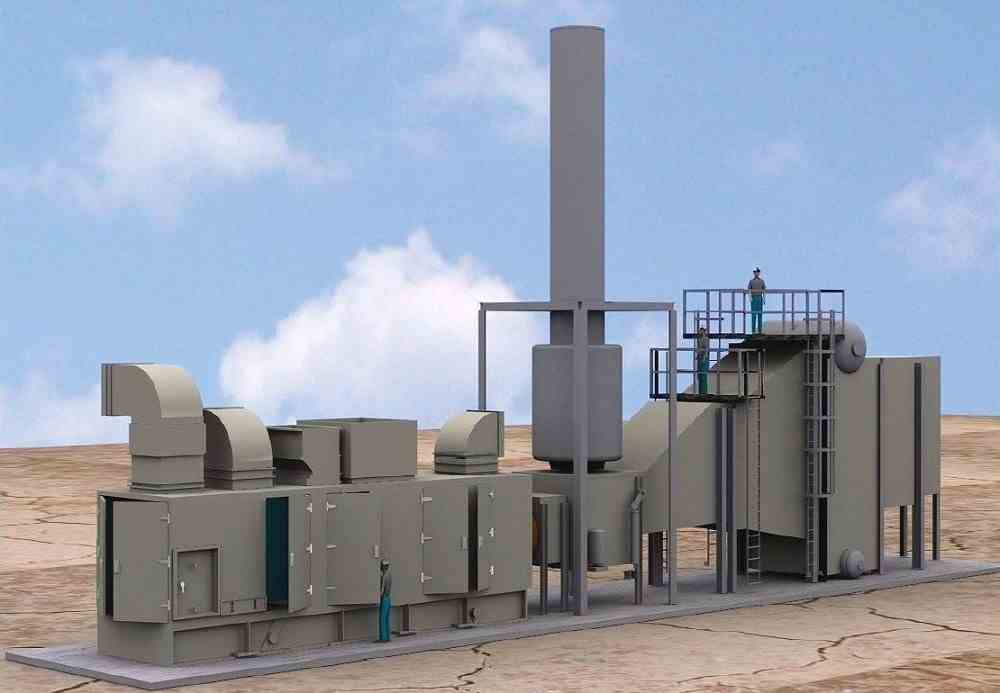

7430 KW SOLAR TAURUS 70 GAS TURBINE GENERATOR
Other Views - click image for larger view
7430 KW SOLAR TAURUS 70 GAS TURBINE GENERATOR 7430 KW SOLAR TAURUS 70 GAS TURBINE GENERATOR 7430 KW SOLAR TAURUS 70 GAS TURBINE GENERATOR 7430 KW SOLAR TAURUS 70 GAS TURBINE GENERATOR 7430 KW SOLAR TAURUS 70 GAS TURBINE GENERATOR 7430 KW SOLAR TAURUS 70 GAS TURBINE GENERATOR 7430 KW SOLAR TAURUS 70 GAS TURBINE GENERATOR
Stock # 19809
Capacity 7430 KW
Products Not Listed
Sold

Overview

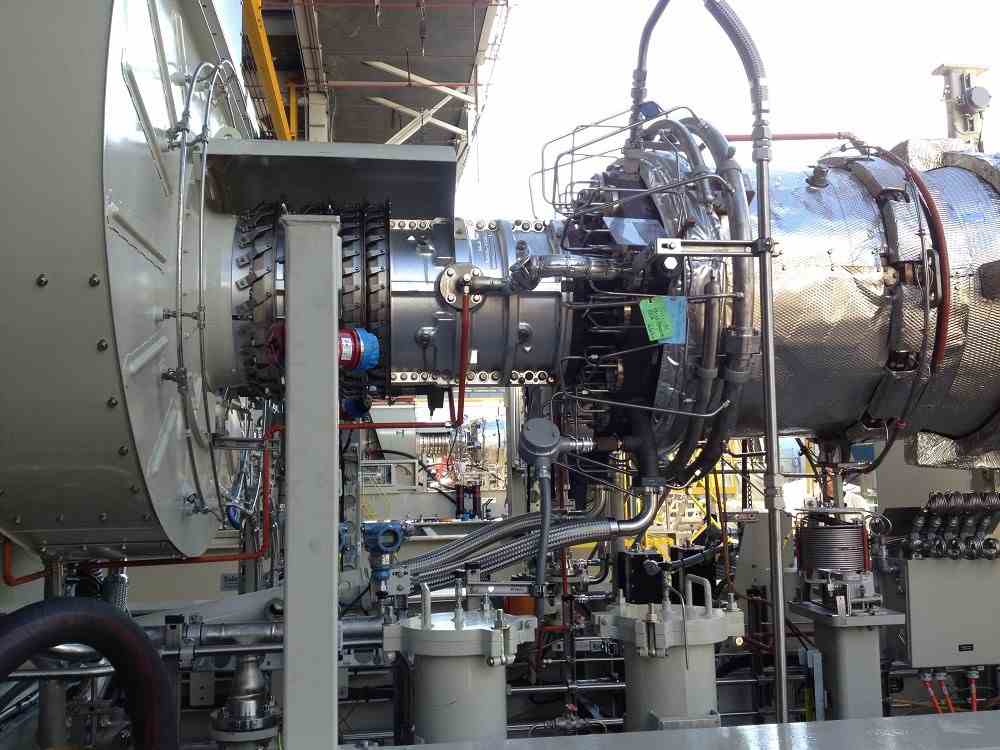

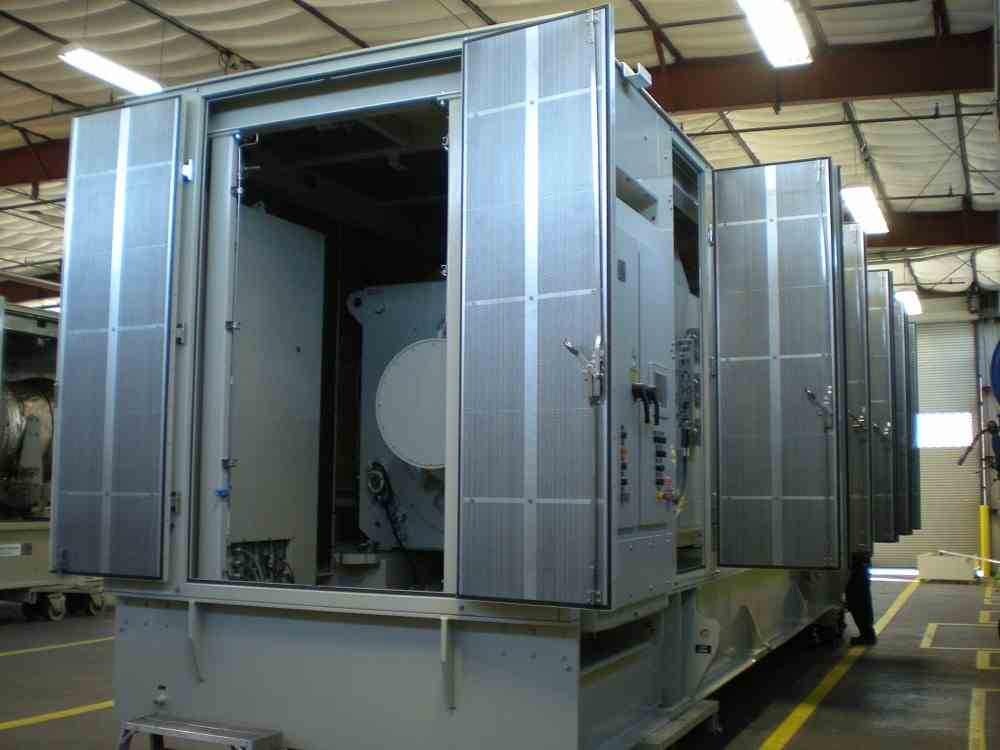

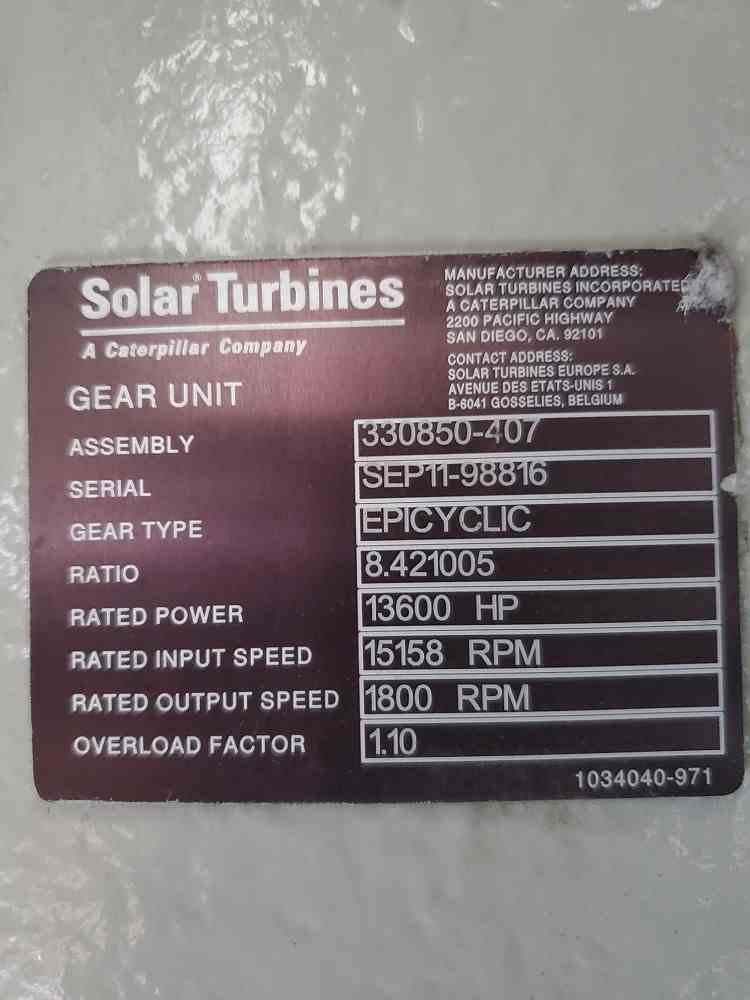

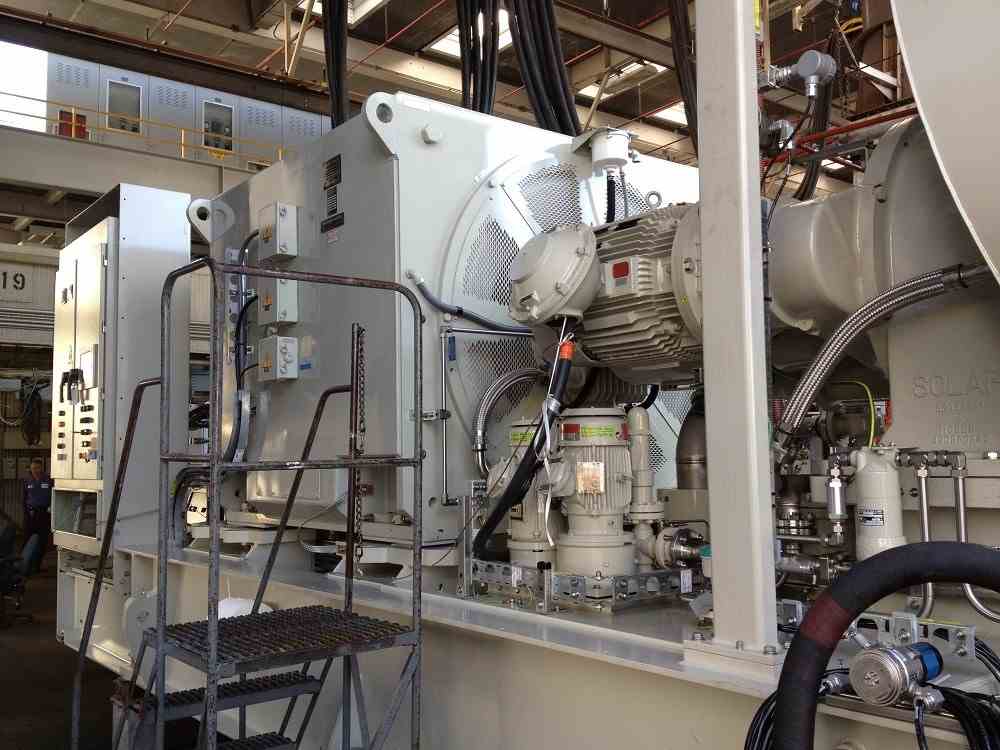

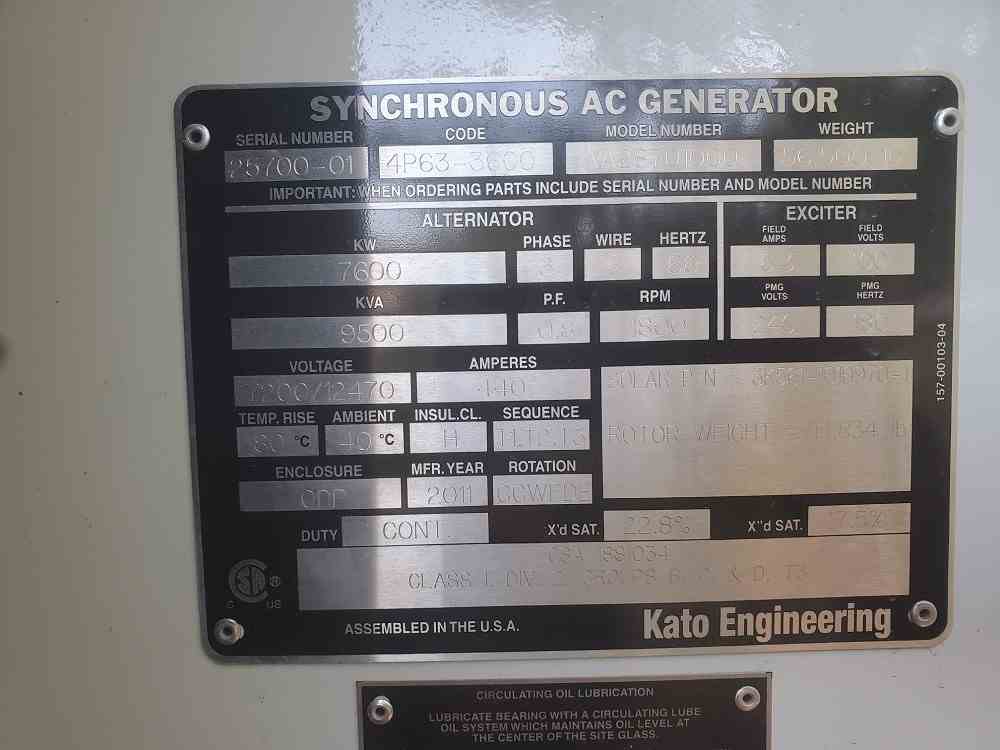

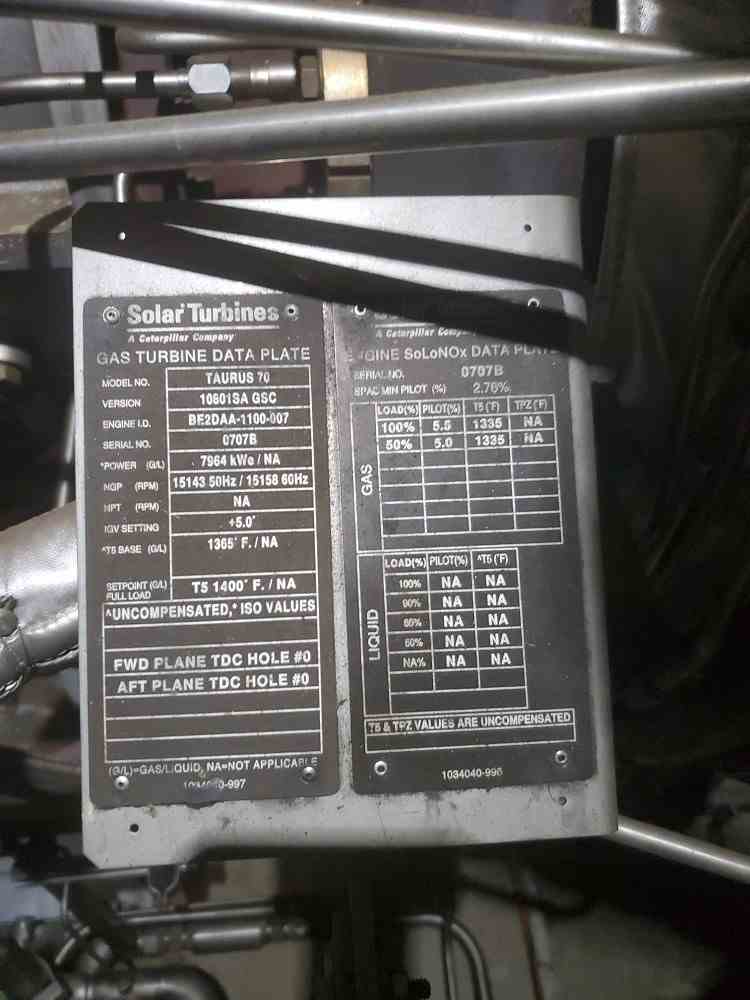

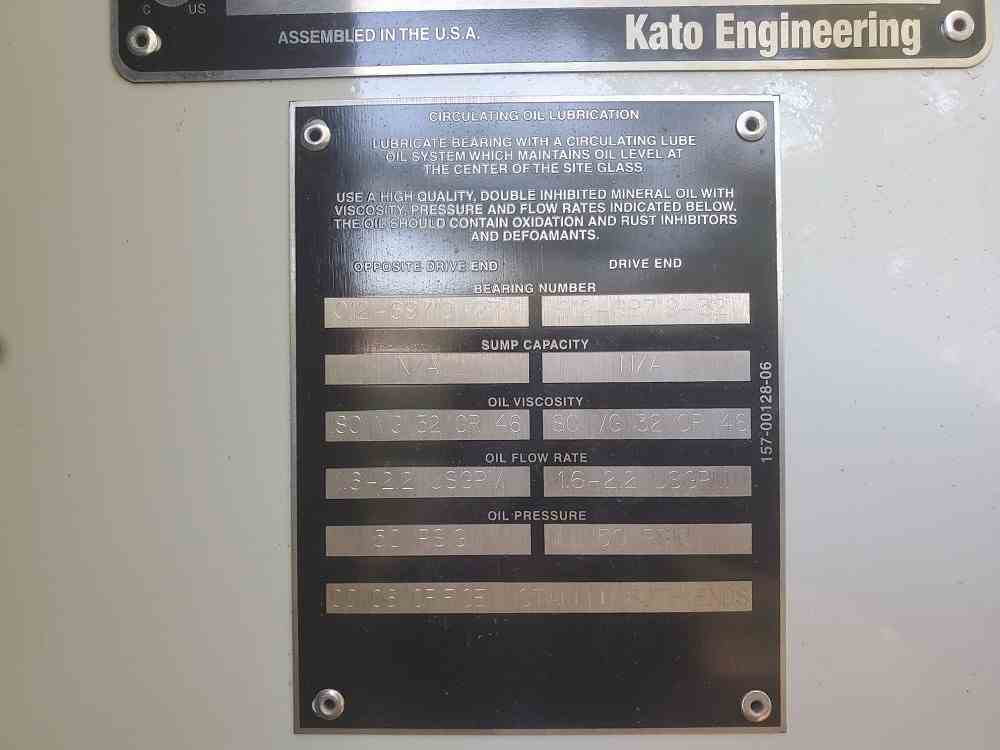

Used 7.43 MW gas turbine generator. Manufactured by Solar Turbines. Solar Taurus 70 gas turbine engine. Serial #0707B. Kato Engineering 7600 Kw generator. Model #AA28701000. 12470 VAC/60 Hz/3 Phase. Serial #25700-01. The reduction gearbox designed by Solar. 13600 HP, 10149 BTU/KWH Heat rate. Starts @ 125. Total 12205 working hours. Serial #SEP11-98816. Available with following components: Rentech Waste Heat Boiler, Trane/Thermax LiBr Absorption Chillers (1,000-ton unit), SCR, Gas compressor, Electric Gear MV and MCC. Major parts available. No cooling tower and exhaust piping. Built 2011.

Major Equipment

-Solar Taurus 70 gas turbine engine
-Generator
-Solar Speed Reduction Gearbox
-Rentech Waste Heat Boiler
-Trane/Thermax LiBr Absorption Chillers (1,000-ton unit)
-SCR
-Gas compressor
Share
SPECIFICATIONS RESOURCES
Year Built
2011
Year Shut
Capacity
7430 KW
Subcategory
