11.4 MW Solar Mars 100 SoLoNOx Gas Turbine Generator
Other Views - click image for larger view
11.4 MW Solar Mars 100 SoLoNOx Gas Turbine Generator 11.4 MW Solar Mars 100 SoLoNOx Gas Turbine Generator 11.4 MW Solar Mars 100 SoLoNOx Gas Turbine Generator
Stock # 12110
Capacity 11.4MW
Products Not Listed
Sold

Overview

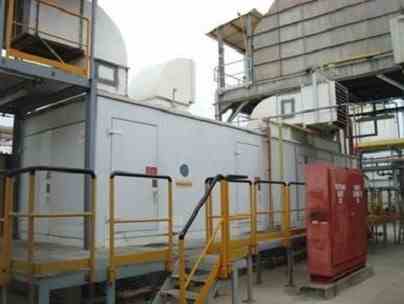

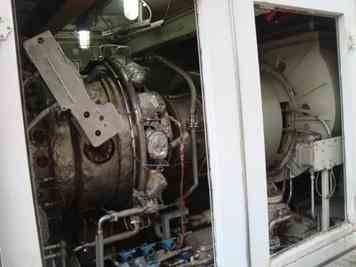

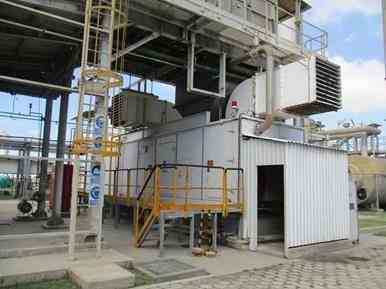

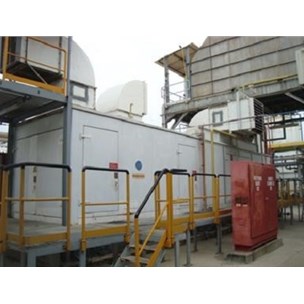

Used Solar Mars 100 SoLoNOx Gas Turbine. Output 11.4MW. Version 15000S. 15000 HP. 11168 RPM. Housed on skid in weatherproof sound attenuating enclosure and fire detection and suppression system. Inlet System Barrier Filter and Silencer mounted on ancillary skid on the roof of the enclosure. Allen Gears Epicyclic Gear Reduction Box. Type: Industrial. 1800 RPM. 60Hz. Generator Data: Ideal Electric Brushless AC Generator with Permanent Magnetic Alternator. Alternator data: 2.2kW. PF.9. 1 Phase. 240v/10A/120Hz Class F. Serial #981012-01. Frame PM-14-3. Package Hours 29,085 hr. Engine Hours 127,775 hr. Gen Skid includes Lube oil tank, pumps, filters, start system with AC Direct Drive AC Motor, VFD, Drive Adapter, & Clutch Assembly. Lube oil cooler. Includes integrated Allen Bradley PLC Control system and operator interface. 20 Lead Acid Batteries with Charger 24 Volt 30 amp Charger, Single phase input.

Major Equipment

Share
SPECIFICATIONS RESOURCES
Year Built
2011
Year Shut
2014
Capacity
11.4MW
Subcategory
