Biomass Power Plants for Sale

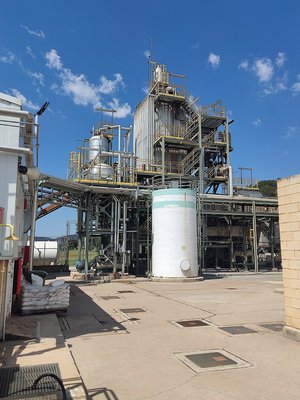

Used 2 MW Biomass power plant. The plant uses residual biomass derived from forestry operations as feedstock. Main components consisting of the following: 15600-liter Biochamm BCV-11000 CA Boiler, 730 Psi (50.4 bar) MAWP @755F. 2103 kW Siemens SST-110 steam turbine generator, live steam 448 psi (44.7 bar) MAWP @773F. (2) Hamworthy AA43 CD32 condenser, 5693 liter shell capacity, MAWP 45 psi @752F. 1168 liter Tube capacity, MAWP 87 psi @212F. (2) EWK 1260 cooling towers. Plant built in 2008, shutdown 2023.

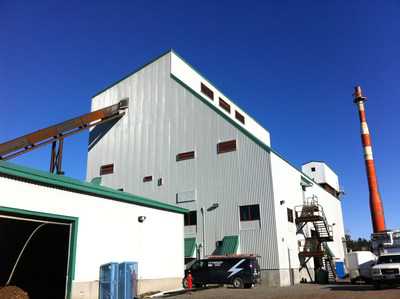

Used 5MW Biomass Power Plant. Peter Brotherhood turbine and Gear Reducer operating at 10251RPM with output speed of 1800RPM. Coupled to a GEC 5900kVA, 60 Hz, 4160V Generator. Includes extraction pumps, vacuum pumps, lube oil system Woodward UG8 governor and controls. Foster Wheeler two drum boiler rated at 50000 lb/hr, 900 PSIG, 900F, 679 Boiler with Detroit Stoker water cooled vibrating inline grate, tubular air heater, economizer, Bahco multi-cyclone dust collector, Detroit Stoker cinder classification and reinjection system. Coen light oil burner, Copes Vulcan sootblowers. Design boiler efficiency 73% with a flue gas temp of 149C operating on 100% wood chip fuel. Approx. boiler dimensions 14ft x 21 ft x 60ft - less air heater and dust collector. Anderson water treatment plant, Foster Wheeler feedwater heater rated to heat 51000 lb/hr feedwater from 293F to 365F uses 3884 lb/hr steam at 181psia and 600F. AS Leitch deaerating heater capacity 9900 lb. Motor control centers, Fisher Provox distributed control system, chemical feed system for hydrazine, ammonia, and phosphate. Compair V100A oil free reciprocating compressor with 25HP motor. Pumps (2) Goulds vertical turbine 20GCC/1 VIT FF Seawater circulating pumps, (2) Goule Vertical turbine freshwater pumps, (3) Gould horizontal end suction circulation pumps, (2) Sustrand P3 Boiler feed Pumps. Cleaver Brooks Heating boiler (hot water)P100-40HP-60 psig. Clyde Bergmann Environmental Elements ESP. (2) Cooling towers, fans, heat exchangers, and auxiliary equipment.

Used 2009 Hurst Model: Hybrid, 2 Pass Waste Fuel. Boiler Rated at 51,750 lbs./hr, MDWP 450 psig Operating Pressure 400 psig, Steam Temperature 600 ° F, Heating Surface Sq. Ft 9750. Fuel: Wood chips or Waste Wood. Fuel Consumption:18,248 lbs./hr. of Wood Chips based on 5652 btu/lb, =30% Moisture Content. Scope of Supply: Hurst Steam Boiler, Fuel Bin, Fuel Conveyor, Metering Sin, Solid Fuel Burner with Natural Gas Starter Burner, Trim Reciprocating Grate Stoker, Wet Ash Conveyor, Fly Ash Collector, Stack, Air Fan Twin City 30 Hp 460 Volt with VFD, Flue Gas Recirculation Fan Twin City 20 Hp 460 Volt with VFD, Metering Screw Motor 7.5 Hp 460 Volt with VFD, Reinjection fan 1.5 Hp 460 Volt with VFD, E-Tech Economizer E-tech Superheater ID Fan 250 Hp 460 Volt, Soot Blower, Deaerator 100,000 PPH, 50 psig Boiler Feed Water Pumps, and Boiler Building.

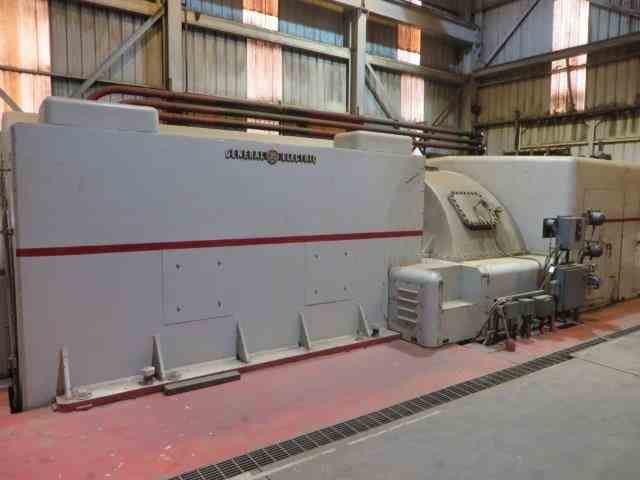

Phoenix Equipment has available one 36.5 MW coal fired Cogeneration plant with (3) Boilers and (2) Turbogenerators. Boiler #1 & #2 are Riley Stoker coal-fired boilers. Boiler #1 is 125 klb per hour at 900 PSI. Boiler #2 is 125 klb per hour at 900 PSI. Boiler 3 is a Detroit Stoker coal-fired boiler, rated at 290 klb per hour at 425 PSI. The boilers provide steam to run (1) 15MW GE steam turbine & generator and (1) 20MW Mitsubishi steam turbine & generator. Power Plant inventory spares are also available.

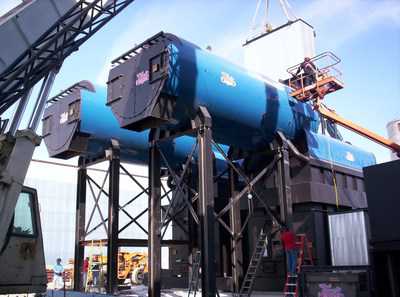

Used dry wood waste-fired STEAM plant. 2600HP/ 89700 PPH/ 200 PSIG. Composed of the following: (2) substoichiometric wet wood waste/biomass fuel gasifiers, combustors and heat recovery systems fed from metering bins. Each unit capable of 8232 lb/hr @20% moisture content. (2) High Pressure Hybrid boilers manufactured by Hurst Boiler and Welding Co.(Fire tube/water tube design) - 1300HP/ 44850PPH Steam output from and @212F, 200PSI. Recommended Operating pressure. (2) Box-type Economizers design rated 300PSI@700F with inlet and outlets. 55 Kv/300ma Precipitator with collecting plates and rigid discharge electrodes.

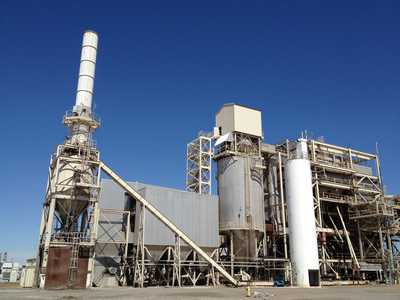

This complete 18 MW Biomass Power Plant comes equipped with a 18 MW Dresser Rand Condensing Steam Turbine Generator, a Zurn Energy Boiler System, Thermal-Dynamic Towers Cooling Tower, Zurn Air Baghouse and Scrubber, Ultra Industries Fabric Dust Filter, Ransom Manufacturing Ammonia Storage Tank, Ash Tech Mechanical Ash Handling System, Burton Compressor Corporation Compressors and Dryers, and Much More!

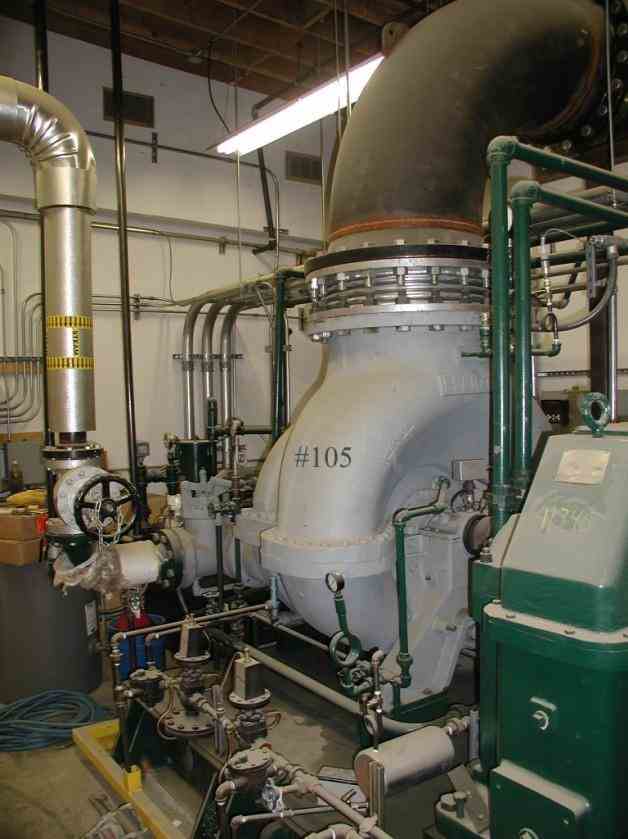

Unused 1.2 MW biomass cogeneration (CHP) power plant with modular design and Elliot steam turbine (model 2DYR3) for sale immediately available. The plant can be upgraded to 2 MW with a new generator. The plant can burn bark, sawdust, agricultural wastes such as peanut shells, rice hulls, straw, animal residue, wet wood, etc. This plant converts such waste products into useable thermal and electrical energy. This solid waste stream can be converted into particle form by the use of a commercial shredder, conveyed to a silo for storage, and then fed automatically into the multi-zone burner. Steam is generated through a low pressure 275 degree (de-rated from 300 degree) stainless steel boiler with a heat exchanger. Inlet steam is 475 PSIG at 700 degrees FTT with a maximum of 22,000 lbs/hour but could be increased to 24,000 lbs/hour. Exhaust steam pressure is 3” HgA at 5449 rpm but designed to run at 4” absolute vacuum. Steam is transferred to the 3-stage back pressure turbine rated at 1654 HP detuned to 1200 HP to match the generator.
