Biomass Cogeneration (CHP) Power Plant - 1.2 MW
Other Views - click image for larger view
Biomass Cogeneration (CHP) Power Plant - 1.2 MW Biomass Cogeneration (CHP) Power Plant - 1.2 MW Biomass Cogeneration (CHP) Power Plant - 1.2 MW Biomass Cogeneration (CHP) Power Plant - 1.2 MW Biomass Cogeneration (CHP) Power Plant - 1.2 MW Biomass Cogeneration (CHP) Power Plant - 1.2 MW
Stock # 12241
Capacity 1.2 MW
Products Not Listed
Sold

Overview

Unused 1.2 MW biomass cogeneration (CHP) power plant with modular design and Elliot steam turbine (model 2DYR3) for sale immediately available. The plant can be upgraded to 2 MW with a new generator. The plant can burn bark, sawdust, agricultural wastes such as peanut shells, rice hulls, straw, animal residue, wet wood, etc. This plant converts such waste products into useable thermal and electrical energy. This solid waste stream can be converted into particle form by the use of a commercial shredder, conveyed to a silo for storage, and then fed automatically into the multi-zone burner. Steam is generated through a low pressure 275 degree (de-rated from 300 degree) stainless steel boiler with a heat exchanger. Inlet steam is 475 PSIG at 700 degrees FTT with a maximum of 22,000 lbs/hour but could be increased to 24,000 lbs/hour. Exhaust steam pressure is 3” HgA at 5449 rpm but designed to run at 4” absolute vacuum. Steam is transferred to the 3-stage back pressure turbine rated at 1654 HP detuned to 1200 HP to match the generator.

Major Equipment

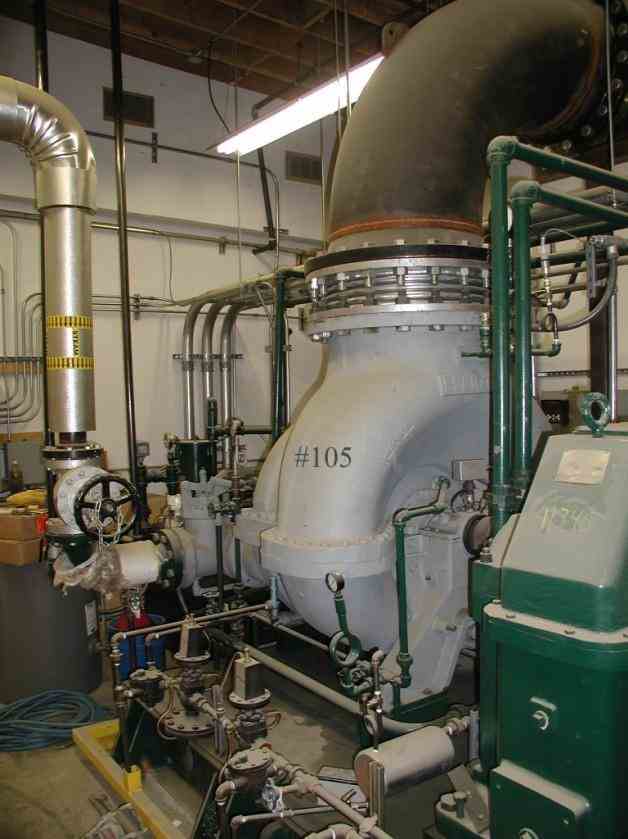

Steam Turbine (Elliot model 2DYR3, 5449 rpm, 475 PSIG)
Sentinel Generator
Generator Control Center

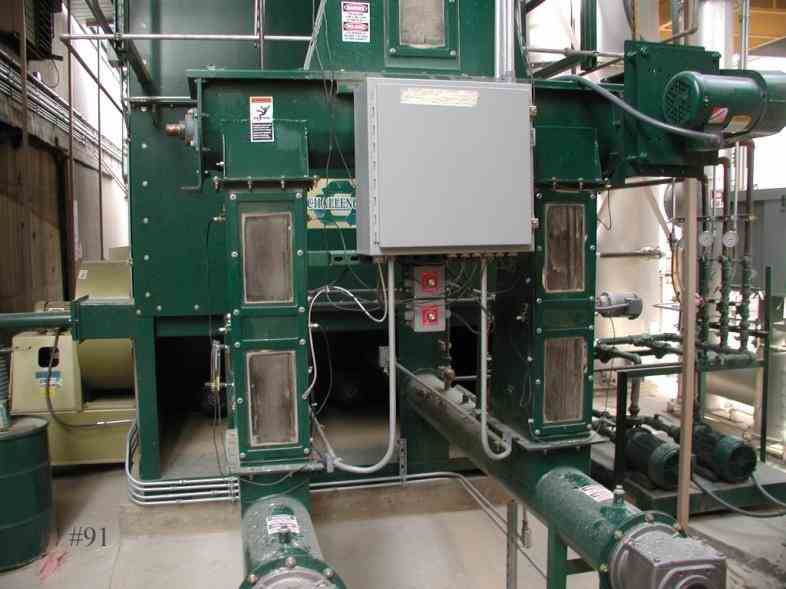

3-Stage Burner

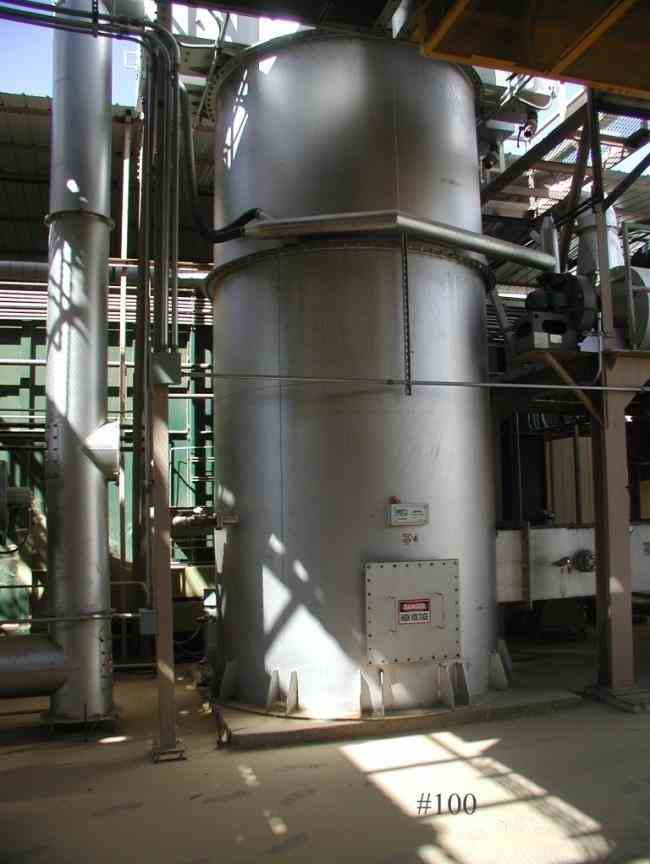

Boiler
Boiler Control Center

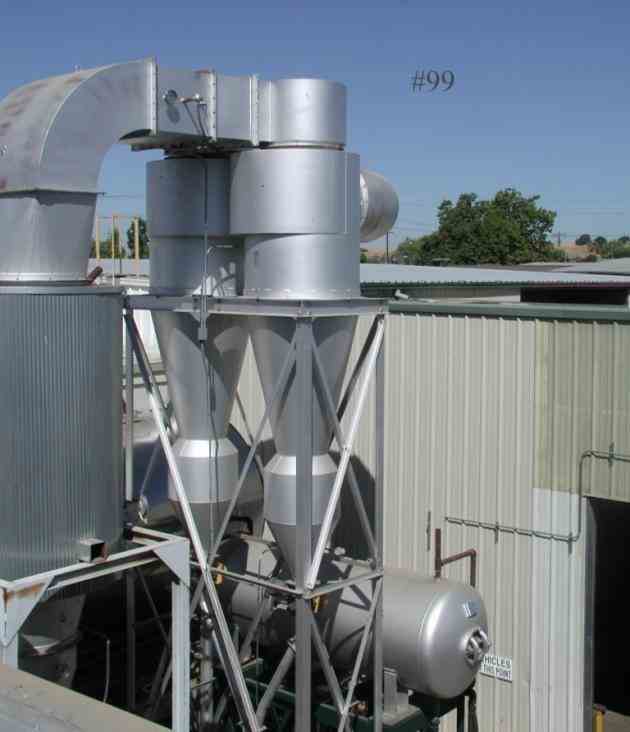

Dual Cyclone Separator
Electrostatic Precipitator
ESP Transformer

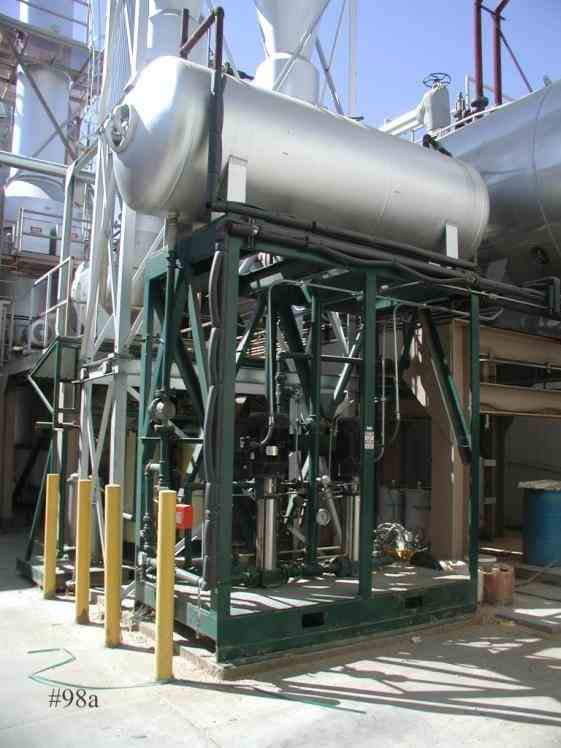

Condenser Pump System
Share
SPECIFICATIONS RESOURCES
Year Built
2006
Year Shut
Capacity
1.2 MW
