89,700 PPH Dry Wood Fired Hurst Boiler Steam Plant
Other Views - click image for larger view
89,700 PPH Dry Wood Fired Hurst Boiler Steam Plant 89,700 PPH Dry Wood Fired Hurst Boiler Steam Plant
Stock # 1040
Capacity 2600HP/ 89700 PPH/ 200 PSIG
Products Steam
Sold

Overview

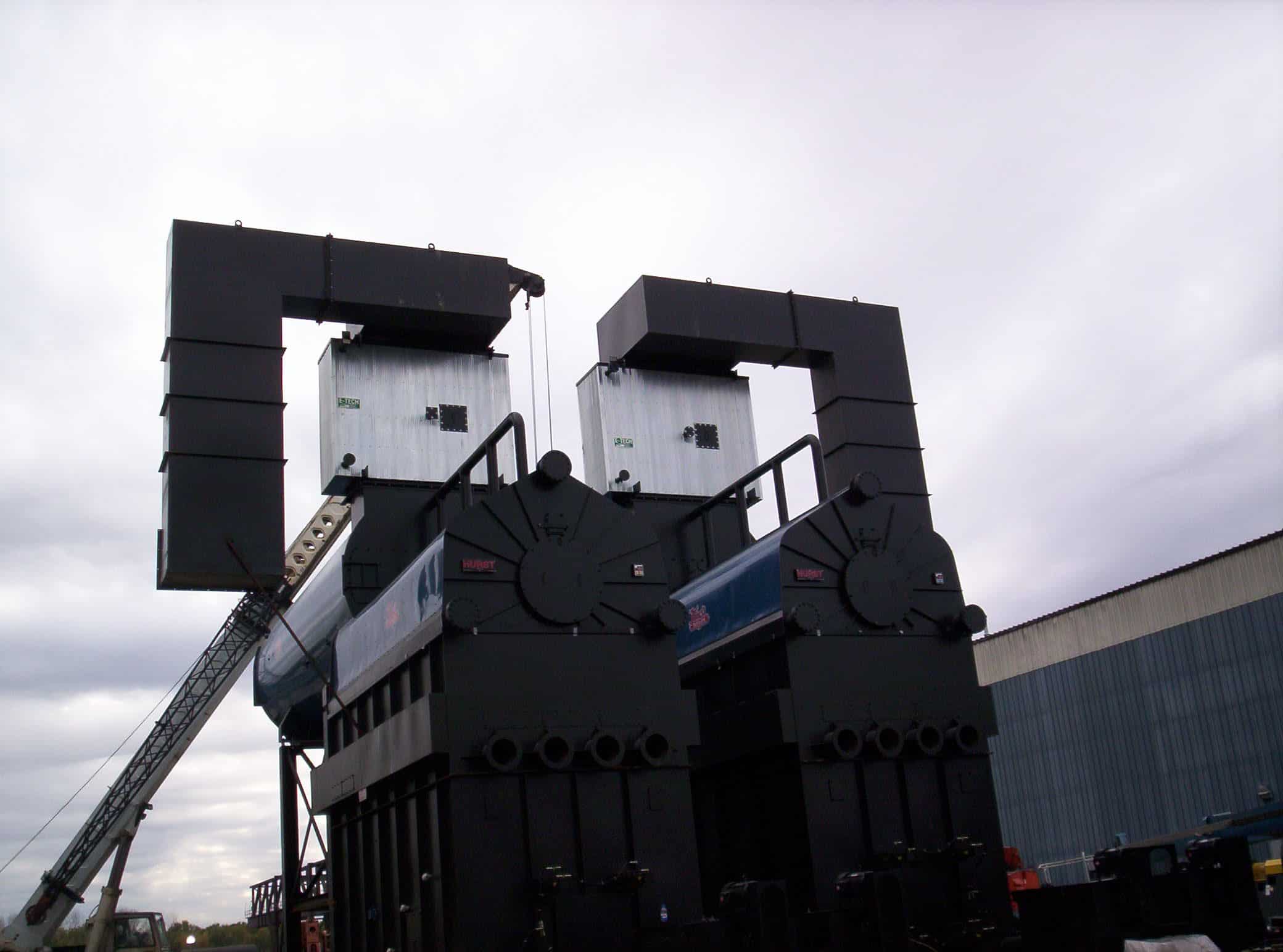

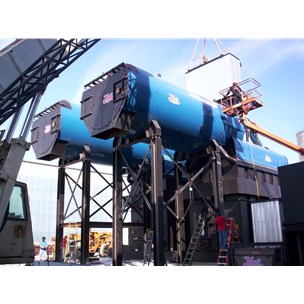

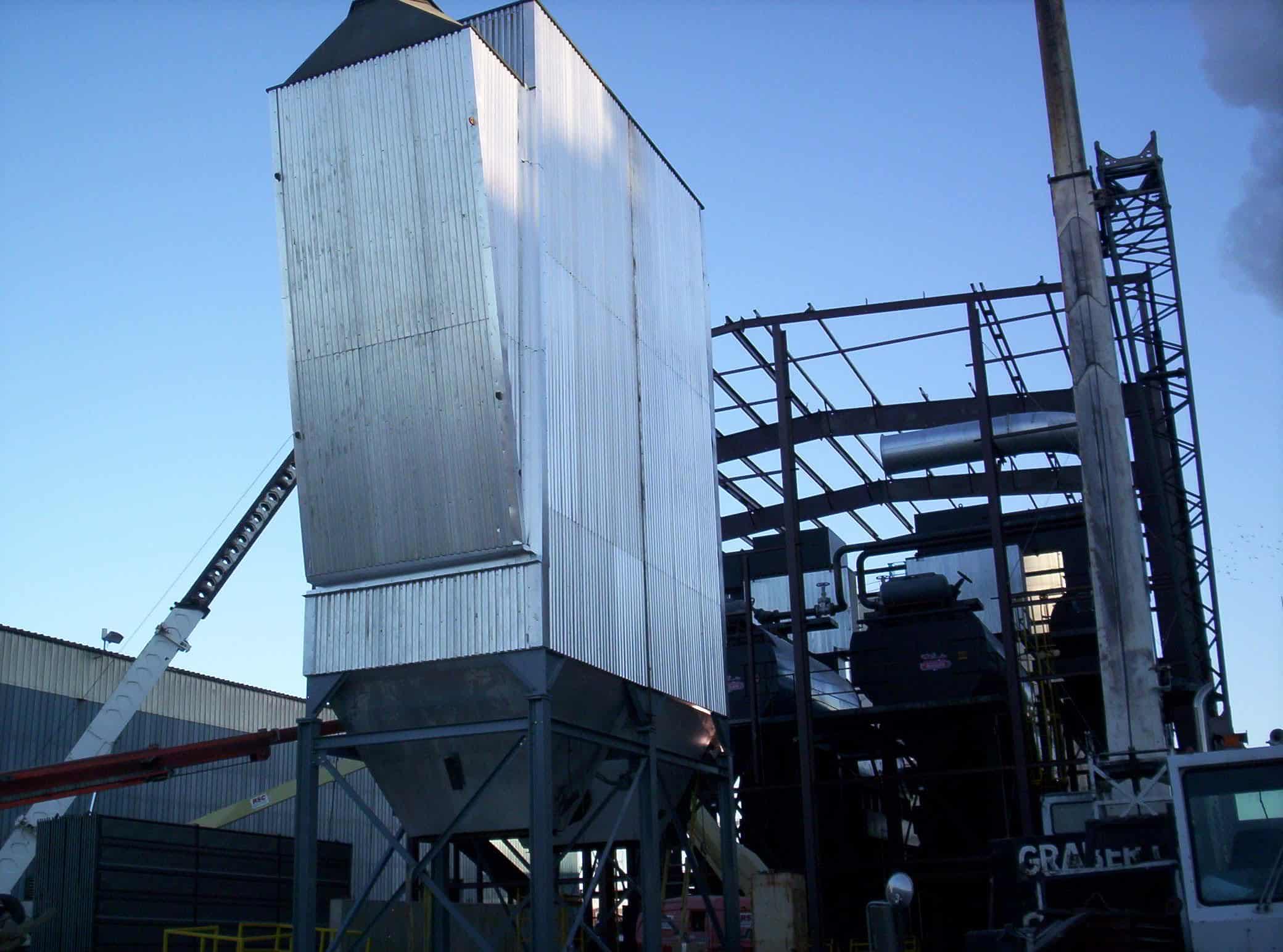

Used dry wood waste-fired STEAM plant. 2600HP/ 89700 PPH/ 200 PSIG. Composed of the following: (2) substoichiometric wet wood waste/biomass fuel gasifiers, combustors and heat recovery systems fed from metering bins. Each unit capable of 8232 lb/hr @20% moisture content. (2) High Pressure Hybrid boilers manufactured by Hurst Boiler and Welding Co.(Fire tube/water tube design) - 1300HP/ 44850PPH Steam output from and @212F, 200PSI. Recommended Operating pressure. (2) Box-type Economizers design rated 300PSI@700F with inlet and outlets. 55 Kv/300ma Precipitator with collecting plates and rigid discharge electrodes.

Major Equipment

Share
SPECIFICATIONS RESOURCES
Year Built
2007
Year Shut
Capacity
2600HP/ 89700 PPH/ 200 PSIG
