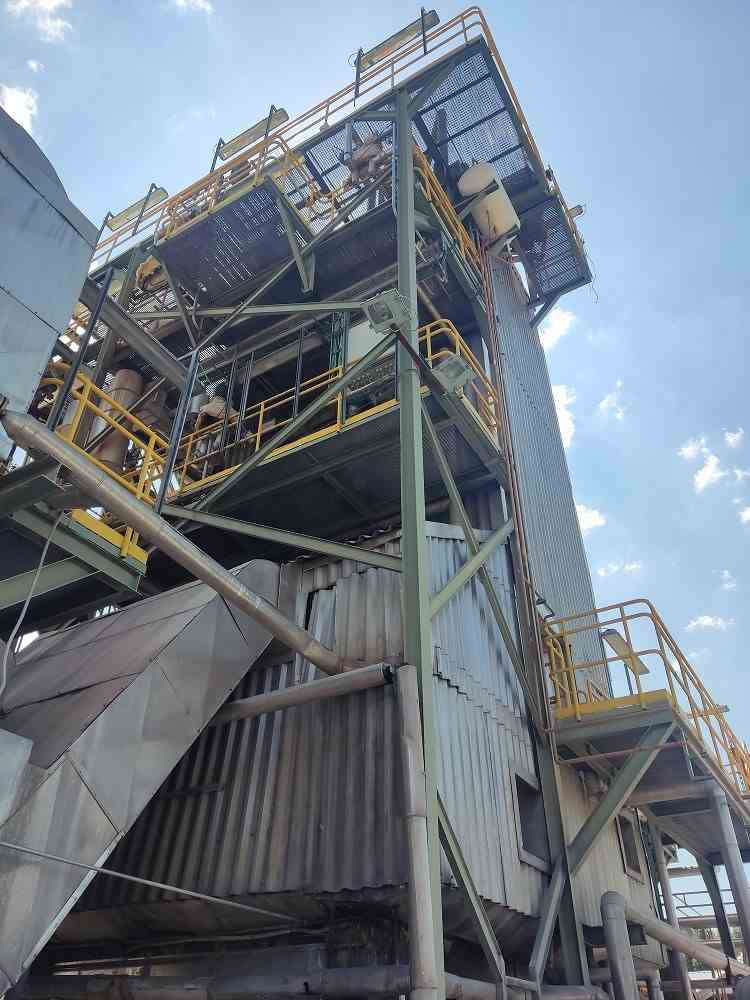

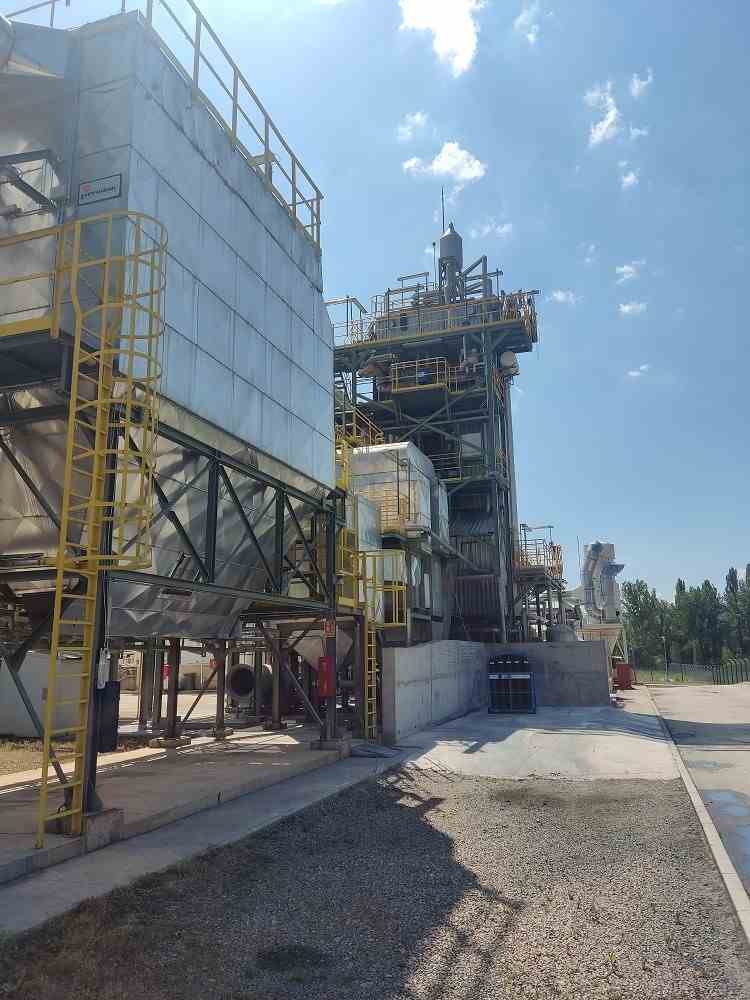

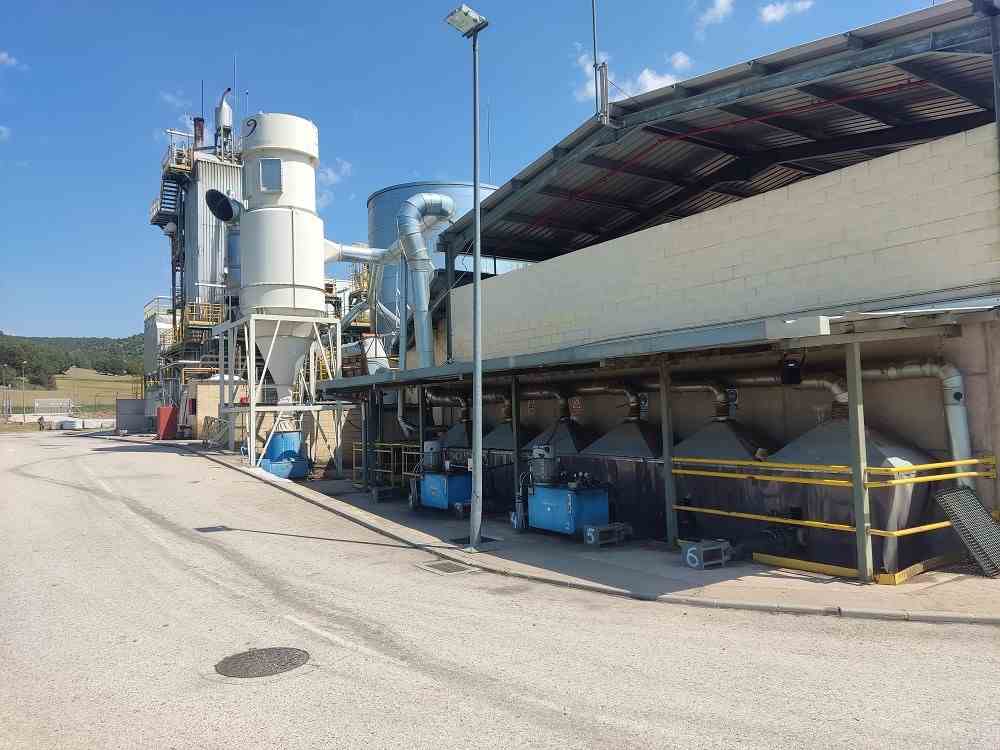

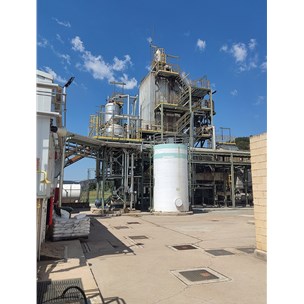

2 MW Biomass Power Plant

Stock # 558
Capacity 2 MW
Products Electric

Overview

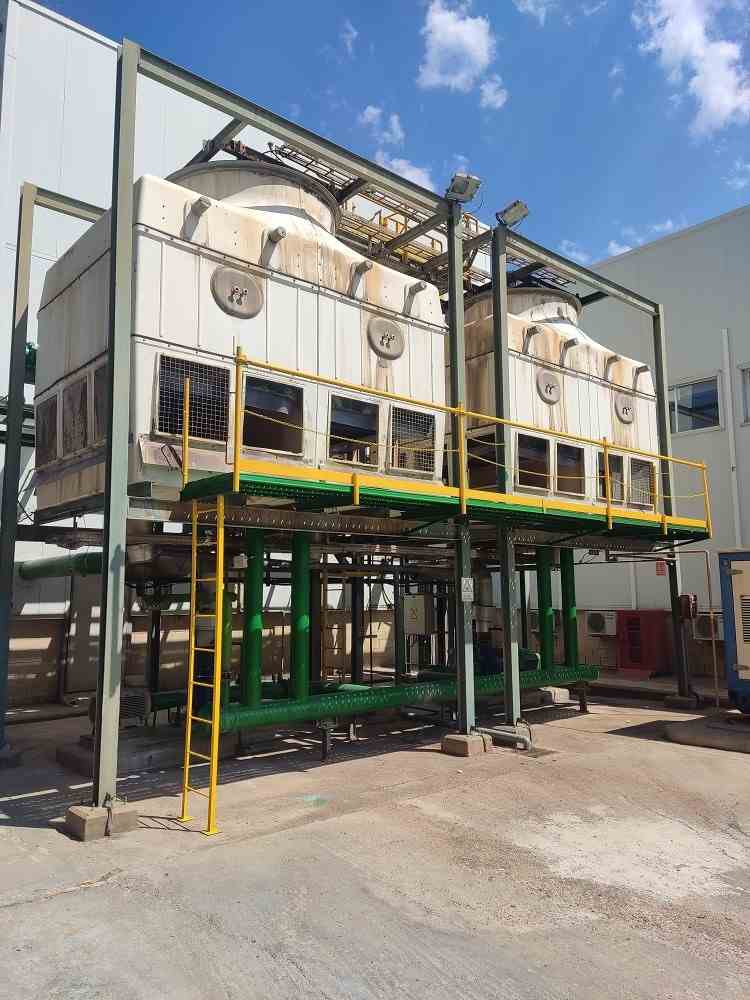

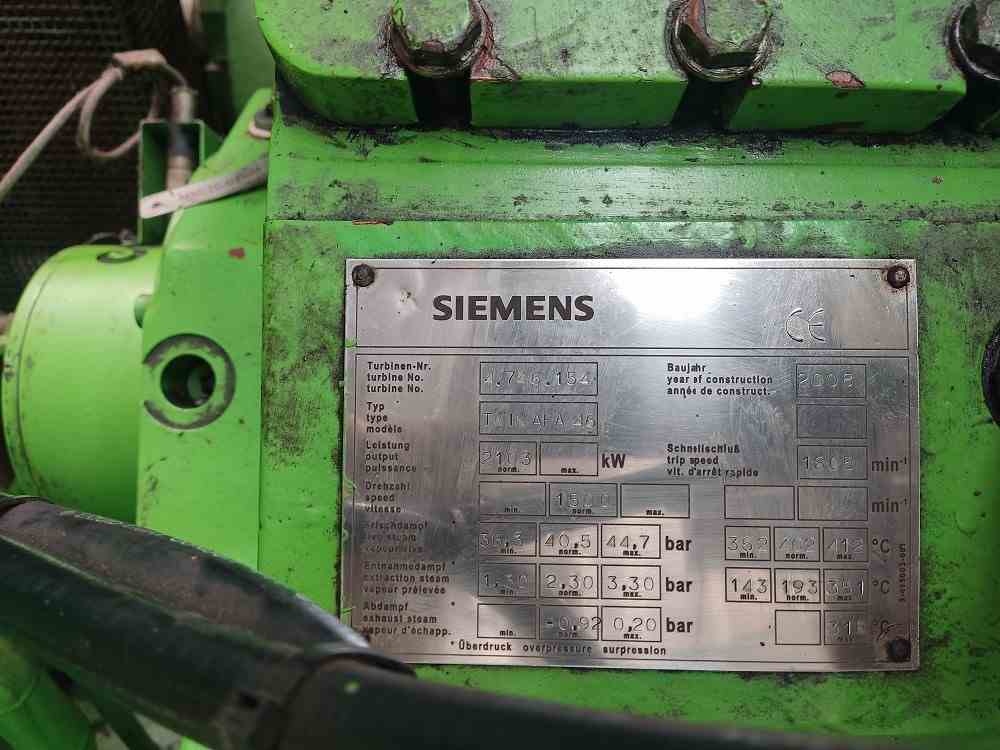

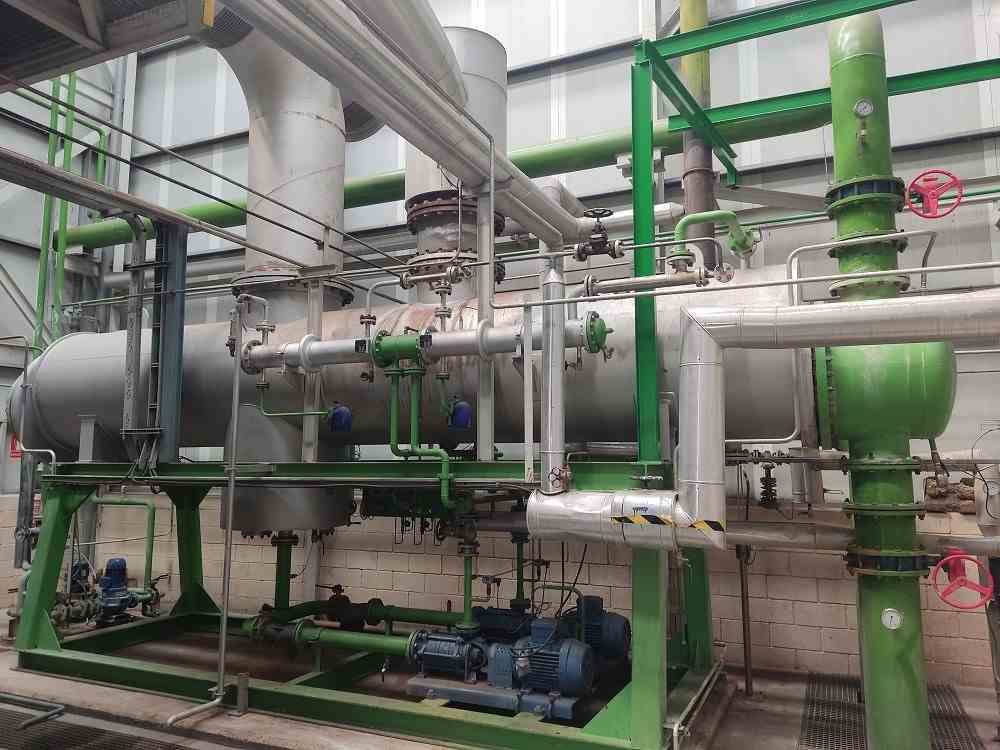

Used 2 MW Biomass power plant. The plant uses residual biomass derived from forestry operations as feedstock. Main components consisting of the following: 15600-liter Biochamm BCV-11000 CA Boiler, 730 Psi (50.4 bar) MAWP @755F. 2103 kW Siemens SST-110 steam turbine generator, live steam 448 psi (44.7 bar) MAWP @773F. (2) Hamworthy AA43 CD32 condenser, 5693 liter shell capacity, MAWP 45 psi @752F. 1168 liter Tube capacity, MAWP 87 psi @212F. (2) EWK 1260 cooling towers. Plant built in 2008, shutdown 2023.

Major Equipment

- Feeding Silo
- Grate
- Combustion Chamber
- Expansion Tank
- Deaerator
- Economizer
- Air Preheater
- Chimney
- Filter
- Sample Cooler
- Bottom Discharge Tank
- Continuous Discharge Tank

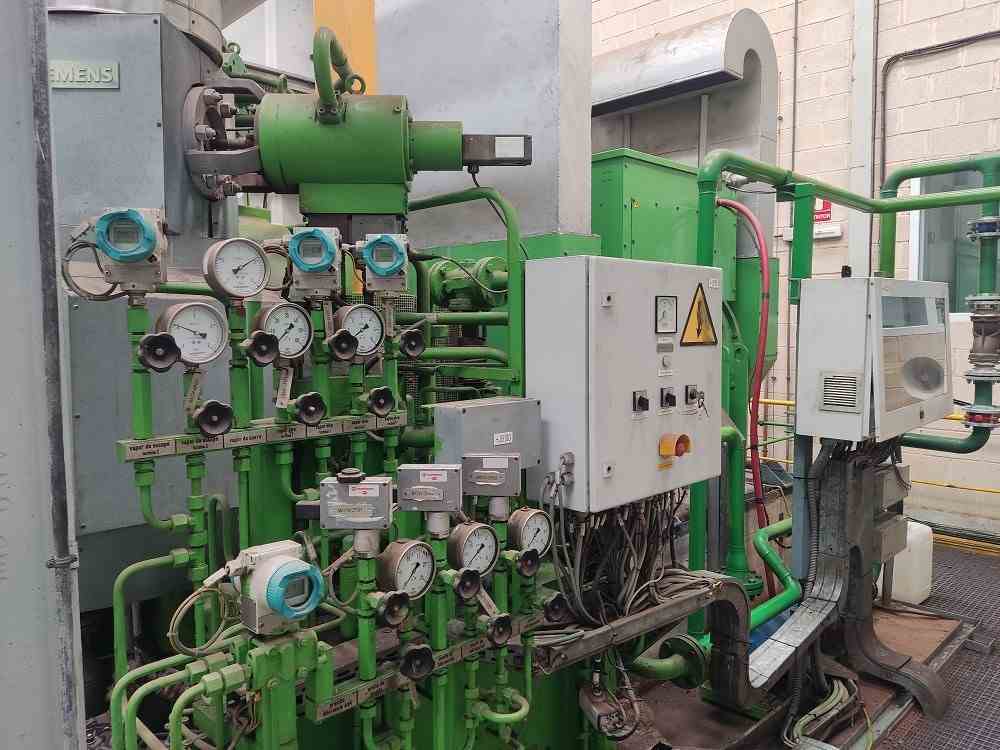

- Steam turbine
- Generator
Share
SPECIFICATIONS RESOURCES
Year Built
2009
Year Shut
2023
Capacity
2 MW
