Used Reactors for Sale

At Phoenix Equipment, we are proud to be one of the leading providers of new and used reactors. Reactors are vessels that contain three parts: the tank or body, an agitator, and a cooling or heating system. The right chemical reactor can dramatically improve your business operations, and by buying a used or reconditioned system, you can enjoy significant cost savings in the process.

Categories
Featured Equipment for Sale
4000-gal-pfaudler-glass-lined-reactor

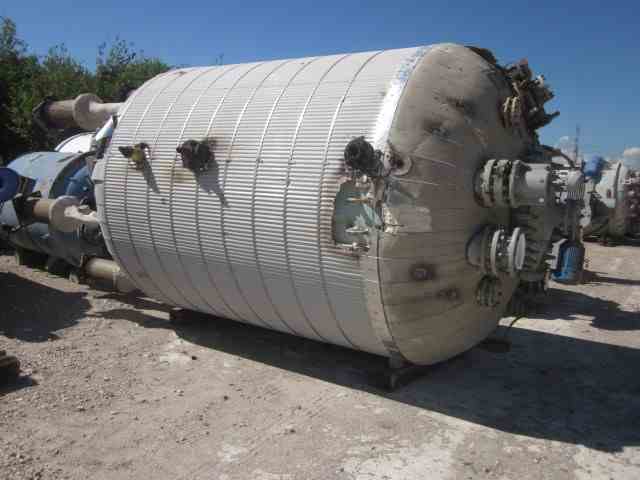

4000 Gal Pfaudler Glass Lined Reactor
Stock# 18279 Capacity 4000 Gal

Used 4000 gallons glass lined reactor. Manufactured by Pfaudler. Shell rated 100 PSI @450F. Jacket rated 90PSI/FV@450F. (6) Leg mounted. 18" Top manway. 4" Bottom outlet. National Board #47860. Serial #R194-0063. Built 1995.

3000-gallon-freeze-concentration-crystallizer-stainless-steel
3000 Gallon Freeze Concentration Crystallizer - Stainless Steel
Stock# 21101 Capacity 3000 Gal

Unused 3000 Gallon (11.5 m3) 304L Stainless Steel Double Wall Crystallizer. Manufactured by GEA. Jacketed. Internal rated -2.90/43 psi ( -.2/3 BARG) @-13F/203F (@-25C/95C), jacket rated -7.25/43psi (-.5/3 BARG) @-13F/203F (@-25C/95C). 18.5kW motor with top mounted side scraper agitation. 84" dia x 20' tall. Sanitary Polished Internal and sanitary clamped nozzles. National Board #1256. Serial #091212097A. Weight 13000 lbs. Built 2013. Previous use: Crystallizer Stage 2 in GEA freeze concentration plant.

89520-litre-23648-gallon-316l-stainless-steel-reactor
89520 Litre (23648 gallon) 316L Stainless Steel Reactor
Stock# 21730 Capacity 89520 Liters

Unused 89520 Litre (23648 gallon) 316L Stainless Steel Reactor. Built by ZVU Strojirny. Internal 6/FV barg @ 170C. Jacket 10/FV barg @ 125C. Half pipe jacket on bottom half of shell and bottom head. Dished Top and bottom. 4100mm ID x 5750mm TL-TL. (2) 762mm top manways with davit. Top center mounted 350 kW (475.8 hp), 50 Hz. ABB electric drive with SPX-Flow (Lightnin) gearbox. (4) Lug mounted. Serial #456. Built in 2021. Stored under Nitrogen purge.

unused-89500-litre-316l-ss-reactor-body
Unused 89500+ Litre 316L SS Reactor Body
Stock# 21736 Capacity 89520 Liters

Unused 89520 Litre (23648 gallons) 316L Stainless Steel Reactor. Built by ZVU Strojirny. Internal 6/FV barg @ 170C. Jacket 10/FV barg @ 125C. Half pipe jacket on bottom half of shell and bottom head. Dished Top and bottom. 4100mm ID x 5750mm TL-TL. (2) 762mm top manways with davit. (4) Lug mounted. Serial #462. Built in 2021. Stored under Nitrogen purge.

unused-89520-l-316l-ss-reactor-body
Unused 89520 L 316L SS Reactor Body
Stock# 21738 Capacity 89520 Liters

Unused 89520 Litre (23648 gallons) 316L Stainless Steel Reactor. Fabricated by ZVU Strojirny. Internal 6/FV barg @ 170C. Jacket 10/FV barg @ 125C. Half pipe jacket on bottom half of shell and bottom head. Dished Top and bottom. 4100mm ID x 5750mm TL-TL. (2) 762mm top manways with davit. (4) Lug mounted. Serial #464. Built in 2021. Stored under Nitrogen purge.

How Reactors Work

Reactors are manufactured in a variety of materials to withstand the corrosiveness of mixed chemicals. We offer stainless steel, high alloy, glass-lined steel, carbon steel hydrogen and high-pressure reactors for a variety of applications including:

  • Chemical reactions
  • Product mixing
  • Batch distillation
  • Solids dissolution
  • Polymerization
  • Liquid extraction
  • Catalyst functions

Reactors can range in size from less than 1 liter to over 15,000 liters. The agitator is mounted centrally via the center opening, on top of the vessel. It attaches to the overhead drive unit and contains impeller blades inside of the vessel. Since products within the reactor will either absorb or emit heat during processing, a cooling pipe or jacket is used to keep the contents at a consistent temperature. Liquids are typically discharged out through the bottom, while gases and vapors are released through the top connections.



Used Reactors for Sale

At Phoenix, our inventory of used chemical reactors comes from all of the biggest manufacturers, including American Alloy, Delta Southern, Fabsco, Precision Stainless, and many, many more. Our used reactors for sale are useful in many different industries, including:

  • Food and beverage production
  • Chemical processing
  • Plastics processing
  • Pulp and paper processing
  • Bio-pharmaceutical
  • Pharmaceutical

If you are looking for a high-quality and efficient reactor, make Phoenix Equipment your first call. We offer jacketed, non-jacketed, dished-bottom or –top, and internally-coiled chemical reactors, as well as many more. Our experienced staff also has the knowledge and expertise to find the right system for your business.

If you’d like to learn more about our new, used, and reconditioned reactors for sale, contact us today.
