Used 9775 Gallon Glass lined Jacketed reactor. Manufactured by DeDietrich. Shell rated 87PSI/FV@410F. Carbon Steel Jacket rated 116PSI@410F. Dome top, dish bottom. 30kW drive with (2) flights of 3-blade impellers. Lug mounted. Serial #69044. Built 2008.

Dedietrich model CE6300 vertical fluroshield lined reactor vessel. 6300 litre working capacity, 7585 total capacity. Unit has welded dished top and bottom heads. Internal rated 6 BAR/Full vacuum design pressure at -25 to 200 degrees C. Mild steel external jacket rated 6 BAR design pressure at -25 to 200 degrees C. Unit includes 3-blade retreat curve glass lined agitator with 10KW electric motor, Dedietrich drive and mechanical seal.

DeDietrich 6,300 litre vertical fluroshield lined reactor body. 6300 litre working capacity, 7585 total capacity. Unit has welded dished top and bottom heads. Internal rated 6 BAR/ full vacuum design pressure at -25 to 200 degrees C. Mild steel external jacket rated 6 BAR design pressure at -25 to 200 degrees C. (Note: Internal Lining is damaged)

Used 1,000 gallon DeDietrich glass lined reactor. Rated for 100 psi & FV @ 500 deg F. internal; rated for 90 psi @ 500 deg F. jacket. Type 3008 glass. Dimensions: 63" O.D. x 70-3/4" T/T. Complete with Lightnin agitator, mechanical seal, 3 blade pitched Glaslock agitator. Serial #33459, National Board #4156, Year Built 1986. Previous Service reactor still.

Used 750 gallon DeDietrich glass lined reactor body. SA series. Internal rated 100 psi / full vacuum @ 500 degrees F. Jacket rated 90 psi @ 500 degrees F. Glass type 3009. Built 1991. National board 5791. Serial # 35145.

Used 750 gallon vertical jacketed glass lined reactor. MFD by DeDietrich. 60"ia x 5' Straight Side. Rated 75/FV psi internal @ 500 Deg. F, 90 psi on jacket @ 500 Deg. F. Philadelphia mixer. 5 HP, 825 RPM output. Model: CTJ-60-750, S/N: 30720, NB# 1479.

Used 750 gallon vertical jacketed glass lined reactor. MFD by DeDietrich. 60" Dia x 5' straight side. Rated 75/FV psi internal @ 500 Deg. F, 90 psi on jacket @ 500 Deg. F. Philadelphia mixer. 3008 Glass. S/N: 12936, NB# 359.

Used 500 Gal Glass Lined Reactor, manufactured by DeDietrich, rated for 100 PSI internal @ 400 deg. F, jacketed for 100 PSI @ 400 deg. F, type 3008 glass, complete with 3-blade retreating impeller type agitation and baffle. Agitation is driven by Pfaudler type HV-45957d-bmd drive. Includes large manway on top with numerous inlets. NB# #1306. Built 1977. 67”L x 67"W x 126"T; 6,000 lbs.

Used 300 gallon glass lined reactor. Manufactured by DeDietrich. Model #CTJ-24-50. Internal rated 100PSI/FV @500F. Jacket rated 100PSI @500F. Agitator. Dished heads. Lug mounted. National Board #1799. Serial #31017. Built 1978.

Use 200 gallon glass lined jacketed reactor. Manufactured by Dedietrich. Shell/jacket rated 100PSI/FV@500F. 3009 glass lining. Dished top and bottom. (4) leg mounted. Includes 3-blade agitator - no drive. Serial #34927. National Board #5631. Built 1990.

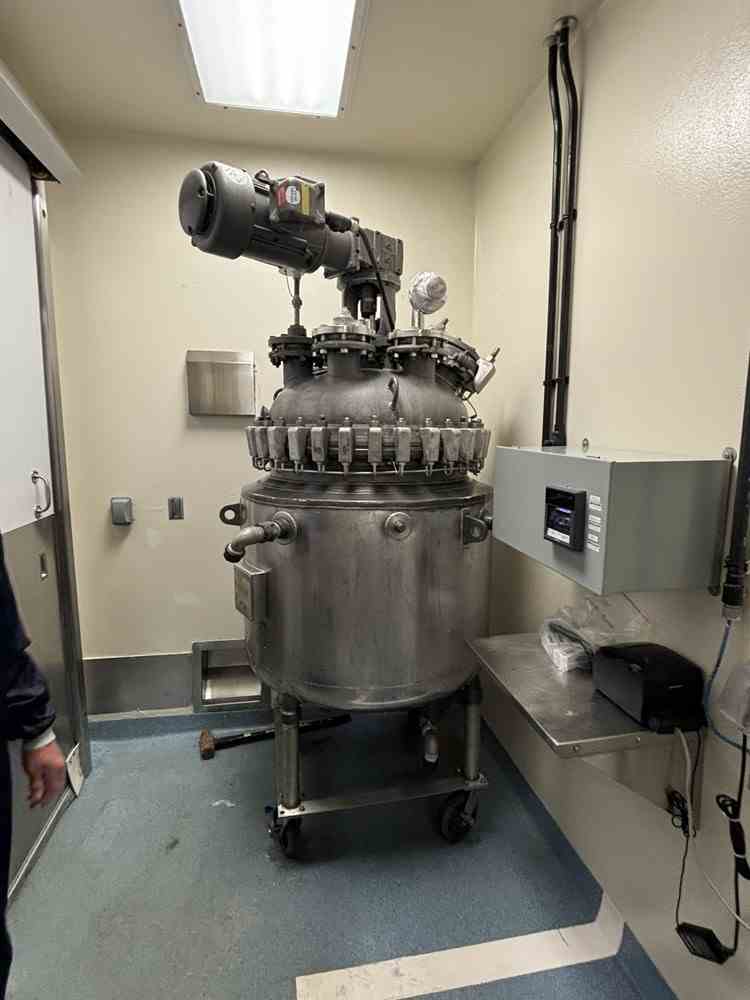

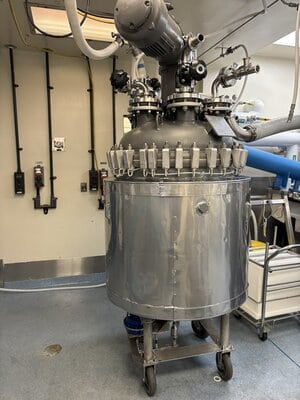

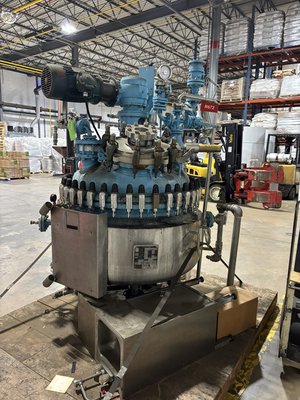

Used De Dietrich approximately 100 Gal vertical Glass Lined Reactor. Rated 150 PSI/Full Vacuum Internal @ 500°F. Jacket Rated 100 PSI @ 500°F.

Used 100 gallon DeDietrich glass lined reactor. Rated 150 psi / FV @ 500 F internal; 115 psi / FV @ 500 F on the jacket. 3008 glass. 3 blade reverse curve impeller agitator. 37 13/32” OD x 107” OAL. Serial # 33230, National Board # 3912, Built 1986. Weight – 1,550 lbs.

100 (131 Total) Litre capacity De Dietrich model AE100 vertical glass lined base unit. Welded dished bottom head. Internal rated 6 Bar/Full vacuum design pressure at -25 to 200 Deg. C. Mild steel external jacket rated 6 bar design pressure at -25 to 200 deg. C. Unit is mounted on side mounted lug supports. Unit is currently lagged and clad. Unit can also be supplied with lid and impellor agitator that require re-glassing, re-glassing can be arranged at extra cost.

Used 50 gallon glass lined vertical reactor. Manufactured by DeDietrich. Rated 100 psi/FV @500F. Dished heads. Leg mounted. 23 5/8" OD x 27 1/8" straight side. Built 1986. Previously used in API facility.
