6300 Liters De Dietrich Glass Lined Reactor
Other Views - click image for larger view
6300 Liters De Dietrich Glass Lined Reactor 6300 Liters De Dietrich Glass Lined Reactor

6300 liters de dietrich glass lined reactor

Stock # 7017
Capacity 6300 Liters

Overview

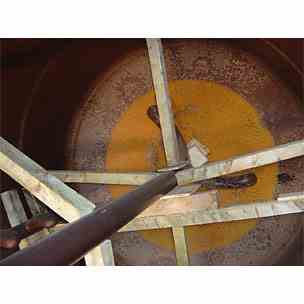

Dedietrich model CE6300 vertical fluroshield lined reactor vessel. 6300 litre working capacity, 7585 total capacity. Unit has welded dished top and bottom heads. Internal rated 6 BAR/Full vacuum design pressure at -25 to 200 degrees C. Mild steel external jacket rated 6 BAR design pressure at -25 to 200 degrees C. Unit includes 3-blade retreat curve glass lined agitator with 10KW electric motor, Dedietrich drive and mechanical seal.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
De Dietrich
Model
NA
Material
Glass Lined
Capacity
6300 Liters
Category
