Used 6600 gallon glass lined pressure vessel. Manufactured by Pfaudler. Rated 15PSI/FV@450F. 9'D x 11'2"H. Reglassed in 2014.

Used 5600 gallon glass lined pressure vessel. Manufactured by Pfaudler. Model CV101-5600-35. Shell rated 35 PSI/FV@400F. Dome top, dish bottom. 24" manway. Leg mounted. National Board # 49309. Serial #J022548. Built 1998.

Used 4000 gallons glass lined reactor. Manufactured by Pfaudler. Shell rated 100 PSI @450F. Jacket rated 90PSI/FV@450F. (6) Leg mounted. 18" Top manway. 4" Bottom outlet. National Board #47860. Serial #R194-0063. Built 1995.

Used 2500 Gallons 316SS Clad Reactor Body. 78" dia x 7 straight side. Internal rated 75 PSI @ 600F. Shell has SA264 1/16" type 316L-SS on SA515-70 Backing (Clad). Inconel 600 dimple jacket rated 185 PSI @ 600F. Mounted on six (6) pipe legs support. Mfg. by Pfaudler, 1969. NB: 28566, S/N: R369-1452.

Used 2,000 gallon Glass Lined Reactor. 7-1/2' diameter x 91" straight side, Pfaudler, glass lined, model R-172-0874. Rated 100 PSI/FV @ 650 deg internal; 90 PSI @ 350 deg jacket. Model 5TW drive with 15 HP motor, 220/440 volt, mechanical seals, 3 blade retreating curve agitator. Serial number 0171-6253, NB# 31186. Unit new 1972. Glass in good condition with 4 plugs, 4" to 1" and bottom discharge sleeved.

Used 2000 gallon glass lined reactor. Manufactured by Pfaudler. Model KC78-2000-90-100. Internal rated 90PSI/FV@400F. Jacket rated 100F/FV@400F. 9119 Glass. Dome top, dish bottom. 15HP 5SRW Pfaudler agitator drive with mechanical seal. 4" Center bottom opening. 24" Manway. (4) Lug mounted. Serial# J009819. National Board# 48673. Built 1996.

Used Pfaudler RC Series Glass Lined Reactor Body Only, 1500 Gallon, 9119 Blue Glass, Model RC-78-1500-100-90. 78" Diameter x 65" straight side, 2:1 semi-elliptical top and bottom. Internal rated 100 psi or Full Vacuum at -20 to 450 degrees F. Carbon steel jacket rated 90 psi -20 to 450 degrees F. Openings top (4) 4", 6", (2) 8", 10", 30" no cover. Bottom (2) 4". White calibration lines, (4) side lugs. Insulated with 3" thick foamglas and 316L stainless steel sheathing. Serial# J059583, National Board# 51343, built 2004.

Unused 1500 gallon Pfaudler glass lined reactor body, rated 100 PSI and full vacuum at 450 F, jacketed for 90 PSI at 450 F, 5015 glass, lug mounted, Serial# R185-0068, National Board# 43716, Built 1985 and Unused

Used 1500 gallon glass lined Pfaudler reactor body. 78" diameter X 72" high straight side. Welded dished heads. Internal rated 100 PSI @ 650 degrees F. Conventional jacket rated 90/90 @ 350 degrees F. NB# 33981. Fittings Top: 30" cover opening, (3) 4", (2) 6", and (2) 8". 3" center bottom drain. (1 factory installed plug on top head, No manway cover)

1000 gallon Reglassed and unused Pfaudler #9115 glass lined reactor body. Model RA-60-1000. 60" diameter x 72" high straight side. Internal rated 100/FV @ 450 degrees F. Half pipe coil jacket rated 150/150 @ 450 degrees F. National Board #45867. MFR# R190-0037. Top fittings: (4) 4", (1) 8", and 30" top cover openings. 3" center bottom drain. Reglassed in 2000.

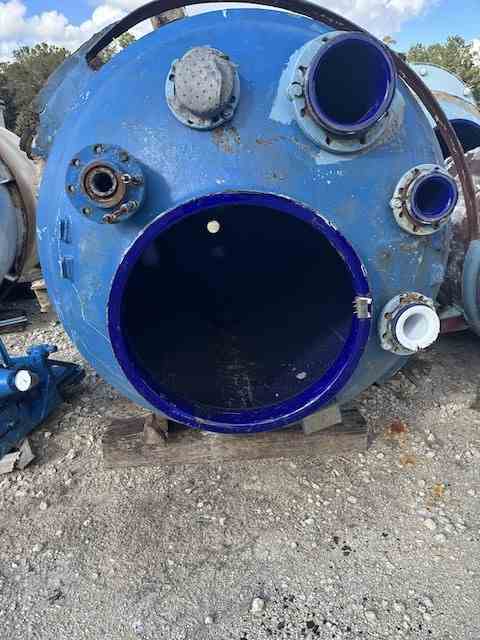

Used 1000 Gal Glass Lined Reactor, manufactured by Pfaudler. 60" diameter x 5'8" straight side, welded dished top and bottom. Rated for 100 PSI/FV at 525 degrees Fahrenheit, jacketed for 90 PSI at 600 degrees Fahrenheit. Glass type 3615. Has 36" off-center J-clamped cover with 16" x 20" oval manway, (4) 4" top inlets which were used for probes, level sensors, etc. Unit stands on (8) 17" legs with 12" diameter foot pads. (NOTE: 2 Units are all plug free. New between 1993 - 1996)

Used 1,000 GALLON Pfaudler Glass Lined Reactor BODY, rated for FV/100 PSI @ 450 F, Jacket: FV/90 PSI @ 350 F. 5 ft. x 7 ft., dished bottom and top. 4 small spots in glass. S/N: R679-8094, Built 1970, re-glassed 1973. (1 bottom plug)

Used 1000 gallon Glass Lined reactor. Manufactured by Pfaudler. Internal rated 100PSI/FV @650F. Jacket rated 90PSI @450F. Agitator. Dished heads. Lug mounted. National Board #40374. Serial #R1800235. Built 1980

Used 750 gallon glass lined reactor. Manufactured by Pfaudler. Model RA-60. 60"ID x 115.25" OAH. Glasteel. SRW2535 drive with agitator. Dome top, dish bottom. (4) leg mounted.

Used 500 gallon capacity, glass-lined Reactor. Measures 48" diameter x 58" deep, dished top and bottom, 3" center bottom outlet, manufactured by Pfaudler, Model. RA48-500, glass-type 9115, rated for 100 PSI/full vac @ 450deg. /-20deg. F., jacket rated for 100 PSI @ 450deg. /-20deg. F., complete with glass-lined 3-blade retreat curve-type agitator with approx. 10 HP drive thru Pfaudler 15.4:1 gearbox, 117 output RPM. Serial# R193-0096. Top inlets - (3) 2", (2) 3", 4" & 6" and 12" x 15" oval manway. Lug mounts and ports for legs. Good condition.

Used Pfaudler 500 gallon T-316L stainless steel reactor body. 52" diameter X 50" high straight side. Internal rated 150 PSI @ 650 degrees F. Carbon steel conventional jacket rated 150 PSI @ 650 degrees F. NB# 209041. Top Fittings: 18" manway, (3) 4", (2) 2", (1) 1" and (1) 8". 3" center bottom drain. Can be lug or leg mounted.

Used 100 gallon Pfaudler reactor, nickel 200 construction, approximately 32" diameter x 26" straight side, removable dish top, dish bottom, rated 100 psi and full vacuum at 500 f, jacketed for 35 psi at 500 f, Pfaudler VMX-150 agitator drive with dry mechanical seal, 2 HP, 230/460 volt xp motor, 4 blade pitched turbine agitator, baffles, supplied with HEAT Inc 36 KW hot oil system, 480 volt with circulation pump, Pfaudler Serial# J089141, National Board# 52442, built 2011.

One used 200 liter (approx. 50 Gal) Pfaudler Glass-lined Reactor. Interior Pressure rated for 100 PSI @ 450 Degrees. Jacket Rated for 95 PSI @ 350 Degrees. 2 HP Plastic propellor Agitation. 7.5" wide porthole/ 13.5" flange, (4) 3.5" ports/9" flanges. Serial #R188-0536. Made in 1988.

Used 30 gallon Pfaudler Glass Lined Reactor, rated 142 PSI and full vacuum @ 450 degrees F, fully jacketed for 110 PSI @ 350 degrees F, fully removable dome top, dish bottom, with 3 blade retreat curve agitator driven by 2.5 DW Drive, 2HP, 230/460V XP motor, mechanical seal with lubricator baffle, 3315 Glass Steel, Serial #E168-1173, National Board No. 26875, Reglassed by Pfaudler in 1984.

Used 30 gallon Pfaudler Reactor, 316L stainless steel construction, 2' diameter x 2' straight side, dished top and bottom, rated 100 PSI and full vacuum @ 350 degrees F, jacketed for 50 PSI @ 350 degrees F, 2.5 TW Pfaudler drive with mechanical seal and lubricator, mechanical variable speed, 1 H.P. 220/440 volt, with 2 blade anchor agitator, 4" hand hole with sight glass, (2) 2", 1.5", 1" top nozzles, 2" center bottom outlet, on legs, Serial No. E363-1061, National Board No. 19571.

Reglassed Pfaudler P-series 20 gallon glass lined reactor body. 3315 glass. Rated 150 psi @ 650°F internal. Jacket rated 90 psi @ 350°F. 20" diameter X 14" straight side. All mounting brackets. (1) 4.5" handle hole nozzle, (1) 2.5" agitator nozzle, (1) 2" nozzle, (2) 2.5" nozzles. On legs.

Used 10 gallon Pfaudler Reactor, stainless steel construction, rated 100 PSI at 650 degrees F internal, 100 PSI at 650 degrees F jacket, 14" diameter x 12" straight side, clamp on removable top head, dish bottom, misc. top nozzles, 1 1/2" center bottom outlet, complete with hydraulically driven agitator drive, anchor style agitator, on pipe legs, National Board No. 8016.

Used 10 gallon 316 Stainless Steel Reactor. Manufactured by Pfaudler. Internal rated 300PSI/FV@350F. Jacket rated 165 PSI@350F. Clamp top. 3-blade retreat curve agitator with hydraulic drive. Serial #E375-0487. National Board #35046. Built 1975.

Used Pfaudler 1 gallon T316L stainless steel reactor. Internal rated 200 PSI / FV @ 500 degrees F. Jacket rated 150 PSI @ 500 degrees F. Jacket side wall and bottom head. Gast Hydraulic drive model 4AM-NRV-22B with agitator.
