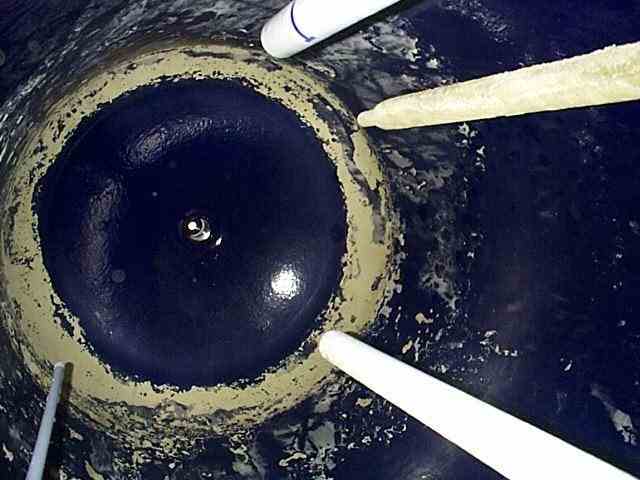

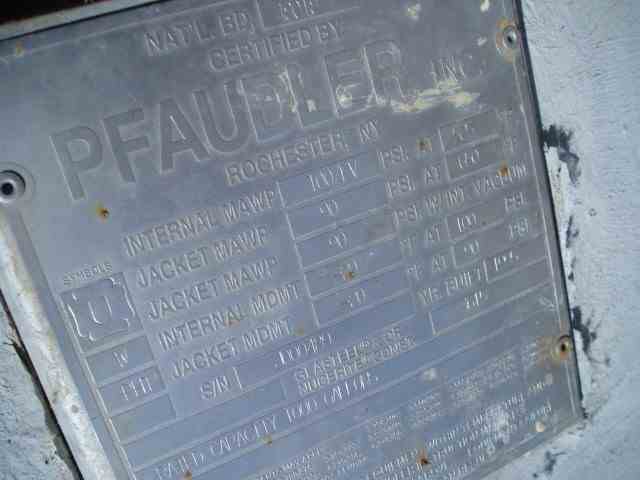

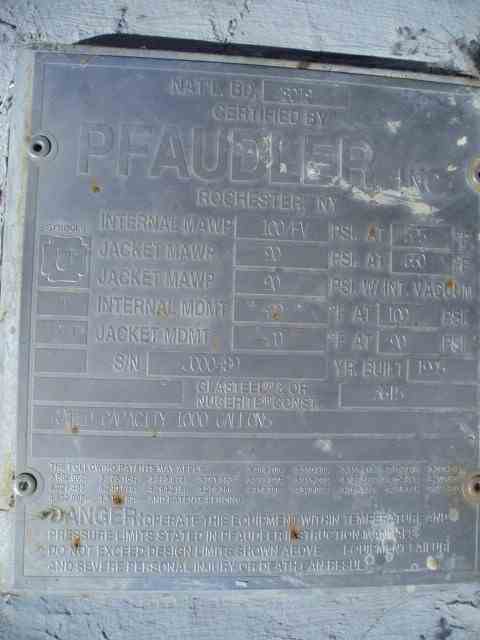

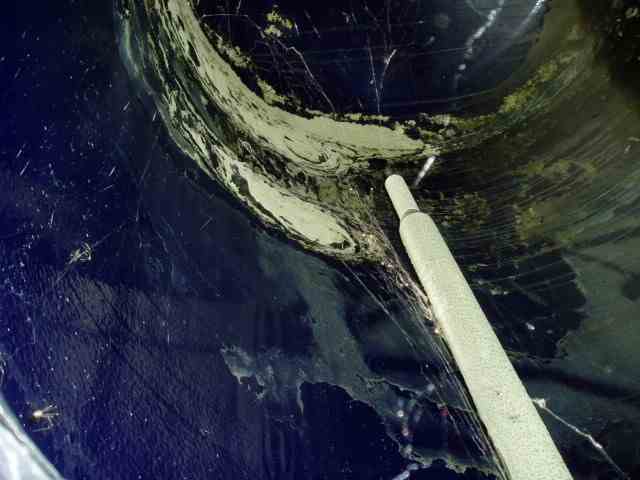

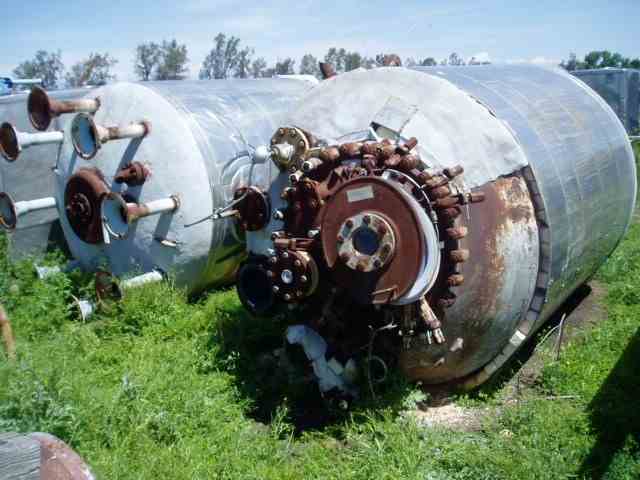

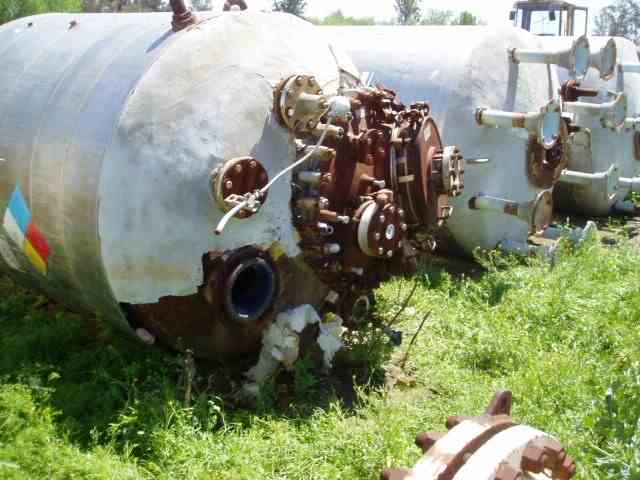

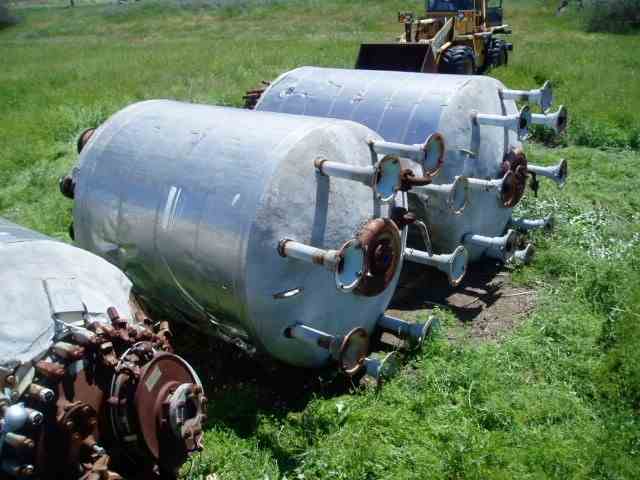

Used 1000 Gal Glass Lined Reactor, manufactured by Pfaudler. 60" diameter x 5'8" straight side, welded dished top and bottom. Rated for 100 PSI/FV at 525 degrees Fahrenheit, jacketed for 90 PSI at 600 degrees Fahrenheit. Glass type 3615. Has 36" off-center J-clamped cover with 16" x 20" oval manway, (4) 4" top inlets which were used for probes, level sensors, etc. Unit stands on (8) 17" legs with 12" diameter foot pads. (NOTE: 2 Units are all plug free. New between 1993 - 1996)
