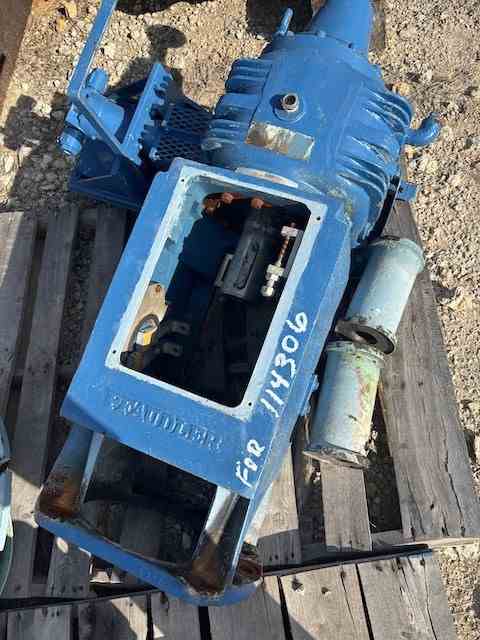

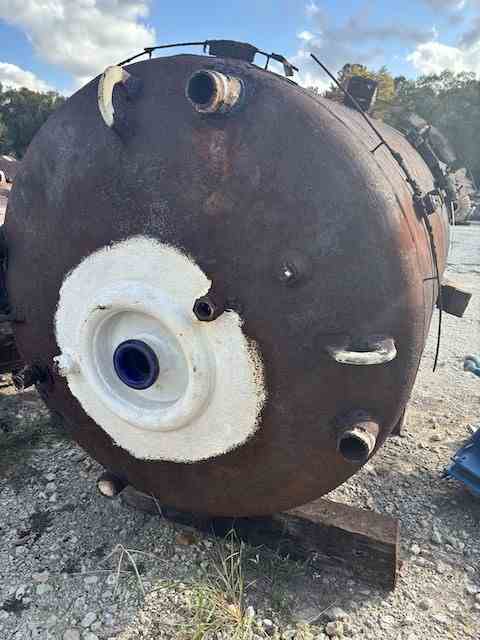

Used 1000 gallon glass lined vertical jacketed and agitated reactor. Manufactured by Pfaduler. Model # RA60-1000-90. 66" OD x 72" JCWVA. Stainless Internal rated 100 FV psi @650F, carbon steel Jacket rated 90 psi @450F. Carbon steel conventional type jacket on shell od and bottom head. Openings: top head (1)30" opening with 30" cover, (2) 2", (1) 14" x 18" manhole, (1) 3", (1) 4", Bottom head (1) 4". Pfaudler agitator drive. Dished heads. Built in 1980.
