Stainless Steel Pressure Vessels

Used 810 Gallon 316L Stainless Steel Vertical Pressure Vessel. Manufactured by Capitol City Iron Works. Rated 100PSI@350F. Lug mounted. Dished top and bottom. 20" Manway. Serial #38716-2. National board #585. Built 1972.

Unused 766 gallon (2.9 m3) 304L stainless Steel Feed Tank. Manufactured by Westra BV. Rated -1.74/+6.52 psi (-.12/+.45 BARG) @-13/203F (-25/95C). 54" dia X 93" length, (4) Leg mounted. Top Manway. Serial#80726. Weight 941 lbs. Built 2013. Previous use: Feed Tank in GEA freeze concentration plant.

Unused 766 gallon (2.9 m3) 304L stainless Steel Feed Tank. Manufactured by Westra BV. Rated -1.74/+6.52 psi (-.12/+.45 BARG) @-13/203F (-25/95C). 54" dia X 93" length, (4) Leg mounted. Top Manway. Serial#80726. Weight 941 lbs. Built 2013. Previous use: Feed Tank in GEA freeze concentration plant.

Unused 766 gallon (2.9 m3) 304L stainless Steel Feed Tank. Manufactured by Westra BV. Rated -1.74/+6.52 psi (-.12/+.45 BARG) @-13/203F (-25/95C). 54" dia X 93" length, (4) Leg mounted. Top Manway. Serial#80726. Weight 941 lbs. Built 2013. Previous use: Feed Tank in GEA freeze concentration plant.

Used 750 gallon vertical receiver. Manufactured by JL Clemmy. Rated 60PSI/FV. Dished heads. Lug mounted. Serial #R232. National Board #1370. Previously used in API facility.

Used 735 gallon 304 Stainless Steel receiver tank. Manufactured by Alloy Fab. Rated 15PSI@250F. Dished heads. Leg mounted. Dims 4'Dia x 3'8"T/T. weight 1250 lb. Serial #1-137A. Built 1991.

Used 700 gallon 316 Stainless Steel vertical receiver. Manufactured by Rolock. Rated 90PSI. Dished heads. (4) Leg mounted. Serial #9554-VB. National Board coded.

Used 640 gallon 304 SS Receiver tank. Manufactured by Valley Mechanical . Shell 15 PSIG/FV@295F. Dished heads

Used 640 gallon 304 SS Receiver tank. Manufactured by Valley Mechanical . Shell 15 PSIG/FV@295F. Dished heads

Unused 619 GAL Praj Industries vertical 304L stainless steel pressure vessel.10psi@140F. (4) Leg mounted. 56" ID x 4'8" T/T. Serial #06D058-T1464. Built 2008. Past used Fusel Oil Washings Tank.

Used 600 gallon 316L Stainless Steel Horizontal Pressure Vessel. Manufactured by Fabricon International Inc. MAWP 130PSI/FV@450F. 2'11.5"ID x 11'8"OAL. Serial #98118. National Board #843. Built 1998.

Used Approx 550 gallon duplex stainless steel pressure vessel. Manufactured by Cataract Steel Industries. Rated 100 psi @450F. 304 lifting lugs. Approx 40" dia x 136" tall. National Board #3407. Serial #V-CL-131. Built 2004.

Used 528 gal (2000 L) 316L Stainless Steel Jacketed Pressure vessel. Manufactured by Precision Stainless. Internal rated 50 PSIG/FV @300F. 304L Jacket rated 100PSIG@300F. Dish bottom and top. Top manway. (4) Leg mounted. National Board #4818. Serial # 6516-18. Built 1993.

Used 500 gallon 316 stainless steel horizontal pressure vessel. Manufactured by Ward. 42" dia x 80" length. Rated 150 psi @365F. Dished Top & Bottom Heads. Built 1996.

Used 500 gallon horizontal 316L stainless steel splitter vessel. Manufactured by Wolfe. 42" diameter x 84" T/T; 150FV @475F. Dished heads. On Saddle supports. Built in 2002.

Used 500 gallon 304 Stainless steel cyclone vessel. Manufactured by Alloy Fab. 15 PSI@210F. Dished heads. Leg mounted. 3'8"dia x 6'8"T/T. 1115 lb. Serial #1-159A. Built 1991.

Used 500 gallon 316L Stainless Steel Jacketed Pressure Vessel. Manufactured by Feldmeier. Internal MAWP 100PSI@300F. Dimple jacket MAWP 100PSI@300F. (4) Leg mounted. Serial#y 4746-A1. National Board #901. Built 1996. R-Stamp.

Used Walker 500 Gallon stainless steel pressure tank, constructed of 304 stainless steel. Measures 50" diameter X 50" straight side. Internally rated for 15 PSI @ 250 degrees F / -20 degrees F, ASME code constructed. Includes dished top with 16" diameter bolted top manway, (4) 2" & (2) 1" top openings and bottom with 2" center bottom outlet. Model "Hold", Serial number NL9140, Drawing number SP-27452-D, new in 1996. Last used in pharmaceutical type environment. Very good condition.

Used 500 Gal Vertical 316-SS Pressure Tank, rated 50 PSI @ 350 deg F. 5' Diameter x 2'6" Straight Side. Dish top and bottom. Top Nozzles: (3)2", 18"; Bottom: 2" outlet. Mounted on 4 legs. Mfg by Paul Mueller Company 1991. S/N: P37989, NB# 18396.

Unused Bendel 450 gallon vertical 304 stainless steel pressure tank. 4' diameter X 4' high straight side. Internal rated 90 PSI @ -20 to 150 F. Welded dished heads. NB# 1122, S/N 14706-1/1. Shell thickness: 0.25", Head thickness 0.25". Top fittings: (1) 2" flanged fitting, (1) 3" flanged fitting, and (1) 6" flanged fitting. 2" flanged center bottom outlet. (2) 2" side top and bottom for level gauge. (1) 3" side top inlet, and (1) 24" side bottom manway. Mounted on (4) I-beam legs giving 11" clearance from bottom outlet to floor. Insulated and covered with aluminum sheathing. Interior is coated with 6 mils of Ruby Red Teflon PFA. Built 2015. Weight 1900 lbs.

Used 450 gallon 316L Stainless Steel Pressure Tank. Manufactured by Groen. Vertical. Approximate 30" diameter x 144" straight side, bolt on dished top and bottom. Internal rated 45 psi & Full Vacuum at 300 degrees F. Top entering Cleveland agitator, model APD2M-5, serial# 12288-02. Need to verify shaft and blades, driven by a 7.5hp, 3/60/230/460 volt, 1760 rpm motor. Side lug mounts. National Board# 20726, built 1963, altered in 2007.

Used 450 gallon 316 Stainless Steel vertical receiver. Manufactured by M&M. Rated 90PSI@300F. Dished heads. Leg moutned. Serial #5004-B412. National Board #490. Built 1986.

Used 440 Gallon 304 Stainless Steel Vertical Pressure Vessel. Manufactured by Brighton. Rated 142PSI@82F. Dished top and bottom. (4) Lug mounted. 6'4"L x 3'2"D. 18" Top manway. Serial #PC4027-1. National Board #47. Built 1984.

Used 400 gallon 316L Stainless Steel Vertical Jacketed Pressure vessel. Manufactured by Alloy Fab. Shell rated 90psi/fv @390F. Jacket rated 45 psi @390F. Half pipe jacket on bottom half of shell and bottom head. Dished heads. NB #1741. Serial #2943. Built 1986.

Used 350 gallon 304 stainless steel pressure vessel. Manufactured by Alloy Fab. Shell 22.5PSI@212F. Dished ends. Built 1991.

Used 350 gallon 316 stainless steel horizontal pressure vessel. Manufactured by Industrial Piping. Rated 150FV @400F. 42"dia x 55" length.

Used approx 330 gallon pressure vessel. Manufactured by AIS. 3' 6" OD x 6' 10 1/2" tall. Rated 15 psi @300F. Side manway. (4) leg mounted. Built 2013.

Used 323 gallon 304 Stainless Steel receiver tank. Manufactured by Alloy Fab. Rated 15PSI/FV@255F. Dished heads. Leg mounted. 3'6"Dia x 4'T/T. 1100 lb. Serial #1-148A. Built 1991.

Used 264 Gallon 304L SS Pressure Vessel. Mfg Praj Industries. MAWP 32.35 PSI@320F. Dimensions 43" D x 3'H. (4) Leg Mounted. Dished heads. Serial #06D058-T1604.Built 2008. Past use Steam Condensate tank for dist and MSDH section.

Used Approx 250 gallon 316L stainless steel pressure vessel. Manufactured by Expert Industries. Rated 60 psi @250F. 30" OD x 57 1/2" tall. Top and bottom nozels. National Board #328, serial #4547. Built 1981.

Used Approx 250 gallon 316 stainless steel pressure vessel. Manufactured by Avins Fabricating Co. Rated 100PSI/FV @450F. 36" dia x 84" tall. (4)leg mounted, side manway, top nozzles. Weight 950 lbs. National Board #217. Serial #224. Built 1998.

Used 750 Liter (198 Gallon) Stainless Steel Jacketed pressure vessel. Manufactured by Paul Mueller Co. Internal MAWP 50PSI@360F. Heat Transfer MAWP 125PSI@360 (Steam). Dome top, dish bottom. Top Manway. National Board #9607. Serial #P9861. Built 1983.

Used 600 Liter (160 Gallon) Stainless Steel Jacketed Vacuum Vessel. Built by Apache Sanitary Construction. Internal Rated 15 PSI/FV @ 370(-20) Deg.F. Jacket rated 100/FV @ 370 (-20) Deg.F. 34" Dia. x 3'6" T/T. 8'6" OAH. 3" Triclover center bottom outlet. Top mounted Spray Ball. Built 1993. S/N: 10203, NB# 300.

Used 150 gallon Walker Kettle/Tank, Model PZ-K-SP, 316 stainless steel construction, approximately " diameter x " straight side, dish top, cone bottom, rated 10 psi and full vacuum at 250 F. internal, jacketed for 75 PSI at 250 F. (provision for top mounted agitator drive). Unit mounted on legs, Serial# 767, National Board# 489, built 1979.

USED WHE BIO SYSTEM APPROXIMATELY 130 GALLON (500 LITER) VERTICAL STAINLESS STEEL PROCESS VESSEL. 30" DIAMETER X 42" STRAIGHT SIDE. WITH DISHED TOP AND BOTTOM HEADS. RATED 45 PSI/FULL VACUUM INTERNAL @ 300°F, JACKET RATED 100 PSI @ 300°F. 18" CLAMP HINGED TOP MANWAY, (3) 1.75", 2", AND 2.5" TOP INLETS, AND 2.5" BOTTOM OUTLET. ON CASTORS.

Used 130 gallon 304 Stainless steel receiver tank. Manufactured by Alloy Fabricators. 15PSI@250F. Dished heads. Leg mounted. 2'8"dia x 2'5"T/T. 860 lb. Serial #1-143A. Built 1991

Approximately 125 Gallon (500 liter working volume) Feldmeirer agitated, 316L-SS sanitary stainless steel tank with lightning fractional drive. 44" Dia x 10'2" OAH. Unit is insulated. Rated 45/FV internal @ 350F. Built 1996. Leg mounted. Top fittings: 18" Manway w/8" reduced opening, (2)4", (3)2", (2)3", (3)1.5". Side: (3)1", 4" CBO w/2" Outlet. Serial # 4671-AF1, National Board # 917.(NOTE: 1/4 HP Agitator motor has cracked housing. Needs to be replaced)

Used 125 gallon 304 Stainless Steel Horizontal Separator. Manufactured by Thurston. 103" length x 20" dia. Rated 25 psi. Built 2012.

USED PRECISION STAINLESS APPROXIMATELY 115 GALLON 316L STAINLESS STEEL PRESSURE VESSEL. 3' DIAMETER X 1’11” STRAIGHT SIDE. WITH DISHED TOP AND BOTTOM HEADS. RATED 100 PSI/FULL VACUUM INTERNAL @ 325°F. 16 GAUGE 304L STAINLESS STEEL HEAD. DIMPLED 304L STAINLESS STEEL RATED 125 PSI @ 325°F. 0.187" SHELL THICKNESS, 0.25" HEAD THICKNESS, 36" HEAD DISH RADIUS.

Used Overly Inc. approximately 100 gallon vertical stainless steel pressure tank. 30" diameter X 36" high straight side. Internal rated 35/FV @ 300 degrees F. Welded dished heads. Top Fittings: 16" manway, (2) 1.75" sanitary, (2) 3.75" sanitary, (2) 2.75" sanitary, and (1) 6"flanged. Has 2" Kamlok center bottom outlet. Mounted on (3) stainless steel pipe legs giving 19" clearance to floor. National Board# 331, Serial# 10331-1020. Built 1977.

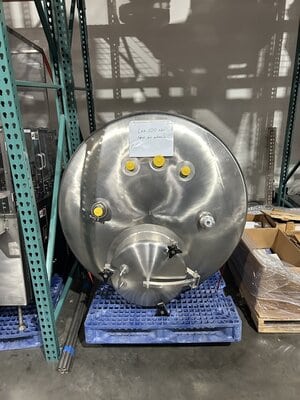

Used 100 Gallon Lee Industries Stainless Steel Pressure Tank Model 100 DBT. 316L Stainless Steel, Vertical. 30" Diameter x 30" straight side. Dished top and bottom heads. Internal rated 25 psi at 250 degrees F. Openings top: (1) 8" hand hole with 3" sight glass on hinged cover, (1) 3" tri-clamp, (3) 1" tri-clamp. 1" Center bottom outlet. Mounted on 4 stainless steel legs with casters. Tank is insulated with exterior stainless sheathing. Serial# B2643-F. National Board# 4046. Built 1988.

Used Alloy Fab Pressure Vessel. Approx 100 gallon. Rated 30PSI/FV @300F. Dimensions 24"D x 48"H. (4) Leg mounted National Board #76. Serial #640. Built 1965.

Used 100 Gallon 316 Stainless Steel Vacuum receiver. Manufactured by Perry Products Co. Model 100-V.R. Internal rated 45PSI/FV@250F. 32" OD x 24" straight side. (4) Leg mounted. Serial #B-0325. Built 1974.

Used 100 gallon 304 stainless steel pressure tank. Manufactured by Alloy Fab. 15PSI/FV@150F. Dished heads. Leg mounted. 2'6"Dia x 2'6" T/T. 380 lb. Built 1997

Used 100 gallon 316 Stainless Steel Vertical Receiver vessel. Manufactured by Unifab. Internal rated 60PSI/FV. Jacket rated 60PSI. Dished heads. Lug mounted. National Board #3. Previously used in API facility.

One used sanitary Stainless Steel 375 liter (approx 99 Gal) jacketed reactor/tank. Vessel rated 50 PSI @ 300 degrees F. Jacket rated 125 PSI @ 300 degrees F, Bottom mounted high-shear mixer and load cells. Built by C.E. Howard, 1994. Serial H19631, Nat'l. Board 2644.

Used 80 gallon 316 Stainless Steel vertical receiver. Manufactured by M&M. rated 90PSI @300F. Flat flange top and dish bottom. Leg mounted. National Board 513. Built 1987. Previously used in API facility.

Used 67 gallon 304 stainless steel receiver tank. Manufactured by Alloy Fab. 15PSI@295F. Dished heads. Leg mounted. 2'Dia x 2'3T/T. 440 lb. Serial #1-155A. Built 1991.

Used 63 gallon 304 Stainless steel receiver tank. Manufactured by Alloy Fabricators. 15PSI@250F. Dished heads. Leg mounted. 2'Dia x2'2"T/T. 300lb. Serial #1-139A. Built 1991

Used 53 gallon 304 SS pressure vessel. Manufactured by Alloy Fab. Internal rated 15PSI/FV@104F. Coil rated 33PSI @278F. Flat top, dish bottom. Leg mounted. 2'D x 2'T/T. 545 lb. Serial #7-163A. Built 1997.
