100 Gal Lee Stainless Steel Pressure Vessel
Other Views - click image for larger view
100 Gal Lee Stainless Steel Pressure Vessel 100 Gal Lee Stainless Steel Pressure Vessel 100 Gal Lee Stainless Steel Pressure Vessel 100 Gal Lee Stainless Steel Pressure Vessel

100 gal lee stainless steel pressure vessel

Stock # 16722
Capacity 100 Gal

Overview

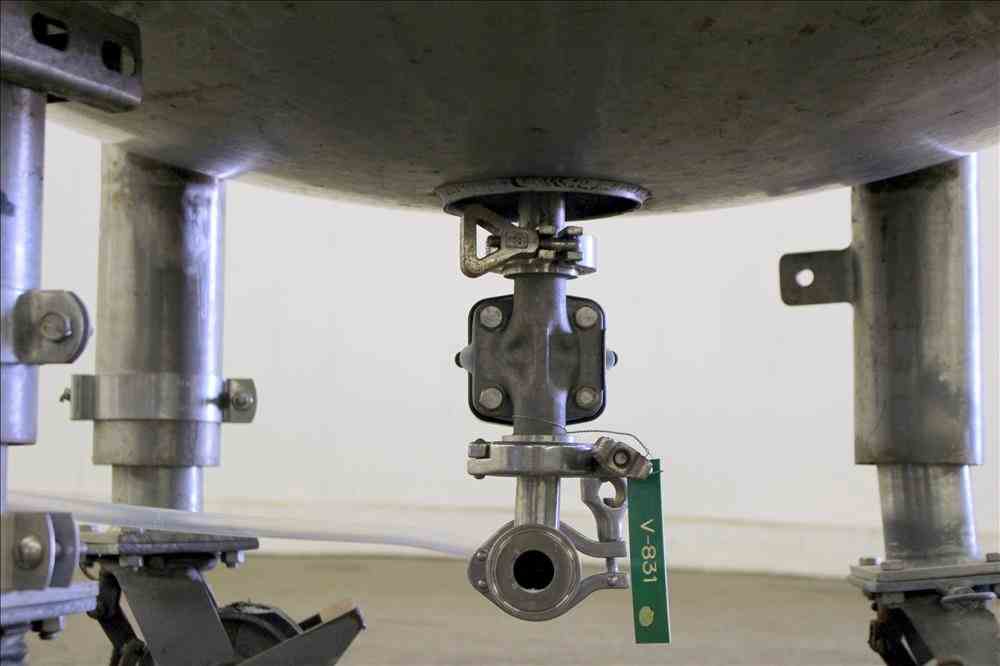

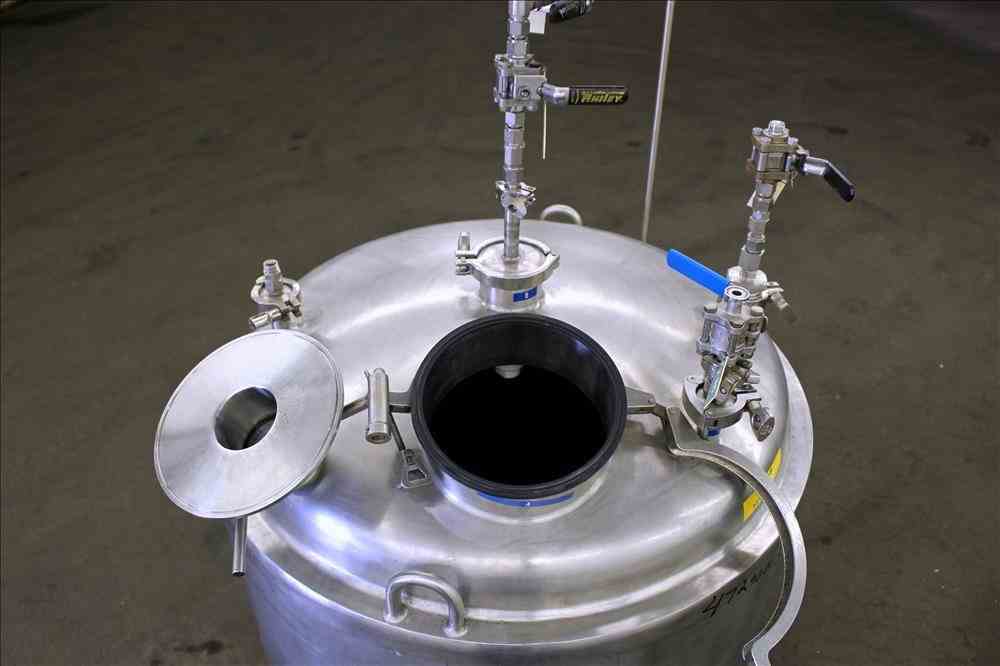

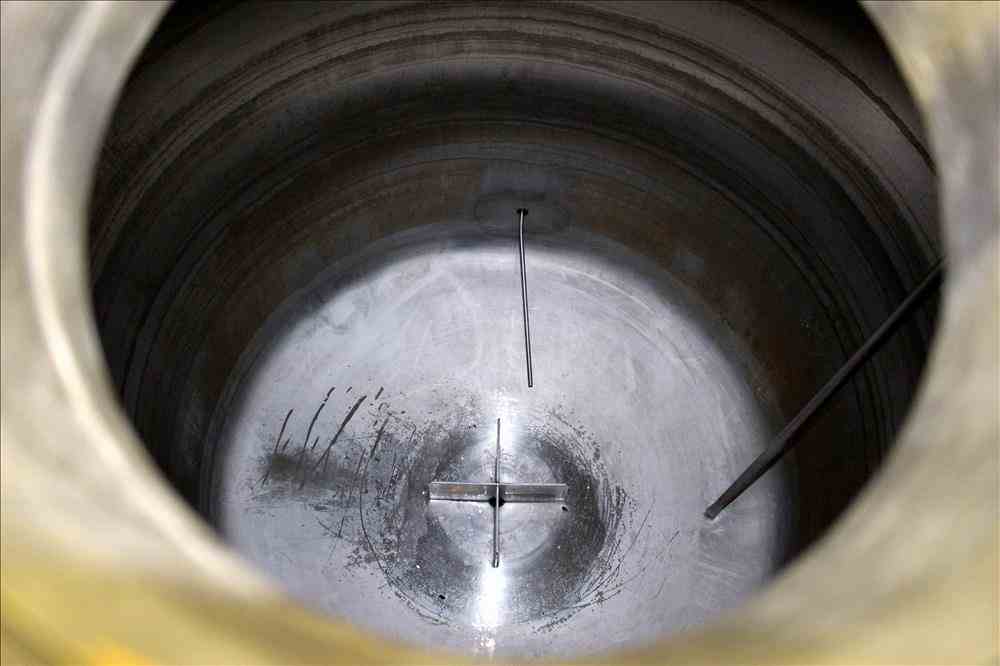

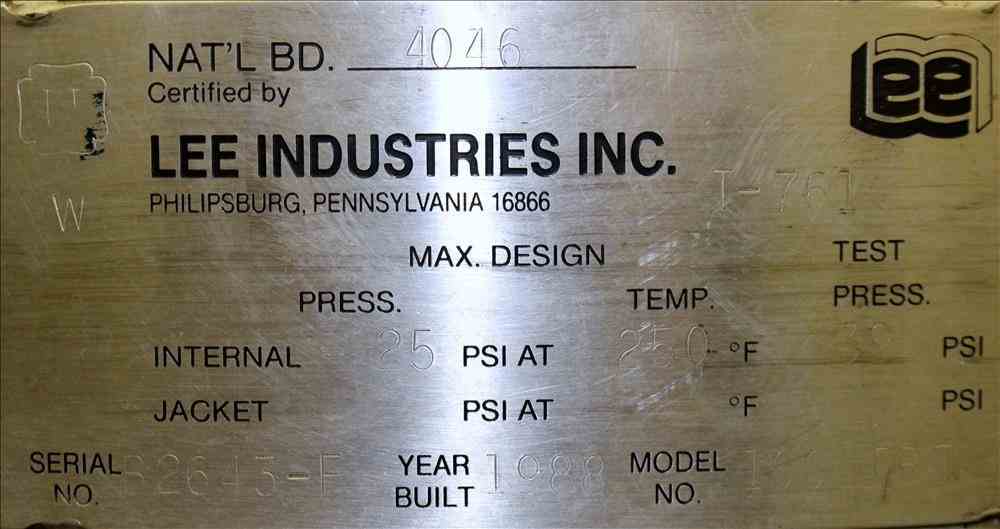

Used 100 Gallon Lee Industries Stainless Steel Pressure Tank Model 100 DBT. 316L Stainless Steel, Vertical. 30" Diameter x 30" straight side. Dished top and bottom heads. Internal rated 25 psi at 250 degrees F. Openings top: (1) 8" hand hole with 3" sight glass on hinged cover, (1) 3" tri-clamp, (3) 1" tri-clamp. 1" Center bottom outlet. Mounted on 4 stainless steel legs with casters. Tank is insulated with exterior stainless sheathing. Serial# B2643-F. National Board# 4046. Built 1988.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Lee
Model
100DBT
Material
Unknown
Capacity
100 Gal
Subcategory
