Used 167" Diameter x 83' Tall 304L Stainless Steel Trayed Column. Mfr Praj Industries. (44) Sieve Trays @16". 14PSI/FV@266F. Skirt Mounted. Serial # 06D058-C1461. Built 2008. Past used Rectifier Column.
Unused 157" Diameter x 70' Tall 304L Stainless Steel Trayed Column. Mfr Praj Industries. (18+1) 304L SS Rigid Trays spaced @30" intervals. Serial #06D058-C1401. Built 2008. Last use Mash Column.
Used 10'6" Diameter x 69' Tall 304L Stainless Steel Tray Column. Manufactured by Nooter. Rated 135 PSI@ 200F.(35) Bubble Cap and Coil 304L Stainless Steel trays. Tray spacing: Lower (15) @1'1" and Upper (20) @2'5.25". Overall height 89'. 9'6" Skirt Mounted. National Board #12325. Serial #913417. Built 1992. Past Use Nitric Acid Absorber Column.
Used 120" Diameter x 42'-2" Tall 28,580 Gal 304 Stainless Steel Trayed Column. Mfr SpecFab. (20) Trays designed by Koch-Glitsch Flexitray (Model VLB-1OFL), each tray with (50) AC-5-U valves. All trays were reworked in 2014 and trays 18-20 were replaced. All passed inspection. Includes instrumentation attached to column, valves, ladders & grating on this column. MAWP 96 PSI/FV @ 300 F. Skirt Mounted. Built 2007. Past use: Rectifier Column for ethanol production.
Used 108" Dia X 72" Dia X 69'-6" Tall 304 Stainless Steel Trayed Column. Mfr SpecFab. (27) baffle trays bolted with Sulzer LVG valves. MAWP shell 73 PSIG @ 300 F. Skirt Mounted. Built 2007. Including instrumentation attached to column, valves, ladders. Past use: beer distillation column for ethanol production.
ONE (1) Used Pemco Agitated Extractor Column, 316L stainless steel, 7' (2.1 m) diameter x 35' (10.7m) high, 25 PSI internal at 180 degrees F, (12) Do-Nut Type Trays, (7) 42" diameter impellers, 50 H.P. Lightnin Drive, at 56 RPM.

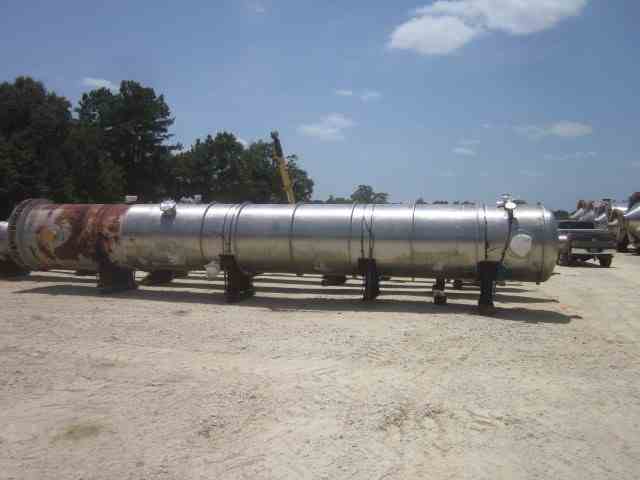

Unused 61" Diameter x 41'6" Tall 304L Stainless Trayed Column. Mfr Praj Industries. (14) Sieve Trays @18" intervals. 14PSI/FV@230F. Serial #06D058-C1462. Built 2008. Last use Side Stripper Column.
Used 60" x 45' S/S Stainless Steel Amine Contactor. Mgf South-Tex treaters. MAWP 750 PSI @100F. (20) SS Trays. From a 24 MMSCFD natural gas processing facility. Serial #61-2681. National Board #4708. Built 2001.
Used 60" x 50'7"TT Stainless Steel Amine Contactor. Mgf Wyatt Industries. MAWP 300 PSI @150F. (20) SS Mist Pad Trays. Weight 34000 Lbs approx. Serial #63-D-118. National Board #3105. Built 1963.
Used MTBE Complex Depropanizer. Manufactred by G.A. MOSITES CO. OF HOUSTON INC. Vertical SA 516-70 Column 54" Dia x 75'10"L. Overall 69"Dia x 100'2"OAL. Mounted on 15' skirt. (24) Downcommer Trays with 2' Spacing. Rated 200 PSI @220F. Empty weight 44,500 lbs. 9041 Gallons. Serial #4169A. Built 1983. Alteration by HICO 1991. Alt #168.
Used 54"ID x 30'TT Vertical Tray Column. Mfg Texas Tanque Mfg. Co. Inc. (8) Trays. SA516 Shell rated 1440PSI@100F. (2) 16" Manways, (1) 12" Inlet, (1) 12" Gas oulet, (19) misc couplets. Skirt Mounted. Serial #9053. National Board #1559. Built 1980. Used as Vertical Glycol Contactor / Tower. 63000 lbs.
Used 2400 Gallon 304 Stainless Steel high pressure Column/Vessel. Demethanizer Vessel rated 500 PSI @ -200 F. Unit is 48" Dia. x 24'6" Straight Side. Shell & head thickness: 11/16". Mounted on skirt. (5) trays near top of column. ASME Coded. U-Stamp. Built by Delta Southern, S/N: 44628-65-1.
Unused Stainless Steel Distillation Column with Condenser. 22"/42" dia. X 40'5" T/T. Rated 200/FV PSI@ 325/-49 Deg.F. Bottom 5'11" is 42" dia. and the remainder of column is 22" dia. Has Support trays, No packing available. Condenser is 72 Sq.FT. 304L SS Shell rated 170/vacuum @ 325 Deg.F. 304L SS Tubes rated 100 PSI @ 300 Deg.F. Carbon steel heads. NB# 2487, built by Rubicon, Type NEN. S/N: 211694-T-79100. NB # 2395. Drawings/manuals available.
Unused 41"Dia x 30'Tall 304L Stainless Steel Sieve Tray Column. Mfg Praj Ind. (30) 18" Trays at 1' intervals. 9PSI@113F. Support Skirt. Serial #06D058-C1312. Built 2008. Past Use Process Vent Scrubber.
Unused 40" diameter Koch Extraction Column, 304L stainless steel construction, 40" diameter upper section x 20" diameter middle section x 40" diameter lower section x 53'1" overall straight side, dished bottom, rated 50 PSI and full vacuum @ 400 degrees F internal, sectional design with 40" diameter x 10' long upper and lower sections, 20" diameter x 34' middle section with 31' plate stack section divided into (3) sections with top entering drive with mechanical seal, 825 gallon capacity, certified by Dusenbery Eng., Serial No. 1544A, National Board No. 3528, new 1998 and never installed.
Used 36" Dia Distillation Tray Column System designed by Koch Process Technologies Inc. Column manufactured by Dusenbury Engineering Co; (40) Trays. 59'3" TT. Lower 7'3" section Hastelloy C276, Upper section 316L SS. MAWP 50 PSI/FV@400F. Serial #1481A. National Board #3480. Built 1998. Weight 8500 lbs. Housed in a 79'H x 11'6"W skid with a A. (HE-7002) 9 sq ft SS Shell and tube heat exchanger. MFG Rubicon. CS Shell rated 200PSI/FV@450/ (12) 316L Tubes rated 100psi/FV@400F. Serial #2609-2. National Board #2338. Built 1998. B. (CL-7001) Dusenbery engineering pressure vessel rated 50 SPI/FV@400F. Serial #1493A. National Board #3471. Built 1998. C. (HE-7007) 305 Sq ft Tranter SuperChanger Plant and Frame heat exchanger. Model 06-T26-HP-52. (95)Plates MAWP 100PSI@230F. Serial #21220. Built 1998. D. (HE-7005)305 Sq ft Tranter SuperChanger Plant and Frame heat exchanger. Model 06-T26-HP-52. (95)Plates MAWP 100PSI@230F. Serial #21219. Built 1998. E. (PU-7004) Used 2HP Kontro GT pump. 10 GPM@63'TDH. Size 1 x 1 x 5. F. (TK-7001) 150 Gallon SS Reflux Tank. Design pressure 50PSIG/FV@400F. G. (PU-7003) Used 2HP Kontro GT pump. 10 GPM@63'TDH. Size 1 x 1 x 5. H. (HE-7001) Used 50 Sq Ft Vertical Shell and Tube heat exchanger. Mfr Rubicon. CS Shell and (16) 316L Tubes Rated 100PSI/FV@400F. Serial #2609-1. National Board #2340. Built 1998. I. (HE-7004) 50 Sq Ft Horizontal SS Shell and Tube Heat Exchanger. (26) 316L SS Tubes designed 100PSI/FV@400F. Shell 100PSIG@330F. J. (PU-7002) Used 7.5HP Kontro A-Range Hastelloy pump. 280 GPM@50'TDH. Size 6x4x8H. K. (HE-7003) 832 Sq Ft Vertical Shell and Tube heat exchanger. CS Shell rated 200PSI@450F. (222) Hastelloy C276 Tubes rated 50PSI/FV@350. Serial #2609-3. National Board #2349. Built 1998. L. (HE-7006) 19 Sq Ft Shell and Tube Heat exchanger. Mfg Rubicon. CS Shell rated 100PSI@330F. (12) Hastelloy C276 tubes rated 100PSI/FV@400F. Serial #2609-5. National board #2344. Built 1998.
Used 36" Dia x 25' S/S Vertical Tray Column. Mfg TYSCO. (8) Trays. MAWP 1440 PSI @ -20/100 F. Serial #70-301. National Board #2756. Built 1970. Used as Vertical Glycol Contactor / Tower. Dry weight 13,000 lbs.
Used 36" OD x 24'-6" S/S Vertical Tray Column. Mfg South_tex Treaters. MAWP 2000 PSI @ -20/100 F. Serial #588820109. National Board #18653. Built 2001. Used as Vertical Glycol Contactor / Tower. Dry weight 26,000 lbs.

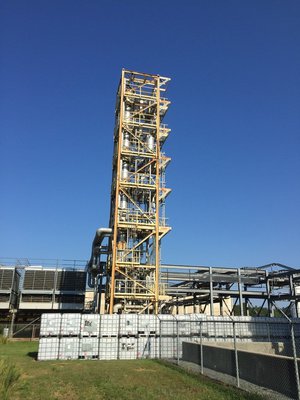

Used 36” Dia Tray Column. Manufactured by Dusenbury Engineering Co; (40) Trays. 59'3" TT. Lower 7'3" section Hastelloy C276, Upper section 316L SS. MAWP 50 PSI/FV@400F. Serial #1481A. National Board #3480. Built 1998. Weight 8500 lbs. Housed in a 79'H x 11'6"W skid.
Used 30" Diameter x 60' Tall 316 Stainless Steel trayed Column. Manufactured by A&B Process Systems. (30) 316 Stainless Steel trays rated 50 PSIG@350F. Built 2011. last used as Rectifier/Stripper column.
Used 18" diameter Entex Column, 304L stainless steel construction, 18" diameter first stage x 36" second stage x 26' overall straight side, elliptical top and bottom, rated 166 PSI and full vacuum @ 400 degrees F, sectional design with 18" diameter x 28" straight side top, 18" diameter x 11'9" middle section, 36" diameter x 11' bottom section, mounted on stainless steel skirt, 18" side bottom manway, 6", (2) 1.5" top nozzles, (2) 8", (2) 4", (5) 2", (10) 1.5" process nozzles, 5/16" thick heads, 1/4" to 3/8" thick shell, 30' OAL, Serial No. 3493A, National Board No. 867, new 1999 and never installed.
