54 " Dia G.A. Mosites Co. of Houston Inc SA-512-70 Tray Columns
Other Views - click image for larger view
54 " Dia G.A. Mosites Co. of Houston Inc SA-512-70 Tray Columns 54 " Dia G.A. Mosites Co. of Houston Inc SA-512-70 Tray Columns 54 " Dia G.A. Mosites Co. of Houston Inc SA-512-70 Tray Columns

54 " dia g.a. mosites co. of houston inc sa-512-70 tray columns

Stock # 13405
Capacity 54 " Dia

Overview

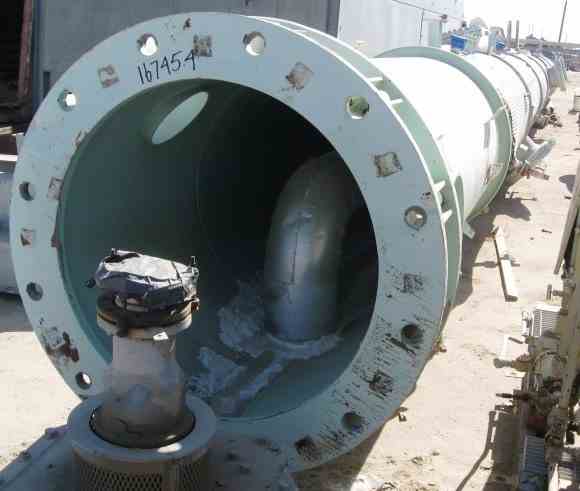

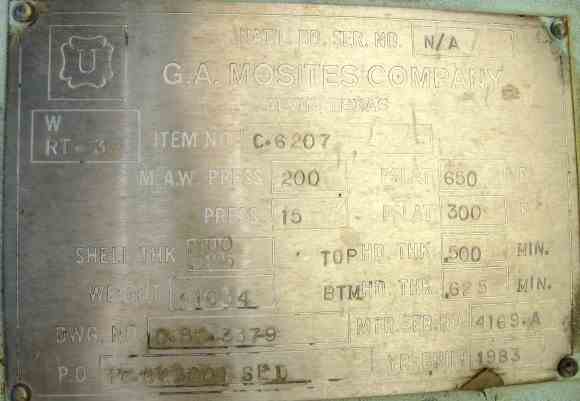

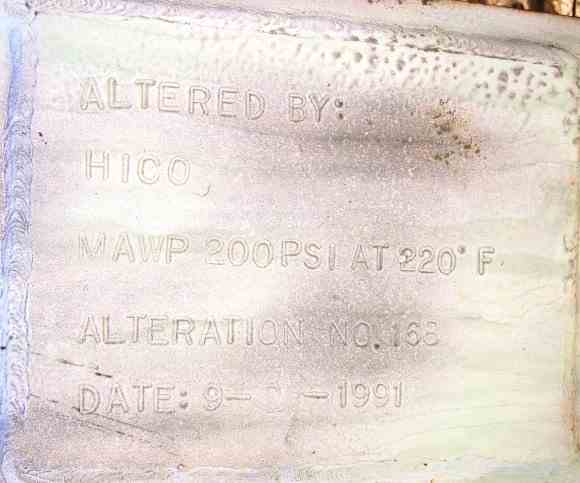

Used MTBE Complex Depropanizer. Manufactred by G.A. MOSITES CO. OF HOUSTON INC. Vertical SA 516-70 Column 54" Dia x 75'10"L. Overall 69"Dia x 100'2"OAL. Mounted on 15' skirt. (24) Downcommer Trays with 2' Spacing. Rated 200 PSI @220F. Empty weight 44,500 lbs. 9041 Gallons. Serial #4169A. Built 1983. Alteration by HICO 1991. Alt #168.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
G.A. Mosites Co. of Houston Inc
Model
Not applicable
Material
SA-512-70
Capacity
54 " Dia
Subcategory
