120 " Dia SpecFab 304L SS Tray Columns
Other Views - click image for larger view
120 " Dia SpecFab 304L SS Tray Columns 120 " Dia SpecFab 304L SS Tray Columns

120 " dia specfab 304l ss tray columns

Stock # 17588
Capacity 120 " Dia

Overview

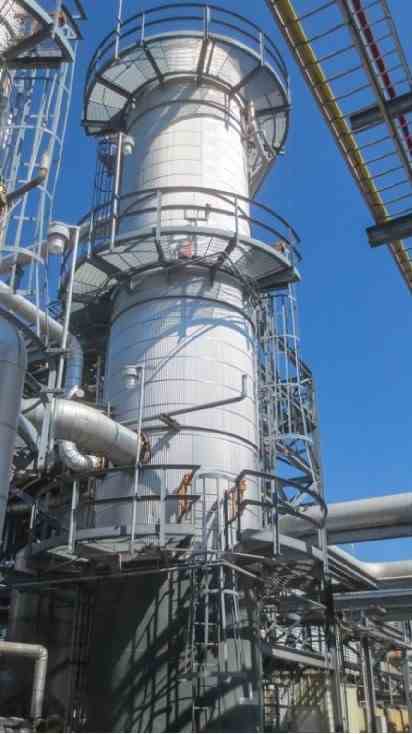

Used 120" Diameter x 42'-2" Tall 28,580 Gal 304 Stainless Steel Trayed Column. Mfr SpecFab. (20) Trays designed by Koch-Glitsch Flexitray (Model VLB-1OFL), each tray with (50) AC-5-U valves. All trays were reworked in 2014 and trays 18-20 were replaced. All passed inspection. Includes instrumentation attached to column, valves, ladders & grating on this column. MAWP 96 PSI/FV @ 300 F. Skirt Mounted. Built 2007. Past use: Rectifier Column for ethanol production.
