Reciprocating Compressors for Sale

Phoenix Equipment buys and sells unused, used and reconditioned Air Handlers.

5 Results

Show:

Sort:

View: List Grid Photos

7188 CFM Ariel Corporation JGJ/2 Rotary Screw Compressor

Stock # 16027 | Capacity 7188 CFM

Used Ariel Corporation Model JGJ/2 Reciprocating Gas Compressor. 7188 SCFM. Past use: Tailgas Recycle Compressor. Model JGJ/2. 3.5" Clockwise stroke at 1800RPM. Drive rated 250HP @892 RPM. Max Rod Load Tension 21000 lbs. Max Rod Load Compression 23000 lbs. (2) Throws - #1: MODEL #9-3/4RJ-PRCU; 9.75" BORE; 577.3 RDP. #2: MODEL #9-3/4RJ-PRCU; 9.75" BORE; 577.3 RDP. Crankshaft Centerline 12" from Bottom. Serial #F-49884. Weight: 33,000 lbs.

Add to Quote View details

7188 CFM Ariel JGT/2 Reciprocating Compressor

Stock # 16007 | Capacity 7188 CFM

Used Ariel Corporation Model JGT/2 Reciprocating Gas Compressor. 7188 SCFM. Past use: Syn Gas Compressor. Frame Model JGT/2. 4.5" clockwise stroke @1500RPM. Drive rated 850HP @890RPM. Max Rod Load Tension 37000 lbs. Max Rod Load Compression 40000 lbs. (2) Throws - #1 MODEL #14-1/8T-PRC; 13.625" BORE; 577.3 RDP. #2 MODEL #17-7/8T-PRC; 17.375" BORE; 404.5 RDP. MAWP 445PSIG. Crankshaft Centerline 17" from Bottom. Serial #F-50488. Built 2015. Skid Weight 15860 lbs

Add to Quote View details

2793 CFM NEA 3+1SVL130 Reciprocating Compressor

Stock # 15391 | Capacity 2793 CFM

Used 1200 HP Hydrogen Reciprocating Compressors built by NEA. Model 3+1SVL130. Rated 2793 SCFM @ 1937 PSIA. (4) Cylinders consisting of (3) Make-up H2 and (1) Recycle H2 cylinder. Recycle cylinder rated at 9653/13040 SCFM @ 2020 PSIA. Stage 1=8.26" Bore@609 PSIG; Stage 2=5.71" bore@1247 PSIG; Stage 3=4.53" bore@2349.6 PSIG; Recycle Stage =5.91" bore@2465.6 PSIG. All cylinders have 6.69" Stroke. Each unit includes Lube Oil Skids and KO Vessels. Serial #s 109089A and 109089B. Built 2011. Units ran less than 4 months. Qty (2) available.

Add to Quote View details

1625 CFM Burton Corblin P123 LM710 CSH Reciprocating Hydrogen Compressor

Stock # 19709 | Capacity 1625 CFM

Used Burton-Corblin Model P123 LM710 CSH Reciprocating Hydrogen Compressor. 1625 SCFM. Past Used Hydrogen Compressor. Suction: 335PSIG. Discharge: 425 PSIG. Speed: 536 RPM. Absorbed Power: 38.5kW. 75HP Siemens Frame 365T Motor 230/460V Belt driven. Serial #27811. Built 1999.

Add to Quote View details

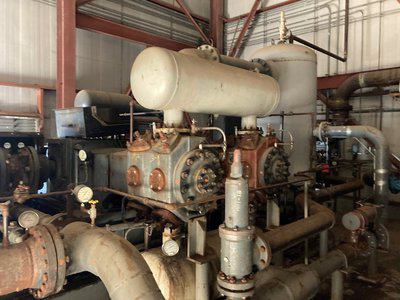

756 CFM Ingersoll Rand Reciprocating Compressor

Stock # 19743 | Capacity 756 CFM

Used Ingersoll-Rand Natural Gas RDS Compressor driven by a 1500 HP Model 5K841172C24 GE motor. 900RPM. Compressor 1 stage. 756 CFM. 450 PSIG. Working pressure 195 PSIG. Max allowable discharge gas temp 350F. Bore 19.125in. Stroke 5.5in. Skid mounted. Serial #Y6R-5820. Built 1982. (3) available.
