7188 CFM Ariel Corporation JGJ/2 Rotary Screw Compressor
Other Views - click image for larger view
7188 CFM Ariel Corporation JGJ/2 Rotary Screw Compressor 7188 CFM Ariel Corporation JGJ/2 Rotary Screw Compressor 7188 CFM Ariel Corporation JGJ/2 Rotary Screw Compressor 7188 CFM Ariel Corporation JGJ/2 Rotary Screw Compressor

7188 cfm ariel corporation jgj/2 rotary screw compressor

Stock # 16027
Capacity 7188 CFM

Overview

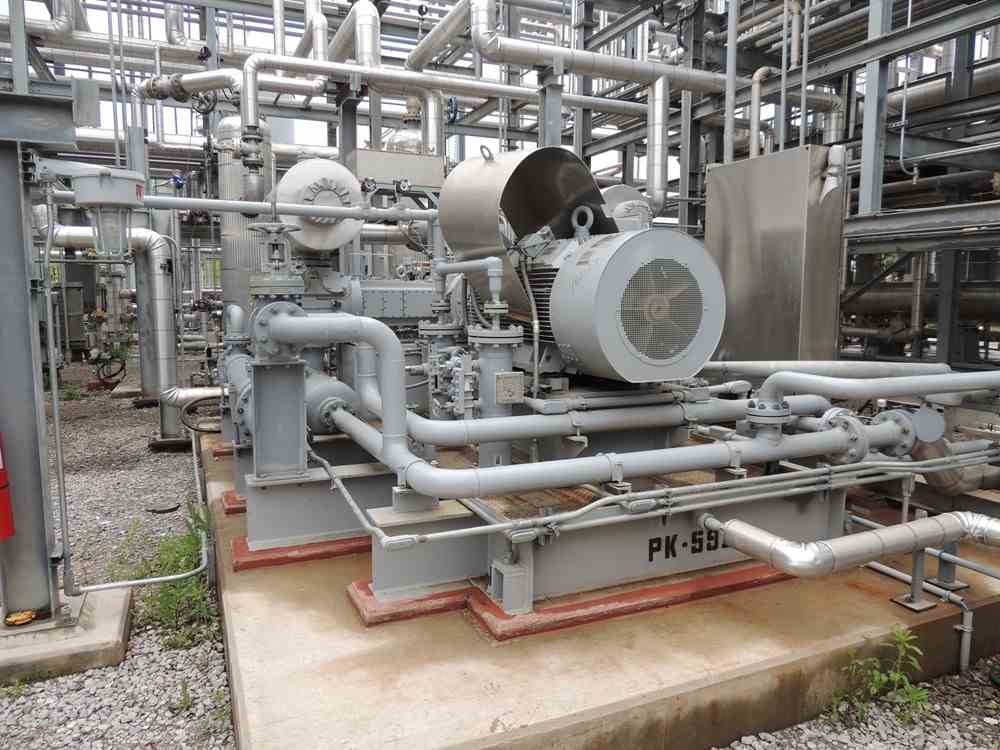

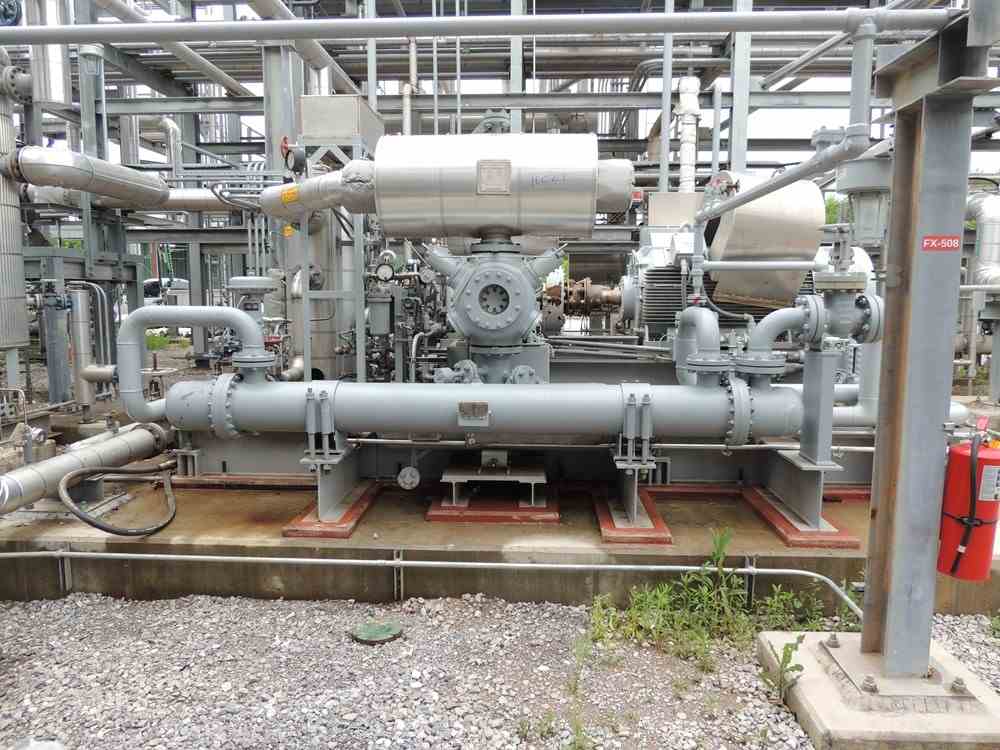

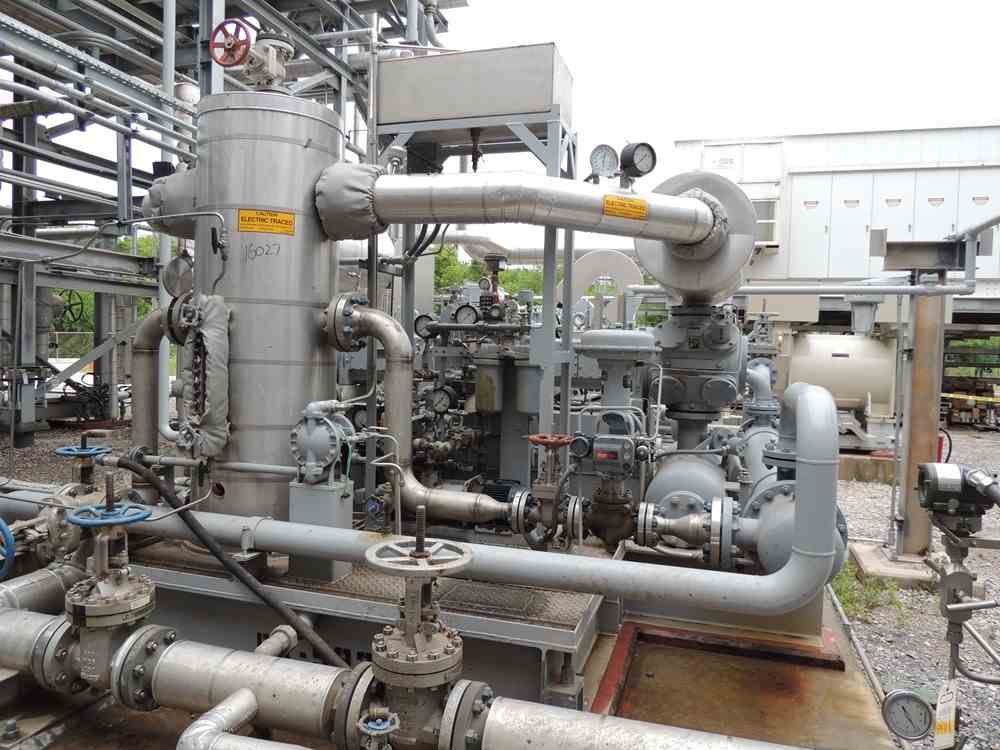

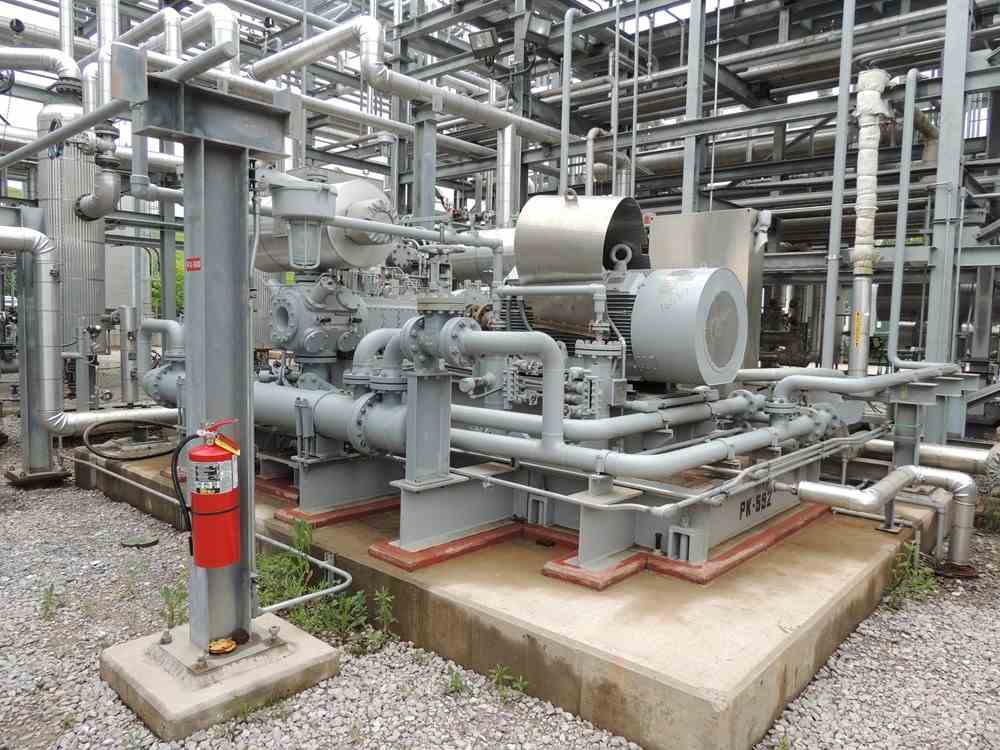

Used Ariel Corporation Model JGJ/2 Reciprocating Gas Compressor. 7188 SCFM. Past use: Tailgas Recycle Compressor. Model JGJ/2. 3.5" Clockwise stroke at 1800RPM. Drive rated 250HP @892 RPM. Max Rod Load Tension 21000 lbs. Max Rod Load Compression 23000 lbs. (2) Throws - #1: MODEL #9-3/4RJ-PRCU; 9.75" BORE; 577.3 RDP. #2: MODEL #9-3/4RJ-PRCU; 9.75" BORE; 577.3 RDP. Crankshaft Centerline 12" from Bottom. Serial #F-49884. Weight: 33,000 lbs.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Ariel
Model
JGJ/2
Material
Unknown
Capacity
7188 CFM
Category
