Cogeneration Power Plants for Sale

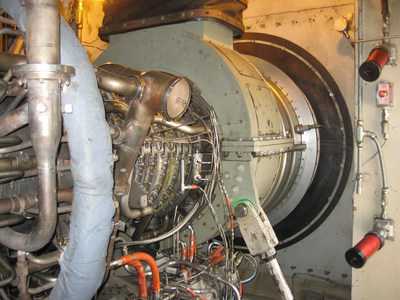

The cogeneration power plant has two (2) GE LM5000 gas turbines, two (2) Deltak heat recovery steam generators, one (1) steam turbine in combined cycle with steam used in a heat exchanger on the plant property to heat water. LM5000 is a popular model actively operating worldwide. GE built aproxiamtely 200 – 250 units. The plant has forced outage rate less than 1%. Its incremental heat rates at each power point is estimated at 8,700 BTU / KWh. NOx emission from this plant is 535 tons per year, and CO2 emission 45 tons per year. The plant is equipped with an emergency diesel generator 500 KVA and a 13.8 KVA to 115 KVA transformer. The plant has one (1) spare power turbine. The plant is permitted and has an electric interconnection as well as a natural gas connection. Both connections are PSCO / Xcel.

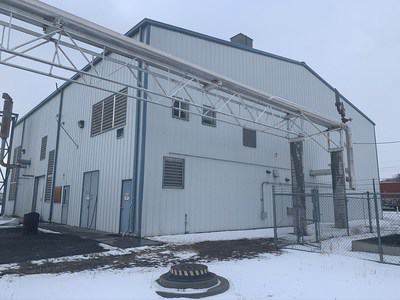

Cogeneration power plant designed to run with a Solar Mars 100S Gas turbine (missing). 10.5MW GE Generator. Gear Box: 16500HP Allen Gears Solar Mars 1800 RPM Epicylic Star (Decreasing) Model 20845. (2) Deltak 46500 lb/hr steam boilers 250PSIG. HRSG Unit. Marley cooling tower Model NC9141GM. American Battery Charging station. Controls, transformers.

This Cogeneration Power Plant includes a Dual Fuel Gas Turbine Generator, Gas Turbine LM2500, Power Fractor, Heat Recovery Steam Generator (HRSG), Steam Turbine Generator, and Dresser Rand Gas Compressors. Its Cogeneration block can operate on simple cycle. The plant has been operated for only 3,600 hours since its last major overhaul.

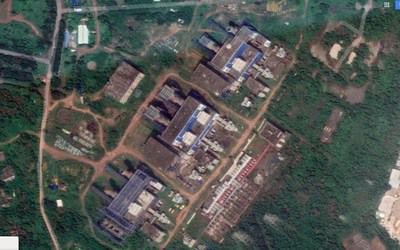

The Combined Cycle Power Project has 3 modules of ‘STAG 209FAMS’ Power Generating sets with Multi – Shaft arrangement. Each module having a capacity of 754 MW, consisting of (2) GE 9FA.03 Gas Turbines & Generators, (2) CMI Heat Recovery Steam Generators (HRSG), (1) GE D11 Steam Turbine & Generator. Equipment designed for 50 Hertz. Natural gas requirement for the plant is about 9.6 mmscmd. Out of the total 2,262 MW Capacity, about 51 MW is based on the evaporative cooling system. With the evaporative cooling system in switched off mode the total output from modules is 2211 MW.

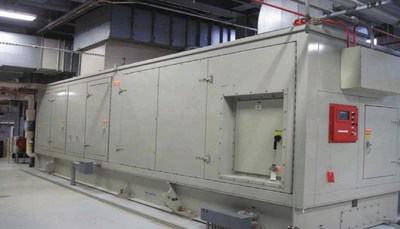

Used 13.6MW Cogeneration Power Plant. Composed of (2) Solar Taurus 60 Model 7801 Dual Fuel (Nat Gas/#2 FO) Combustion Turbine. Operating Speed 14900 RPM. Generator: Solar Turbines 5300kW/12470V. Fuel: Dual Fuel. Nat gas 250-300psig. 1400 scfm. Fuel oil: 35050 psig. 8 gpm. Includes lube oil cooler, Donaldson air intake filter and operating manual. operating Hours 21,152 and 4,314 respectively. (2) Tuthill Corporation Steam Turbine. Frame RJG2. Serial #1-05322A and 1-05322B. Rated 1500 HP. 5250 Max Continuous RPM. Inlet temp 560F. Generator data: Ideal Electric Brushless Generator. Frame 21120-16. Serial #931070-01 and 931070-02. Type SAB. 451A/3ph/60Hz. Output 1500kW/1875kVA/2400V. 1800 RPM continuous Duty. Power Factor 0.8. Exciter data: Ideal Electric Brushless Exciter. Frame BE13-4. Type FRBA. Output 21kW. 125V/468A. Field V/Field A: 63/2.0. With Ideal Electric Alternator, Space heater and manuals. (also see stock #12118)
