13.6MW Cogeneration Power Plant with Solar Taurus 60 Turbines

Stock # 1041
Capacity 13.6MW
Products Not Listed
Sold

Overview

Used 13.6MW Cogeneration Power Plant. Composed of (2) Solar Taurus 60 Model 7801 Dual Fuel (Nat Gas/#2 FO) Combustion Turbine. Operating Speed 14900 RPM. Generator: Solar Turbines 5300kW/12470V. Fuel: Dual Fuel. Nat gas 250-300psig. 1400 scfm. Fuel oil: 35050 psig. 8 gpm. Includes lube oil cooler, Donaldson air intake filter and operating manual. operating Hours 21,152 and 4,314 respectively. (2) Tuthill Corporation Steam Turbine. Frame RJG2. Serial #1-05322A and 1-05322B. Rated 1500 HP. 5250 Max Continuous RPM. Inlet temp 560F. Generator data: Ideal Electric Brushless Generator. Frame 21120-16. Serial #931070-01 and 931070-02. Type SAB. 451A/3ph/60Hz. Output 1500kW/1875kVA/2400V. 1800 RPM continuous Duty. Power Factor 0.8. Exciter data: Ideal Electric Brushless Exciter. Frame BE13-4. Type FRBA. Output 21kW. 125V/468A. Field V/Field A: 63/2.0. With Ideal Electric Alternator, Space heater and manuals. (also see stock #12118)

Major Equipment

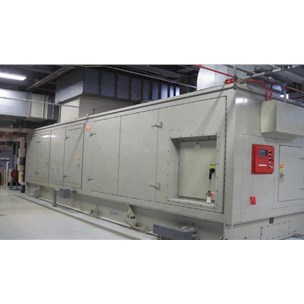

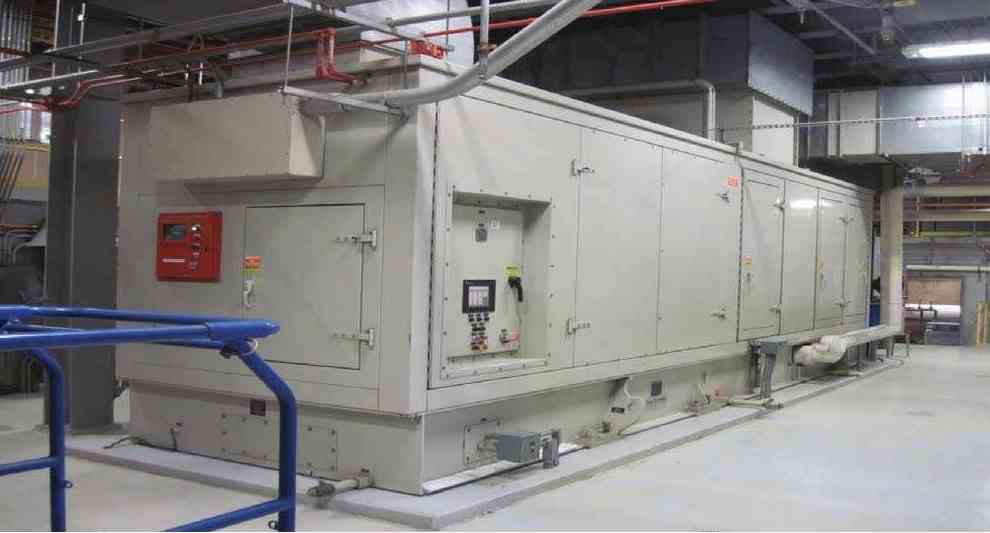

(2) 5.3MW Solar Taurus 60 Model 7801 Dual Fuel Combustion Turbines

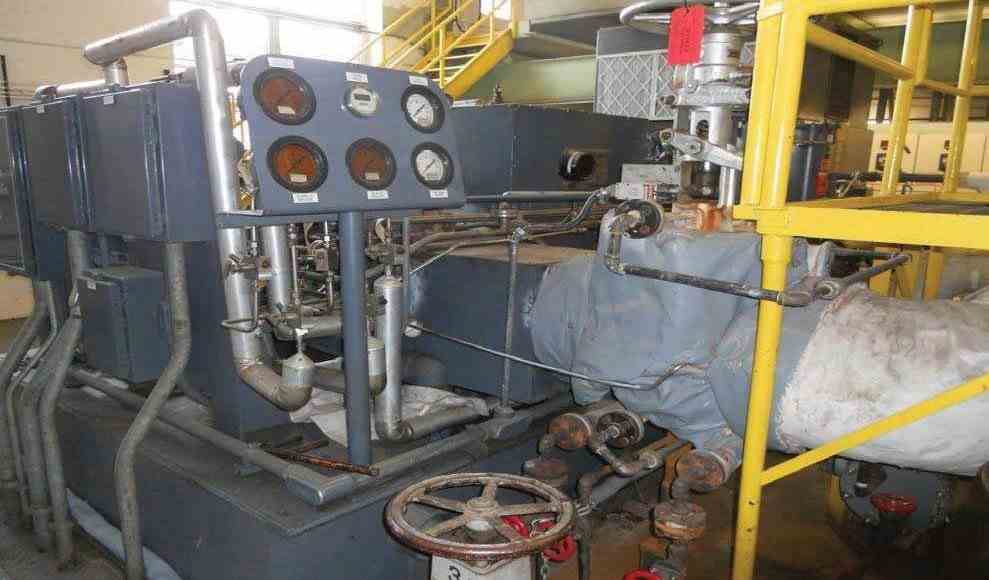

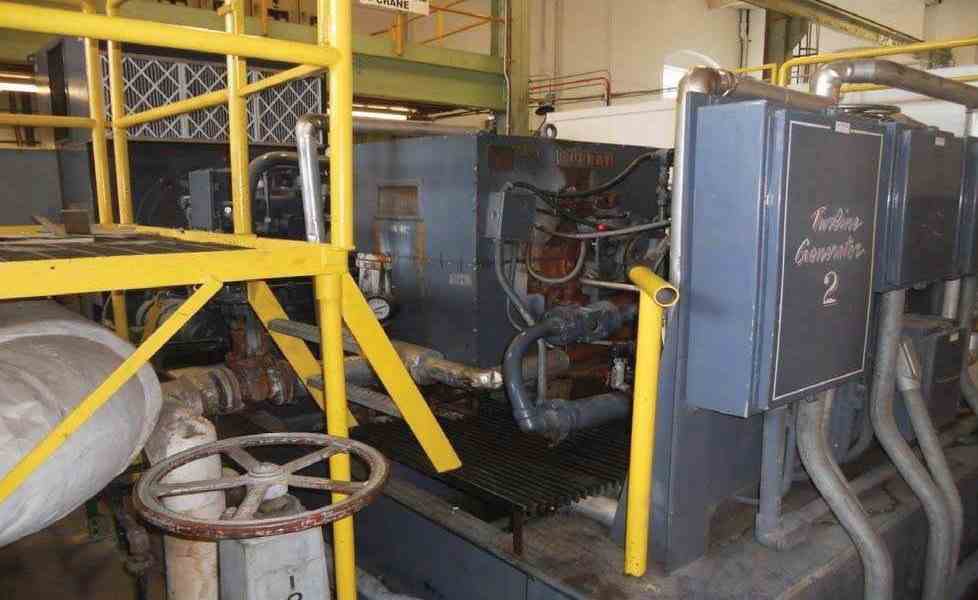

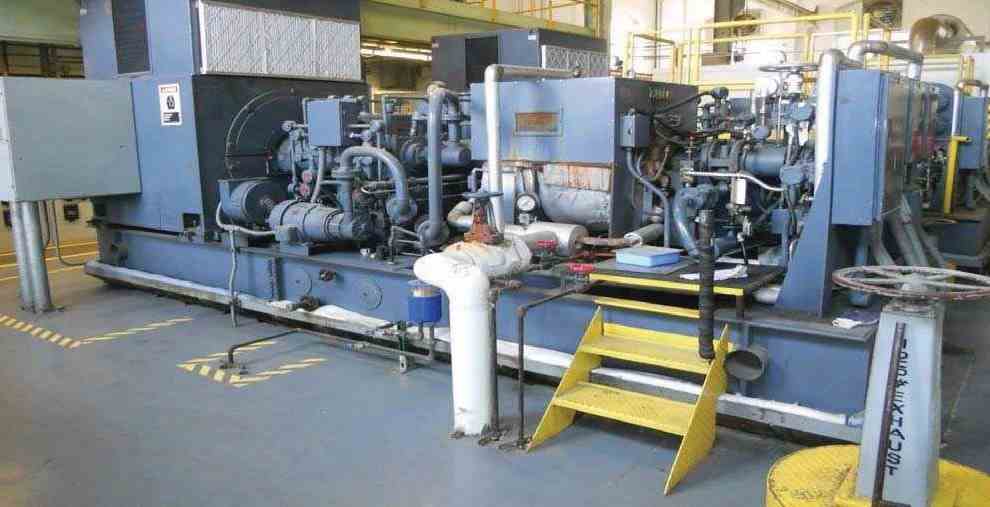

(2) 1.5MW Tuthill Corporation Steam Turbines

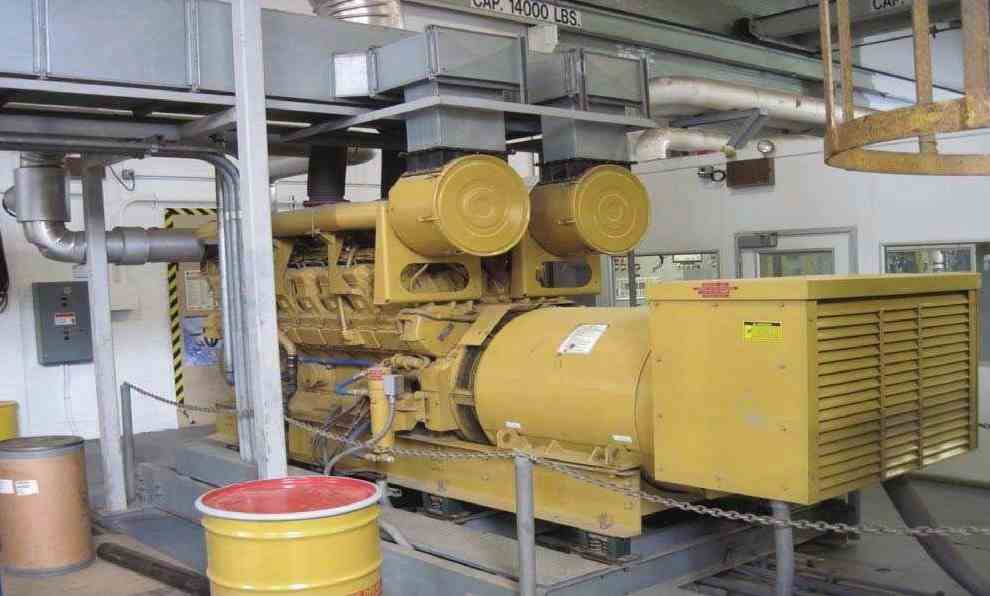

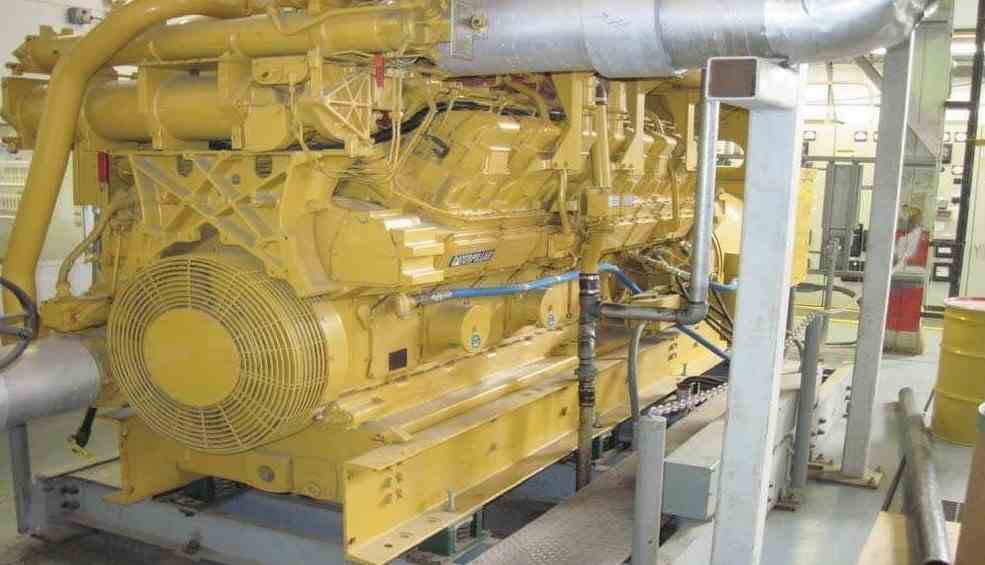

(1) 1.8MW Caterpillar Model 3516 Diesel Engine Backup Generator Set
Share
SPECIFICATIONS RESOURCES
Year Built
Year Shut
Capacity
13.6MW
