4900L Bioreactor Production plant for Cell-based Products

4900L Bioreactor Production plant for Cell-based Products

Stock # 20997
Capacity 4900L
Products Cell-based products

Overview

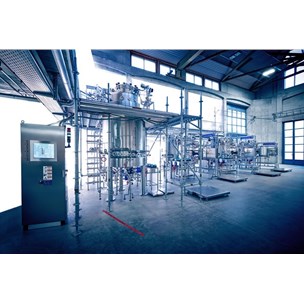

Unused 4900L (3200L working volume) 316L Stainless Steel Bioreactor Production plant for cell-based products. Manufactured by BioEngineering. Includes (1) 300L (200L Working volume) Seed bioreactor. Operating temp 5°C to 135°C (design 150°C). Operating overpressure 2.5 barg. Jacket/coils rated 6 barg / -1 barg. EPDM seals. CIP Sprayball equipped. flat lid and dished bottom, insulated jacket, agitator, inlet and outlet air systems with sterile filters, feeds and transfer piping with sterile valve arrangements and couplings, sterilizable in situ, full and empty. (2) 800L (500L Working volume) Seed bioreactors. Operating temp 5°C to 135°C (design 150°C). Operating overpressure 2.5 barg. Jacket/coils rated 6 barg / -1 barg. EPDM seals. CIP Sprayball equipped. Removable dished lid and dished bottom, insulated jacket, agitator, inlet and outlet air systems with sterile filters, feeds and transfer piping with sterile valve arrangements and couplings, sterilizable in situ, full and empty. (1) 3000L (2000L working volume) Production bioreactor. Operating temp 5°C to 135°C (design 150°C). Operating overpressure 2.5 barg. Jacket/coils rated 6 barg / -1 barg. EPDM seals. CIP Sprayball equipped. Dished lid and dished bottom, insulated jacket, agitator, inlet and outlet air systems with sterile filters, feeds and transfer piping with sterile valve arrangements and couplings, sterilizable in situ, full and empty. Pressure vessel geometry D:H: 1:2. All vessels skid-mounted modular units (stand-alone systems) with hose connections for flexibility. BioSCADA advanced process control system with (4) HMI operator systems, Siemens PLCs, and monitoring computers and software.

Major Equipment

Unused 3000L (2000L working volume) Bioengineering 316L Stainless Steel Production bioreactor
(2) Unused 800L (500L working volume) Bioengineering 316L Stainless Steel Production bioreactor
Unused 300L (200L working volume) Bioengineering 316L Stainless Steel Production bioreactor
BioSCADA advanced process control system with (4) HMI operator systems, Siemens PLCs, and monitoring computers and software.
Share
SPECIFICATIONS RESOURCES
Year Built
2020
Year Shut
Capacity
4900L
