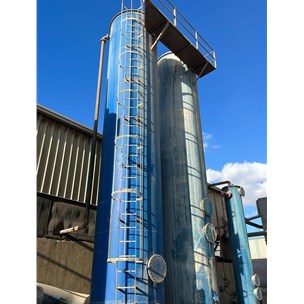

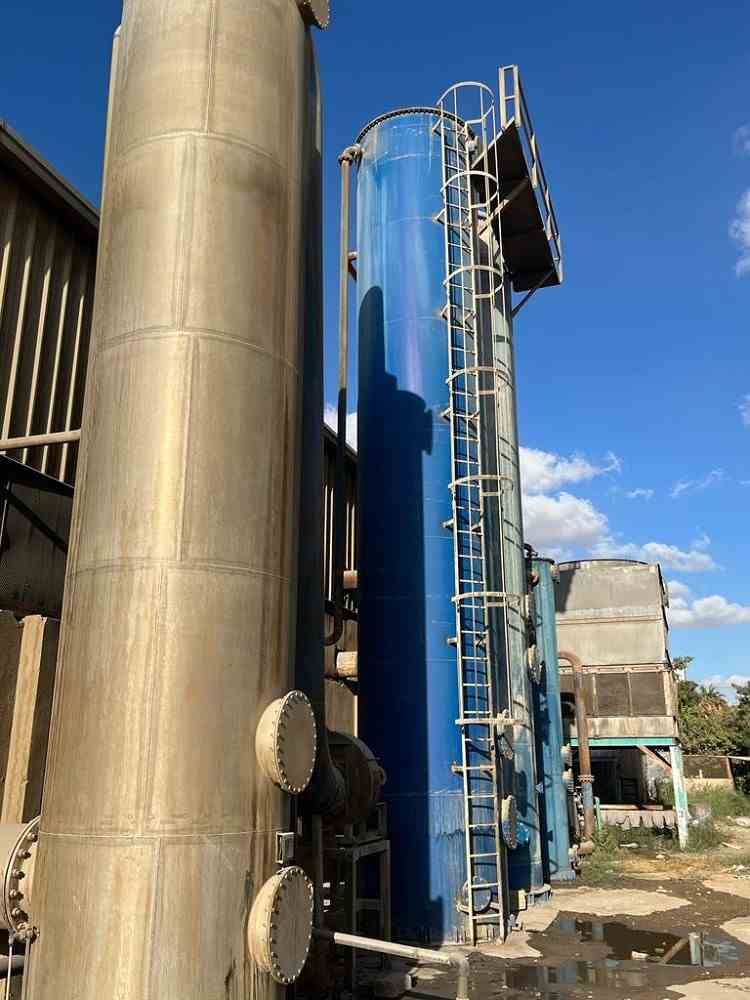

CARBON DIOXIDE LIQUEFACTION PLANT - 24 TPD
Other Views - click image for larger view
CARBON DIOXIDE LIQUEFACTION PLANT - 24 TPD CARBON DIOXIDE LIQUEFACTION PLANT - 24 TPD CARBON DIOXIDE LIQUEFACTION PLANT - 24 TPD CARBON DIOXIDE LIQUEFACTION PLANT - 24 TPD CARBON DIOXIDE LIQUEFACTION PLANT - 24 TPD CARBON DIOXIDE LIQUEFACTION PLANT - 24 TPD CARBON DIOXIDE LIQUEFACTION PLANT - 24 TPD
Stock # 541
Capacity 24 TPD
Products Food / beverage grade liquid CO2
Sold

Overview

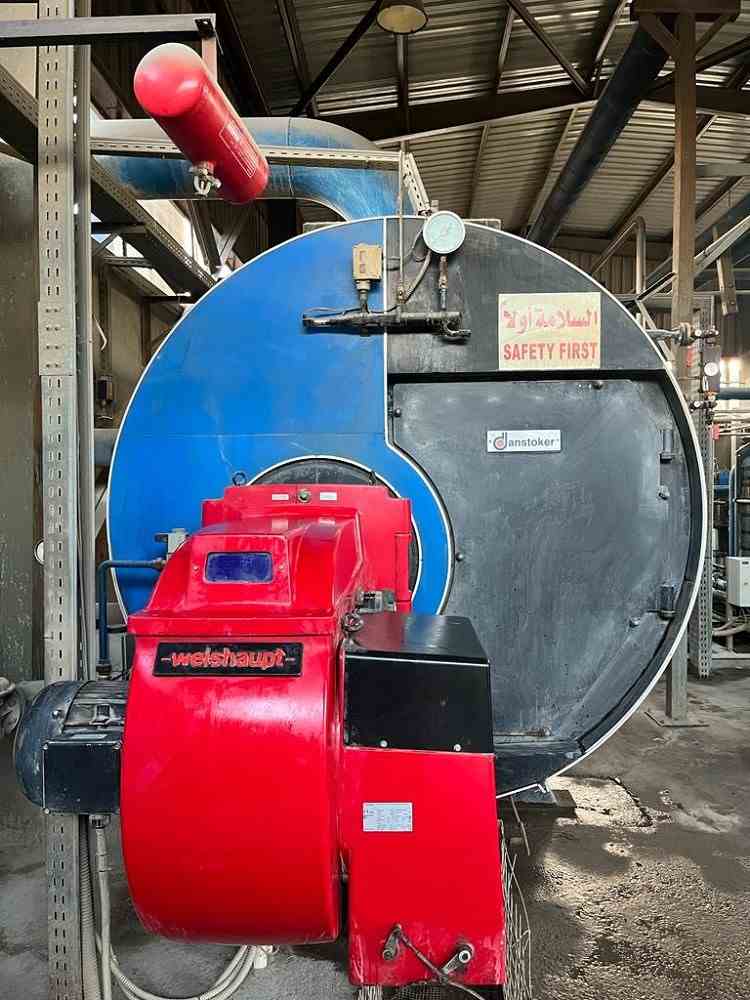

Used 24 TPD Carbon Dioxide Liquefaction Plant designed by Union Engineering. The burner generates CO2 by combustion of Natural Gas with 494 Nm3/h consumption. 10 ppm (v/v) max Sulphur content in fuel. Skid-mounted equipment for easy relocation and installation. PLC controlled. Built 2011, shutdown 2022. All technical documents available.

Major Equipment

Standard CBU with NOx Flash

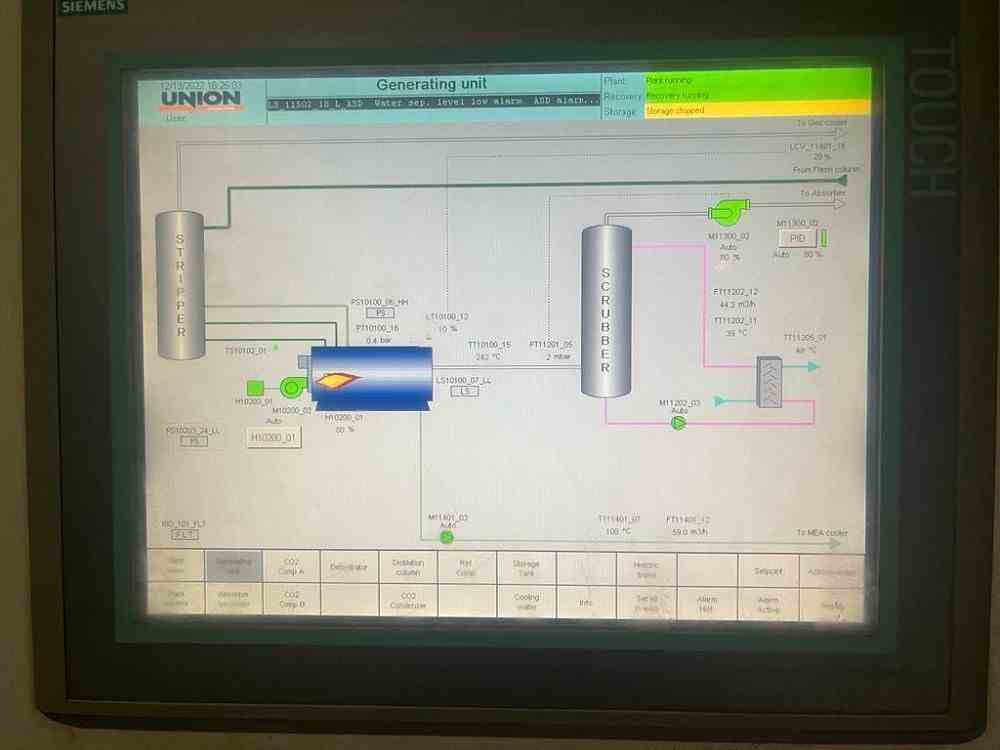

Generating Unit
Purification System (PUR D)

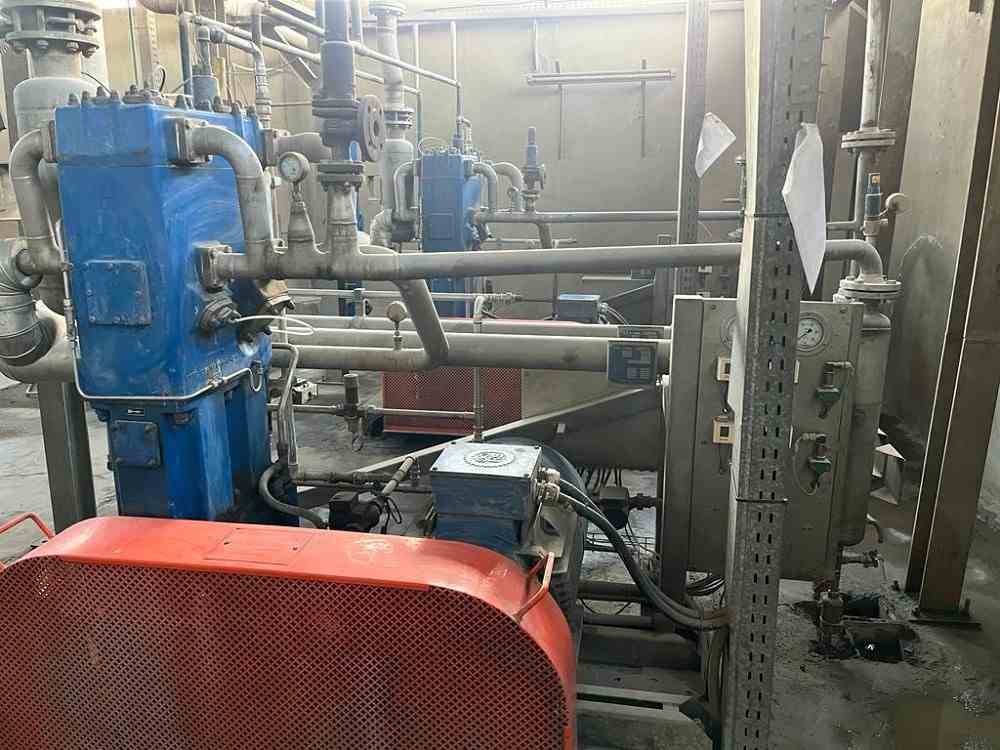

Filter and Compressor Section
Liquefaction Unit
Dehumidifier

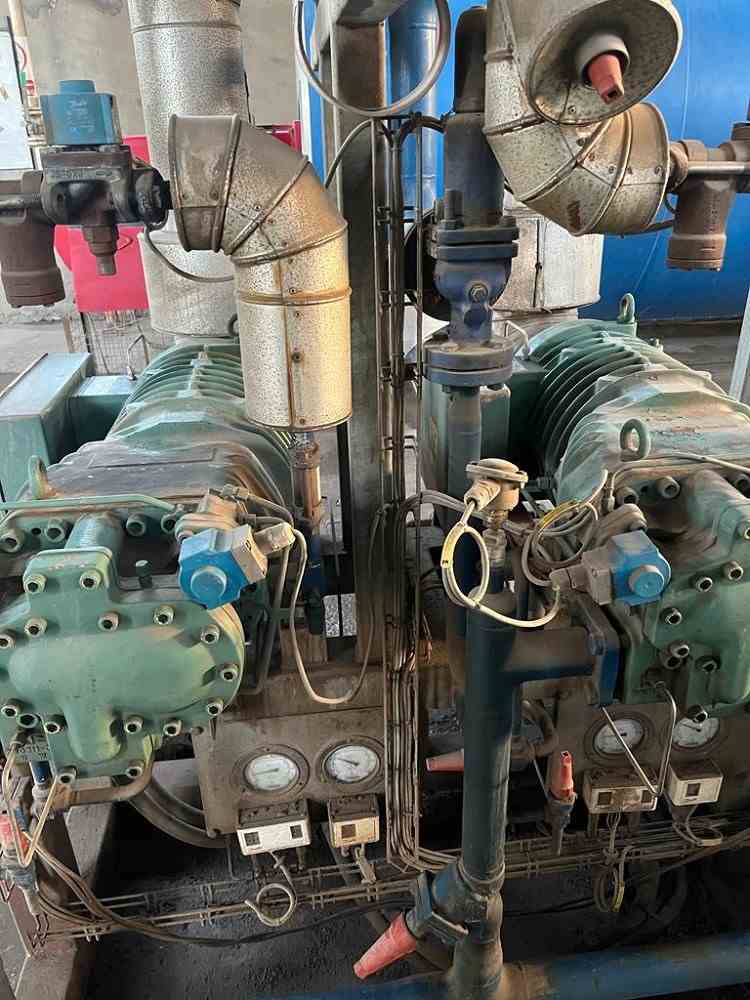

Freon Compressor Unit

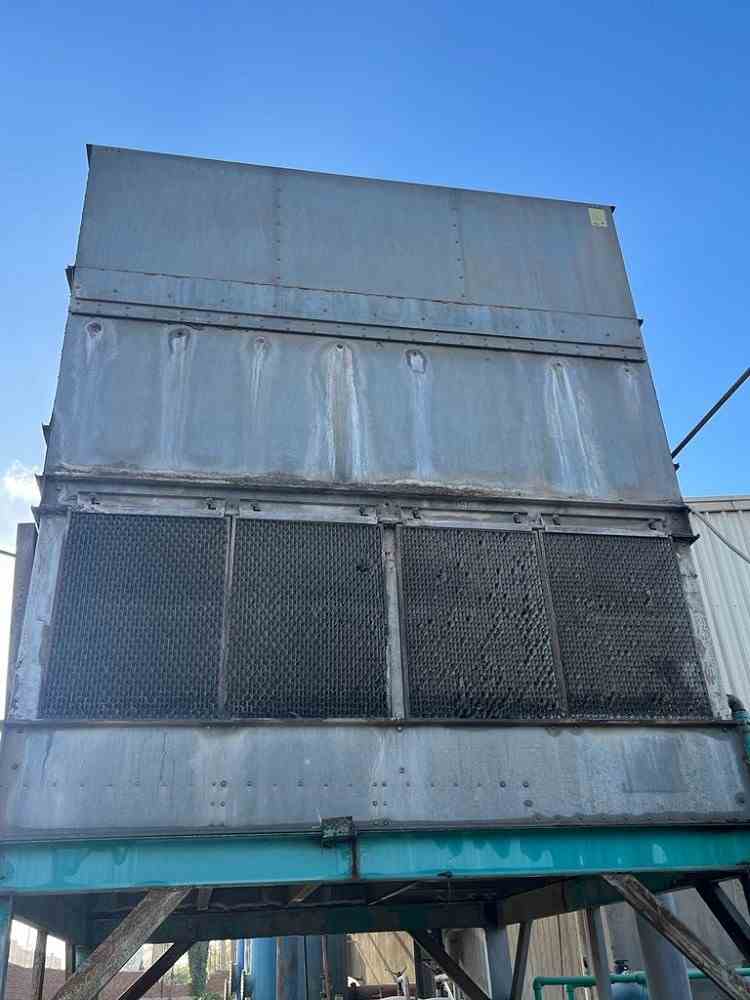

Cooling Water System
Share
SPECIFICATIONS RESOURCES
Year Built
2011
Year Shut
2022
Capacity
24 TPD
