Gas-to-Liquids Plant - 1,100 BPD

Stock # 530
Capacity 1,100 BPD
Products Wax (J40, J54, J70, J100), Diesel, Naphtha

Overview

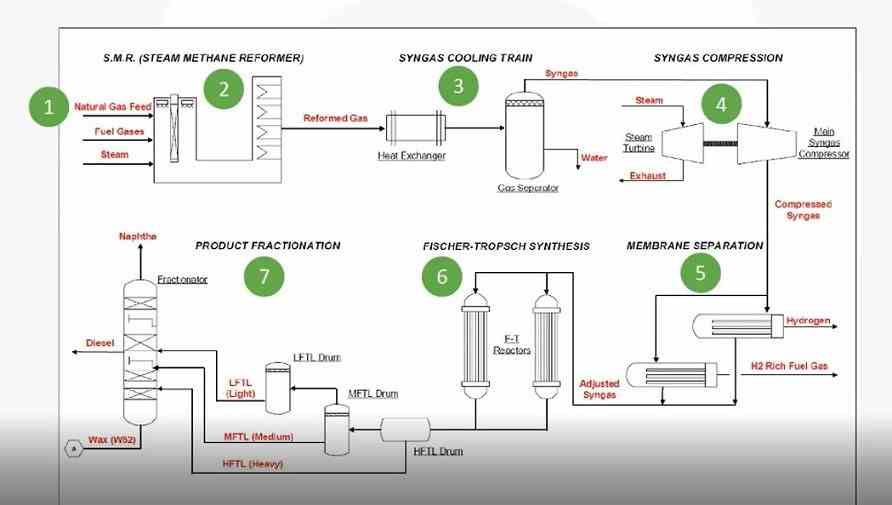

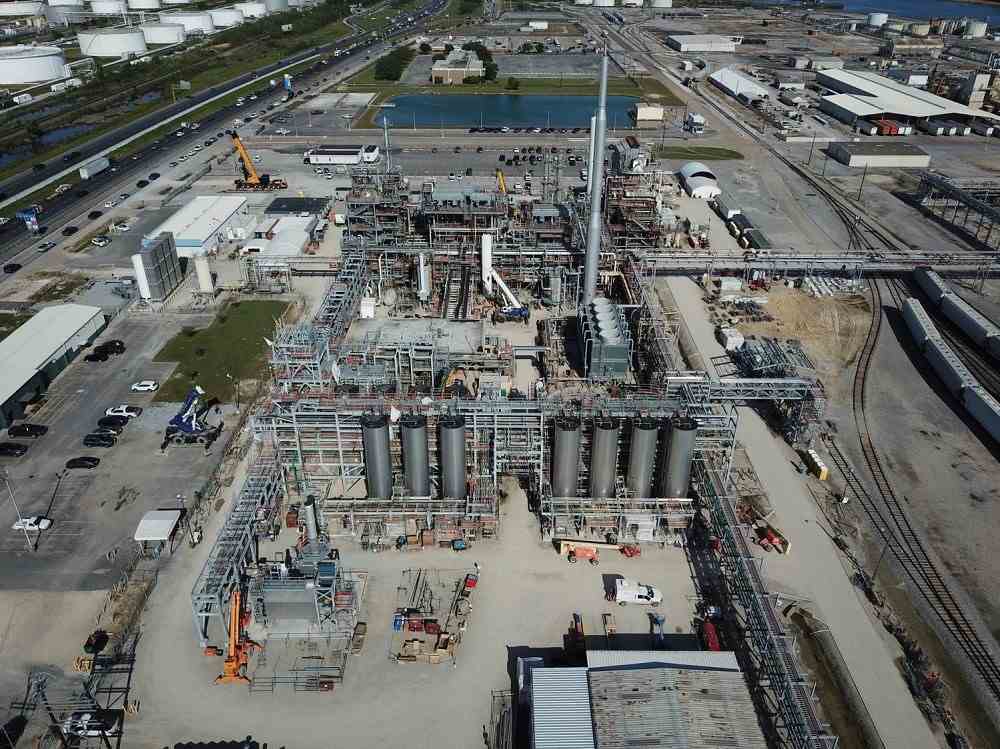

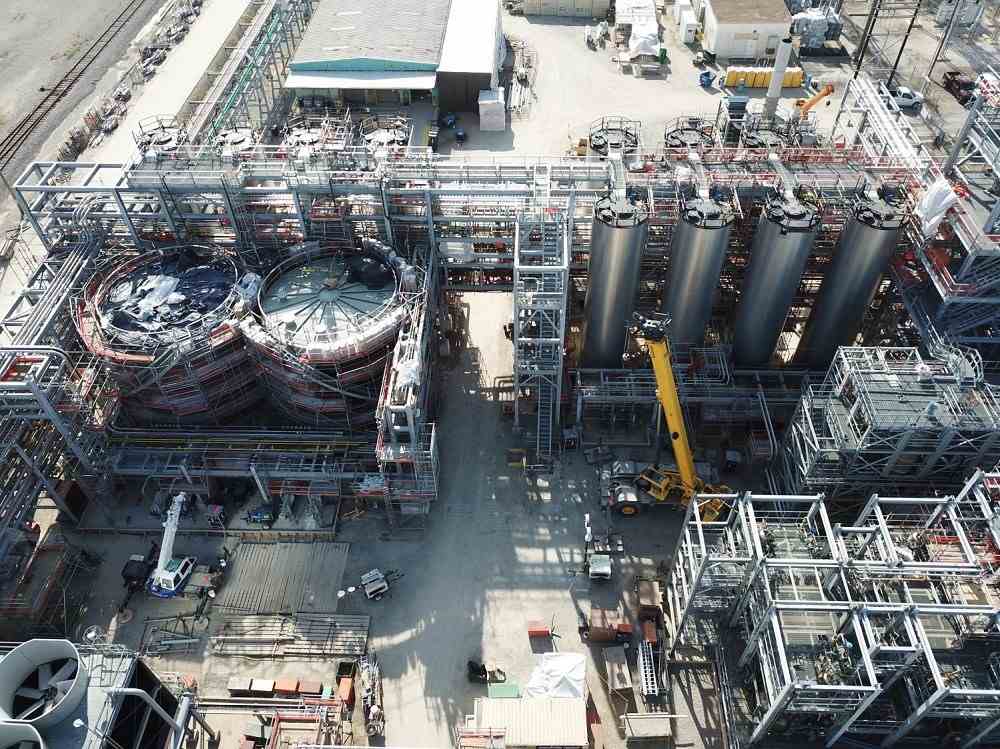

1,100 BPD Gas-to-Liquid facility for sale. The facility includes nine process sections: (1) Feed Preparation; (2) Steam Methane Reformer (SMR); (3) Syngas Cooling Train; (4) Syngas Compression; (5) Hydrogen Separation (membrane process); (6) Fischer-Tropsch Synthesis; (7) Product Fractionation; (8) Wax Hydrogenation; (9) Wax Short-Path Distillation. The 46.5 MMSCFD Linde-designed SMR was commissioned in 1994 and operated as a syngas plant for 10 years. It was re-designed by Linde in 2015 for supplying syngas to the new GTL facility. The Fischer-Tropsch reactor and the product fractionation units were manufactured in 2015 to produce wax (J40, J54, J70 and J100), diesel and naphtha from syngas. Maximum wax output is 10,000 Lbs/hour. The plant has Yokagawa DCS control system. The facility includes 10.5 acres of land with easy transportation of railway and highway. Complete technical documents available.

Major Equipment

Steam Methane Reformer
Fischer-Tropsch Reactor
Fractionation Column
Natural Gas hydrotreater
Natural Gas Desulfurizer
Shift Reactor
CO2 Stripper
CO2 Absorber
CO2 Compressor
Amine Columns
Hydrogen Separation Unit
Syngas Coolers
Raw Wax Drum
Diesel Condensers
Diesel Drums
Naphtha Condensers
Naphtha Drums
CO2 Recycle Compressor
Wax Hydrogenation Reactor
Wax Short-Path Distillation Unit
Share
Download Plant Brochure |
SPECIFICATIONS RESOURCES
Year Built
1994
Year Shut
Capacity
1,100 BPD
