200 Gal Five Star Industrial Services Stainless Steel Reactor
Other Views - click image for larger view
200 Gal Five Star Industrial Services Stainless Steel Reactor 200 Gal Five Star Industrial Services Stainless Steel Reactor 200 Gal Five Star Industrial Services Stainless Steel Reactor 200 Gal Five Star Industrial Services Stainless Steel Reactor 200 Gal Five Star Industrial Services Stainless Steel Reactor 200 Gal Five Star Industrial Services Stainless Steel Reactor 200 Gal Five Star Industrial Services Stainless Steel Reactor

200 gal five star industrial services stainless steel reactor

Stock # 4978
Sold
Capacity 200 Gal

Overview

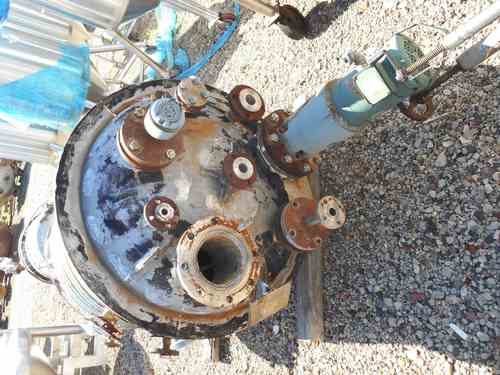

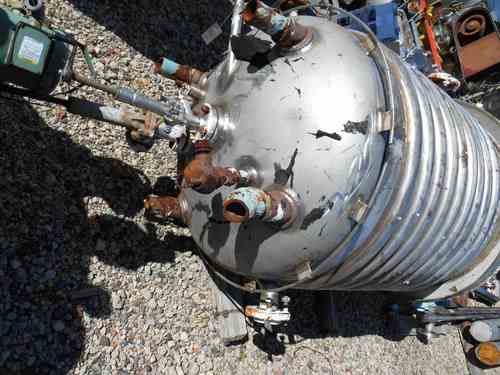

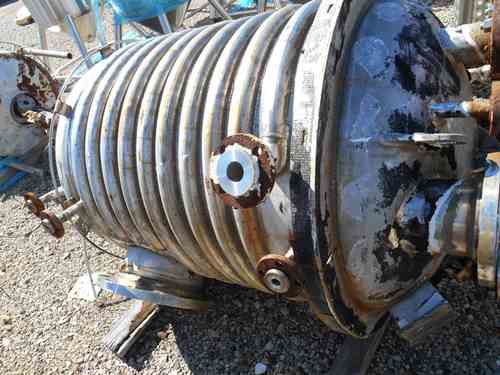

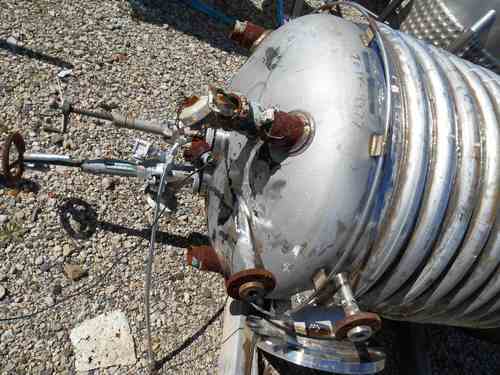

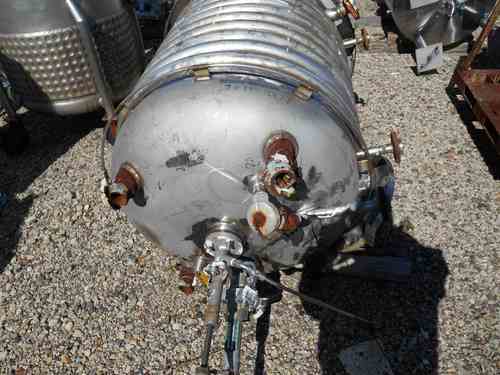

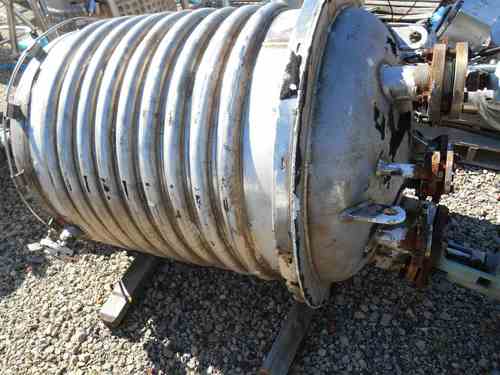

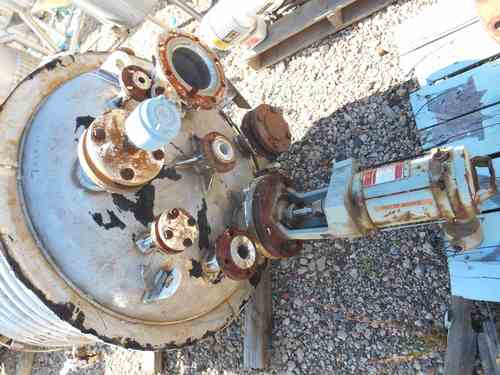

Used approx. 200 Gal vertical 304-SS Jacketed Tank. Equipped with off-center .43 HP LIGHTNIN prop agitator, 115/230V, 1PH. Internal rated 100 PSI @ 250 Deg C. 304-SS 2" Half Pipe Coil Jacket rated 100 PSI @ 250 deg C. Dished Heads. 3' dia x 3' 3" T/T. (OAL: Approx 7'). Shell thickness: 1/4". Leg Mounted. Various top nozzles, 12" Side Inspection Port, 1.5" CBO. Built by Five Star Industrial Services, 1988. S/N: S-887-2, NB# 69. Leg Mounted. Previous Use: Catalyst Feed Tank.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Five Star Industrial Services
Model
not applicable
Material
Stainless Steel
Capacity
200 Gal
