3000 Gal GEA Stainless Steel Reactor
Other Views - click image for larger view
3000 Gal GEA Stainless Steel Reactor 3000 Gal GEA Stainless Steel Reactor

3000 gal gea stainless steel reactor

Stock # 21145
Sold
Capacity 3000 Gal

Overview

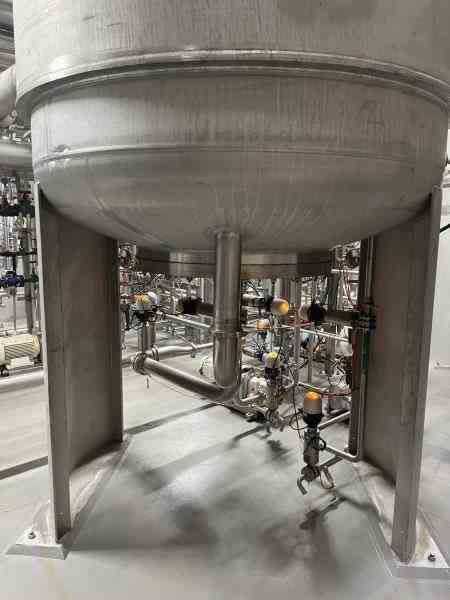

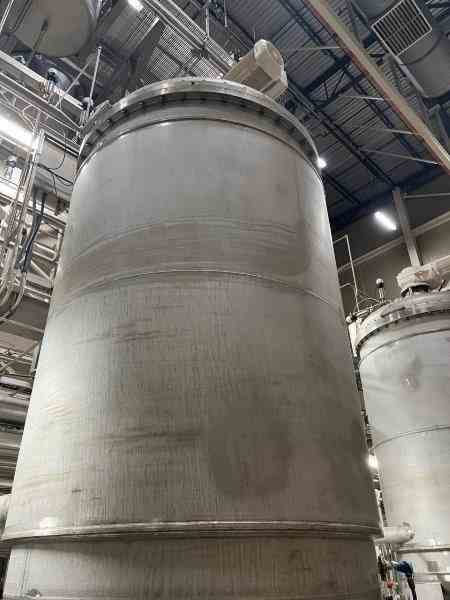

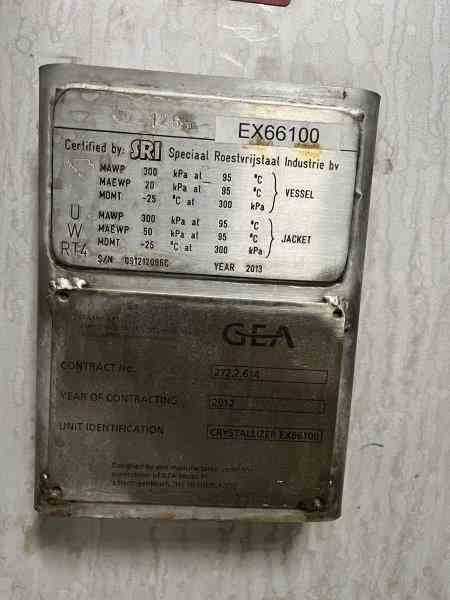

Unused 3000 Gallon (11.5 m3) 304L Stainless Steel Double Wall Crystallizer. Manufactured by GEA. Jacketed. Internal rated -2.90/43 psi ( -.2/3 BARG) @-13F/203F (@-25C/95C), jacket rated -7.25/43psi (-.5/3 BARG) @-13F/203F (@-25C/95C). 18.5kW motor with top mounted side scraper agitation. 84" dia x 20' tall. NB #1265, Serial #091212096C, Weight 13000 lbs. Built 2013. Previous use: Crystallizer Stage 1 in GEA freeze concentration plant.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
GEA
Model
NA
Material
Stainless Steel
Capacity
3000 Gal
