158 Gal Lee Stainless Steel Reactor
Other Views - click image for larger view
158 Gal Lee Stainless Steel Reactor 158 Gal Lee Stainless Steel Reactor 158 Gal Lee Stainless Steel Reactor 158 Gal Lee Stainless Steel Reactor

158 gal lee stainless steel reactor

Stock # 16402
Sold
Capacity 158 Gal

Overview

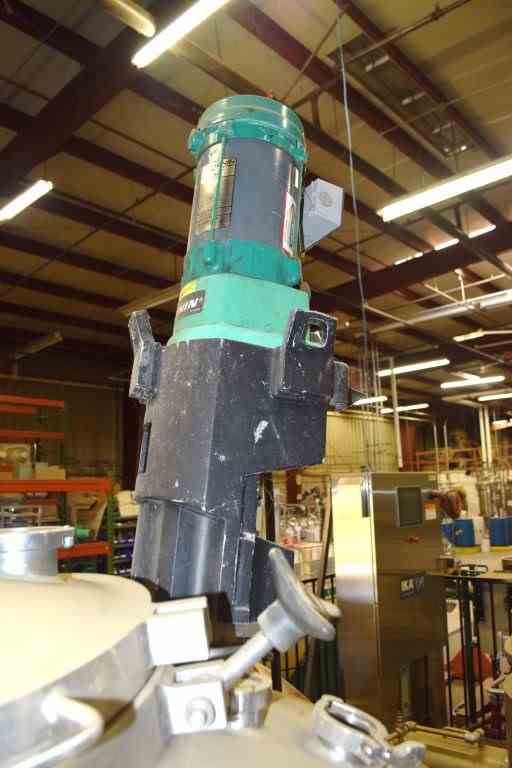

Used 158 Gallon (600 liter) 316L Stainless Steel Reactor. Manufactured by Lee Industries. Model 600 LU. Internal rated 40 psi @ 300F. 304 stainless steel Uniflow coil jacket rated 100 psi @338F. Off-center top entering Lightnin agitator, model V6S18N, serial# 96/E83470. Approximate 1-1/2" diameter shaft with (2) 2 blade turbines, driven by a 0.25hp, 3/60/230/460 volt, 1725 rpm motor. Openings top (3) 1-1/2" tri-clamp, 2" tri-clamp, 4" tri-clamp, (3) 1", 18" man way with cover with a 3" tri-clamp and a 4" tri-clamp with sight glass. 2" Tri-clamp center bottom outlet. 2" Diameter x 39" straight side, dished top and bottom. Mounted on 4 stainless steel legs with casters. Serial# C6153D11. National Board# 7686. Built 1999.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Lee
Model
600
Material
316L
Capacity
158 Gal
