66 Gal Cherry-Burrell Stainless Steel Reactor
Other Views - click image for larger view
66 Gal Cherry-Burrell Stainless Steel Reactor 66 Gal Cherry-Burrell Stainless Steel Reactor 66 Gal Cherry-Burrell Stainless Steel Reactor 66 Gal Cherry-Burrell Stainless Steel Reactor

66 gal cherry-burrell stainless steel reactor

Stock # 16401
Sold
Capacity 66 Gal

Overview

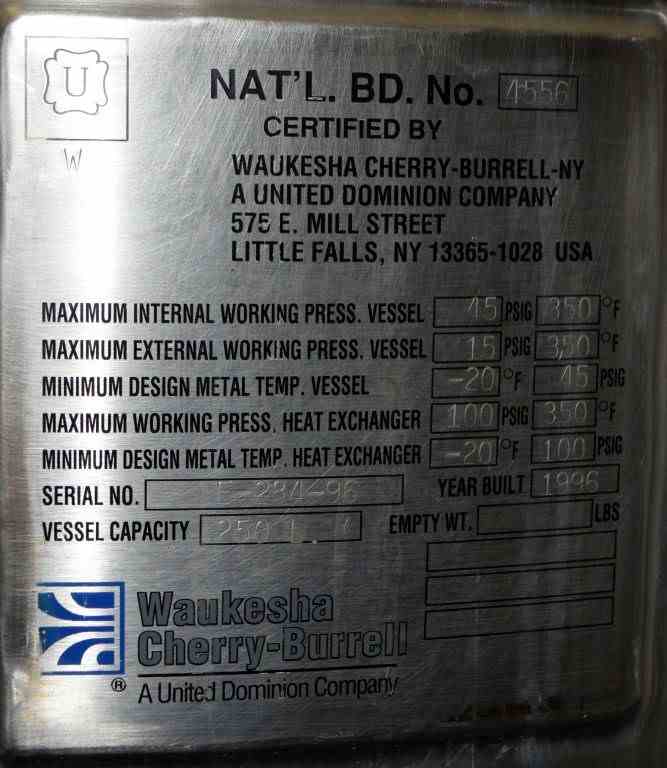

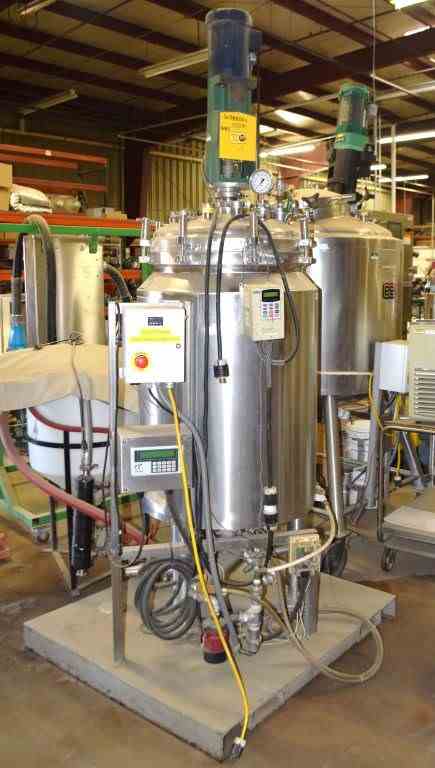

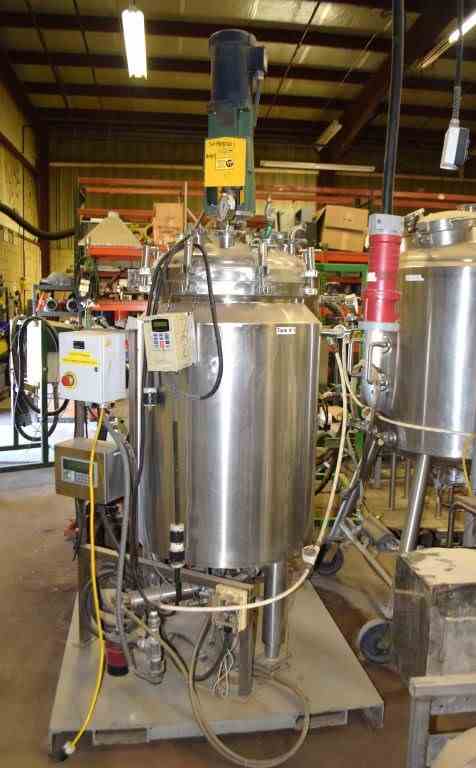

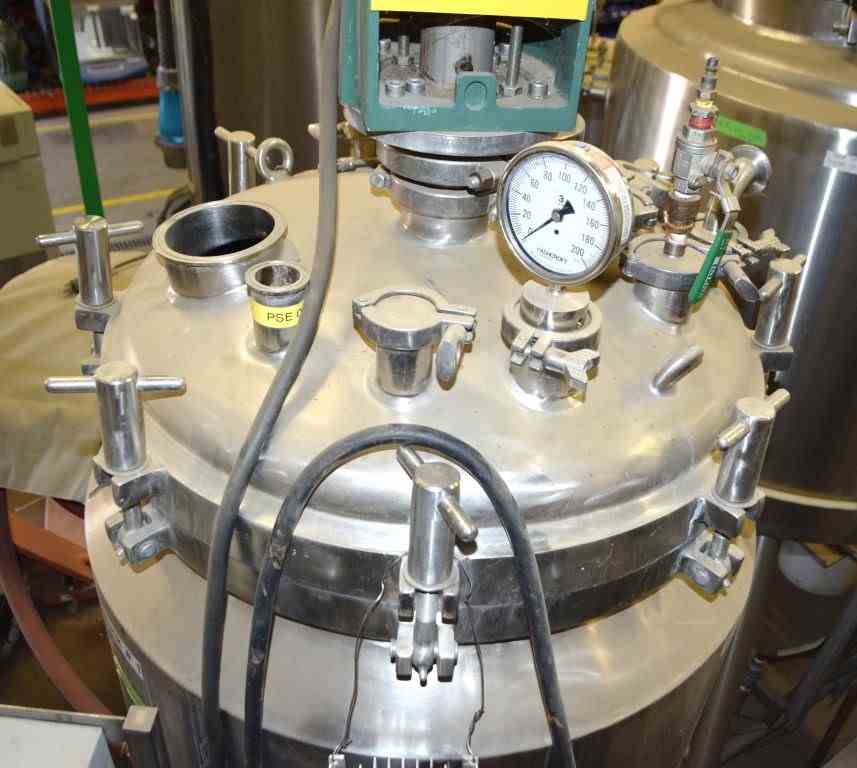

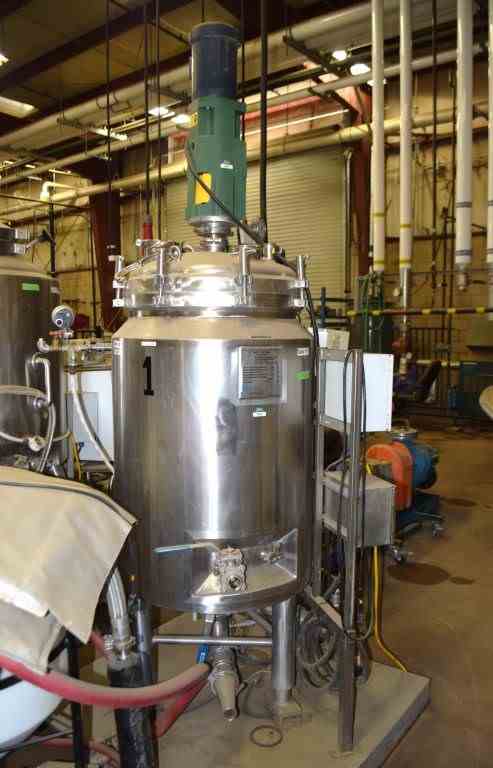

Cherry-Burrell Reactor, 250 Liter (66 Gallon), Stainless Steel, Vertical. Approximate 24" diameter x 40" straight side, dished bolt on top, dished bottom. Internal rated 45/15 psi at -20 to 350 degrees F., dimple jacket rated 100 psi at -20 to 350 degrees F. Top entering Lightnin agitator, model X5C33, serial# 58110. Approximate 1-1/2" diameter shaft with (2) 2 blade turbines, driven by a 2hp, 3/60/208-230/460 volt, 1725 rpm motor. Approximate 3" center bottom outlet. Mounted on 3 stainless steel legs. Serial# E-284-96, National Board# 4556, built 1996.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Cherry-Burrell
Model
X5C33
Material
SS
Capacity
66 Gal
