211 Gal Holloway America Stainless Steel Reactor
Other Views - click image for larger view
211 Gal Holloway America Stainless Steel Reactor 211 Gal Holloway America Stainless Steel Reactor 211 Gal Holloway America Stainless Steel Reactor 211 Gal Holloway America Stainless Steel Reactor 211 Gal Holloway America Stainless Steel Reactor 211 Gal Holloway America Stainless Steel Reactor 211 Gal Holloway America Stainless Steel Reactor

211 gal holloway america stainless steel reactor

Stock # 15203
Sold
Capacity 211 Gal

Overview

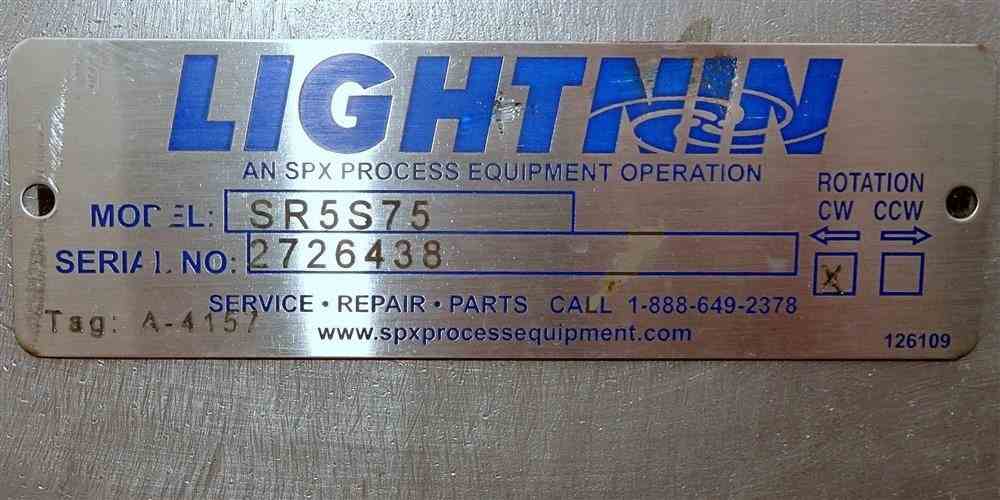

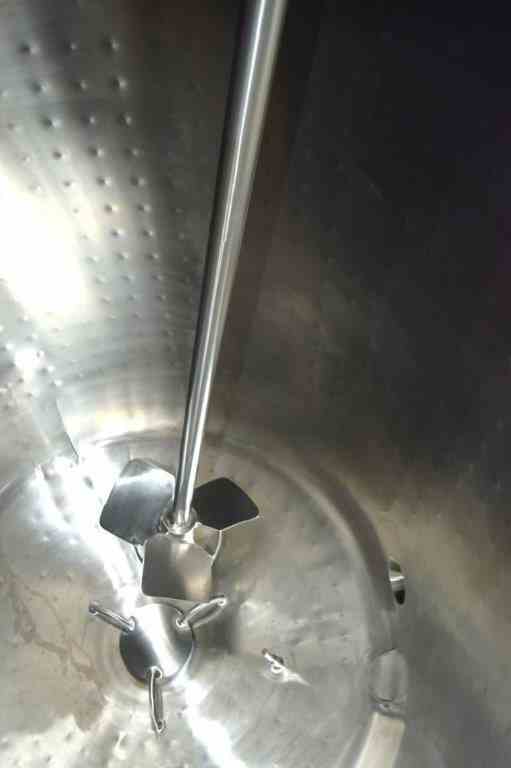

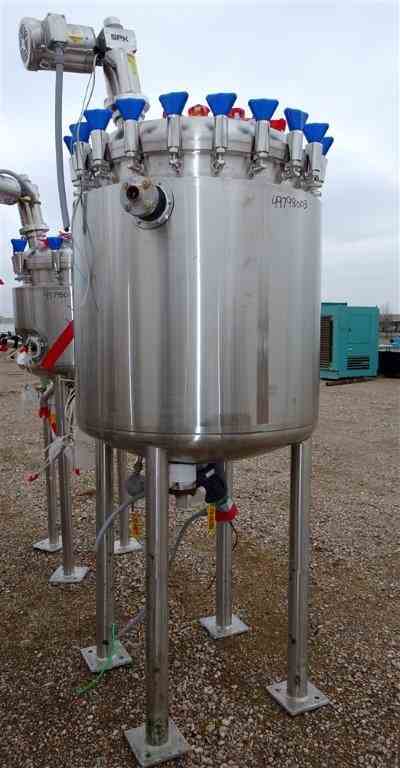

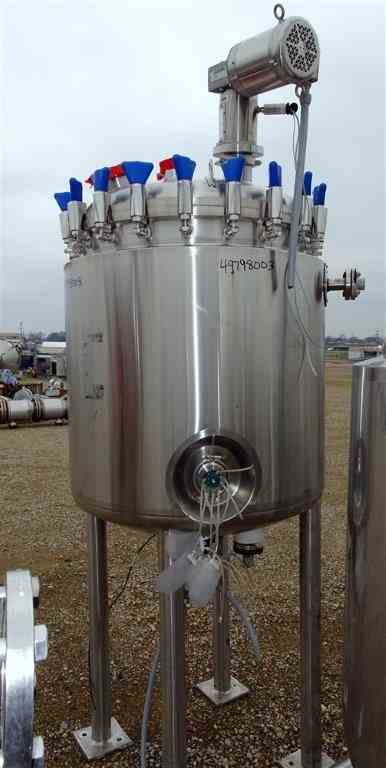

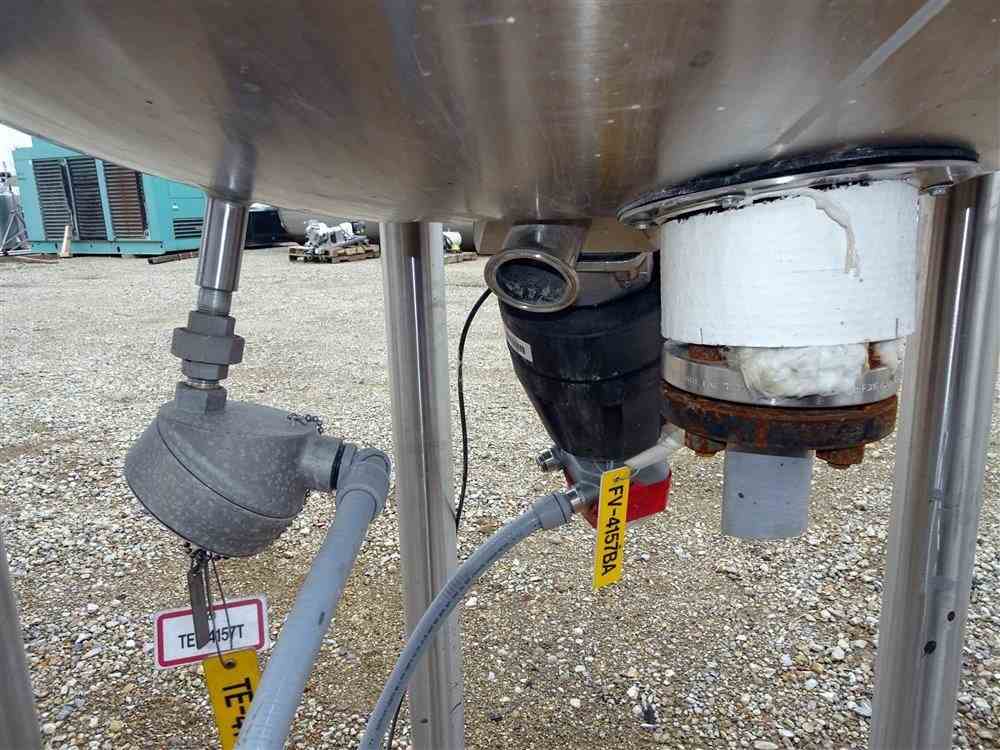

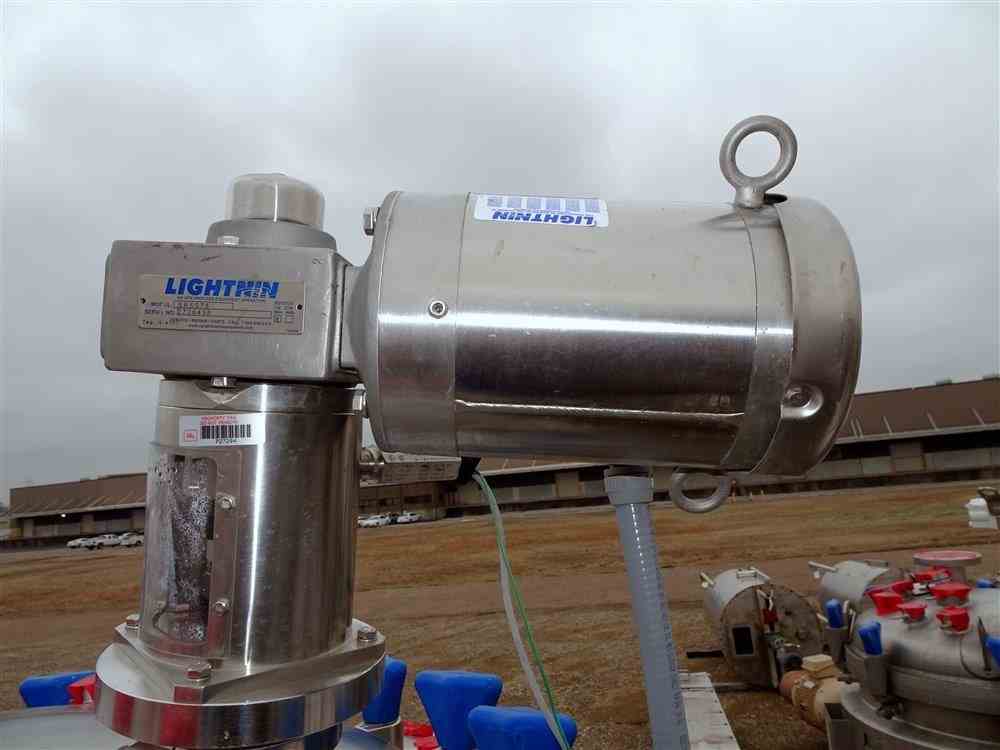

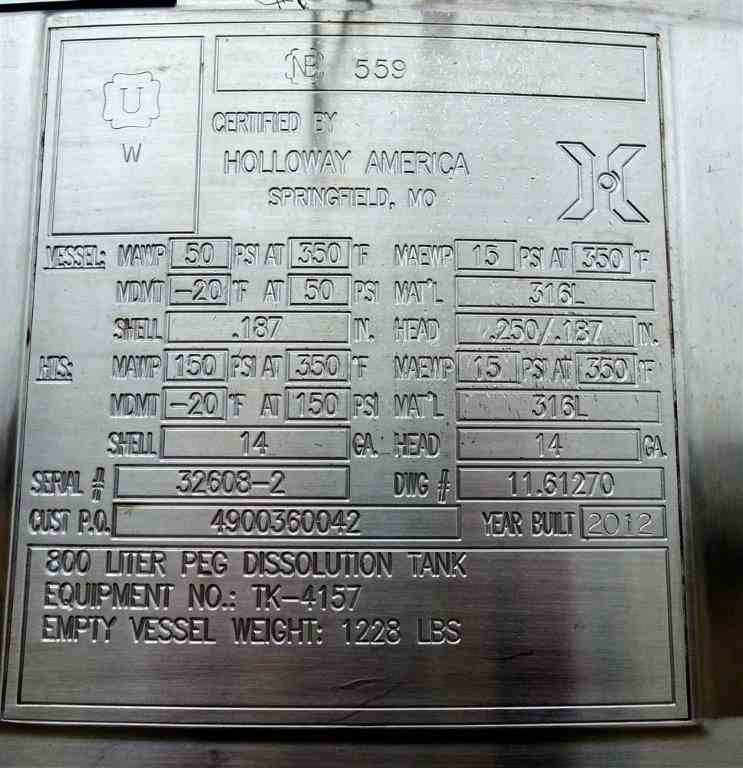

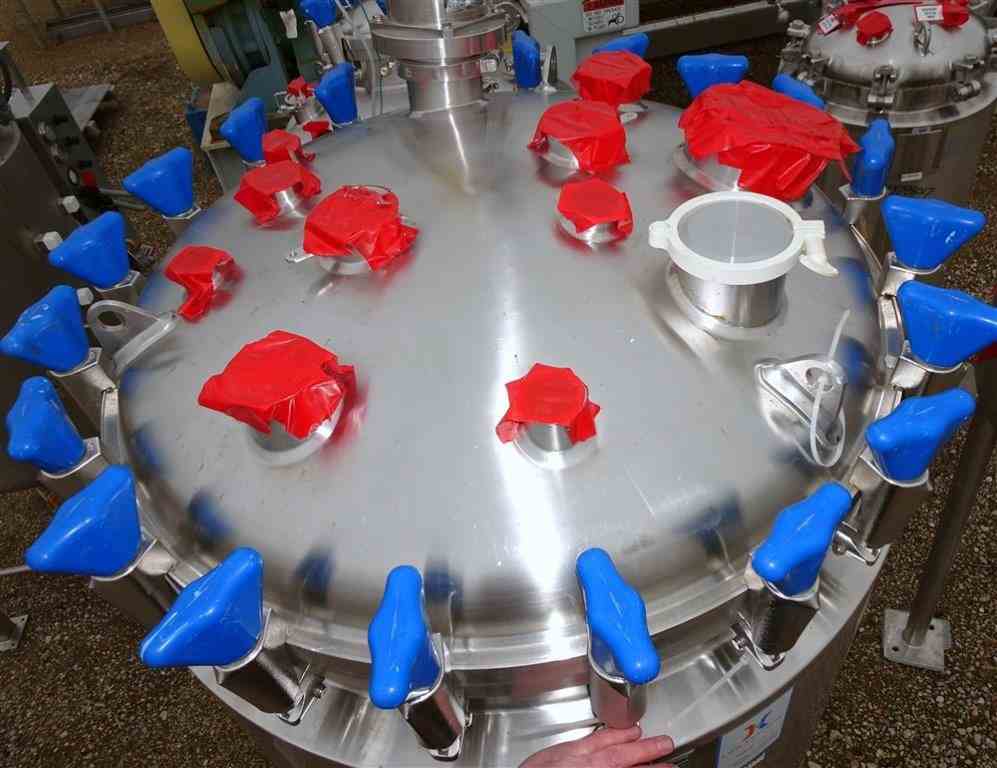

Used 800 Liter (211 gallon) Holloway SS Reactor. 316L Stainless Steel, Vertical. 37.125" Diameter x 39" straight side, dished clamp top, dished bottom. Internal rated 50/15 psi at -20 to 350 degrees F., 316L stainless steel dimple jacket rated 150/15 psi at -20 to 350 degrees F. Top entering Lightnin agitator, model SR5S75, serial# 2726438. Approximately 1-1/2" diameter shaft with a 3 blade prop and a mechanical seal, driven by a 0.75hp, 3/60/208-240/480 volt, 1740 rpm motor. 2" Center bottom outlet. Mounted on 4 stainless steel legs. Serial# 32608-2. National Board# 559. Built 2012.

Share
SPECIFICATIONS TERMS & CONDITIONS RESOURCES
Manufacturer
Holloway America
Model
Not Applicable
Material
316L SS
Capacity
211 Gal
