4778 Gal Walker 304L Stainless Steel Reactor
Other Views - click image for larger view
4778 Gal Walker 304L Stainless Steel Reactor 4778 Gal Walker 304L Stainless Steel Reactor 4778 Gal Walker 304L Stainless Steel Reactor 4778 Gal Walker 304L Stainless Steel Reactor 4778 Gal Walker 304L Stainless Steel Reactor 4778 Gal Walker 304L Stainless Steel Reactor 4778 Gal Walker 304L Stainless Steel Reactor 4778 Gal Walker 304L Stainless Steel Reactor 4778 Gal Walker 304L Stainless Steel Reactor 4778 Gal Walker 304L Stainless Steel Reactor 4778 Gal Walker 304L Stainless Steel Reactor

4778 gal walker 304l stainless steel reactor

Stock # 14052
Sold
Capacity 4778 Gal

Overview

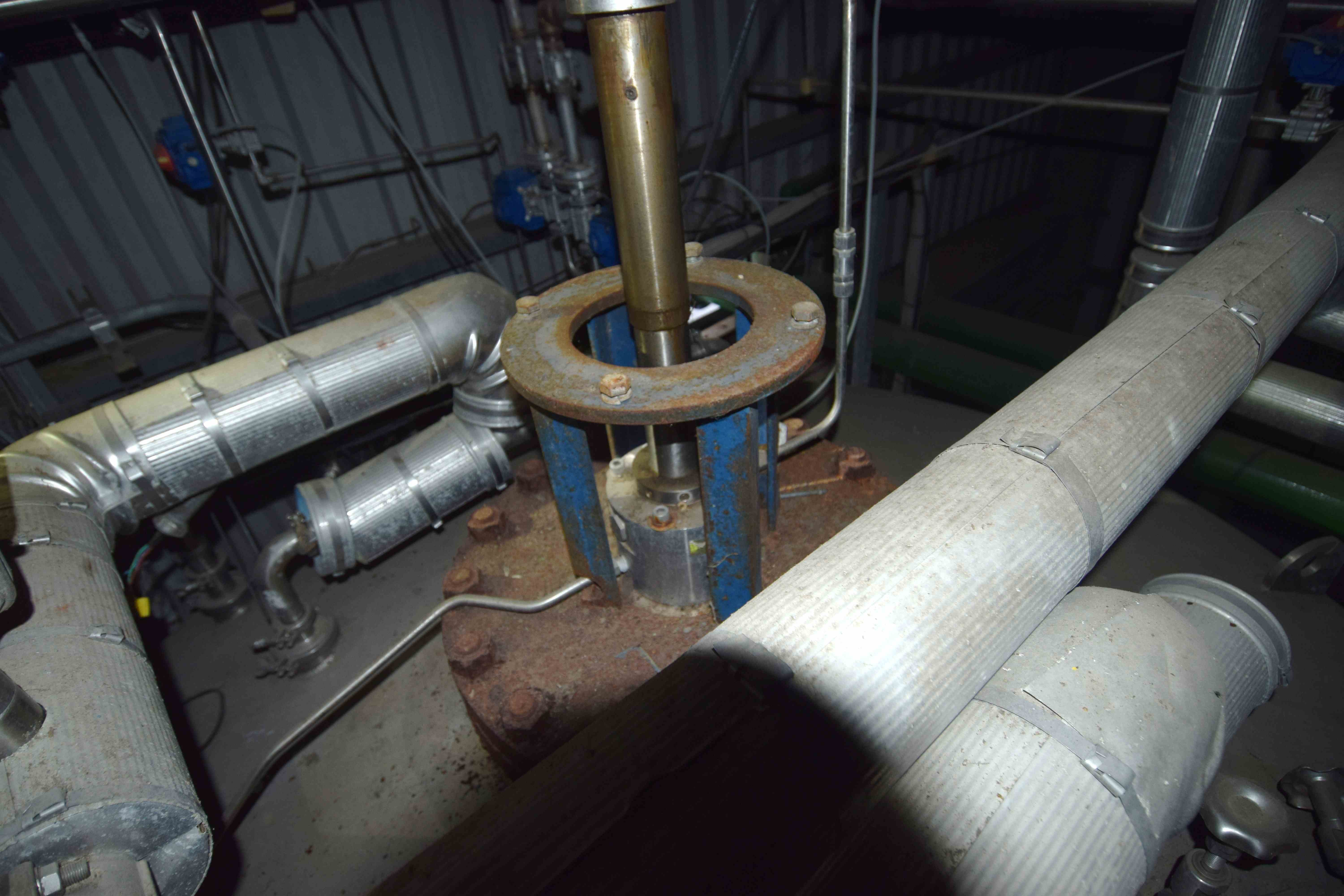

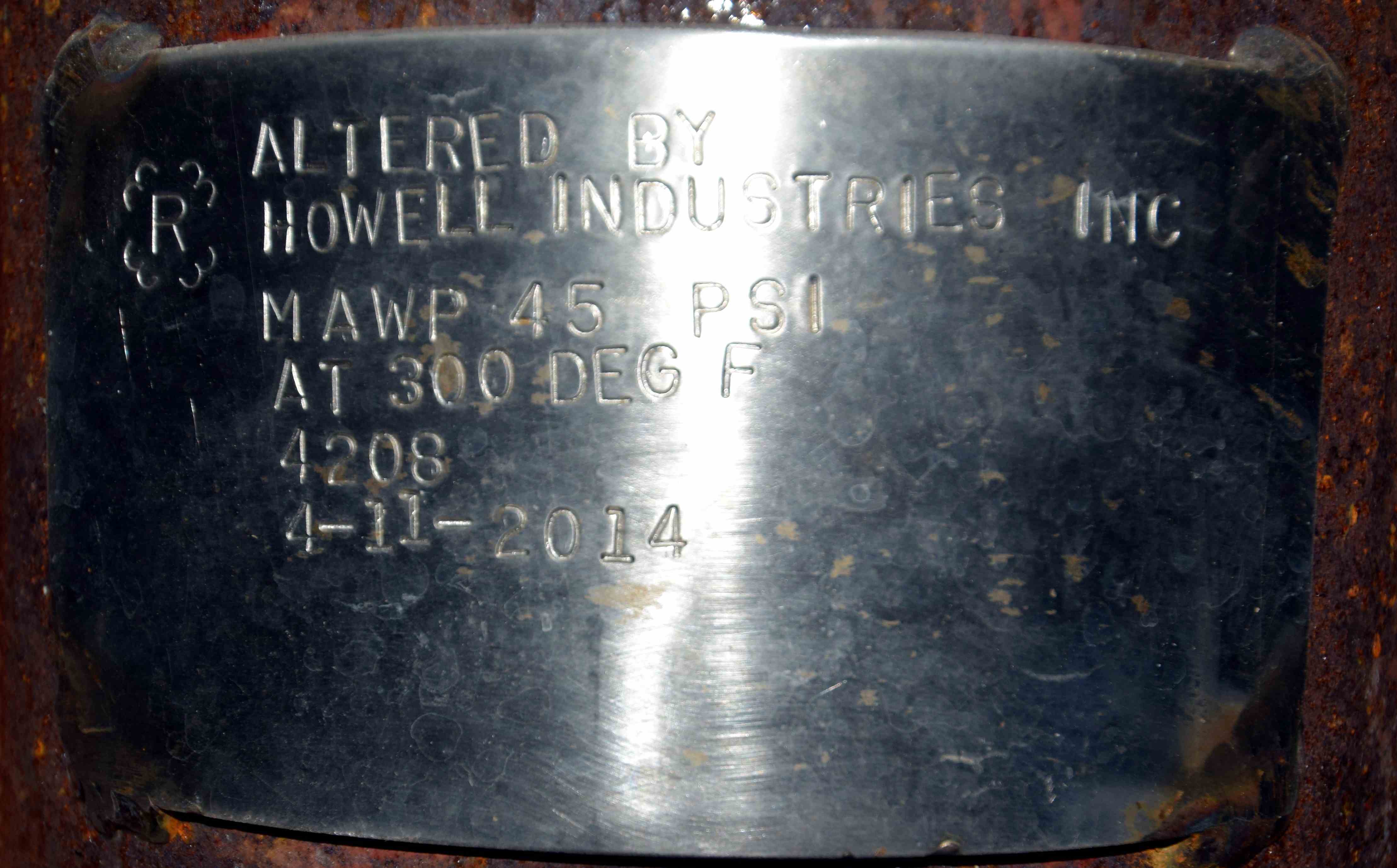

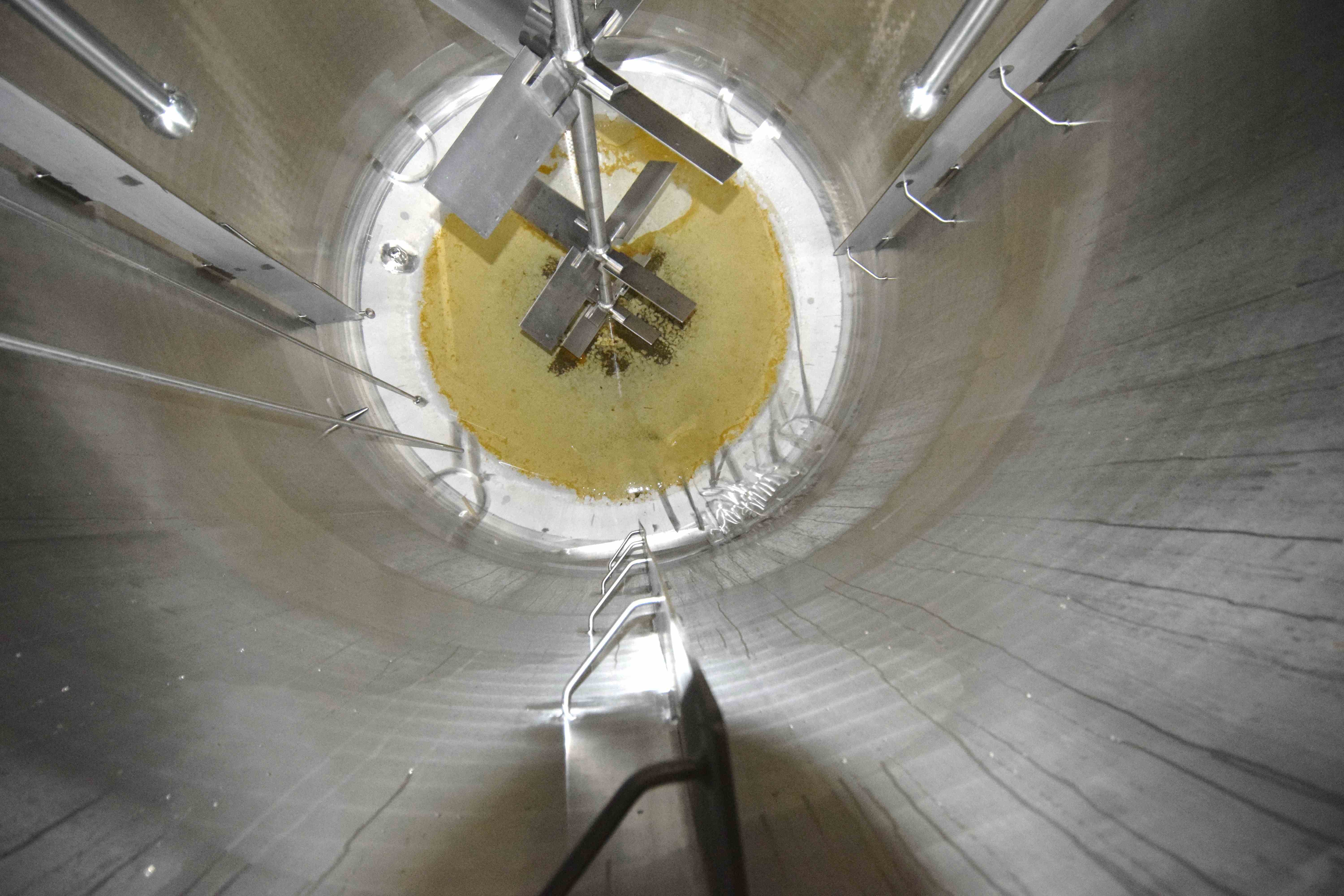

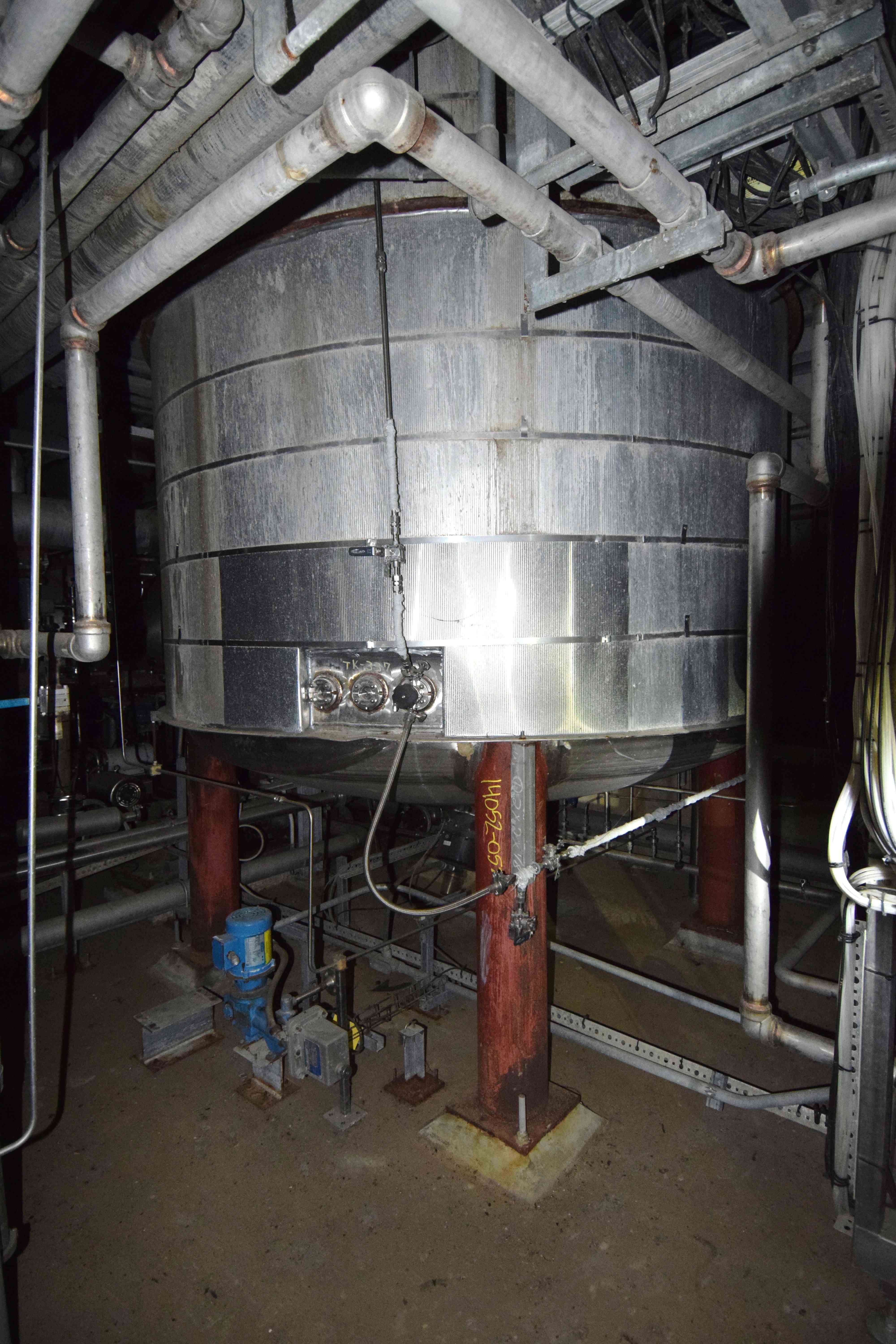

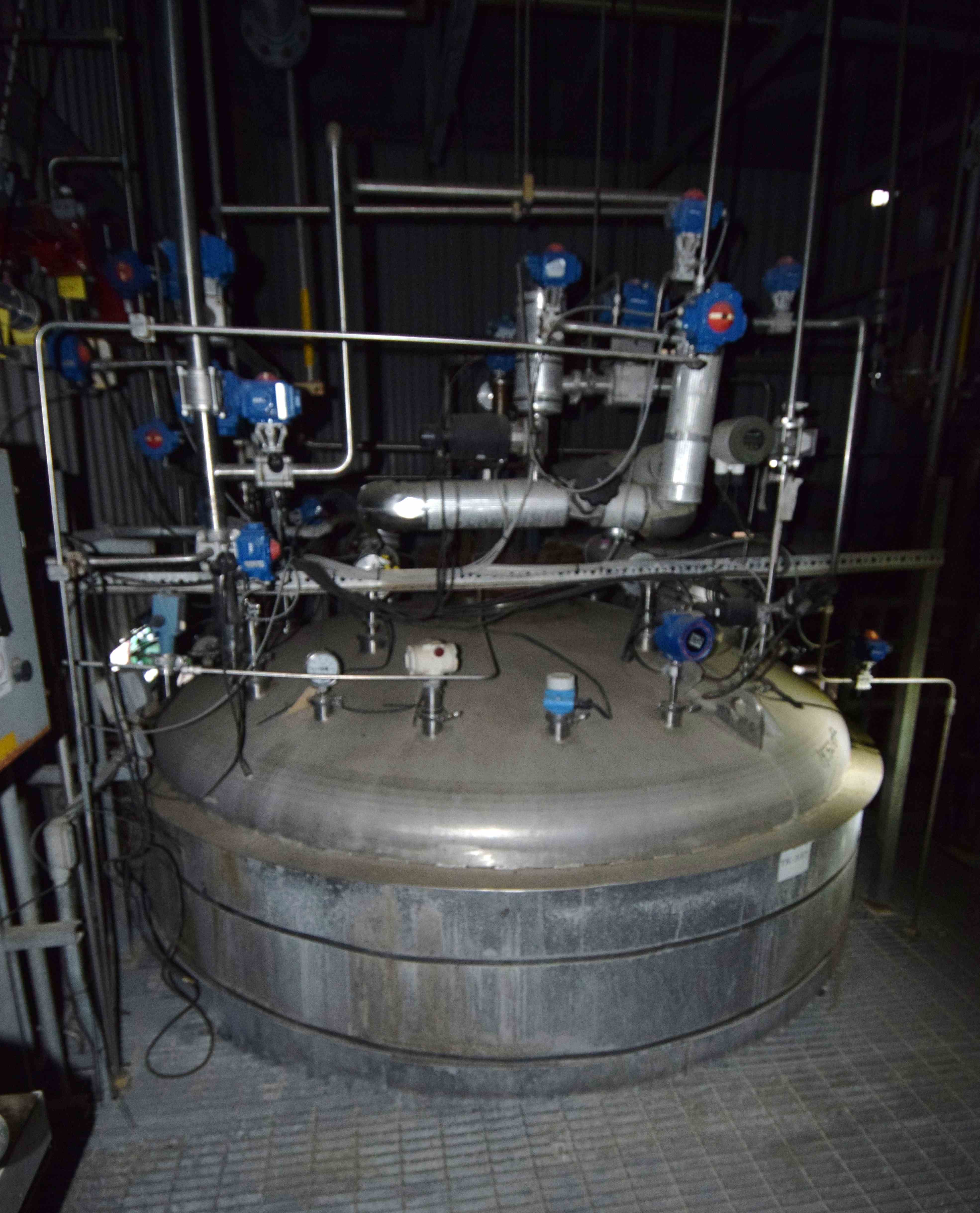

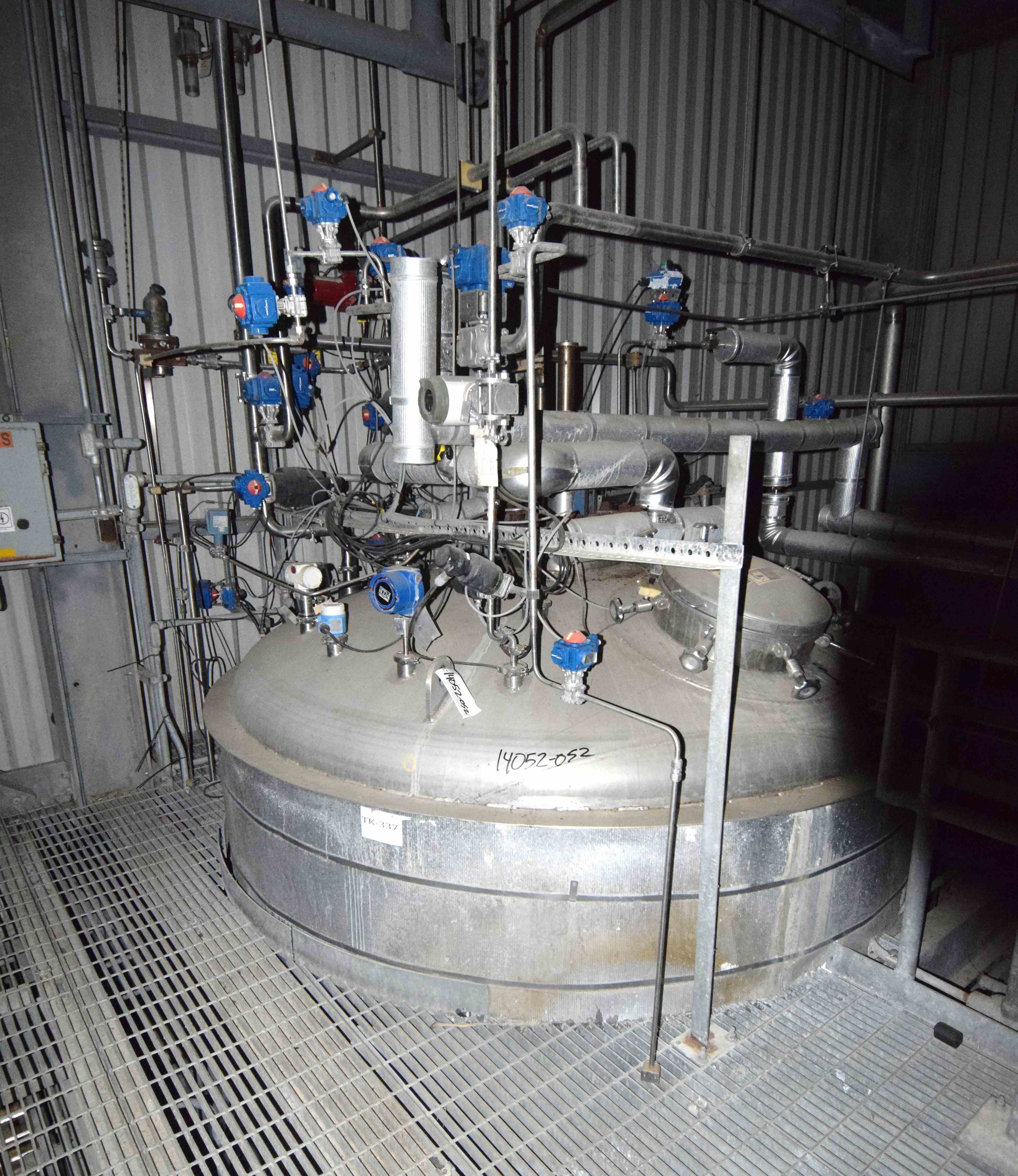

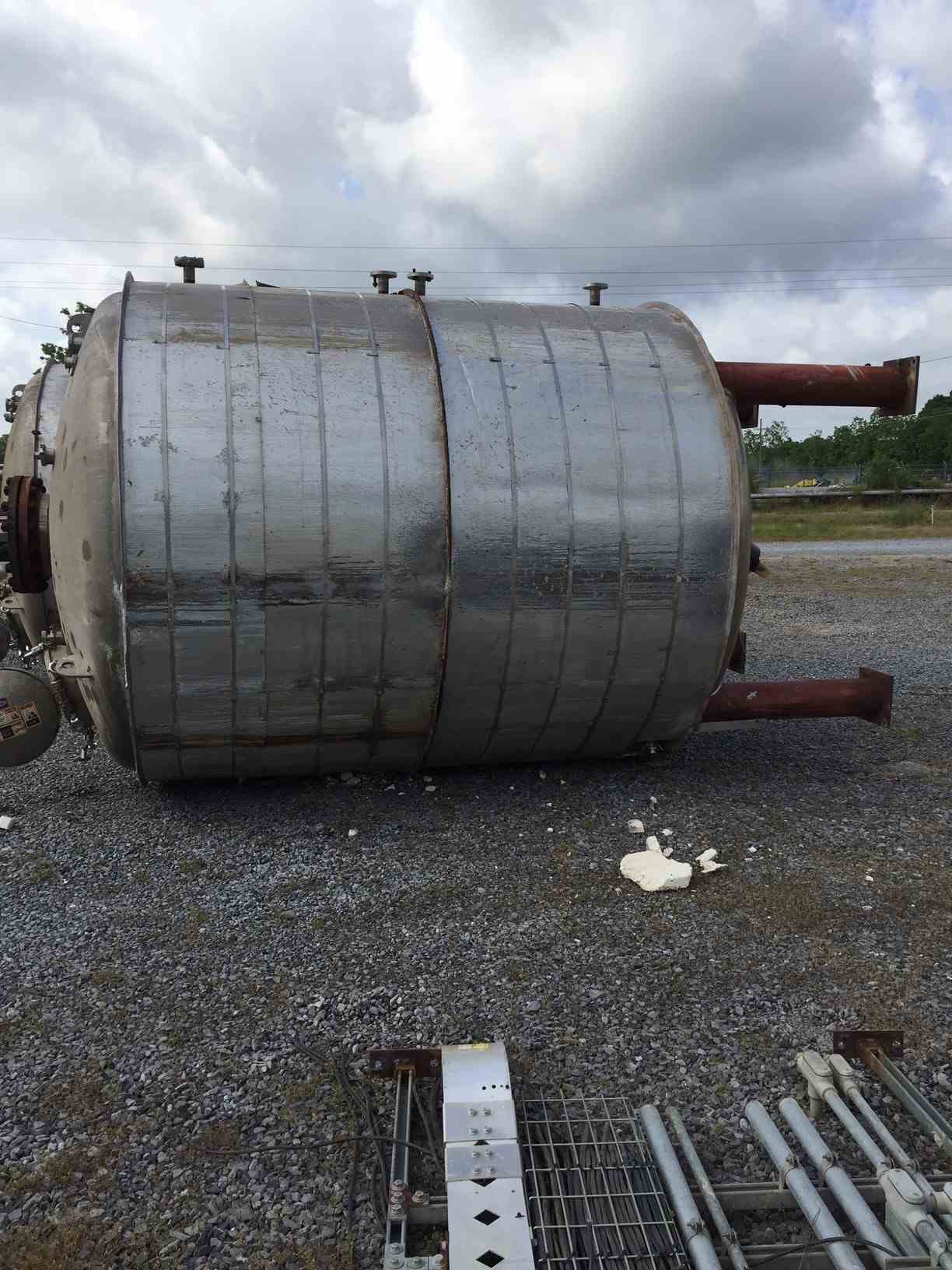

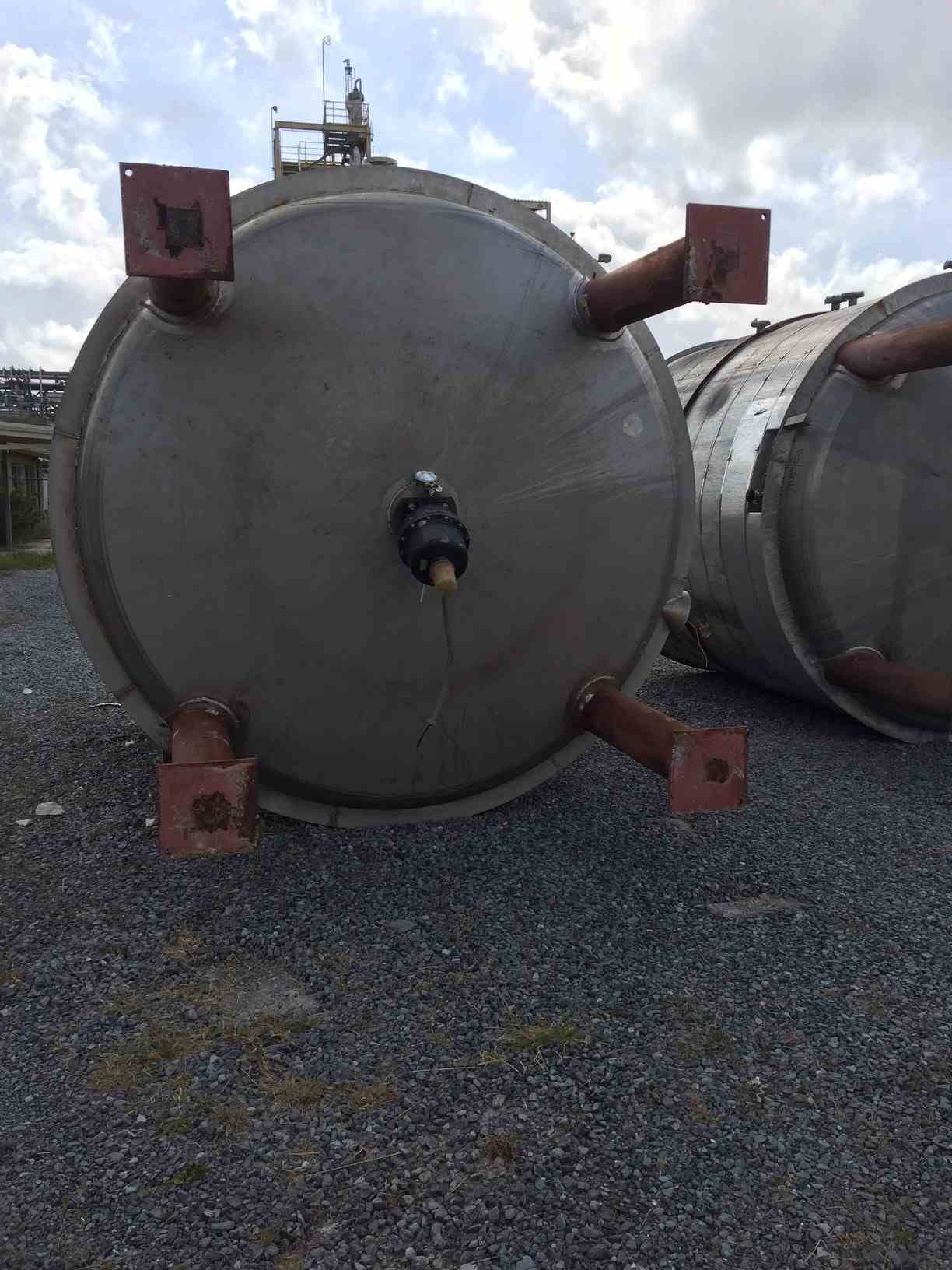

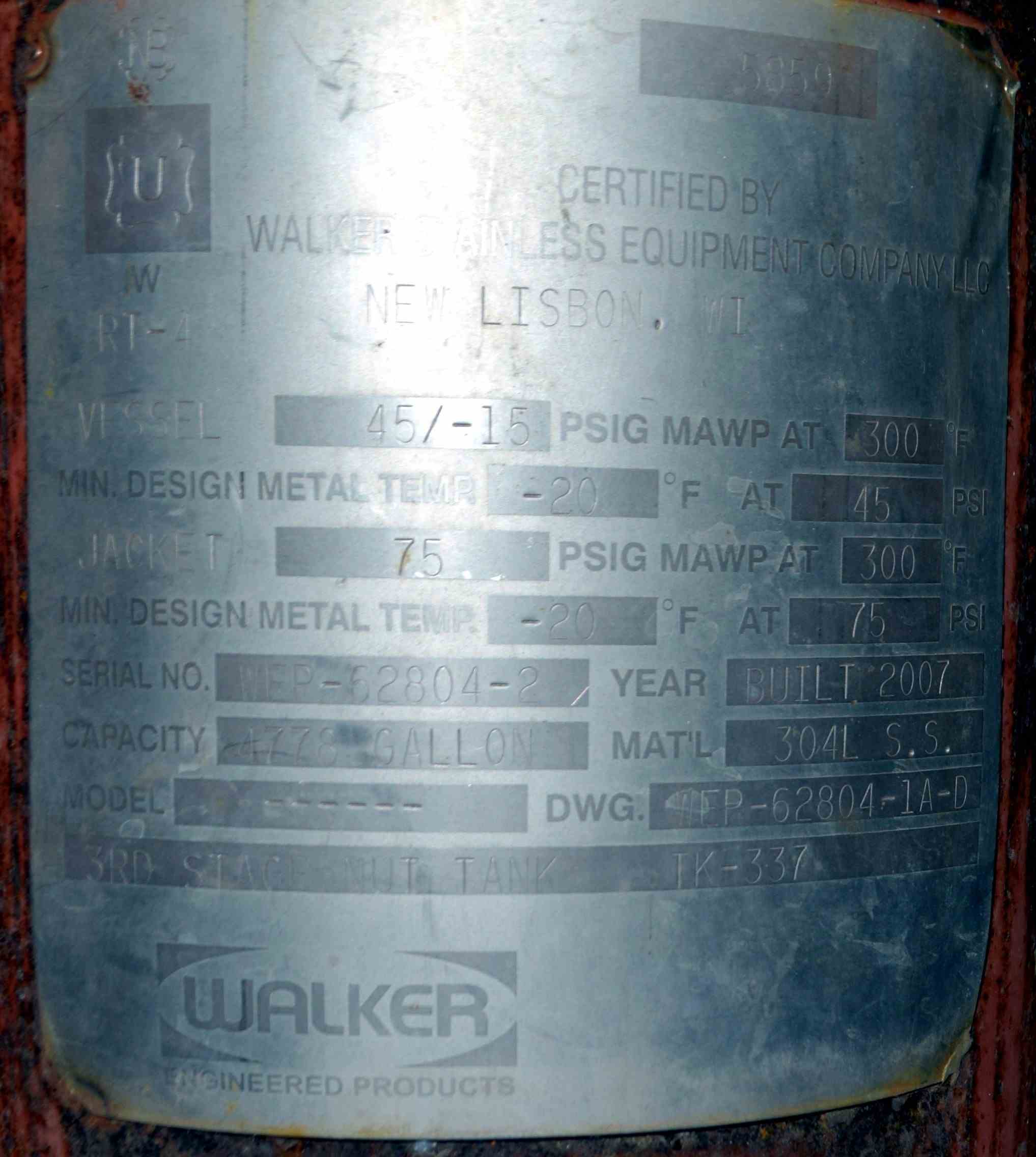

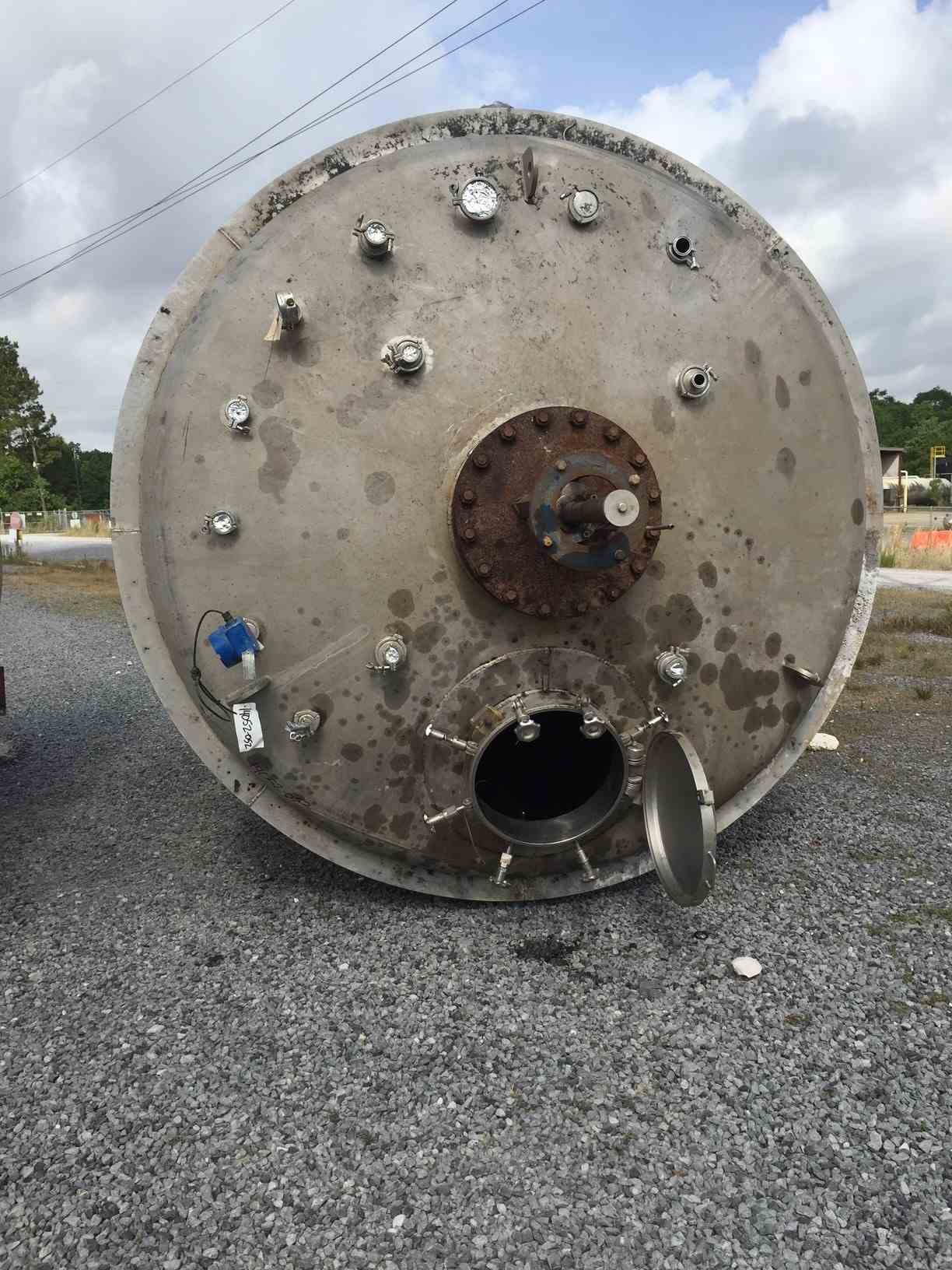

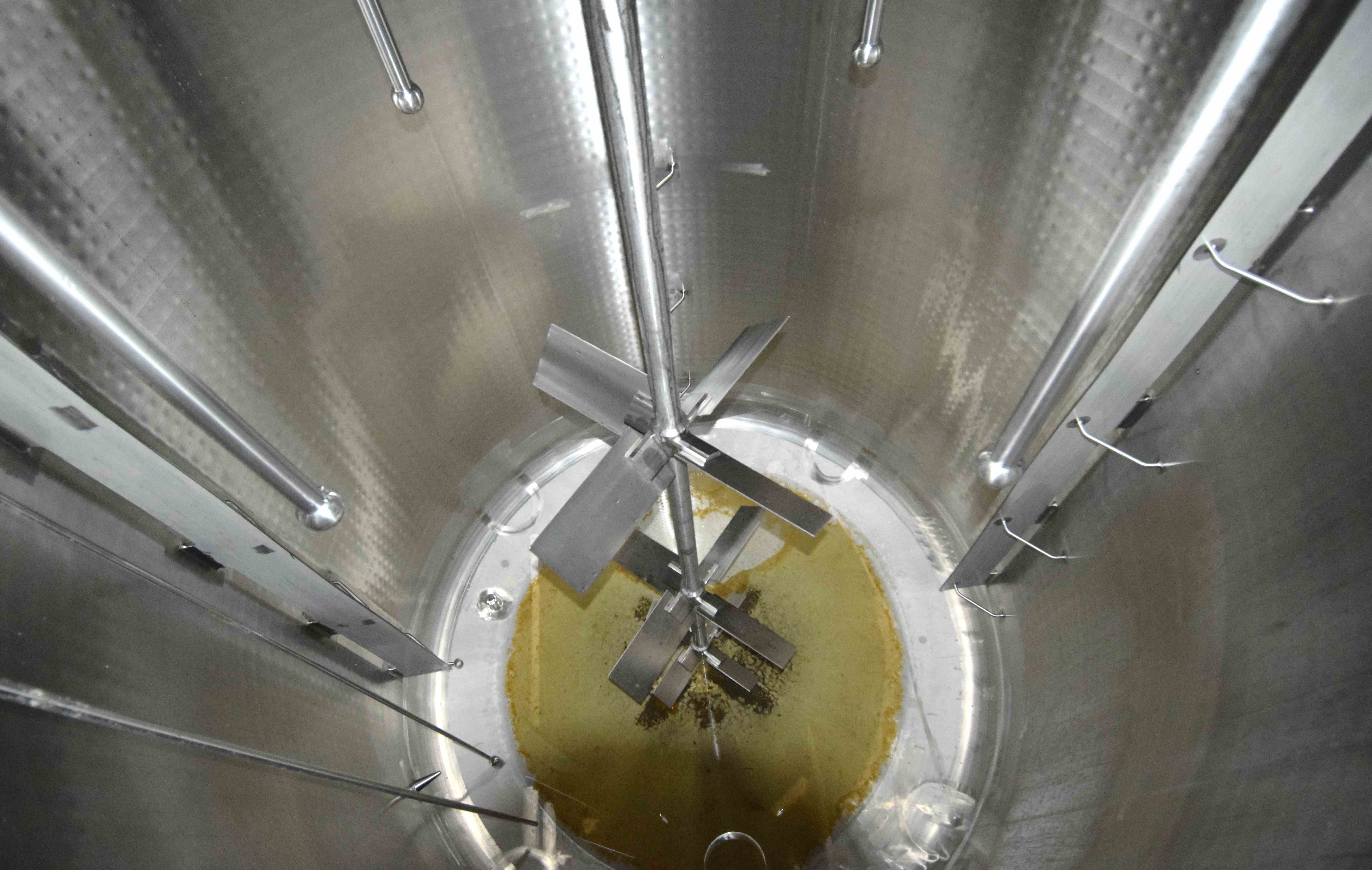

Used Walker Stainless Reactor, 4778 Gallon, 304L Stainless Steel, Vertical. Approximate 102” diameter x 114” straight side, dished top and bottom. Internal rated 45/-15 psi at -20 to 300 degrees F., 304 stainless steel dimple jacket rated 75 psi at -20 to 300 degrees F. Approximate 3” diameter shaft with multiple turbines, no agitator motor. Side wall baffles, 20" top man way, 3" center bottom outlet. Mounted on 4 carbon steel legs. National Board# 5859, serial# WEP-62804-2, built 2007.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Walker
Model
N/A
Material
SS
Capacity
4778 Gal
