300 Gal Lee Industries Stainless Steel Reactor
Other Views - click image for larger view
300 Gal Lee Industries Stainless Steel Reactor 300 Gal Lee Industries Stainless Steel Reactor 300 Gal Lee Industries Stainless Steel Reactor 300 Gal Lee Industries Stainless Steel Reactor 300 Gal Lee Industries Stainless Steel Reactor

300 gal lee industries stainless steel reactor

Stock # 14009
Sold
Capacity 300 Gal

Overview

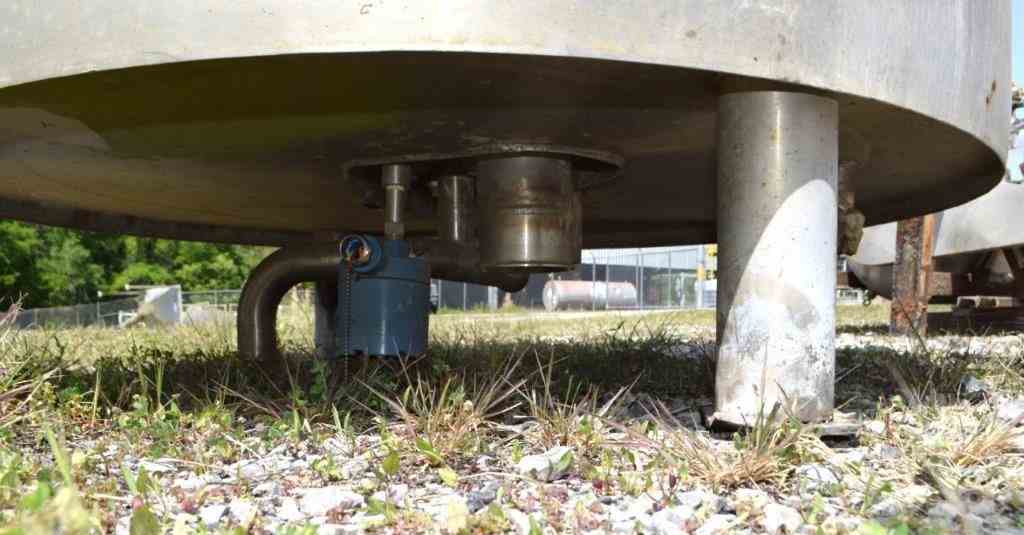

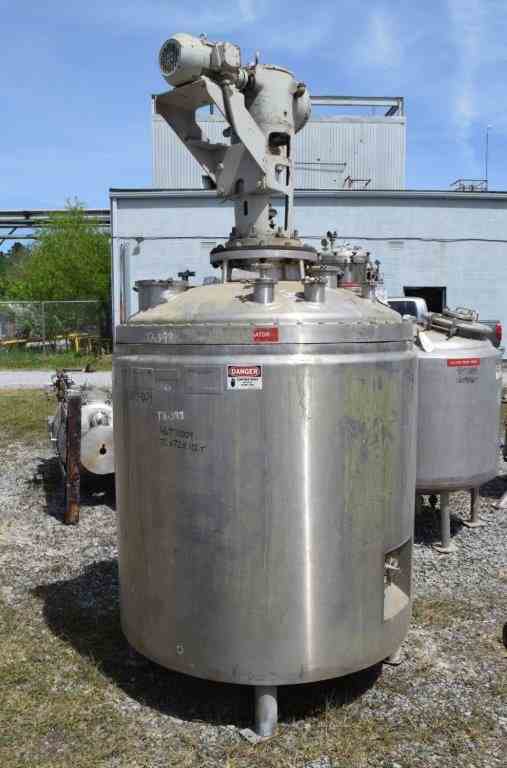

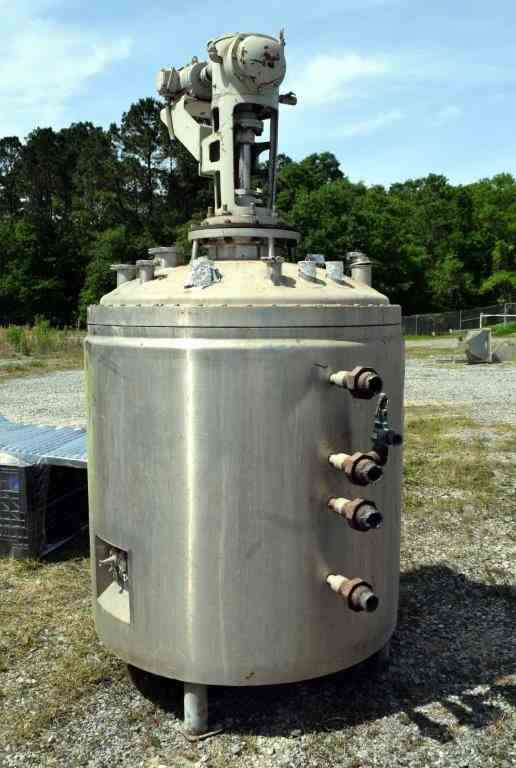

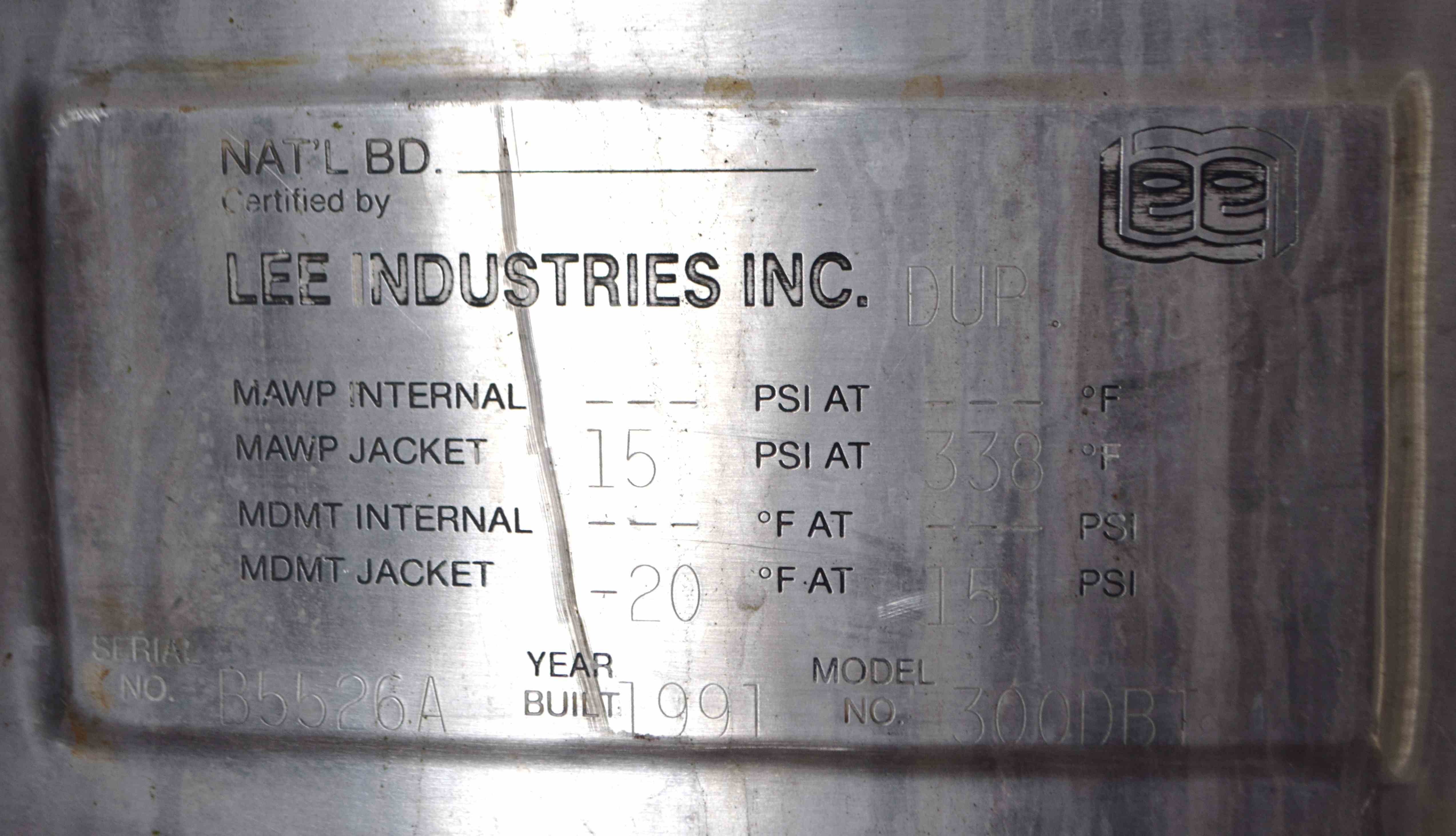

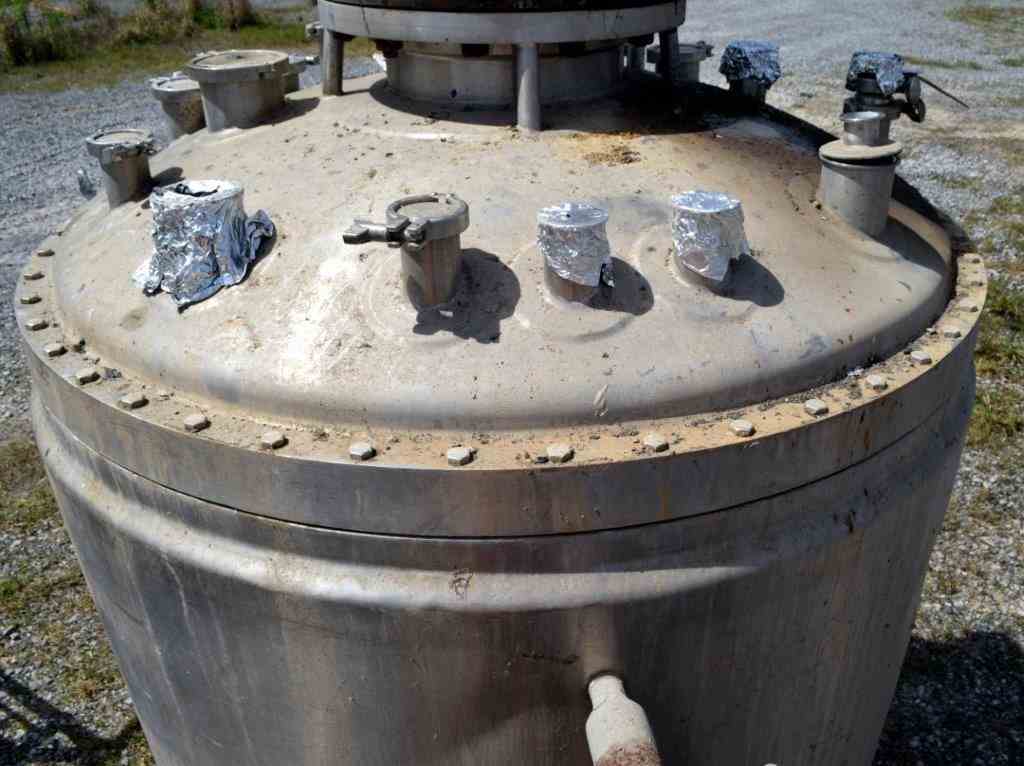

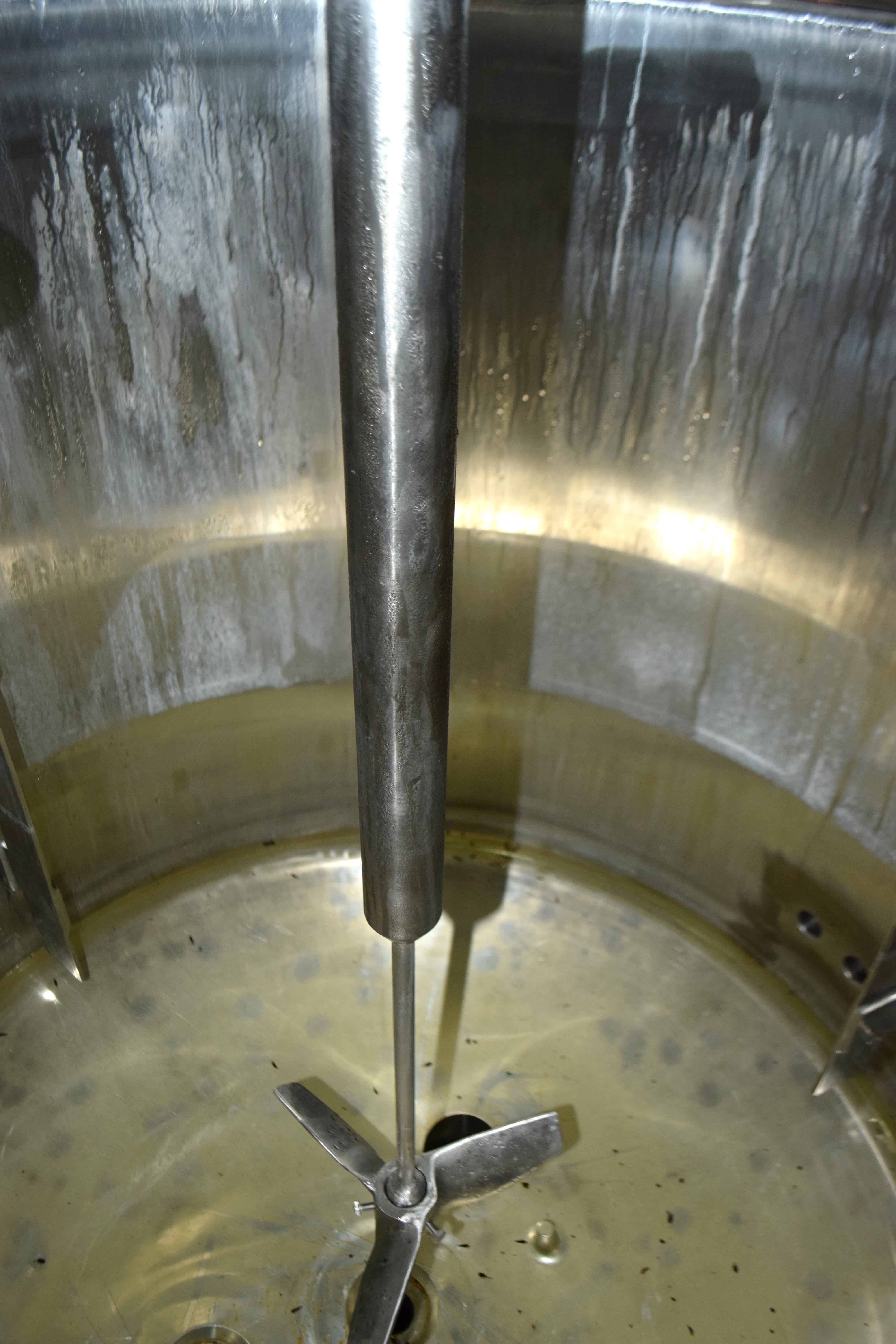

Used Lee Industries Reactor, 300 Gallon, Model 300 DBT, 317L Stainless Steel, Vertical. 48" Diameter x 40" straight side, dished bolt-on top, dish bottom. Internal rated 50 psi at -20 to 180 degrees F and designed for vacuum service, 304 stainless steel jacket rated 15 psi at -20 to 338 degrees F. Top entering Lightnin agitator, model 118-REC-1.5.2, serial# 681675, ratio 17.40 to 1, output rpm 100, approximate 2" diameter tapered shaft with a 3 blade turbine, driven by a 1hp, 3/60/230/460 volt, 1764 rpm motor. 3 Side wall baffles. Openings top 12", (6) 2", (5) 3", (2) 1", 8", bottom 2 approximate 2", 4" center. Mounted on 4 stainless steel legs. National Board# 5099, serial# B5526A, built 1991.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Lee Industries
Model
300 DBT
Material
SS
Capacity
300 Gal
