33 Gal Mueller Stainless Steel Reactor
Other Views - click image for larger view
33 Gal Mueller Stainless Steel Reactor 33 Gal Mueller Stainless Steel Reactor 33 Gal Mueller Stainless Steel Reactor 33 Gal Mueller Stainless Steel Reactor

33 gal mueller stainless steel reactor

Stock # 14008
Sold
Capacity 33 Gal

Overview

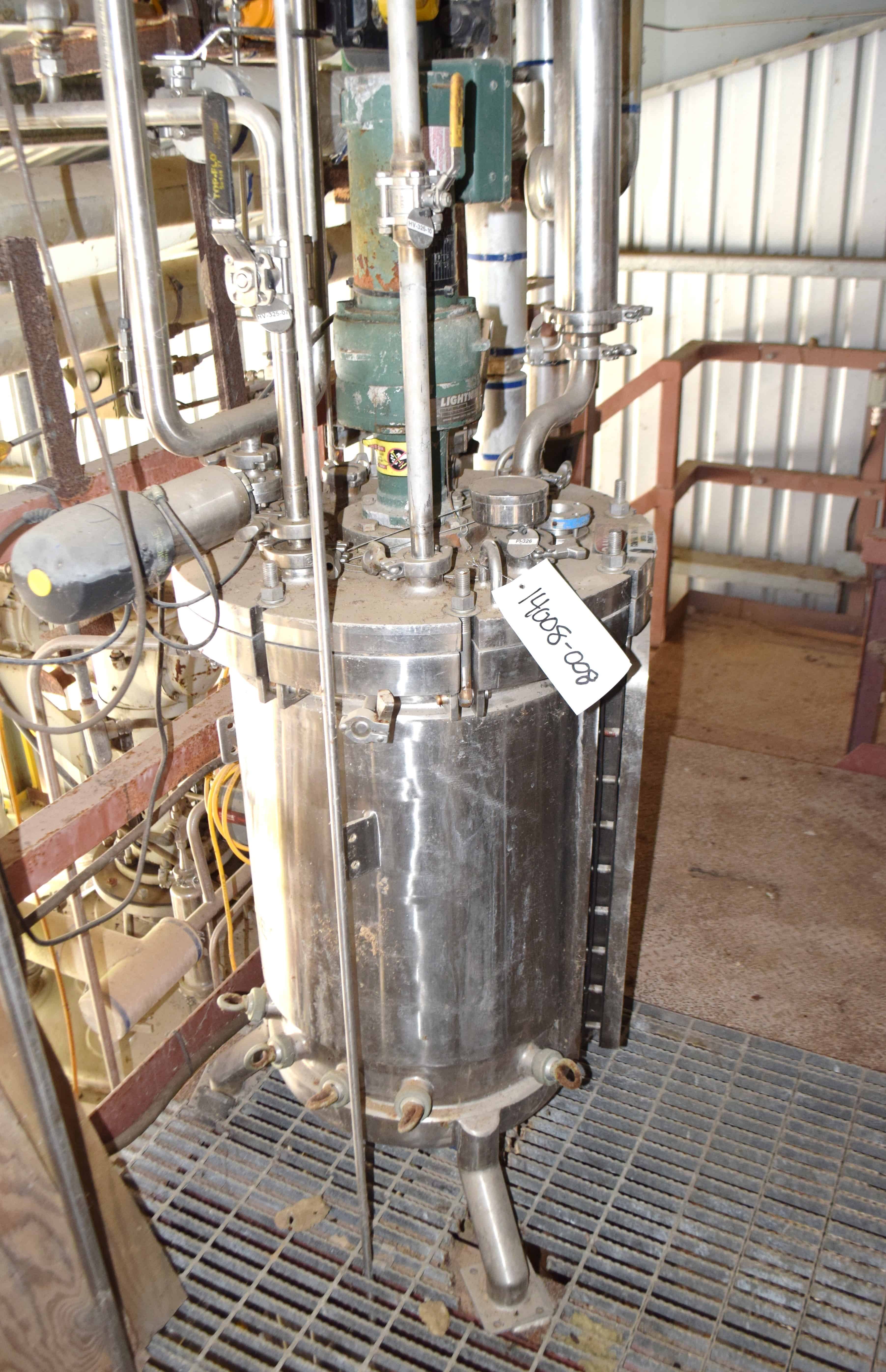

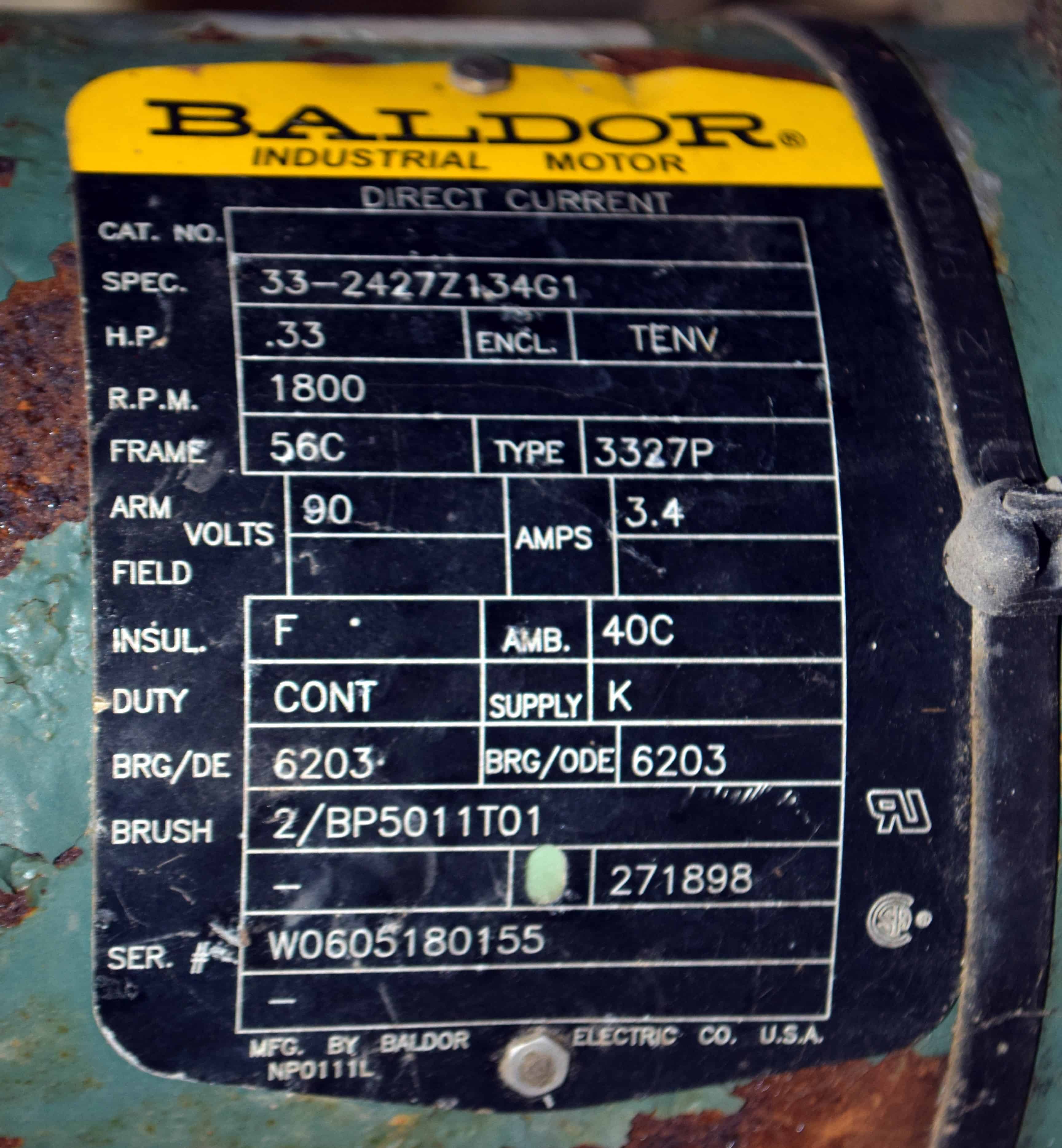

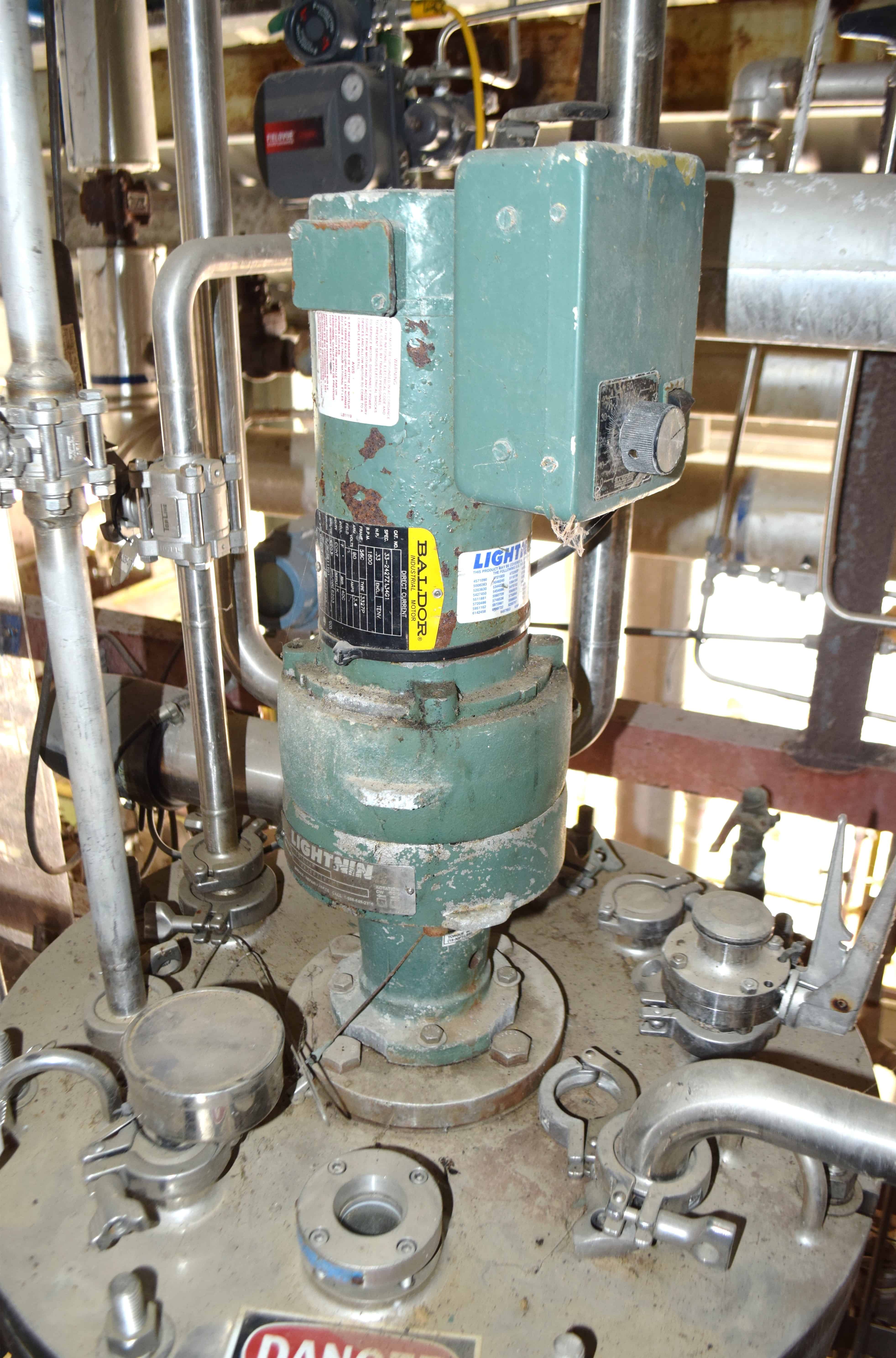

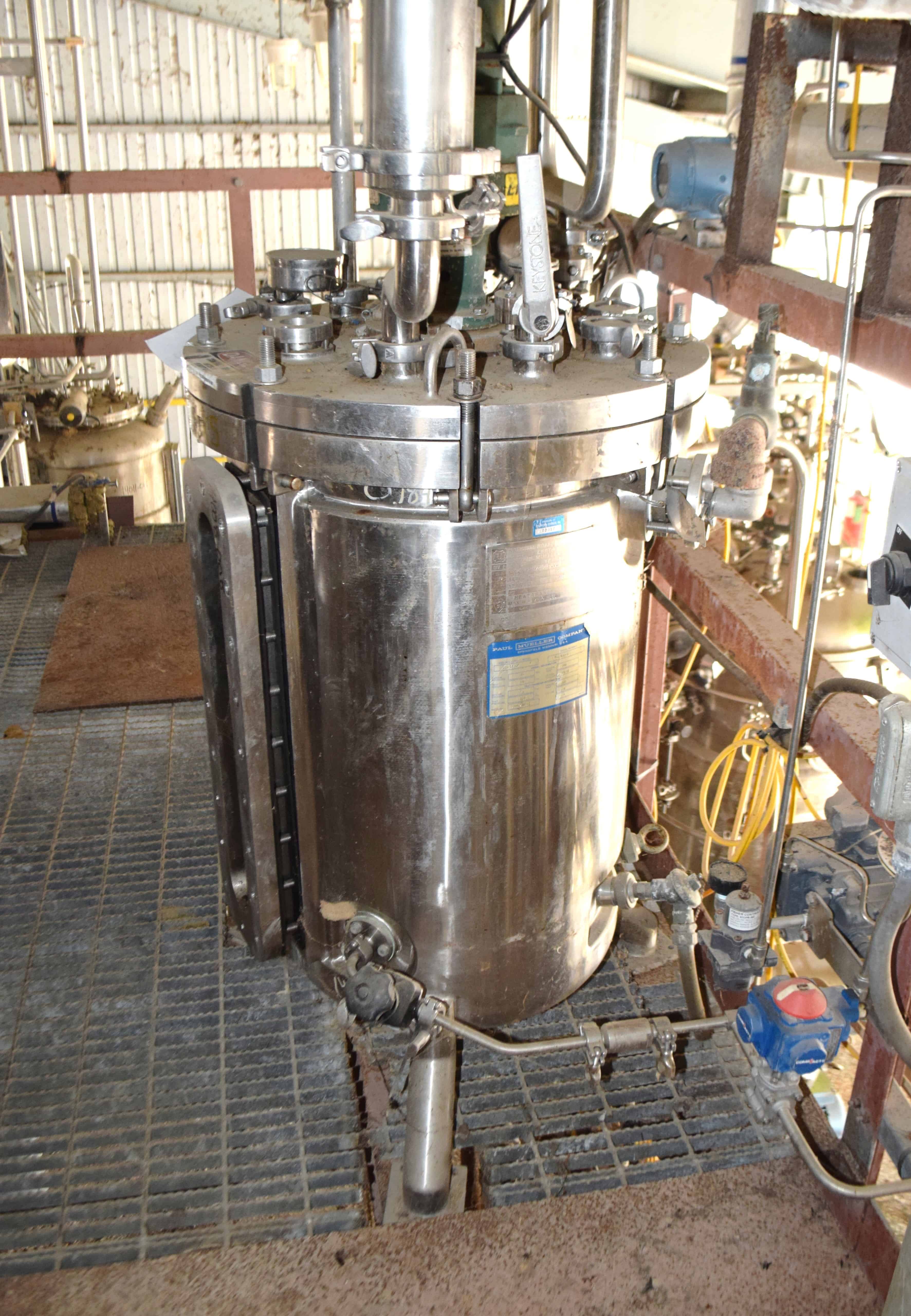

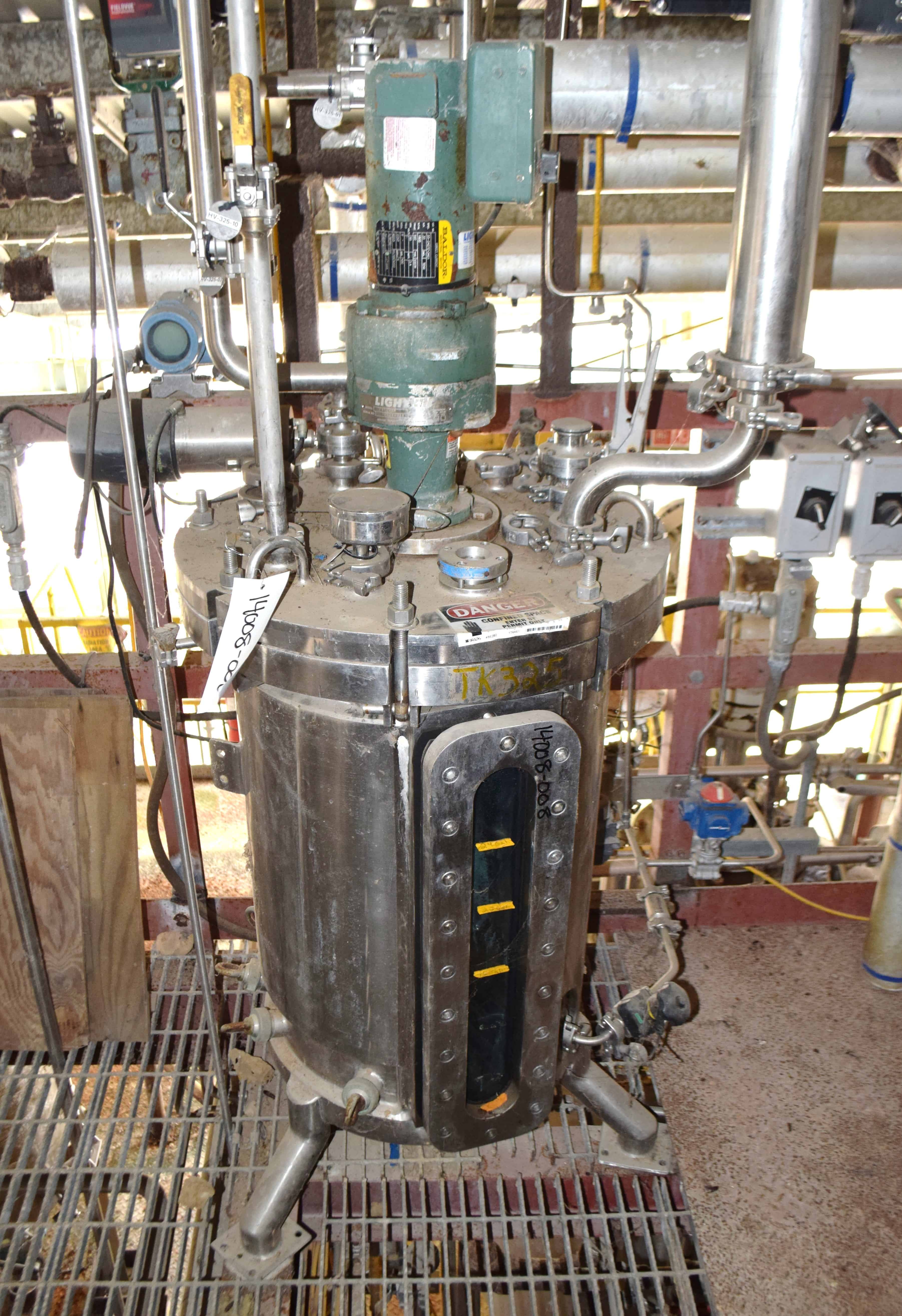

Used Mueller Reactor, 33 Gallon (125 Liter), 316L Stainless Steel, Vertical. 18" Diameter x 31" straight side flat bolt on top, dished bottom. Internal rated Full Vacuum and 45 psi at 300 degrees F, 304 stainless steel jacket rated Full Vacuum and 45 psi at 300 degrees F. Top entering Lightnin agitator, model EV5L33M, serial# R06386310-01, approximate 1/2” diameter shaft with a 3 blade turbine, driven by a 0.33hp, 90 volt, 1800 rpm DC motor with controller. 3 stainless steel legs. National Board# 12482, serial# P22410-1, built 1987.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Mueller
Model
EV5L33M
Material
SS
Capacity
33 Gal
Category
