300 Gal Northland Stainless  Stainless Steel Reactor
Other Views - click image for larger view
300 Gal Northland Stainless  Stainless Steel Reactor 300 Gal Northland Stainless  Stainless Steel Reactor 300 Gal Northland Stainless  Stainless Steel Reactor 300 Gal Northland Stainless  Stainless Steel Reactor

300 gal northland stainless stainless steel reactor

Stock # 14007
Sold
Capacity 300 Gal

Overview

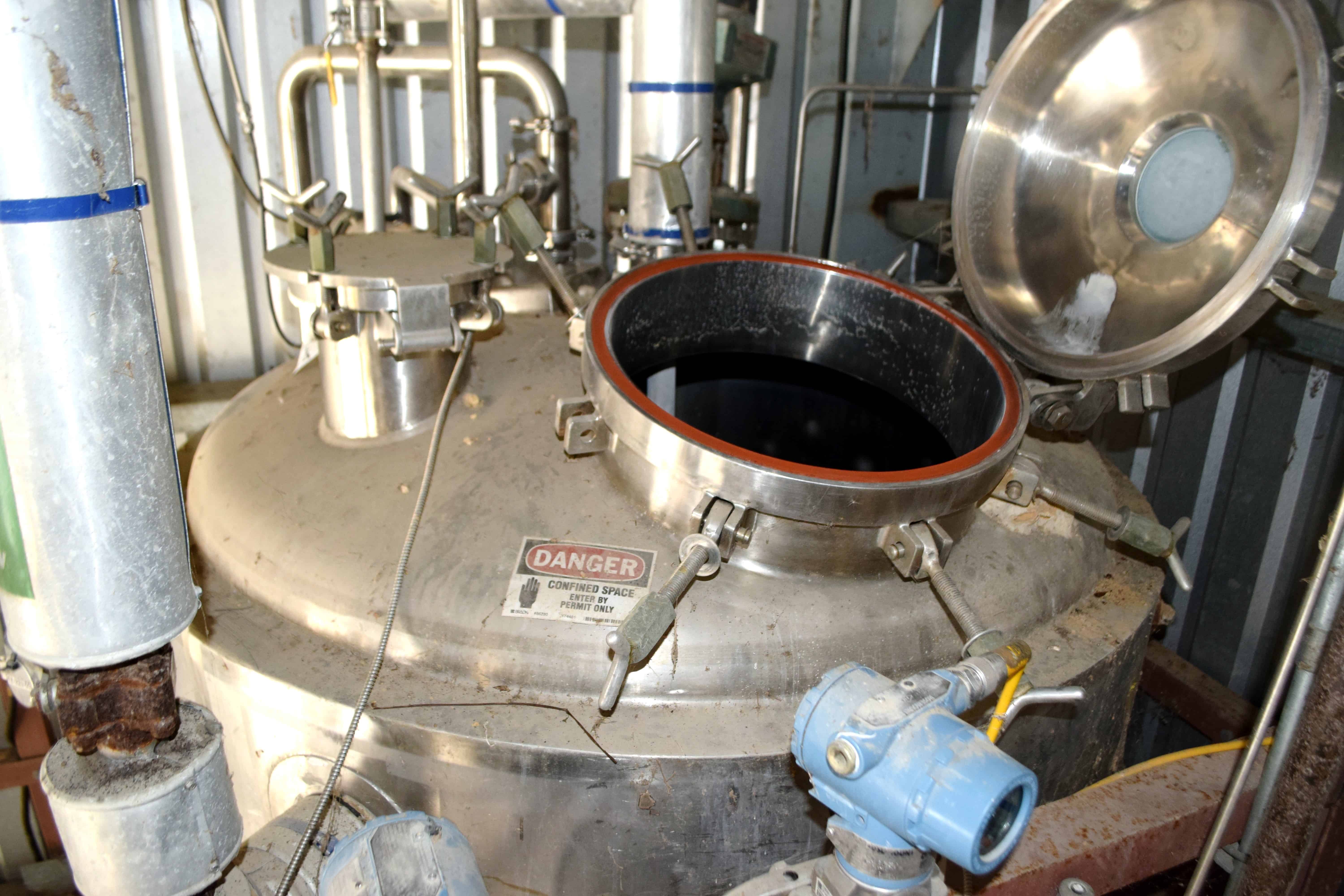

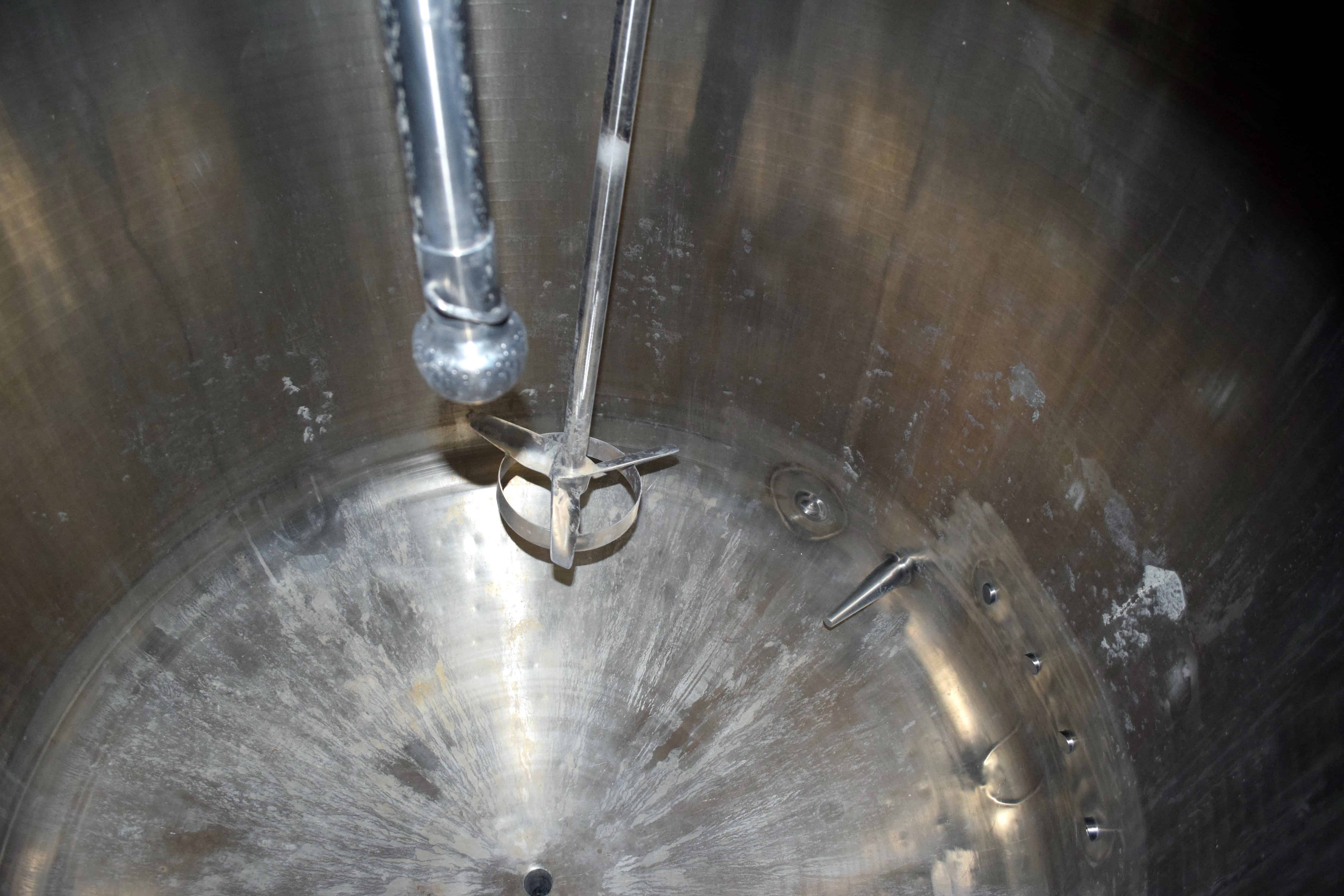

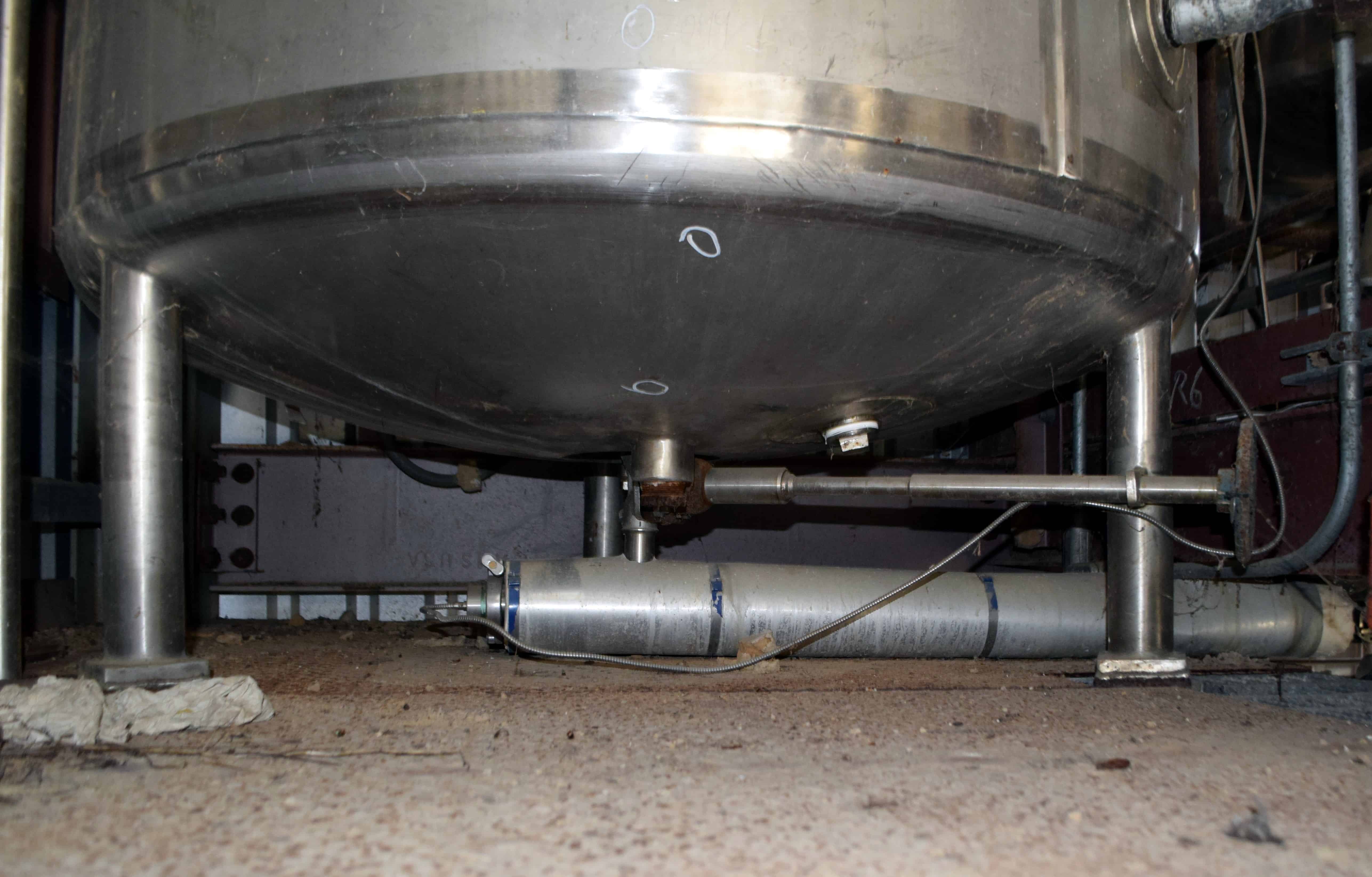

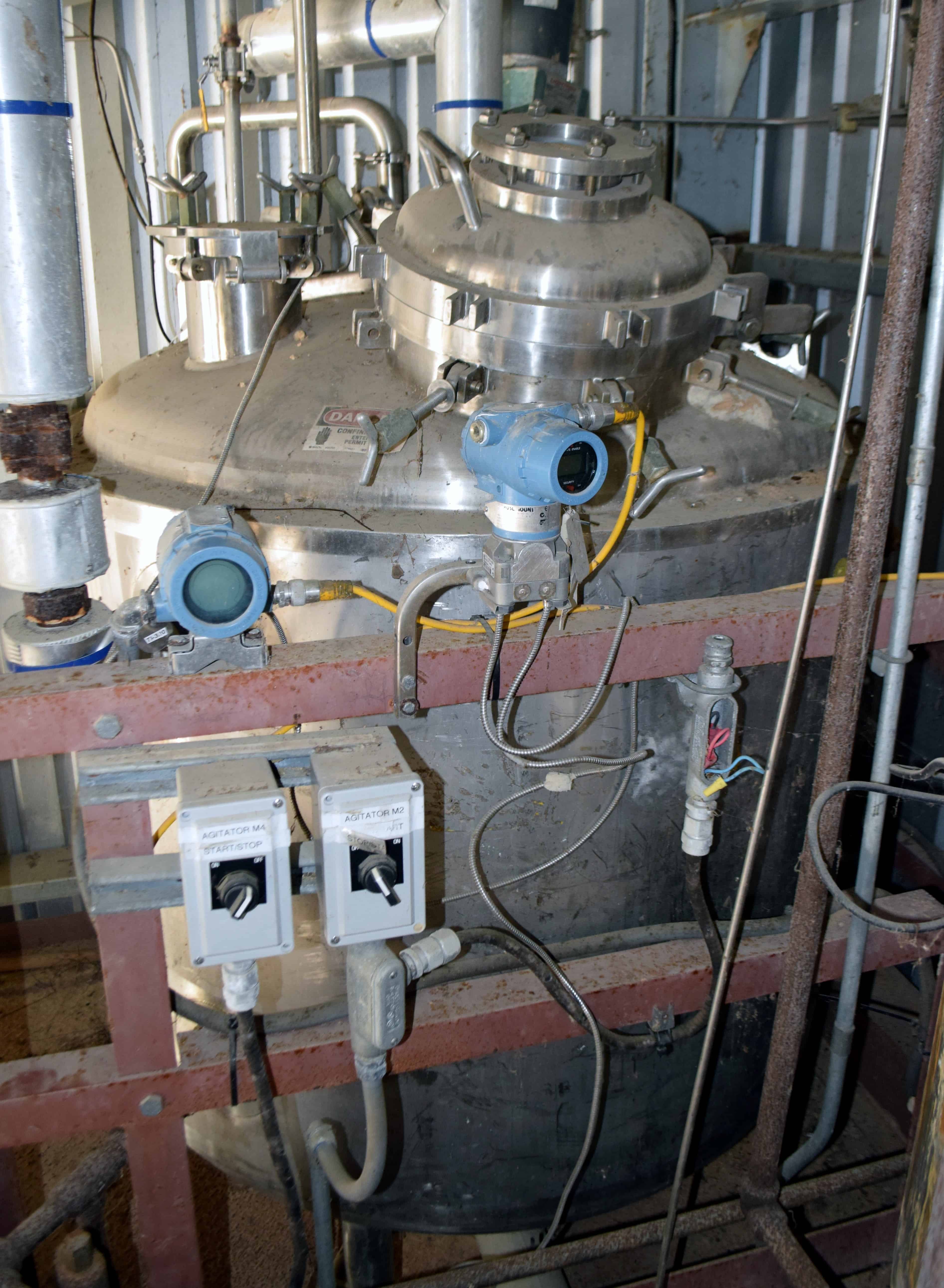

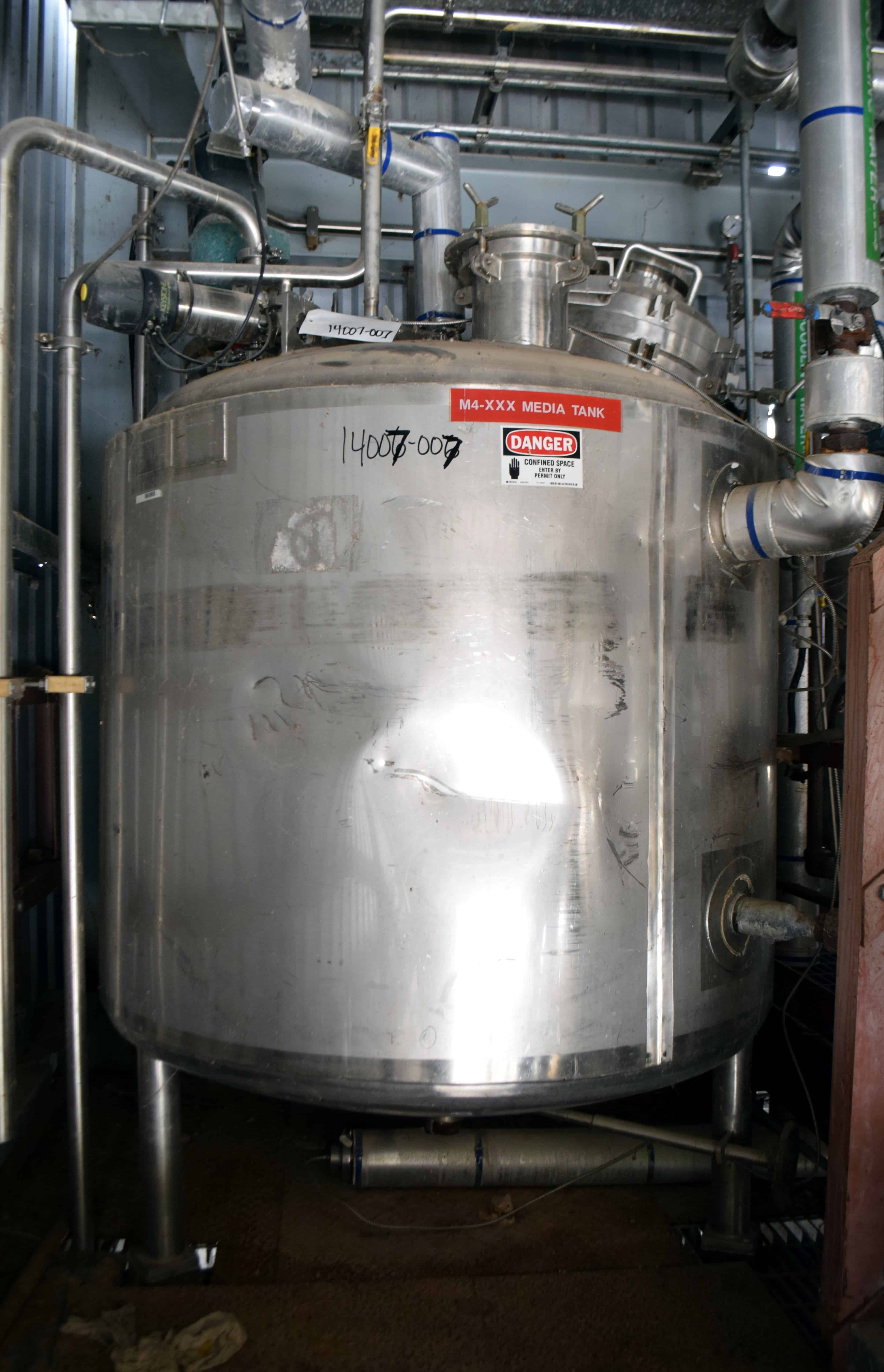

Used Northland Stainless Reactor, 300 Gallon, 316L Stainless Steel, Vertical. 48" Diameter x 36" straight side dished top and bottom. Internal rated Full Vacuum and 50 psi at 365 degrees F, 304L stainless steel dimple jacket rated 150 psi at 365 degrees F. Off center top entering Lightnin agitator, model XDDS-30, serial# 83/186312, approximate 1” diameter shaft with a 3 blade turbine, driven by a 1 HP, 3/60/230/230/460 volt, 1140 rpm motor. Openings top (2) 2" tri-clamp, (2) 2-1/2" tri-clamp, 3" tri-clamp, 6", 5", 5" sight glass, 15" man way with a 5" sight glass in cover. 2" Tri-clamp center bottom outlet. Mounted on 3 stainless steel legs. National Board# 583, serial# 873522-1, built 1987.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Northland Stainless
Model
XDDS-30
Material
SS
Capacity
300 Gal
