64 Gal Crepaco Stainless Steel Reactor
Other Views - click image for larger view
64 Gal Crepaco Stainless Steel Reactor 64 Gal Crepaco Stainless Steel Reactor 64 Gal Crepaco Stainless Steel Reactor 64 Gal Crepaco Stainless Steel Reactor

64 gal crepaco stainless steel reactor

Stock # 14006
Sold
Capacity 64 Gal

Overview

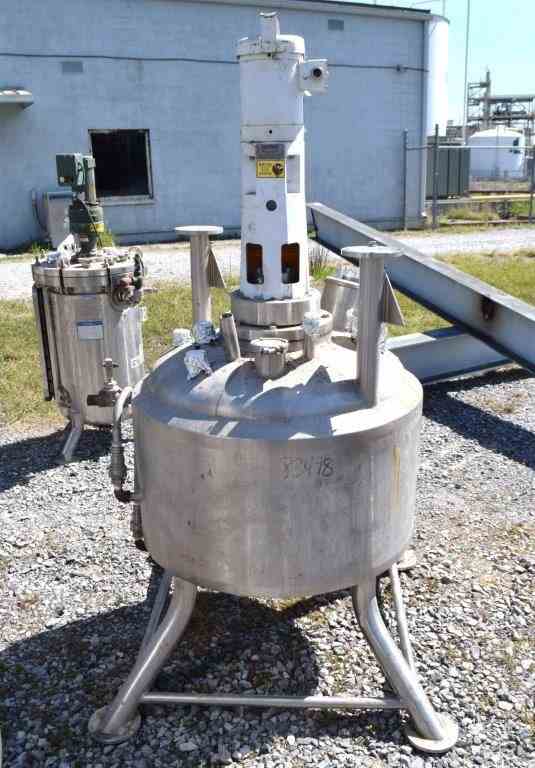

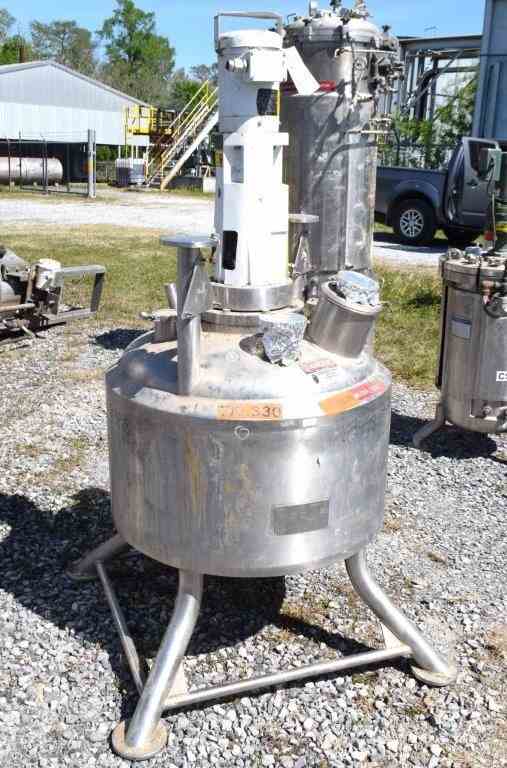

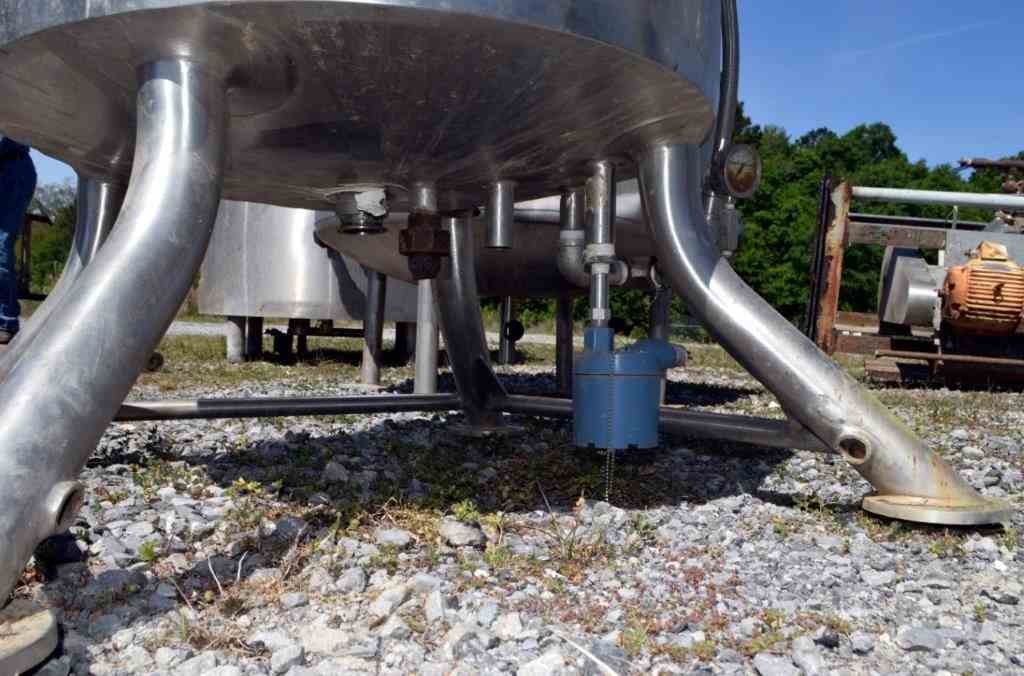

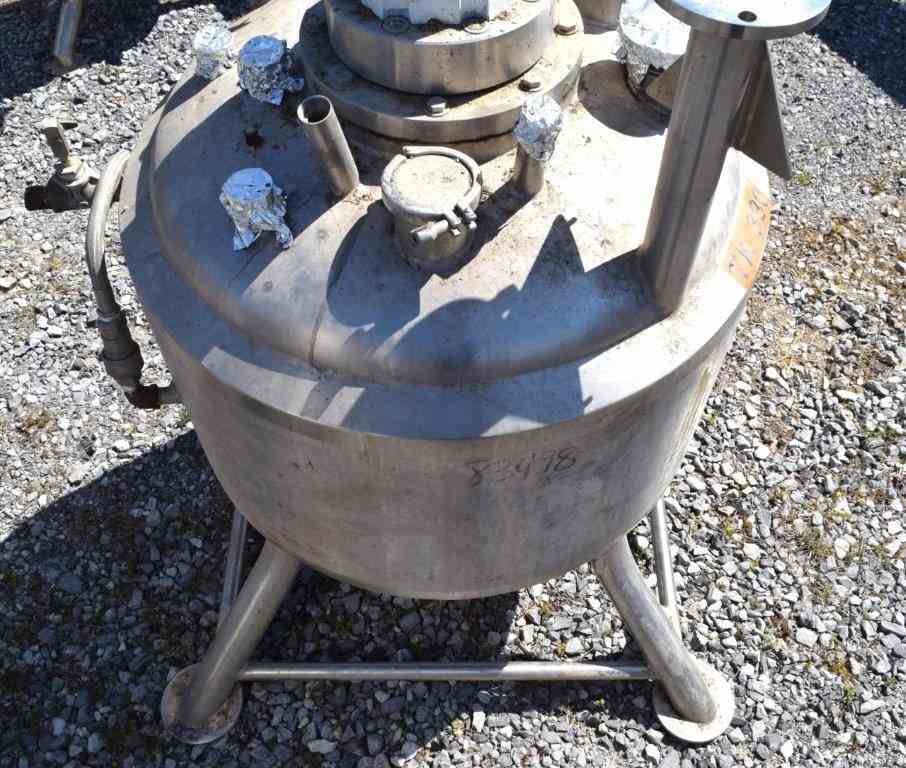

Used Crepaco Reactor, 64 Gallon, 316L Stainless Steel, Vertical. 30" Diameter x 18" straight side, dished top and bottom. Internal rated 25 psi at 300 degrees F. 316L Stainless steel dimple jacket rated 75 psi at 300 degrees F. Top entering Lightnin agitator, model X5S33, serial# 5630, approximate 1” diameter shaft with a 3 blade turbine, driven by a 1/2hp, 3/60/230/460 volt, 1725 rpm motor. Openings top (3) 1-1/2" tri-clamp, 3" tri-clamp. 2" Center bottom outlet. Mounted on 4 stainless steel legs. National Board# 5682, serial# D-2027, built 1984.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Crepaco
Model
X5S33
Material
SS
Capacity
64 Gal
