200 Gal Northland Stainless Steel Reactor Body
Other Views - click image for larger view
200 Gal Northland Stainless Steel Reactor Body 200 Gal Northland Stainless Steel Reactor Body 200 Gal Northland Stainless Steel Reactor Body 200 Gal Northland Stainless Steel Reactor Body 200 Gal Northland Stainless Steel Reactor Body 200 Gal Northland Stainless Steel Reactor Body

200 gal northland stainless steel reactor body

Stock # 14005
Sold
Capacity 200 Gal

Overview

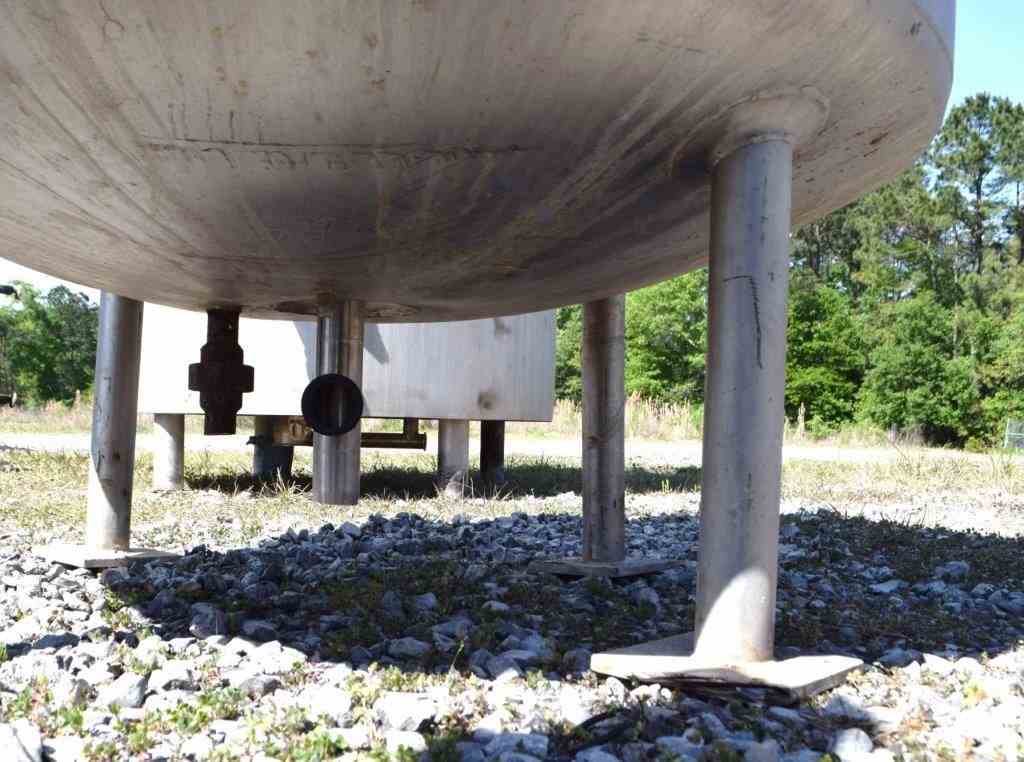

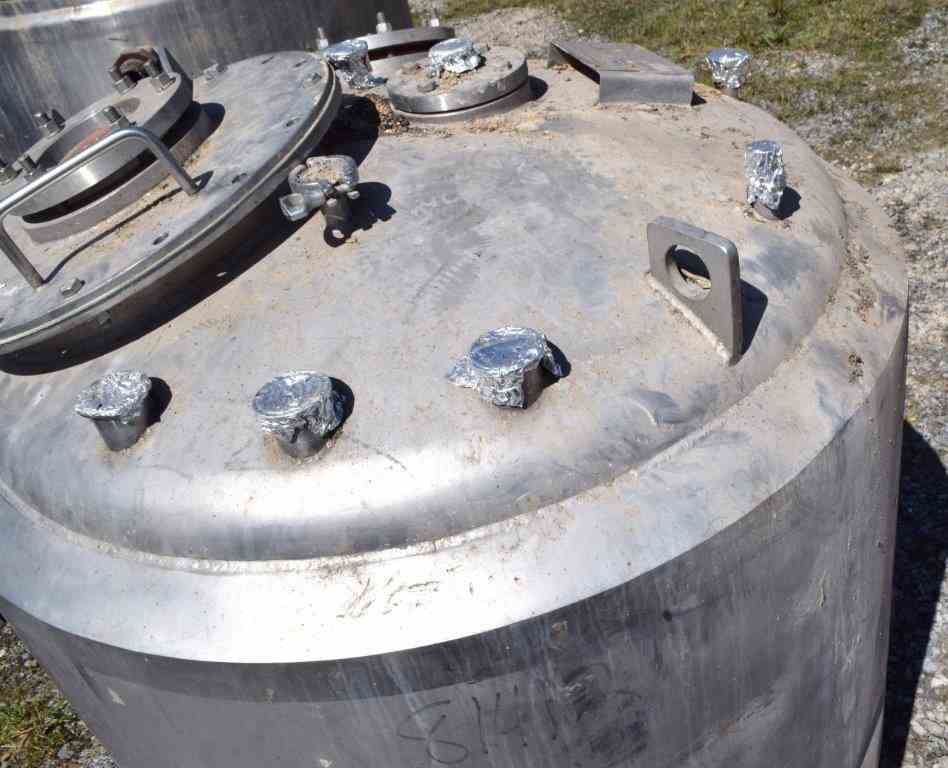

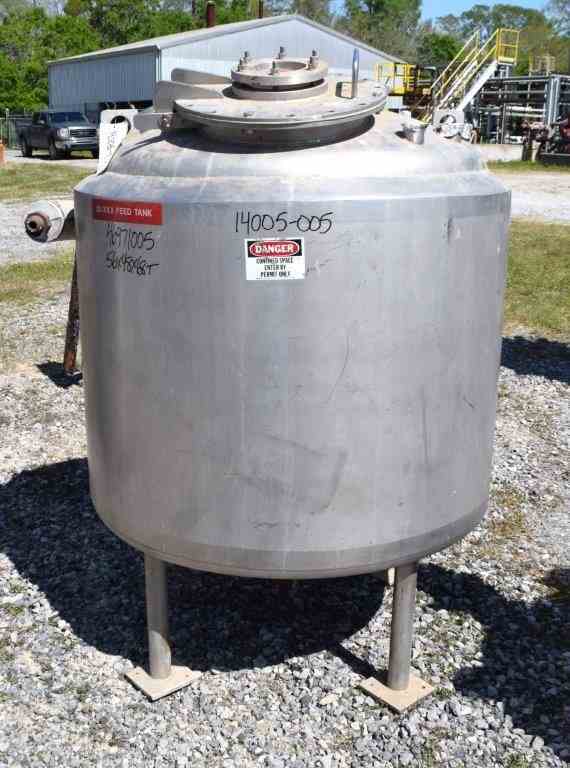

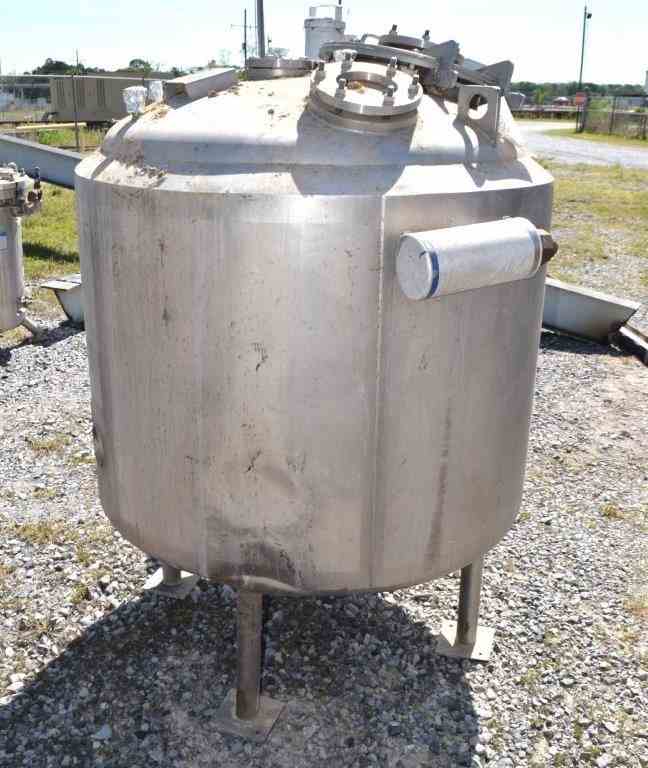

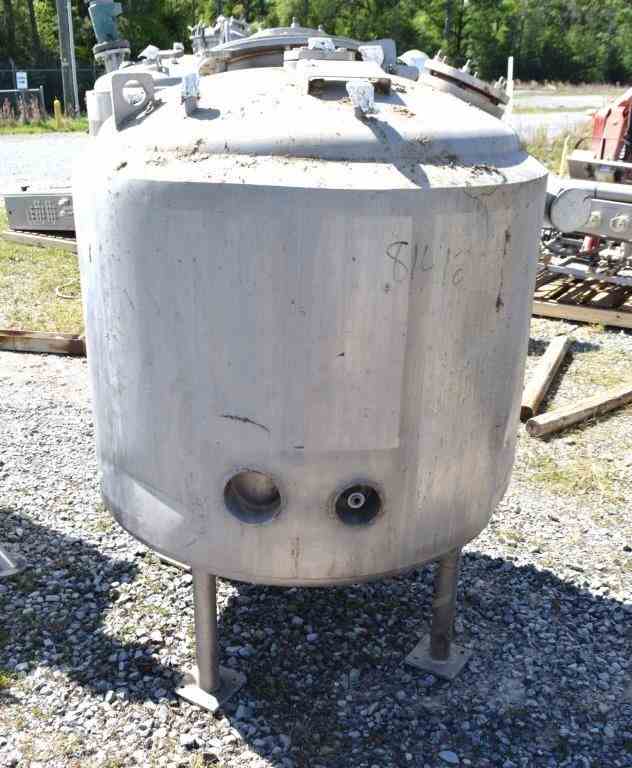

Used- Northland Stainless Reactor, 200 Gallon, 316 Stainless Steel, Vertical. 42" Diameter x 30" straight side, dished top and bottom. Internal rated Full Vacuum and 20 psi at 260 degree F, carbon steel jacket rated Full Vacuum and 20 psi at 260 degrees F. Openings top (7) 2" tri-clamp, 3", 5" sight glass, 15" man way with a 5" sight glass in cover. 2" Tri-clamp center bottom outlet. Mounted on 4 stainless steel legs. National Board #34, serial# 76448-2, built 1976.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Northland Stainless
Model
N/A
Material
SS
Capacity
200 Gal
Category
Similar Equipment
