10 Gal Northland Stainless  Stainless Steel Reactor
Other Views - click image for larger view
10 Gal Northland Stainless  Stainless Steel Reactor 10 Gal Northland Stainless  Stainless Steel Reactor 10 Gal Northland Stainless  Stainless Steel Reactor 10 Gal Northland Stainless  Stainless Steel Reactor 10 Gal Northland Stainless  Stainless Steel Reactor

10 gal northland stainless stainless steel reactor

Stock # 5784
Capacity 10 Gal

Overview

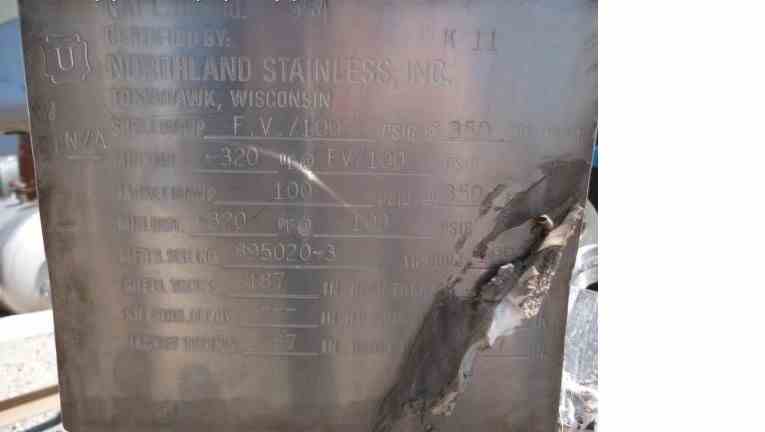

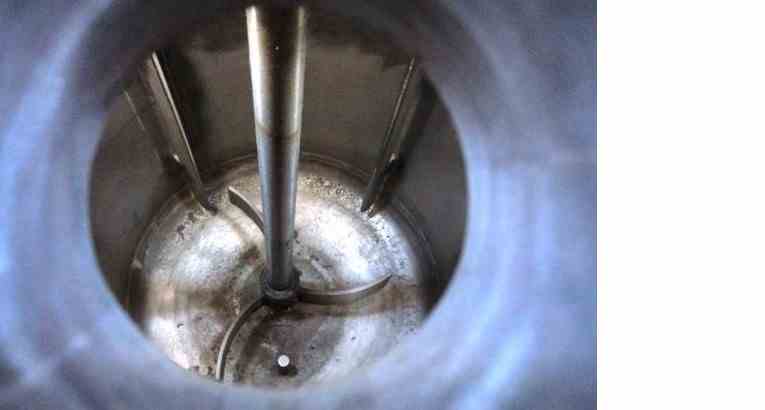

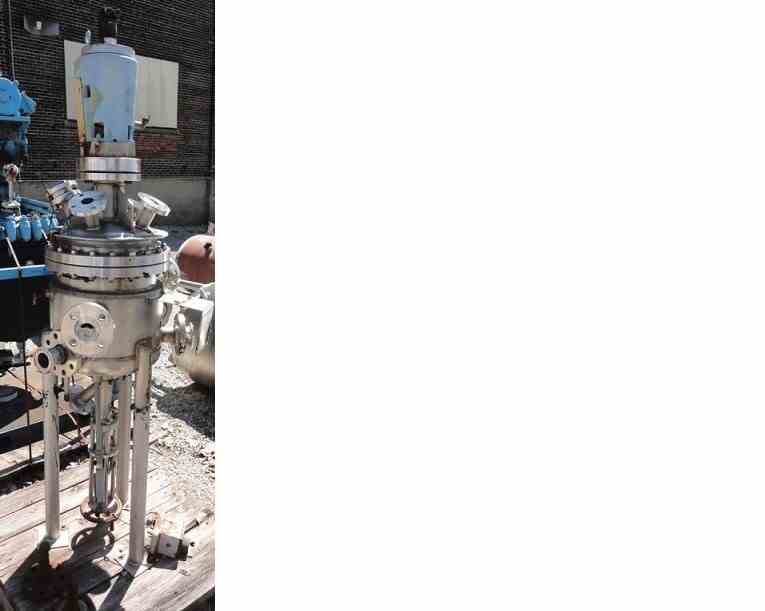

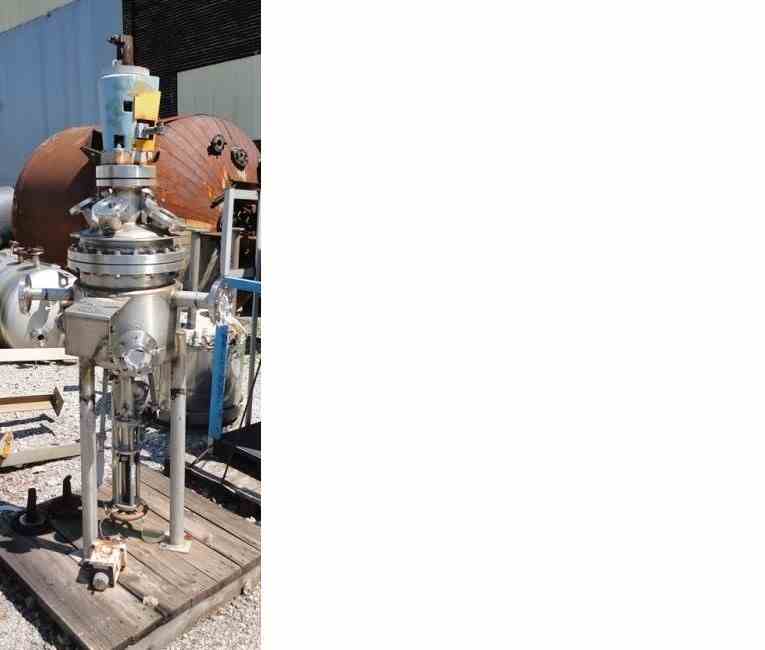

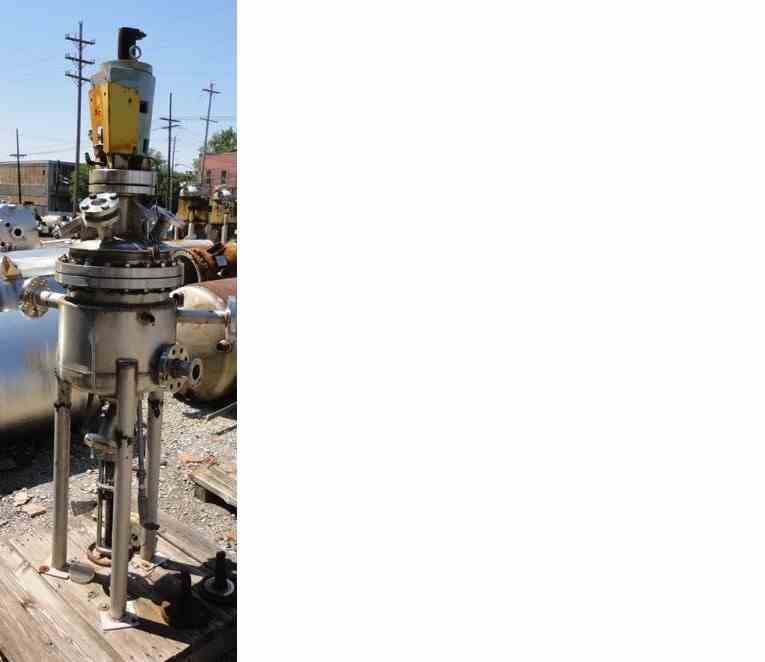

Used 10 gallon Northland Stainless Reactor, 316L Stainless Steel Construction, bolt on removable dished top, dish bottom, rated 100 PSI and full vacuum, +350/-320 degrees F, jacketed for 100 PSI and full vacuum at +350/-320 degrees F, Model XDHDS-100L Lightnin Agitator Drive with mechanical seal and lubricator, 3 blade retreat curve agitator, 4 baffles, (3) 1", (1) 2" sight glass, top nozzles, 1.5" center bottom outlet with plug valve, Serial No. 895020-3, National Board No. 954, New 1990.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Northland Stainless
Model
NA
Material
Stainless Steel
Capacity
10 Gal
Category
