Used Precision Stainless, Inc Process Equipment

Unused 200 liter (Approx. 50 gallons) Working Volume Precision Stainless Stainless Steel Bioreactor Vessel. Internal rated 50PSI/FV @ 350 deg F. Jacket rated 100PSI/FV @ 350 deg F.Interior 12-15Ra, mirror; Exterior ground & polished; 4-baffles; Centered mixer port. (Vessel only - No Agitator)

Used 18 gallon (70 liter), 316 stainless steel, Reactor Body/Tank manufactured by Precision Stainless. Internal rated 15 PSI/FV. Jacket rated 45 PSI at 392 deg. F. Unit has bolt on top with (5) 1-1/2" inlet; (1) 4" center inlet and (1) 4" side inlet. Unit has 1" inlet/outlet on jacket, and 1-1/2" center bottom discharge. Unit manufactured in 1997, national board 7209, serial number 5209-1.

One used 400 Liter Precision Stainless, 316L Stainless Jacketed Tank. S/N 210636-12. Built in 2001. Vessel MAWP 50 PSI at 302 Degrees. Jacket Rated 100 PSI at 302 Degrees. With single propeller agitator, 0.5 HP motor. National Board 9446.

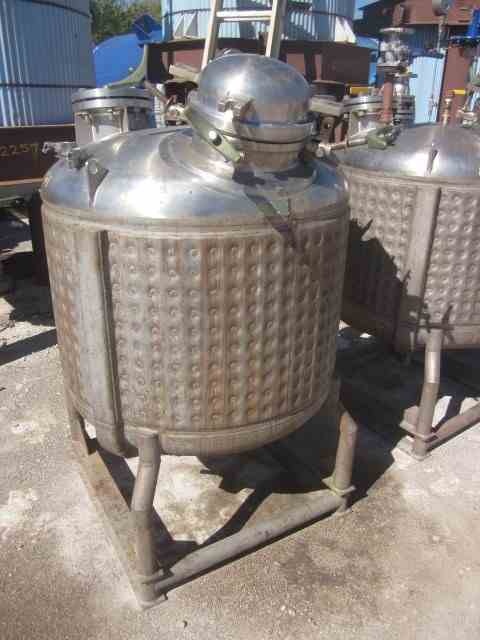

USED PRECISION STAINLESS APPROXIMATELY 115 GALLON 316L STAINLESS STEEL PRESSURE VESSEL. 3' DIAMETER X 1’11” STRAIGHT SIDE. WITH DISHED TOP AND BOTTOM HEADS. RATED 100 PSI/FULL VACUUM INTERNAL @ 325°F. 16 GAUGE 304L STAINLESS STEEL HEAD. DIMPLED 304L STAINLESS STEEL RATED 125 PSI @ 325°F. 0.187" SHELL THICKNESS, 0.25" HEAD THICKNESS, 36" HEAD DISH RADIUS.

Used 30 Gallon (110L) Sanitary 316L SS Reactor. Mfg Precision Stainless. Rated 50 PSI/Vacuum @ 302 Deg.F Internal. Jacket rated 100 PSI @ 302 Deg.F.. Has Lightnin 1/2 HP, model V5S18 mixer. S/N 8134-2.
