18 Gal Precision Stainless  Inc 316-SS Pressure Vessel
Other Views - click image for larger view
18 Gal Precision Stainless  Inc 316-SS Pressure Vessel 18 Gal Precision Stainless  Inc 316-SS Pressure Vessel 18 Gal Precision Stainless  Inc 316-SS Pressure Vessel 18 Gal Precision Stainless  Inc 316-SS Pressure Vessel 18 Gal Precision Stainless  Inc 316-SS Pressure Vessel

18 gal precision stainless inc 316-ss pressure vessel

Stock # 12324
Capacity 18 Gal

Overview

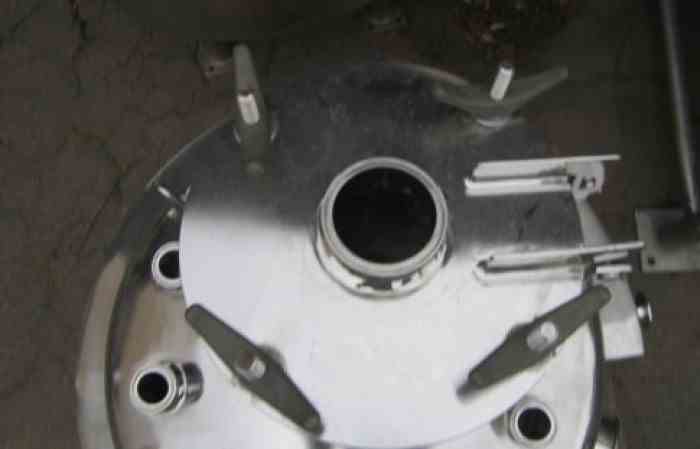

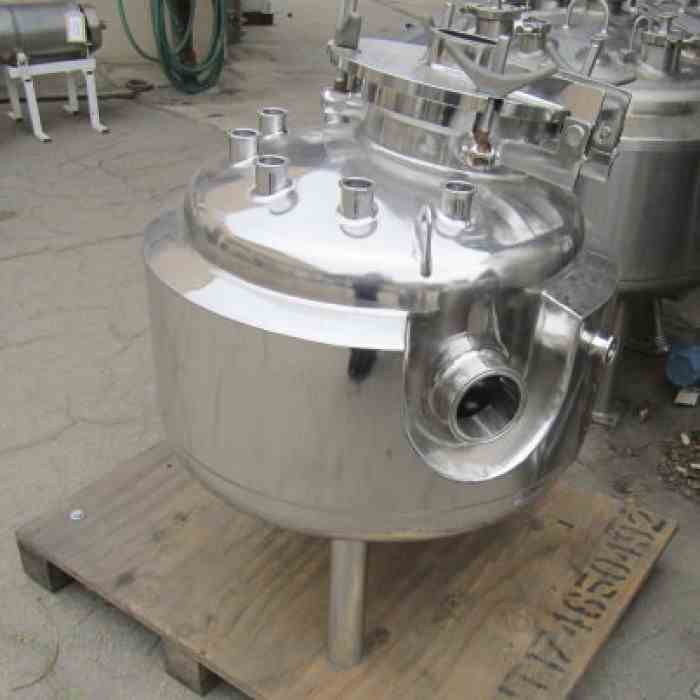

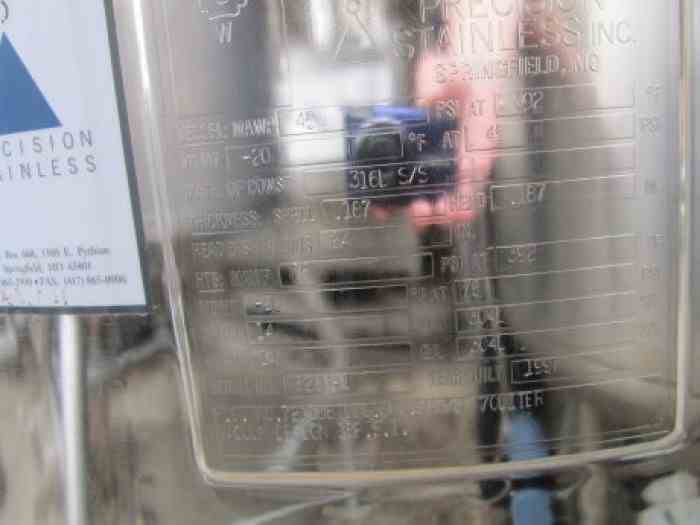

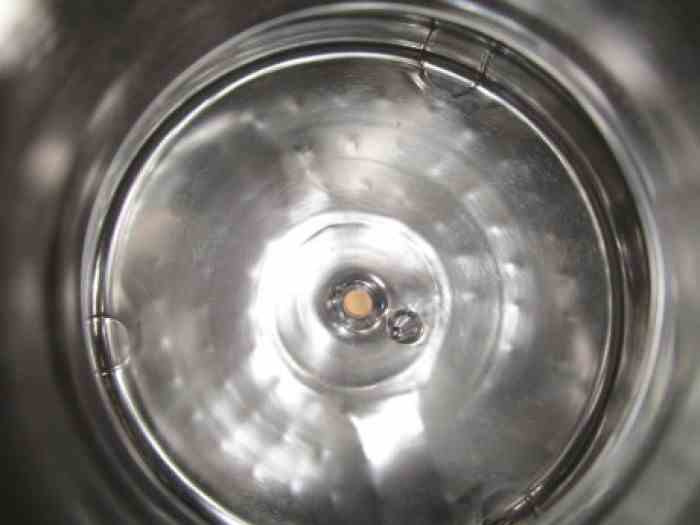

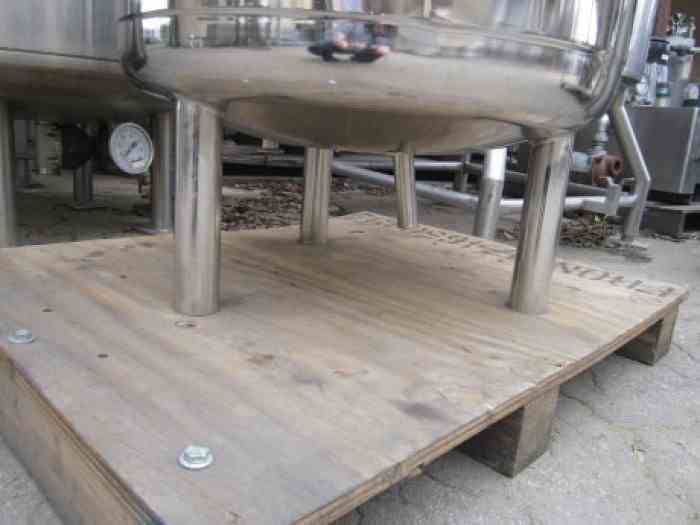

Used 18 gallon (70 liter), 316 stainless steel, Reactor Body/Tank manufactured by Precision Stainless. Internal rated 15 PSI/FV. Jacket rated 45 PSI at 392 deg. F. Unit has bolt on top with (5) 1-1/2" inlet; (1) 4" center inlet and (1) 4" side inlet. Unit has 1" inlet/outlet on jacket, and 1-1/2" center bottom discharge. Unit manufactured in 1997, national board 7209, serial number 5209-1.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Precision Stainless, Inc
Model
NA
Material
316-SS
Capacity
18 Gal
Subcategory
