Decanter Centrifuges & Separators for Sale

Used 220/125mm 316L stainless Steel Decanter Centrifuge. Manufactured by Westfalia. Model CA-220-11-00. Serial #1699-130. Previously used in an API Facility.

Unused 54" X 70" Super Duplex Andritz Separation Screen Bowl Decanter Centrifuge, Model SB 7700. Capacity of 40-80 tons per hour (depending on product). Single lead conveyor. 360-degree solids discharge ports, gearbox, base, casing with stainless steel top cover, feed tube, lube system, sub-base, 390 HP/260 Kw HP-660V/50hZ/3 Ph-995 RPM WEG W22 Premium main drive motor, safety guards. Overall dimensions 5200 mm (169") long x 3800 mm (124") width x 1800 mm (59") high. Built 2012. Weight 18.8 tons. (11 available)

USED HUMBOLT (KHD) DECANTER MODEL CP4-01.1 CENTRIFUGE. STAINLESS STEEL BOWL. 10 DEGREE CONE. EQUIPPED WITH 200 HP 3/60/460 VOLT MAIN MOTOR, HYDRAULIC BACK DRIVE. CONTROL PANEL. BOWL DIMENSIONS: 32" DIAMETER X 96" LONG. 2500 RPM. LUBRICATION SYSTEM, CONTROL PANEL.

USED HUMBOLT (KHD) DECANTER MODEL CP4-01.1 CENTRIFUGE. STAINLESS STEEL BOWL. 10 DEGREE CONE. EQUIPPED WITH 200 HP 3/60/460 VOLT MAIN MOTOR, HYDRAULIC BACK DRIVE, LUBRICATION SYSTEM, CONTROL PANEL. BOWL DIMENSIONS: 32" DIAMETER X 96" LONG. 2500 RPM.

USED HUMBOLT (KHD) DECANTER MODEL CP4-01.1 CENTRIFUGE. STAINLESS STEEL BOWL. 10 DEGREE CONE. EQUIPPED WITH 200 HP 3/60/460 VOLT MAIN MOTOR, HYDRAULIC BACK DRIVE, LUBRICATION SYSTEM, CONTROL PANEL. BOWL DIMENSIONS: 32" DIAMETER X 96" LONG. 2500 RPM.

USED ALFA LAVAL/SHARPLES XM706 STAINLESS STEEL DECANTER CENTRIFUGE. 29" DIA X 120"L BOWL. 200 HP GE DRIVE MOTOR. P-180 95:1 SHARPLES GEARBOX. 60 HP GE BACK DRIVE. RECIRCULATING OIL SYSTEM WITH HEAT EXCHANGER. CONTROL PANEL. NOTE: MISSING 200 HP GE DRIVE MOTOR.

USED RE-BUILT ALFA LAVAL/SHARPLES XM706 STAINLESS STEEL DECANTER CENTRIFUGE. 29"D x 120"L BOWL. 200 HP GE DRIVE MOTOR. P-180 95:1 SHARPLES GEARBOX. 60 HP GE BACK DRIVE. RECIRCULATING OIL SYSTEM WITH HEAT EXCHANGER. CONTROL PANEL.

USED ALFA LAVAL/SHARPLES MODEL XM706 STAINLESS STEEL DECANTER CENTRIFUGE. 200 HP DRIVE MOTOR, P180 GEARBOX, HYDRAULIC, BACK DRIVE MOTOR. LUBRICATION SYSTEM, CONTROL PANEL. BUILT 1994, S/N: 94XM70662.

REBUILT BIRD ANDRITZ DECANTER CENTRIFUGE. MODEL M2200. EQUIPPED WITH PA69 GEARBOX AND SPARE SCROLL. SCROLL MOC H5118. SCROLL MATERIAL HS188 (COBALT BASED NICKEL-CHROMIUM TUNGSTEN ALLOY). SHAFT/CASE MATERIAL 316SS. 18"DIA X 28'OAL.

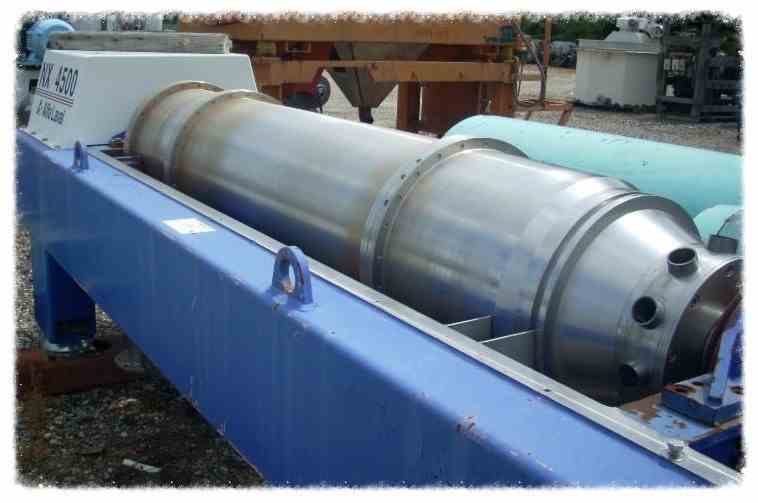

Used Alfa Laval NX4500 Decanter. Bowl size 18" X 93". All wetted parts 316 Stainless Steel. 6" Conveyor has a 6" pitch with tungsten carbide tiles for wear protection. 360 degree solids discharge with wear protection. Gearbox is a type 6.0 kNm with a 169:1 ratio. Max rpm 2900. Max temp 212 degrees F. Motor 75 hp 1770 rpm. S/N 5020512 Built 1999. Rebuilt 2005 with very little use.

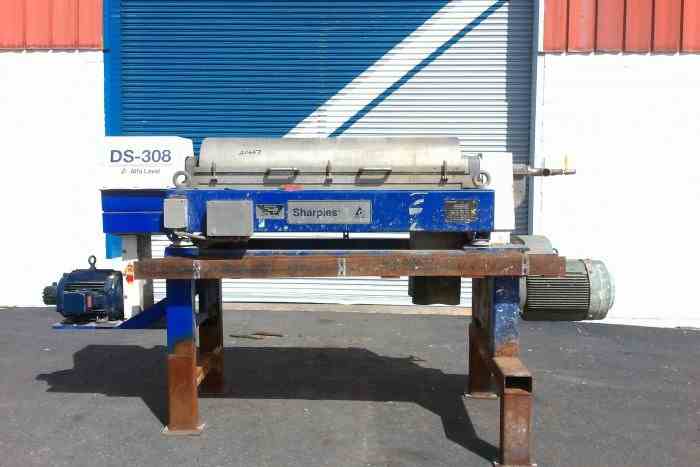

Used Alfa Laval DS308 (PM38000) horizontal solid bowl stainless steel decanter style centrifuge. Equipped with 40 main drive motor, 15 HP VFD back drive. Gearbox ratio 97:1, 3KNM. Mounted on based with control panel. Maximum bowl speed 4000 rpm, maximum solids density 1.2 kgs/dm3, minimum feed temperatur 0° C, maximum feed temperature 100°C. Electric 3 phase, 60 cycle, 230-460 volts.

Used Alfa Laval Aldec 506 horizontal decanter centrifuge. Stainless steel contact parts. Bowl diameter 17.72". Total bowl length 75.20". Max speed 3250 rpm. G force 2657 G. Contact parts T316 stainless steel. Main drive 75 hp. Back drive 15 HP. Gear box. Serial Number 5020963. Max Solids density 1.2 kg/dm3. Min feed temperature 0 degrees C (32 degrees F). Max feed temperature 100 degrees C. (212 degrees F). Overall dimensions 43.7" wide X 180.28" long X 50.04" high. Weight 4.2 ton.

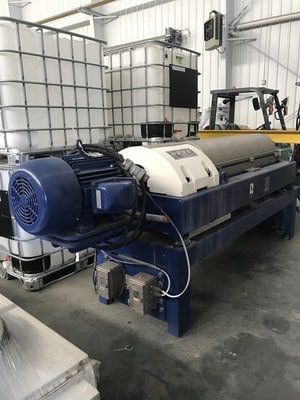

Used 14" Alfa Laval LYNX 20 400/700 316 Stainless Steel Decanter Centrifuge. 6 degree beach angle. 353mm Tungsten Carbide lined Bowl Dia x 1460mm Bowl Length. 30HP motor. Max Solids Density 1.2 kg/Cu Cm. Max Bowl Speed 4000 RPM. 316 SS conveyor and hubs. Serial #5124566-2012.

Unused Flottweg Model Z4E-3/441 horizontal tricanter centrifuge. Maximum bowl speed 4200 rpm, max.sediment density 1.6 kg/dm3, max.operating temperature 0-100 deg.C. Bowl diameter 420 mm with 1:3 D/L, capacity 77 liters, made of stainless steel grade 1.4463. Screw protected by tungsten carbide. Has SP3.10 drive with main type 180M 27 kw/3/50Hz/440V motor, and secondary type 132M 7.5kW/3/50Hz/440V motor. Nameplate has mark II 3G EEx T3. Includes control cabinet, feeding pump, spare parts, and device for measuring the water content in the feeding product. Still in original crates and reportedly never used.

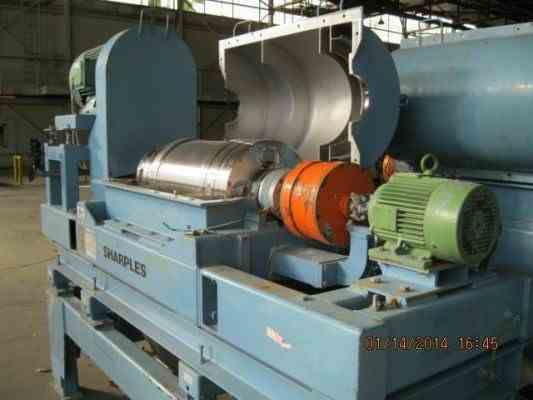

Used 14" x 30" P3000 decanter centrifuge. Manufactured by Sharples. 10 degree beach. 4000 RPM maximum bowl speed. 3180 x G maximum G-force. 100C Max operating temp. Max bulk density - 2.1g/ml. All stainless steel product contact areas. Serial #93/4071187.

Used 14" Dia Alfa Laval NX-314 decanter Centrifuge. Manufactured by Alfa Laval. 10HP 460/3ph motor. 85 deg beach. 3480 RPM. 34"L stainless steel bowl. Durex Ind 98000w heater. Mounted on skid by Dolphin Centrifuge. Controls. Serial #2961638.

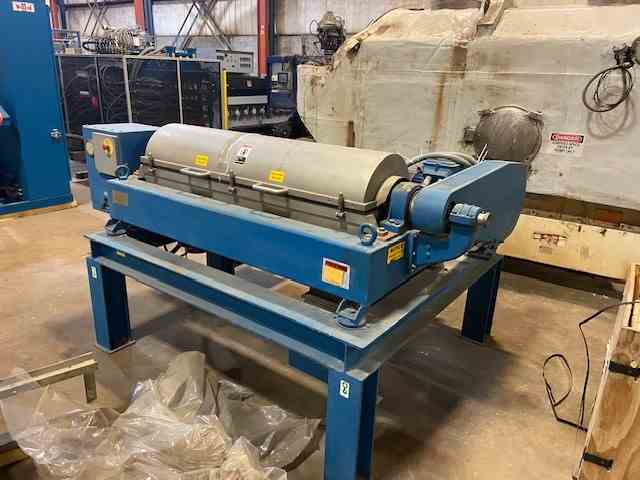

Refurbished Alfa Laval model AVNX 418B-31 316 Stainless Steel Decanter Centrifuge. 3000 RPM. Drum diameter: 353/190 mm internal. 3.6 kg/dm3 maximum sludge density & maximum rated solids loading. Serial #500-7183. Built 1987.

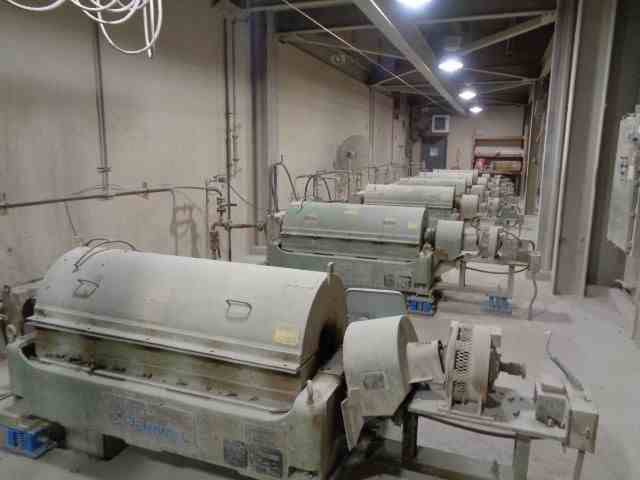

Used 14" Sharples Pennwalt PM-30000 Super-D Decanter Centrifuge. Bowl type BMPR 264/5. 316 Stainless STeel Rotating assembly and contact parts. 4000 RPM. driven by 30HP 230/460V motor and 7.5HP Eddy drive. Control panels. Spare rotating Assembly. Serial #80-PM30000-G1. Built 1988. (Qty 6 units available)

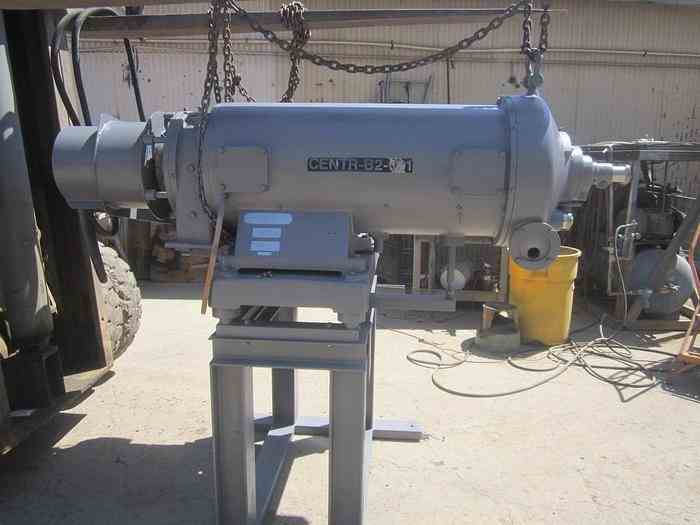

Used Westfalia model CA365-01-00 Sanitary Stainless Steel decanter centrifuge. 40 HP 230/460V, 3500 RPM motor. 7.5 kW hydraulic back drive. Control panel. Serial #1674619. Built 1982.

Used Sharples Pennwalt P3000 Hastelloy Decanter Centrifuge. Manufacturer: Sharples, Model: P3000. Type: PR-264. Serial: 87-P3400-63. 4000 rpm. Bowl has 360° solids discharge ports, eccentric liquid dams, and ribbed shell liner and grooved beach section. Conveyor is single lead with a 4" pitch. Gearbox ratio is 125:1.

Used 12" x 30" Stainless Steel Bird Solid Bowl Centrifuge, Model # ZLB1-907-00550. Built 1984. Louis Allis Motor: 25 HP; 3600 RPM; 3 Phase; 60 Cycle; 460 Volts; TEFC Type; 266 T Frame Serial # LB3514. Has a spare base and bottom housing, bearings, pulley, etc in warehouse.

Used Andritz Model D4 316 Sanitary Stainless Steel Decanter centrifuge. D4 series, type D2LC30CNV 3PH SA. 480 volt, 3 phase power. 12" diameter horizontal chamber. 20 HP motor. Stand alone control panel, Allen Bradley digital control touch screen, CIP system with tri-canter pump. Serial number 132171840. Built 2012.

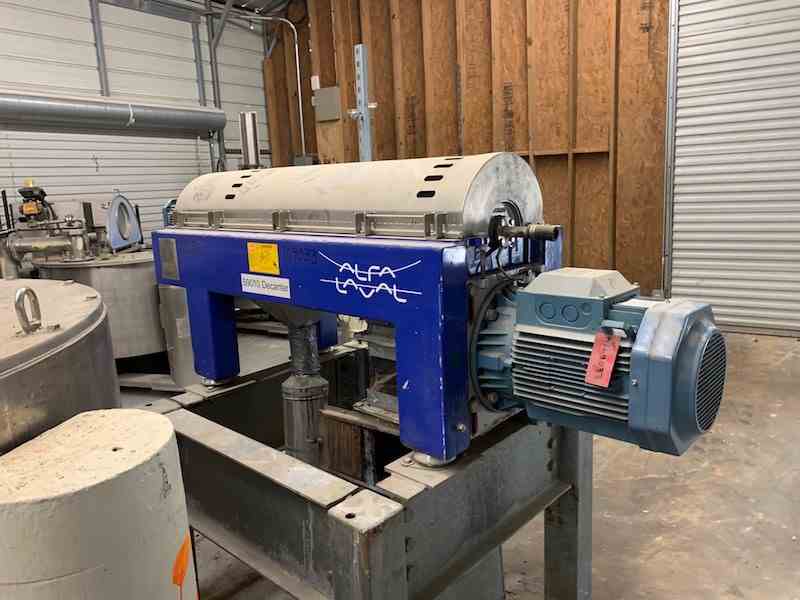

Used 8" Diameter (200mm) 316 Stainless Steel Clarifying Decanter Centrifuge. Manufactured by Alfa Laval. Model SG2-100. 15HP motor with 5HP back drive. 5300 RPM bowl. 75 lb/cu ft Max Solids density. Bowl Length 200mm x 709mm. Solids discharge 122mm. 7 liter pond volume. Controls. Serial #512236. Built 2009.

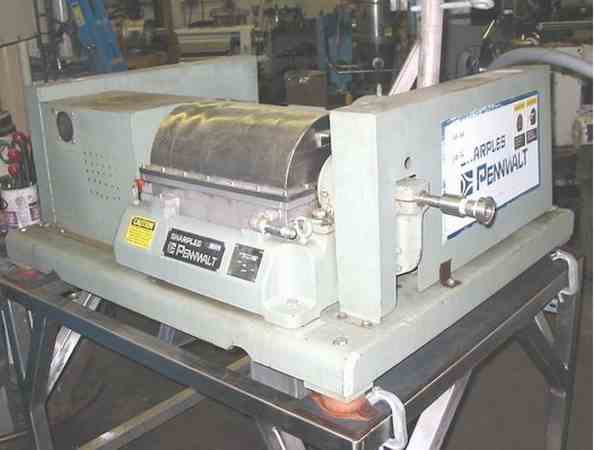

Used Sharples P660 Stainless Steel Decanter centrifuge. Main drive motor 7.5 hp 3/60/230-460 volts, fixed speed. Backdrive motor2 hp 3/60/208 230-460 volts fixed speed. 6000 rpm max speed, 98:1 gearbox. Mounted on table with vibration isolators. Serial number 82-P660-210.

USED SHARPLES MODEL PM70000 HORIZONTAL DECANTER. STAINLESS STEEL CONTACTS. 200 HP MAIN DRIVE MOTOR WITH 45 KW EDDY CURRENT BACK DRIVE. LUBRICATION PUMP SYSTEM AND SOME CONTROLS.

USED SHARPLES MODEL PM70000 HORIZONTAL DECANTER. STAINLESS STEEL CONTACTS. 200 HP MAIN DRIVE MOTOR WITH 45 KW EDDY CURRENT BACK DRIVE. LUBRICATION PUMP SYSTEM AND SOME CONTROLS.

USED SHARPLES MODEL PM70000 HORIZONTAL DECANTER. STAINLESS STEEL CONTACTS. 200 HP MAIN DRIVE MOTOR WITH 45 KW EDDY CURRENT BACK DRIVE. LUBRICATION PUMP SYSTEM AND SOME CONTROLS.
