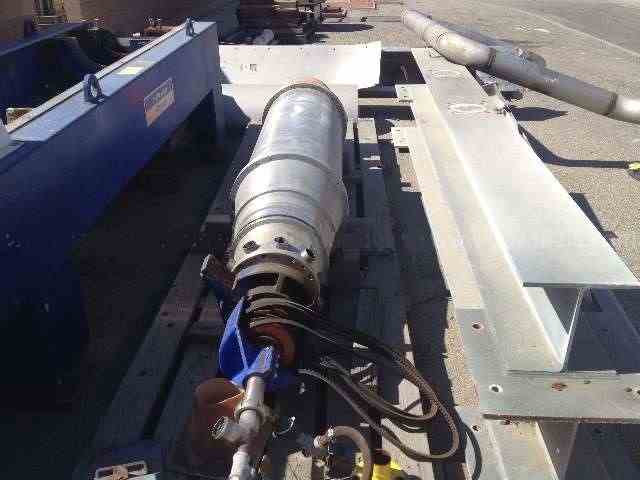

17.72 " Dia Alfa Laval  Aldec 506 Decanter Centrifuge
Other Views - click image for larger view
17.72 " Dia Alfa Laval  Aldec 506 Decanter Centrifuge 17.72 " Dia Alfa Laval  Aldec 506 Decanter Centrifuge

17.72 " dia alfa laval aldec 506 decanter centrifuge

Stock # 12941
Capacity 17.72 " Dia

Overview

Used Alfa Laval Aldec 506 horizontal decanter centrifuge. Stainless steel contact parts. Bowl diameter 17.72". Total bowl length 75.20". Max speed 3250 rpm. G force 2657 G. Contact parts T316 stainless steel. Main drive 75 hp. Back drive 15 HP. Gear box. Serial Number 5020963. Max Solids density 1.2 kg/dm3. Min feed temperature 0 degrees C (32 degrees F). Max feed temperature 100 degrees C. (212 degrees F). Overall dimensions 43.7" wide X 180.28" long X 50.04" high. Weight 4.2 ton.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Alfa Laval
Model
Aldec 506
Material
Unknown
Capacity
17.72 " Dia
Category
