Propylene (C3) Splitters: Essential Technologies for High-Purity Production and Efficiency

Overview

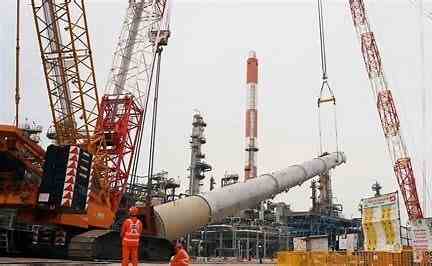

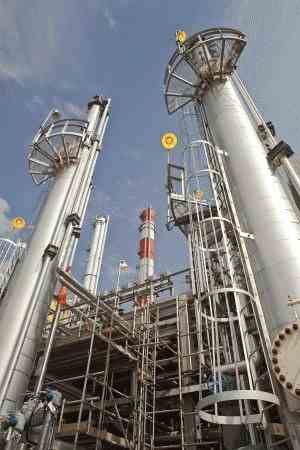

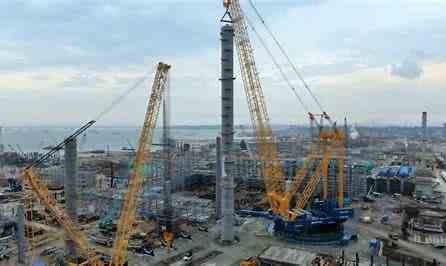

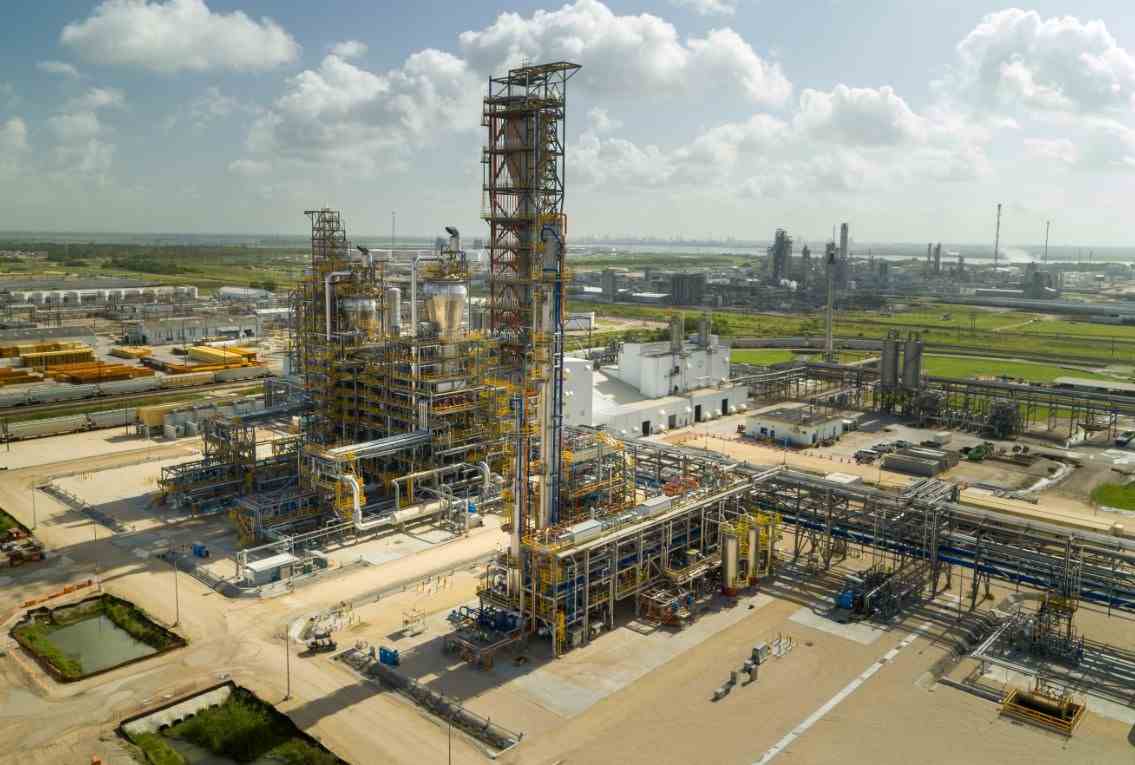

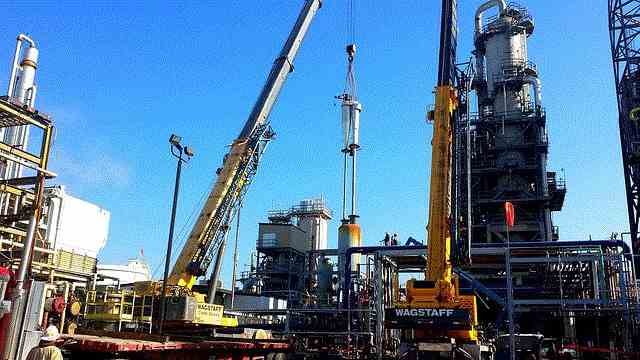

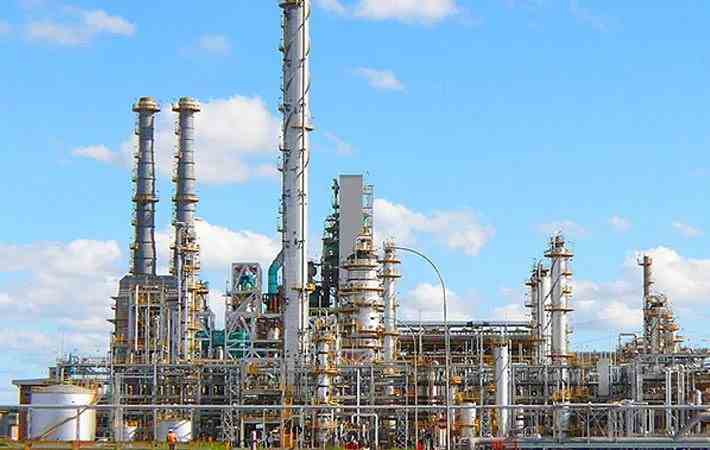

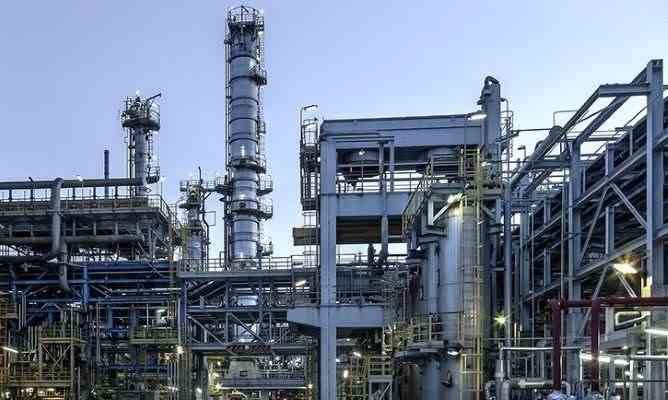

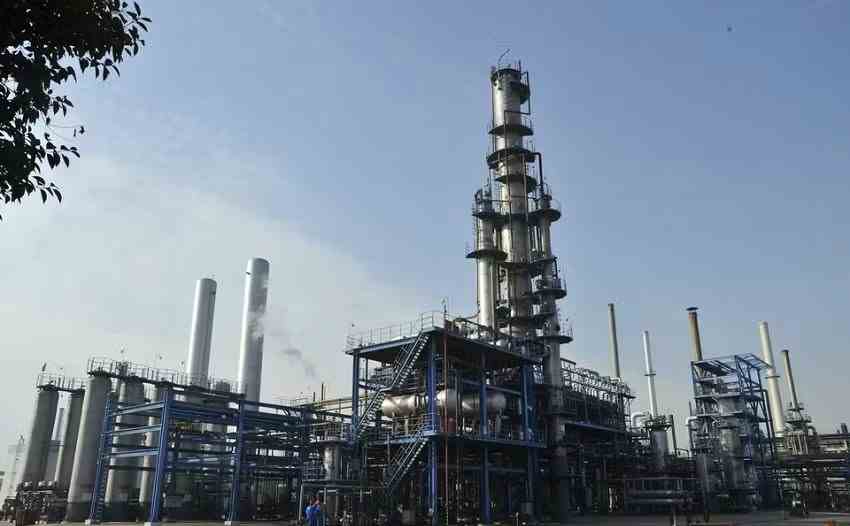

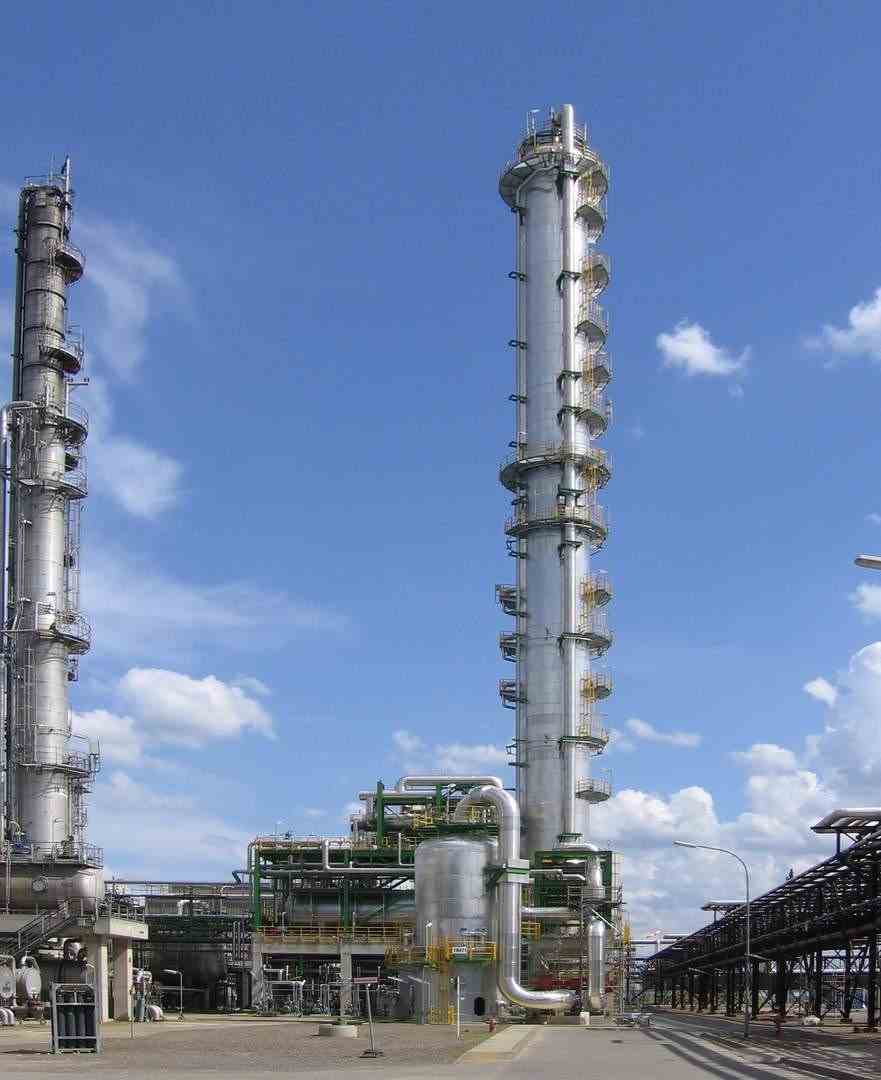

A propylene splitter is a large distillation column used in the petrochemical industry to separate propylene (C3H6) from propane (C3H8). It is also called C3 splitter. Both propylene and propane are hydrocarbons with similar molecular weights and boiling points, but they serve very different purposes and have distinct chemical properties. The main goal of a propylene splitter is to produce high-purity propylene, which is an essential raw material for the production of polypropylene and other chemical products.

The splitter relies on fractional distillation, where a feed mixture containing both propane and propylene enters the column. Through heating and distillation, propane and propylene separate based on their boiling points. Propylene splitters are typically very tall, as the height helps achieve the desired separation purity through multiple trays or packing sections.

Several technologies are used to enhance the efficiency of propylene splitters, making the process more economical and energy-efficient due to the high energy demands involved. Some of the main technologies include:

1. Heat-Integrated Distillation

Description: This method integrates heat exchangers within the distillation process to recycle energy, reducing overall heating and cooling requirements.

Types:

Dividing-Wall Columns (DWC): Uses a physical partition to enable more efficient separation in a single column instead of two.

Heat-Pump Assisted Distillation: A compressor is used to increase the energy of vapor leaving the column, which is then used to reheat the bottom, reducing reboiler duty.

Benefits: Reduces energy costs significantly and minimizes the number of columns required for the same separation.

2. Membrane Separation

Description: Utilizes specialized membranes that selectively allow either propylene or propane to permeate, separating them based on molecular size and structure differences.

Benefits: Although not a full replacement for distillation, membrane separation can reduce the load on the distillation column, leading to energy and cost savings.

Limitations: Membranes are often sensitive to fouling and might not achieve the ultra-high purity levels needed for some applications, so they are typically used as a pre-separation step.

3. Adsorptive Separation

Description: Uses materials like zeolites or metal-organic frameworks (MOFs) that selectively adsorb propylene over propane.

Benefits: Offers high selectivity, can be effective for certain applications, and is an alternative to thermal distillation.

Limitations: Adsorbent materials can be costly and may require periodic regeneration, which adds complexity to the operation.

4. Cryogenic Distillation

Description: Uses low temperatures to exploit the slight difference in boiling points between propane and propylene.

Benefits: Achieves very high purity for both propane and propylene.

Limitations: Extremely energy-intensive due to the need for refrigeration at very low temperatures.

5. Hybrid Systems

Description: Combines multiple methods, such as membranes with distillation or adsorption with heat integration, to maximize efficiency and flexibility.

Benefits: Provides higher separation efficiency, flexibility in operations, and potential energy savings.

The following is an example of an advanced technology utilized in real production.

Distillation Process by Linde Engineering

Linde Engineering uses advanced distillation technologies in its propylene splitter systems to enhance the separation efficiency of propane and propylene. One of their notable setups includes a multi-column process involving a dryer, a stripper, and a splitter, designed to maximize purity while reducing energy consumption. These systems can process both refinery-grade and chemical-grade propylene, with specific feed trays in the splitter column to optimize feed entry points based on quality. Additional purification steps, including regenerative treatment, help achieve high-purity propylene essential for downstream applications like polypropylene production.

By leveraging proprietary designs and equipment like efficient trays and packing materials, Linde Engineering's technology improves separation efficiency in large-scale operations, offering more stable and energy-efficient production compared to traditional single-column splitters. This approach ensures that propylene purity levels can reach up to 98.25%, while propane is effectively removed and sent for other uses or storage. For large-scale industrial applications, this high-efficiency distillation method can be crucial for minimizing operating costs and maximizing product purity?

References

Stock# 586
Plant Subcategory Polypropylene (PP) Plants
