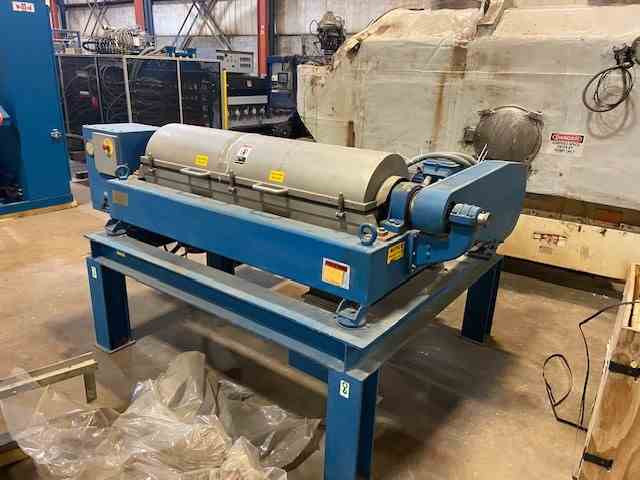

18 " Dia Alfa Laval DS308 Stainless Steel Decanter Centrifuge
Other Views - click image for larger view
18 " Dia Alfa Laval DS308 Stainless Steel Decanter Centrifuge

18 " dia alfa laval ds308 stainless steel decanter centrifuge

Stock # 14502
Capacity 18 " Dia

Overview

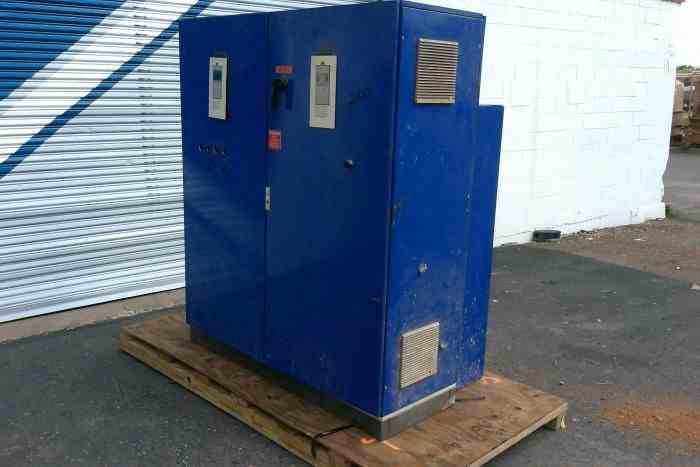

Used Alfa Laval DS308 (PM38000) horizontal solid bowl stainless steel decanter style centrifuge. Equipped with 40 main drive motor, 15 HP VFD back drive. Gearbox ratio 97:1, 3KNM. Mounted on based with control panel. Maximum bowl speed 4000 rpm, maximum solids density 1.2 kgs/dm3, minimum feed temperatur 0° C, maximum feed temperature 100°C. Electric 3 phase, 60 cycle, 230-460 volts.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Alfa Laval
Model
Alfa Laval DS308
Material
Stainless Steel
Capacity
18 " Dia
