Home » Equipment » Pressure Vessels » Carbon Steel (horizontal)
Phoenix Equipment buys and sells unused, used and reconditioned Air Handlers.

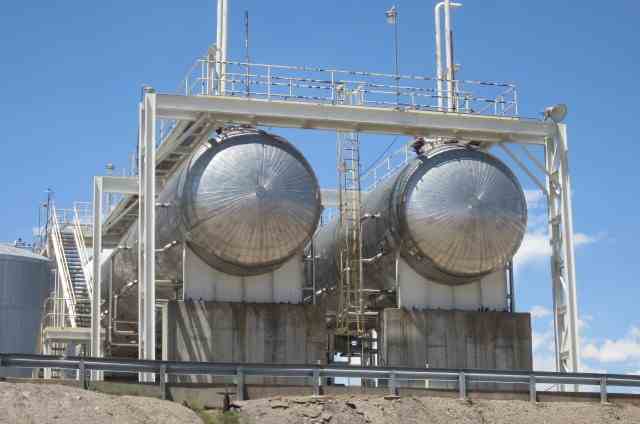

Used 65,000 gallon horizontal carbon steel pressure vessel (bullet tank), built by Eaton Metal Products. Rated 300 psi @ 120F. Shell – 1.47” thick; Heads – 1.46” thick. Serial # 8908, National Board # 790, Built 1990. Previous Use: Ammonia storage. Shipping dimensions - 13' wide x 17' high X 75’ OAL, Weight 196,000 lbs.
Used 60000 gallon Carbon Steel Horizontal Pressure Vessel. Mfg KNM Process Systems SDN BHD. MAWP 50PSI@450F. 100' x 10'D. Dished ends. (3) Saddle Mounted. Serial #KNMU-56G. National Board #84. Built 2012. Quantity (2) Available.
Used 9000 gallon carbon steel horizontal pressure vessel. Manufactured by Pressure Products. 66" ID x 50' Length. Rated 325 psi @125F. Asmed Sec 8 coded, National Board #3577. Serial #113918. Built 2010. Dismantled and ready for shipment. Previous use: Slug Catcher.
Used 6844 gallon carbon steel propane receiver tank. Manufactured by Toromont Energy Systems Inc. MAWP 300/FV psi @250F. 72" Diameter x 356"T/T. Dished ends. (2) saddle mounted. Serial #23027-401. National Board #1425. Built 2007. Previous use in hydrocarbon dew point control plant, propane receiver.
Unused 2457 Gallon Carbon Steel Pressure Vessel. Mfg Praj Industries. MAWP 14 PSI@266F. 5'11"D x 10'L. Dished Heads. (2) CS Saddles. Serial #06d058-T1504Built 2008
Used 1728 Sq Ft Roark Enterprises Carbon Steel Horizontal Tank. Dimensions: 4' ID x 18' St. Side w/ Dished Heads and mounted on 2 saddles. Tank rated 165 psi @ 260 F, Shell Material SA-516-70, 0.375" thick. Serial #84072, National Board #3, Built 1984. Estimated Weight -- 5400#. Previous Use: Ethylene Oxide.
USED 1032 GALLON HORIZONTAL CS PRESSURE VESSEL RATED 1400 PSI @ 150 DEG.F. 42" DIA. X 12' STRAIGHT SIDE. NOZZLE IN/OUT: 16". SHELL MATL: CS/515-70. MFG BY: CUSTOM VESSEL CO, YR: 1987. S/N: 87-326; NB: 148. Weight: 19,950 LBS. CODE PAPERS ON FILE.
Used 504 Gallon Carbon Steel Horizontal Pressure Vessel. Mfg Henry Technologies. Rated 350 PSI @ 200F. 174"OAL x 30"OD. (2) saddle mounted. Serial #C350130H-1. National Board #26438. Built 2015. Weight 2800Lbs.
Used 400 Gallon Carbon Steel High Pressure Vessel, Rated 2000 PSI @ 300 deg. F. 22" ID x 23'L. Each end has a 8" 1500# flange. Other shell openings:(4) 1" 1500# flg; (2)3" 1500# flg. Qty. (6) available.
Fill out our quick and easy quote form for more information about our Air Handlers inventory.
