1692 Gal Roarke Enterprises  Inc. Horizontal Carbon Steel Pressure Vessel
Other Views - click image for larger view
1692 Gal Roarke Enterprises  Inc. Horizontal Carbon Steel Pressure Vessel 1692 Gal Roarke Enterprises  Inc. Horizontal Carbon Steel Pressure Vessel 1692 Gal Roarke Enterprises  Inc. Horizontal Carbon Steel Pressure Vessel

1692 gal roarke enterprises inc. horizontal carbon steel pressure vessel

Stock # 7727
Capacity 1692 Gal

Overview

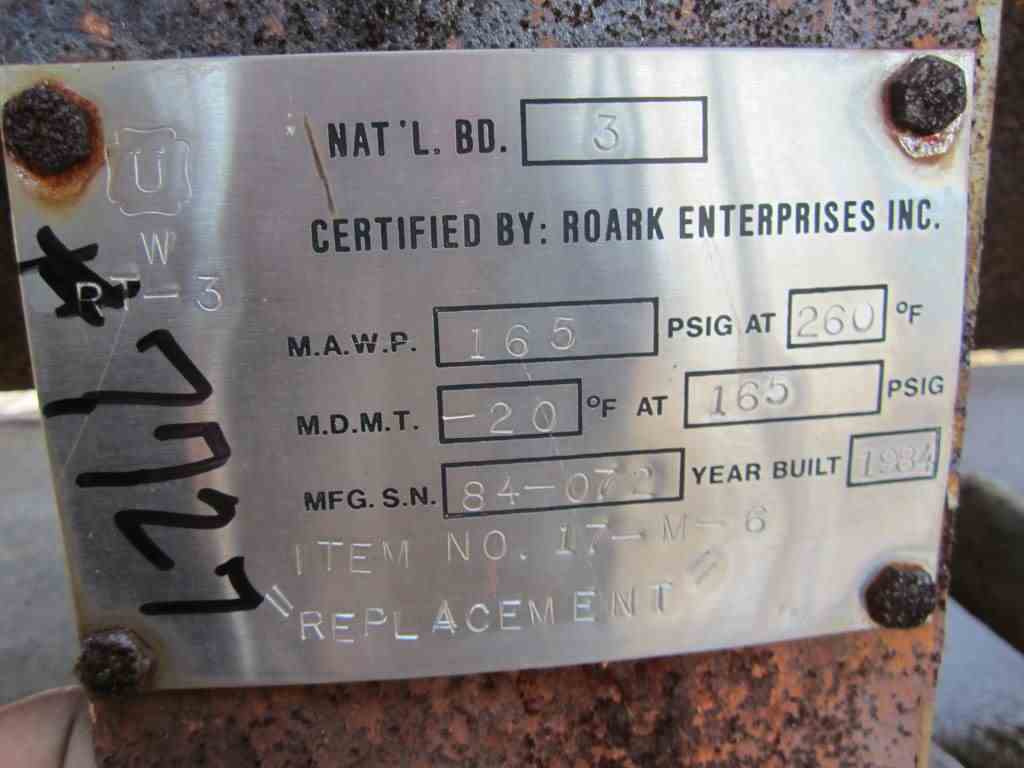

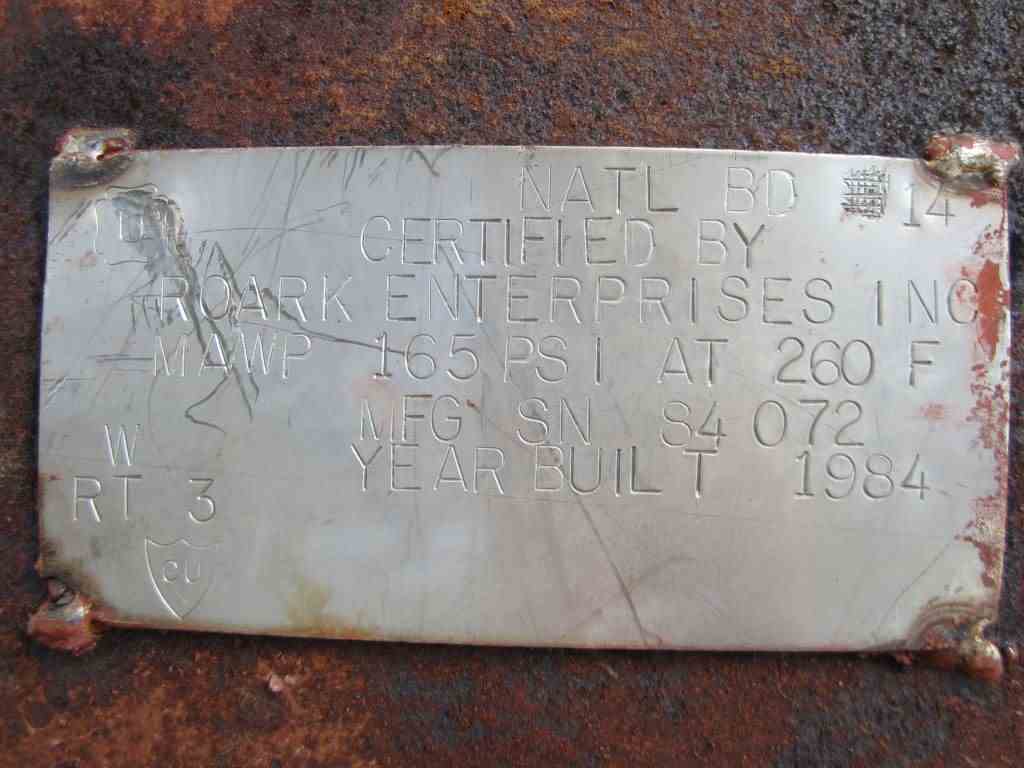

Used 1728 Sq Ft Roark Enterprises Carbon Steel Horizontal Tank. Dimensions: 4' ID x 18' St. Side w/ Dished Heads and mounted on 2 saddles. Tank rated 165 psi @ 260 F, Shell Material SA-516-70, 0.375" thick. Serial #84072, National Board #3, Built 1984. Estimated Weight -- 5400#. Previous Use: Ethylene Oxide.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
Roarke Enterprises, Inc.
Model
na
Material
Carbon Steel
Capacity
1692 Gal
