Positve Displacement Pumps

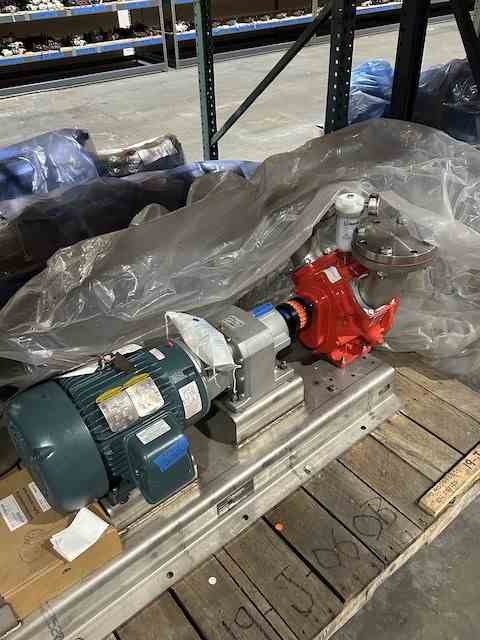

Unused 100gpm Horizontal DAF Float Transfer Rotary Lobe Pump. Mfg Vogelsang. Model IQ112-114. 100 gpm @ 88' head. Casing: 316LSS. Impeller: 316LSS. 7.5 HP motor.

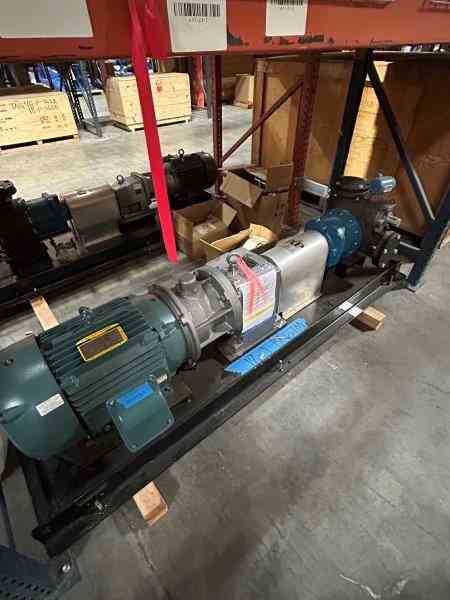

Unused 40HP Horizontal Positive Displacement Gear Pump. Mfg. by Blackmer (DXP). Model #MS4. Spur 3 Bio-Diesel Blend Component Unloading Pump. 500 gpm. 12.07' head; 70.6 psig. 160 deg. F. Casing: SS; Vance: Duravane Composite. 4" suction, 4" discharge. 3.30:1 gear ratio. Serial #2373995.

Used 30 HP Stainless Steel Positive Displacement/Rotary Lobe Pump. Manufactured by Waukesha Cherry Burrell. Model 220U2. 1755 rpm. Mounted in Stainless Steel frame, Stainless Gear case. 4". 230/460 volt motor into gear reducer. Previously used Sanitary Food Plant. Serial #369823-04

Unused 25HP positive displacement pump. Manufactured by Gardner Denver. Model GAFMCRD. Sutorbilt Legend series. Inlet/outlet 4". Capacity 292 CFM @11PSIG. Sound Attenduating enclosure. 45" x 45" x 48" tall. Serial #S37810. Built 2011.

Used 20HP Knoll Progressive Cavity Pump, Model MX50S-80/20, 316 Stainless Steel. Capacity 6,000 GPH. Revolutions 205 rpm. Stator EVEN WALL 80/20. Standard rotor. Suction housing 4" tri-clamp, discharge nozzle 4" tri-clamp, CIP nozzle 3" tri-clamp. Driven by approximate 22kW, 3/60/230/460 volt motor. Last running orange pulp. Built 2013.

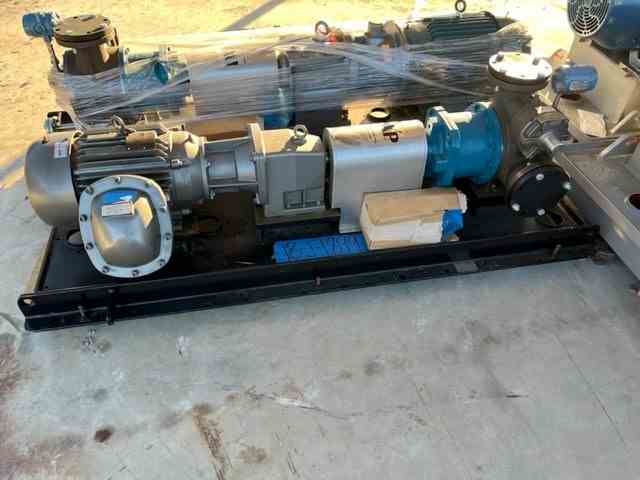

Unused 15 HP Stainless Steel Horizontal Positive Displacement Gear Pump. Mfg. by Blackmer (DXP). Model #MS4. 230 gpm. 5.47' head, 51.5 psi differential pressure. 160 deg. F. Casing 17-4PH Stainless Steel; Vance: Duravane Composite. 4" suction, 4" discharge. 6.65:1 gear ratio. 15 hp motor.Serial #2373994. Rail Unloading Pump.

2015 SPX 15 hp Positive Displacement Pump, M/N 220 U1, S/N 3034802 R2-9, with Aprox. 4" Thread Type Inlet/Outlet, with Baldor 1765 RPM Motor (LOCATED IN CHAMPAIGN, IL)

WCB 15 hp Positive Displacement Pump, M/N 130, S/N 276659, with Reliance 1755 RPM Motor, 230/460 Volts, 3 Phase, Mounted on S/S Frame (LOCATED IN CHAMPAIGN, IL)

2015 SPX 10 hp Positive Displacement Pump, M/N 130U1, S/N 3028336 R2-3, with Reliance 1755 RPM Motor, 208-230/460 Volts, 3 Phase (NOTE: Missing Pump Head & Impellers)

WCB 10 hp Positive Displacement Pump, M/N 130, S/N 356315 04, with Baldor 1770 RPM Motor, 208-230/460 Volts, 3 Phase

UNUSED POSITIVE DISPLACEMENT SINE (SINUSOIDIAL) CURVE PUMP BY MASO PROCESS PUMPS (GERMANY) TYPE (MODEL) SPS-6, SERIAL # 99711748. FEATURES 316 STAINLESS STEEL AND POLYMER CONSTRUCTION MEETING 3A SANITARY STANDARDS, 6" INLET x 4" OUTLET WITH 11" EIGHT BOLT FLANGED CONNECTION @ INLET AND 9" EIGHT BOLT FLANGED CONNECTION @ OUTLET, MOUNTED ON STATIONARY PAINTED BASE WITH 10 HORSEPOWER IN LINE GEAR DRIVE BY SEW EURODRIVE INC. USA, 22.37 TO 1 IN LINE GEAR REDUCER DIRECTLY COUPLED TO PUMP PRODUCES PUMP SPEED OF 78 RPM YIELDING 51.5 GPM (MAX GPM 396 @ 600 RPM), 230/460/ 3 PHASE VOLTAGE, 25/12.5 AMPS, 24" WIDE x 66" BASE STATIONARY FLOOR MOUNT BASE. FROM PHARMACEUTICAL FACILITY.

Used 2.5" hose pump/7.5 horsepower by Motorvario Motor (Italy) directly coupled to pump with Motorvario 33. 72 to 1 gear reducer for final pump rotor speed of 51. 9 rpm, estimated gpm @ . 76 per revolution is 38, voltage 208-230/460/3 phase, 60 hz, amps 22. 5/21. 5/12. 4, 1740/1750/1760 rpm, four bolt 7" diameter companion flanges at inlet and outlet reduced to 2. 5" and 2" tri clamp connections, pump housing can mount in any of four positions to accommodate application, painted steel construction with vibration dampening floor feet, pump rotor contained in lubricant filled housing with view window and fluid sight glass.

Used MOYNO Pump, Model 1FF10 SSV, Trim FAE. 4" Inlet/outlet with sanitary connections. Rated approx. 60 to 130 GPM and up to 87 PSI. Mounted on base with SEW Drive. 7.5 HP, 1765 RPM, 460 volt motor into Gear reducer model R70LP, 4.16:1 ratio. (Qty 2 available)

Waukesha Cherry-Burrell 7.5 hp Positive Displacement Pump, M/N 060, S/N 253845, with Baldor 1760 RPM Motor, with Aprox. 3" Clamp Type Inlet/Outlet, 230/460 Volts, 3 Phase (LOCATED IN CHAMPAIGN, IL)

Waukesha 7.5 hp Positive Displacement Pump, M/N 130, S/N 145 321 P1-0, with Baldor 1770 RPM Motor, 208-230/460 Volts, 3 Phase, with Aprox. 3" Clamp Type Inlet/Outlet, Mounted on S/S Frame

2012 Waukesha Cherry-Burrell 7.5 hp Positive Displacement Pump, M/N 130 U1, S/N 2739115R2, with Reliance 1765 RPM Motor, 208-230/460 Volts, 3 Phase (LOCATED IN CHAMPAIGN, IL)

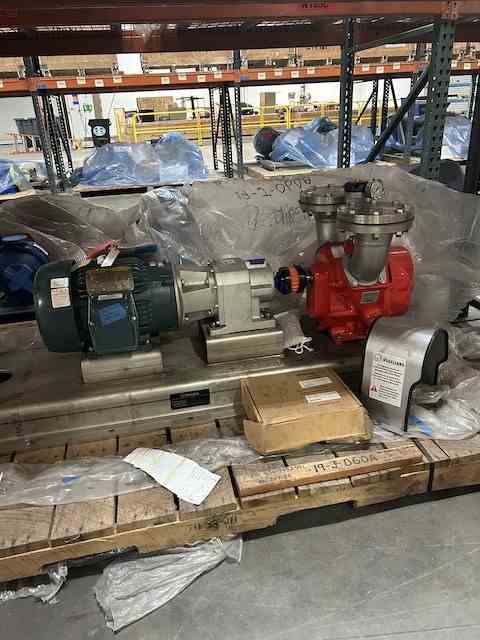

Unused 7.5HP Horizontal DAF Float Transfer Rotary Lobe Pump. Mfg Vogelsang. Model IQ112-114. 100 gpm @ 88' head. Casing: 316LSS. Impeller: 316LSS. 7.5 HP motor.

2019 SPX 5 hp Positive Displacement Pump, M/N 130 U1 R2, S/N 1000003762586, with Reliance 1750 RPM, 208-230/460 Volts, 3 Phase, Mounted on S/S Frame (LOCATED IN CHAMPAIGN, IL)

SPX 1.5 hp Positive Displacement Pump, M/N 030 U1, S/N 1000003000409, with Baldor 1755 RPM Motor, 208-230/460 Volts, 3 Phase, Mounted on S/S Frame

Used Watson Marlow Model 620N Peristaltic Pump with STA-PURE tubing, Same side inlet outlet. NEMA 4X IP66.

WCB Positive Displacement Pump Head, M/N 060, S/N 043168 06 (NOTE: Missing Head, Rotors, & Motor)(LOCATED IN CHAMPAIGN, IL)

Waukesha Positive Displacement Pump, M/N 130, S/N 276659 00, with S/S Head, with Reliance 3510 RPM Motor, 208-230/460 Volts, 3 Phase (LOCATED IN CHAMPAIGN, IL)

Used Portable Rotary Lobe Pump. Manufacuted by ProcessFlo. Serial #1004274

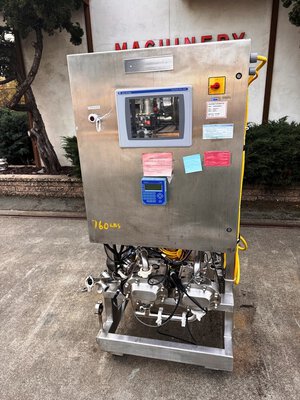

Used Dual-station pump system featuring two SPX/Waukesha 030 U2 positive displacement pumps. Top feed and bottom discharge with 1.5” tri-clamp connections. Mounted on a stainless steel cart. Driven by 1 HP Baldor washdown motors (208-230/460V, 1760 RPM, 3-phase). Includes Allen-Bradley touchscreen control and Mettler Toledo Thornton 770 digital controller. Last used in pharmaceutical operations.

Used Progressive cavity pump, manufactured by Lenze, type 11.740.04.00, stainless steel contacts, 1-1/2" inlet/outlet, driven by 0.55kw (3/4 HP) motor. Serial number 6/7006/1014. Good condition.
