10 HP UNUSED MASO SS Positive Displacement Pump
Other Views - click image for larger view
10 HP UNUSED MASO SS Positive Displacement Pump 10 HP UNUSED MASO SS Positive Displacement Pump 10 HP UNUSED MASO SS Positive Displacement Pump

10 hp unused maso ss positive displacement pump

Stock # 12043
Capacity 10 HP

Overview

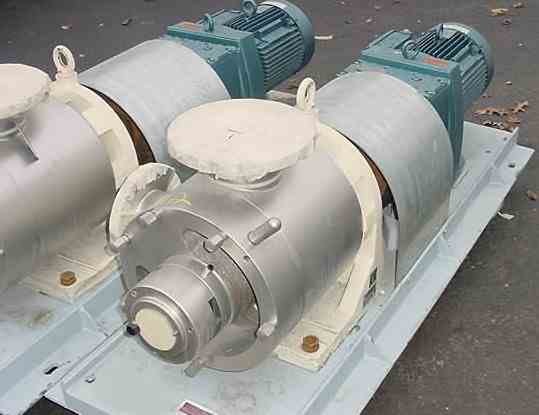

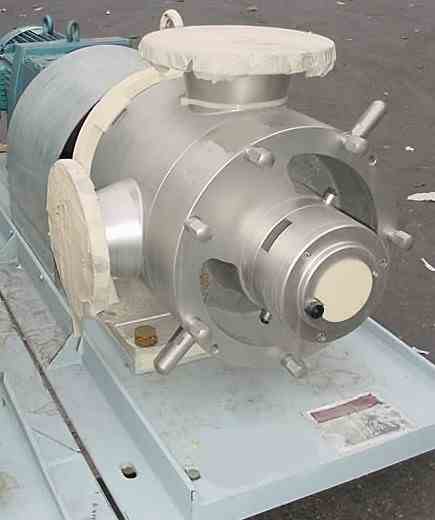

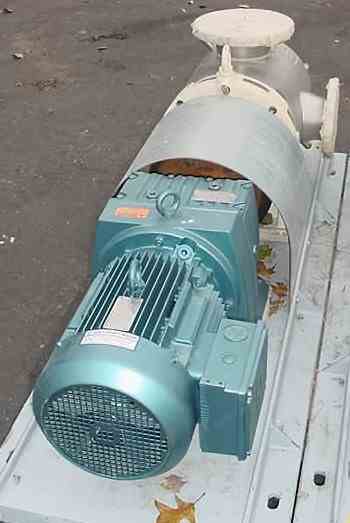

UNUSED POSITIVE DISPLACEMENT SINE (SINUSOIDIAL) CURVE PUMP BY MASO PROCESS PUMPS (GERMANY) TYPE (MODEL) SPS-6, SERIAL # 99711748. FEATURES 316 STAINLESS STEEL AND POLYMER CONSTRUCTION MEETING 3A SANITARY STANDARDS, 6" INLET x 4" OUTLET WITH 11" EIGHT BOLT FLANGED CONNECTION @ INLET AND 9" EIGHT BOLT FLANGED CONNECTION @ OUTLET, MOUNTED ON STATIONARY PAINTED BASE WITH 10 HORSEPOWER IN LINE GEAR DRIVE BY SEW EURODRIVE INC. USA, 22.37 TO 1 IN LINE GEAR REDUCER DIRECTLY COUPLED TO PUMP PRODUCES PUMP SPEED OF 78 RPM YIELDING 51.5 GPM (MAX GPM 396 @ 600 RPM), 230/460/ 3 PHASE VOLTAGE, 25/12.5 AMPS, 24" WIDE x 66" BASE STATIONARY FLOOR MOUNT BASE. FROM PHARMACEUTICAL FACILITY.

Share
SPECIFICATIONS TERMS & CONDITIONS
Manufacturer
MASO Process Pumps
Model
SPS-6
Material
SS
Capacity
10 HP
