Rotary Steam Tube Dryers

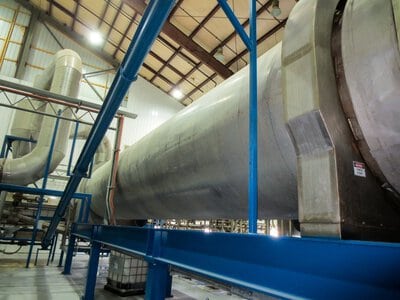

Used 144" Diameter Stainless Steel Rotary Steam Tube Dryer. Mfg Davenport. Dimensions 12'OAD x 65'OAL. Shell 304 Stainless Steel. Internal material 316 SS. Rated 175 PSI @400F. 14275 Sq Ft Heat transfer area. Built 1997.

Unused 136" Dia Rotary Steam Dryer. Mfg Louisville Dryer Co. Overall 136"D x 60'L. Screw fed. Feedstock: Hemp. Feed rate 22620 lb/hr @75% moisture. 150 PSIG Dry saturated steam pressure. product rate 5952 lb/hr @5% moisture. Driven by 480V TEFC motor with Gear reducer. (2) 100HP Exhaust Fans. Spare trunnion, pinion, and thrust roll assemblies, Reducer and Kevtex discharge belt seal.

Used Rotary Counter Flow Steam Tube. Shell & tube: 304 stainless steel. 104” OD x SCH.10. Pitch 0 DEG to 32 DEG. 46’9 O.A.L. 30HP motor, 349 RPM. Batch capacity: 80,000 lbs./hr. Shell rated for 1 ATM of pressure @ 370F. Tube rating 175PSIG @ 370F. Steam Rating: 130PSIG. Manufactured by Davenport. Previous Use: PTA Dryer.

Used Steam Tube Dryer. Coal flow 5190 lb./hr. 54” Shell ID. 326” length. Tubes (18) 4” Sch. 80, (18) 2.5” Sch. 160. Heat medium steam 412F. Medium flow-rate 2205 lb./hr. / Max. 4409 lb./hr. Heat Duty 1.71 MMBTU/H. Shell material SA-516 GR70. Tubes material A-106B. Design Pressure 320 PSIG. Design Temp. 400 F / 455 F. Rated Power: 30 HP Variable Speed Drive. Includes #L-202 Dryer Inlet Screw Conveyor. H-screw feeder. Rota speed 25 RPM. Feeder Dia./Length 9 IND/ -INL. Rated Power 1 HP. Heat transfer area 1025 sq. ft. Dryer slope 1:100. ½” Thick Shell. Mfg. by Tsukishima (Louisville). Built in 2013.

Used Rotary Water Tube Quencher. 38” W x 30’0” L. Coal flow 2,750 LB/HR. Design Pressure 4 INWG (shell) / 85 PSIG (tube). Design Temperature 340 F (shell) / 140 F (tube). Rated 10 HP Variable Speed Drive. Included L-401 Quencher 2 Inlet Screw Conveyor, Max Shell Rotation Speed 10 RPM. Shell Slope 1:100. Heat Transfer Area 495 Sq. Ft. ½” Thick Carbon Steel Shell. Outer Tubes (14) 4” Sch. 80 CS (4.5” OD x 0.337” Thick). Inner Tubes (14) 2.5” Sch. 40 CS (2.875” O.D. x 0.203” Thick).

Used 36" Diameter X 15' Long Stainless Steel Hardinge Rotary Steam Tube Dryer, With 15 Tubes. Approximately 10 Hp, 3 Phase, 60 Cycle, 230-460 Volt. Mounted On Steel Frame With Trunnons. Note: Unit Missing gear guard & burner. Previous use: Chemical.
