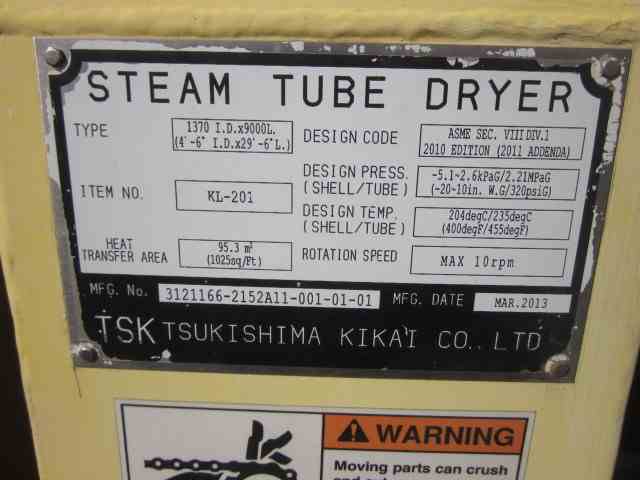

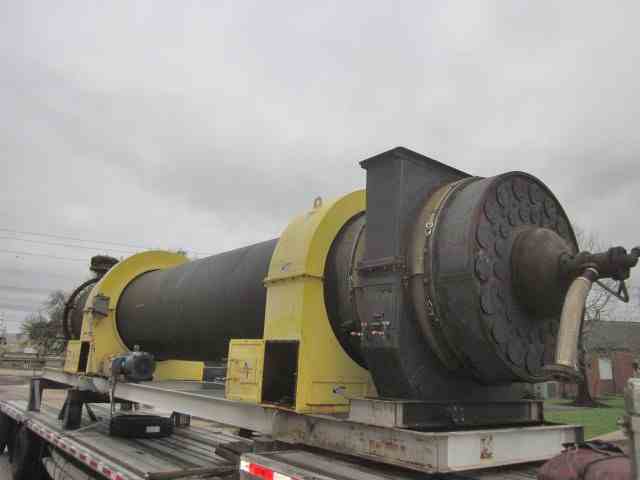

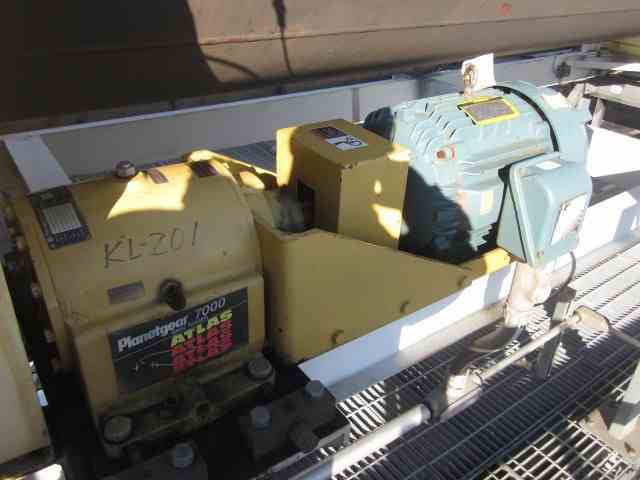

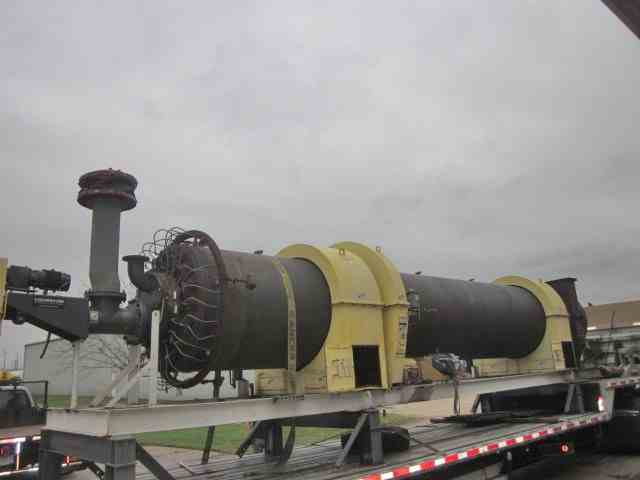

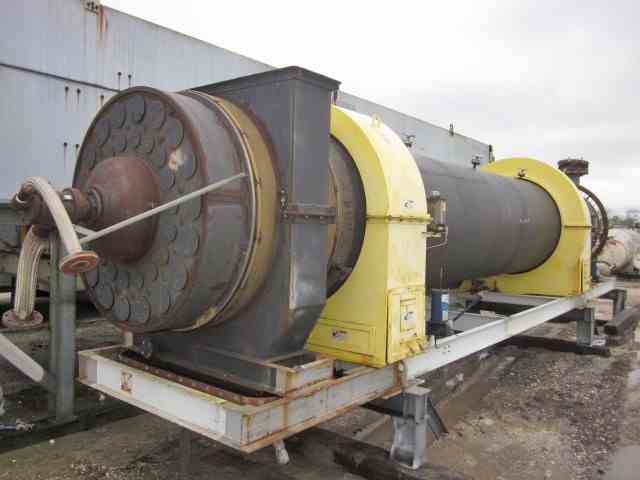

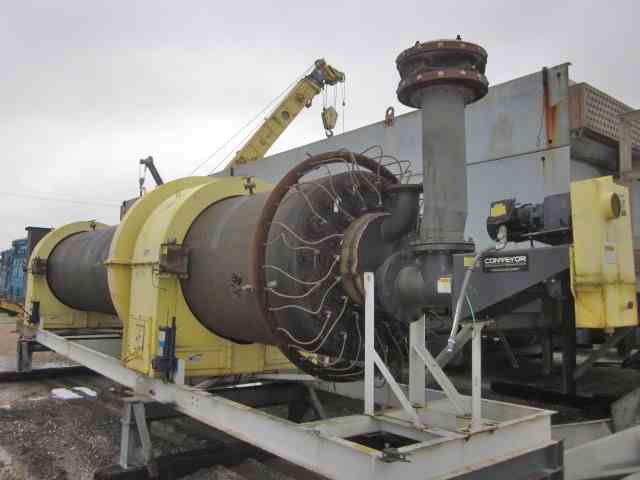

Used Steam Tube Dryer. Coal flow 5190 lb./hr. 54” Shell ID. 326” length. Tubes (18) 4” Sch. 80, (18) 2.5” Sch. 160. Heat medium steam 412F. Medium flow-rate 2205 lb./hr. / Max. 4409 lb./hr. Heat Duty 1.71 MMBTU/H. Shell material SA-516 GR70. Tubes material A-106B. Design Pressure 320 PSIG. Design Temp. 400 F / 455 F. Rated Power: 30 HP Variable Speed Drive. Includes #L-202 Dryer Inlet Screw Conveyor. H-screw feeder. Rota speed 25 RPM. Feeder Dia./Length 9 IND/ -INL. Rated Power 1 HP. Heat transfer area 1025 sq. ft. Dryer slope 1:100. ½” Thick Shell. Mfg. by Tsukishima (Louisville). Built in 2013.
